16-Bay Fiber Converter Chassis System

TFC-1600 (Version v1.0R)

  • 16 bay SNMP supported (with TFC-1600MM), hot swappable fiber chassis
  • Expand the fiber chassis with your networking needs
  • Zero downtime with optional redundant power supply (TFC-1600RP)
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
DISCONTINUED PRODUCT
The TFC-1600 (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

TRENDnet's TFC-1600 16-slot EIA-19" Rack-Mount Chassis System provides housing for up to 16 TFC series media converters. Designed for continuous operation, the chassis is equipped with dual cooling fans and redundant power supplies (optional). Its Plug-and-Play and Hot-Swap features allow installing/removing the converter unit without powering off the chassis. TFC-1600 rack-mount chassis eliminates the external power adapters for TFC series media converters and organizes multiple converters in a single unit, which makes it the perfect solution for managing multiple TFC series converters.

Hardware
Capacity:
  • 16 slots for housing up to 16 TFC series media converters
Management Ports:
  • 1 x 10/100Mbps Fast Ethernet RJ45 and 1 x RS-232
Management Protocol:
  • SNMP(RFC1157), ARP(RFC826), IP(RFC791), ICMP(RFC792), UDP(RFC768), TCP(RFC793), TFTP(RFC783), Telnet(RFC854), BOOT(RFC951), MIB II (RFC1213)
Diagnostic LEDs:
  • Power x 2, In Use x 2, Fan Fault x 2
Power:
  • One power supply; optional second power supply
Input:
  • AC 100 ~ 240 VAC. Power Consumption: 150 watts max.
Power Overload Protection:
  • All outputs protected from short circuit condition with automatic recovery
  • Single cooling fan (internal) mounted at the rear panel
Housing:
  • Steel sheet metal
Dimensions:
  • 440 x 390 x 89 mm (17.3 x 15.4 x 3.5 inches)
Weight:
  • appr. 7Kg (15.4 lbs) (with one power supply)
Temperature:
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 50° C (14° ~ 122° F)
Humidity:
  • Operating: 10% ~ 90%;
  • Storage: 5% ~ 90% (no-condensing)
Certifications:
  • FCC, CE, VCCI

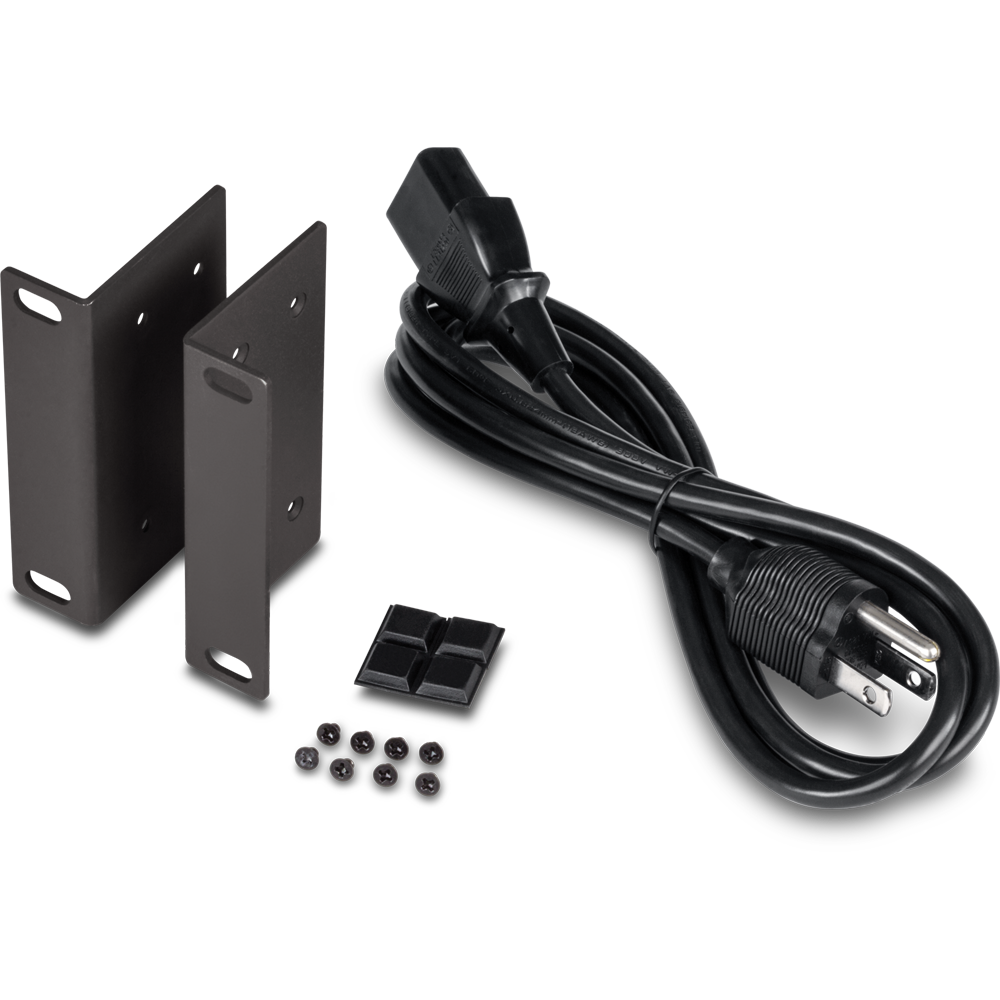

PACKAGE CONTENTS
  • TFC-1600
  • Quick Installation Guide
  • Power cord
  • Mounting Brackets

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
