7-Port Multi-Gig PoE+ Switch

TPE-TG327 (Version v1.0R)

  • 5 x 1G RJ-45 PoE+ ports
  • 2 x 2.5G RJ-45 PoE+ ports
  • 70W PoE power budget
  • Compatible with existing Cat5e or better cabling
  • 2.5G ports are backwards compatible with 100/1000Mbps devices
  • Fanless design for silent operation
  • Easy installation, no configuration required
  • Supports IEEE 802.3af/at
  • IEEE 802.3bz (2.5G) compliant
  • 20Gbps switching capacity
  • Wall mountable
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

Price: $87.99
Quantity:
Wishlist

TRENDnet’s 7-Port Multi-Gig PoE+ Switch, model TPE-TG327, is an affordable 2.5G PoE+ switch that provides advanced high-bandwidth performance, ease of use, and reliability. The TPE-TG327 multi-gig switch offers two dedicated 2.5G PoE+ ports and five dedicated 1G PoE+ ports for high-speed network connections with a 20Gbps switching capacity. Having a sturdy compact metal housing and fanless design, the multi-gig PoE+ switch is a cost-effective solution for high-speed network connections. A 70W total PoE power budget on this affordable multi-gig PoE+ switch supplies up to seven PoE+ devices with up to 30W per port.

Internet speed gauge showing quick data transfer rate.

2.5G Ports

Equipped with two 2.5GBASE-T RJ-45 PoE+ ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

A 7-port network switch with a no fan symbol.

Fanless

Convenient fanless design lowers power consumption and energy costs, and eliminates distracting operating noise.

An illustration of a 7-port network switch mounted on a wall, connected to a wireless router beside it.

Wall Mountable

Well-suited for desktop installations, but also features a convenient wall-mountable design for greater installation flexibility.

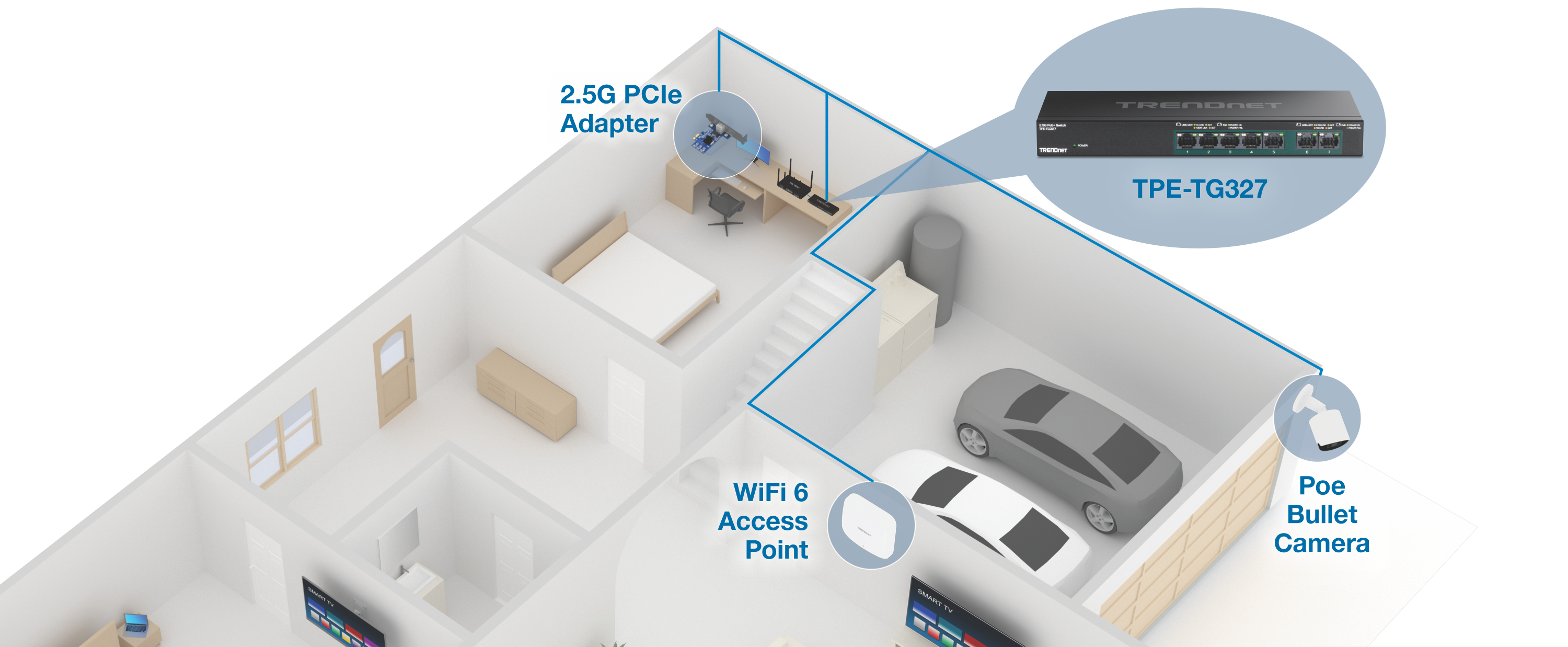

A home network setup with various labeled components. In the top room, a desk with a computer and networking equipment, including a 2.5G PCIe Adapter and a TPE-TG327 switch. The garage area features two cars and a PoE Bullet Camera. A WiFi 6 Access Point is highlighted in the living room area, demonstrating the integration of advanced networking devices within a residential environment.

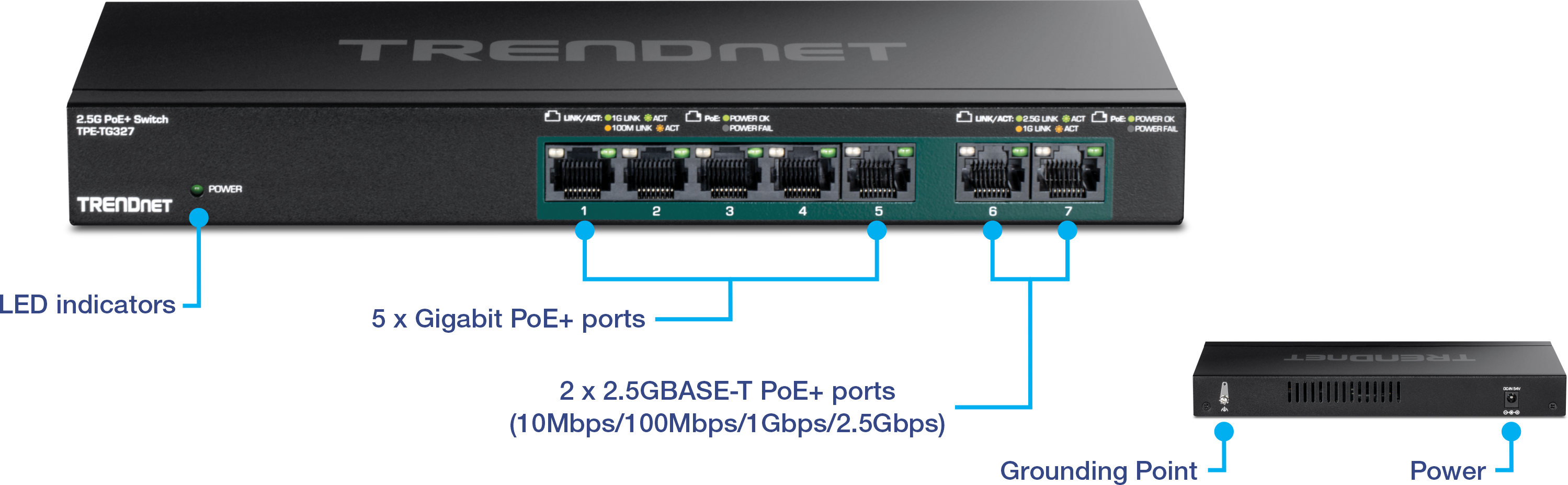

The visual shows a TRENDnet 2.5G PoE+ Switch model TPE-TG327. It highlights various features, including LED indicators, five Gigabit PoE+ ports, and two 2.5GBASE-T PoE+ ports supporting multiple speeds (10Mbps, 100Mbps, 1Gbps, 2.5Gbps). A grounding point and power input are also shown, with the ports numbered from 1 to 7.

Network Ports

Provides 5 x 1G PoE+ ports and 2 x 2.5G PoE+ ports for high-speed network connections

2.5G PoE+ Ports

Connect 2.5GBASE-T supported devices at 2.5Gbps for increased throughput over existing Cat5e or better cabling

Fanless

Fanless design on this 2.5G PoE switch lowers energy consumption and eliminates operating noise

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 15KB) for increased performance

Housing Design

Sturdy metal housing on this affordable 2.5G PoE+ switch is also compact and lightweight

Wall Mountable

Well-suited for desktop installations, but also features convenient-wall mountable design for greater installation flexibility

LED Indicators

LED indicators conveniently convey port status on this affordable 2.5G PoE+ switch

Standards
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bz
Device Interface
  • 5 x Gigabit PoE+ ports
  • 2 x 2.5GBASE-T PoE+ ports (10Mbps/100Mbps/1Gbps/2.5Gbps)
  • LED indicators
Data Transfer Rate
  • Gigabit: 2000Mbps (full duplex)
  • 2.5 Gigabit: 5Gbps (full duplex)
Performance
  • Data RAM Buffer: 384KB
  • Switch Capacity: 20Gbps
  • MAC Address Table: 2K entries
  • Forwarding rate: 14.88Mpps (64-byte packet size)
  • Jumbo Frame: 15KB
Special Features
  • Wall mountable
  • Fanless
Power
  • Input: 100 – 240V AC, 50/60Hz
  • Output: 55V/1.67A
  • Max. consumption: 8W (no PD)
PoE
  • PoE budget: 70W
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
  • Over current protection
  • Short circuit protection
MTBF
  • 830,917 hours
Operating Temperature
  • 0° – 50° C (32° – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 286 x 102 x 27mm (11.3 x 4 x 1 in.)
Weight
  • 0.9kg (2 lbs.)
Certifications
  • CE
  • FCC
Warranty

PACKAGE CONTENTS

  • TPE-TG327
  • Quick Installation Guide
  • Power brick (55V, 1.67A)
  • Power cord (1.8m /6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
