TPE-BG350 Product Photo
TPE-BG350 Product Photo TPE-BG350 Product Photo TPE-BG350 Product Photo TPE-BG350 Product Photo TPE-BG350 Product Photo TPE-BG350 Product Photo TPE-BG350 Product Photo

5-Port 2.5G PoE++ Switch

TPE-BG350 (Version V1)

  • 4 x 2.5G RJ45 PoE++ ports
  • 1 x 2.5G RJ45 port
  • 135W PoE power budget
  • 25Gbps switching capacity
  • Compatible with existing Cat5e or better cabling
  • Fanless design
  • IEEE 802.3bz (2.5Gbps) and IEEE 802.3af/at/bt PoE++ compliant
  • Supports 802.1Q VLAN passthrough and 802.1p QoS passthrough
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Price: $148.49
Quantity:
Wishlist

TRENDnet’s 5-Port 2.5G PoE++ Switch, model TPE-BG350, is equipped with five 2.5G RJ45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over your existing Cat5e cabling. A 135W total PoE power budget on this multi-gig PoE++ switch supplies up to four PoE devices with up to 95W per port. This 2.5G PoE++ switch features a durable metal enclosure and can be mounted to the wall for installation flexibility. The fanless, passive cooling design reduces operating noise.

Speedometer graphic displaying network throughput with a highlighted value of 2500 Mbps on a scale ranging from 0 to 10000 Mbps against a blue gradient background.

2.5G Ports

Equipped with 2.5G RJ45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e cabling.

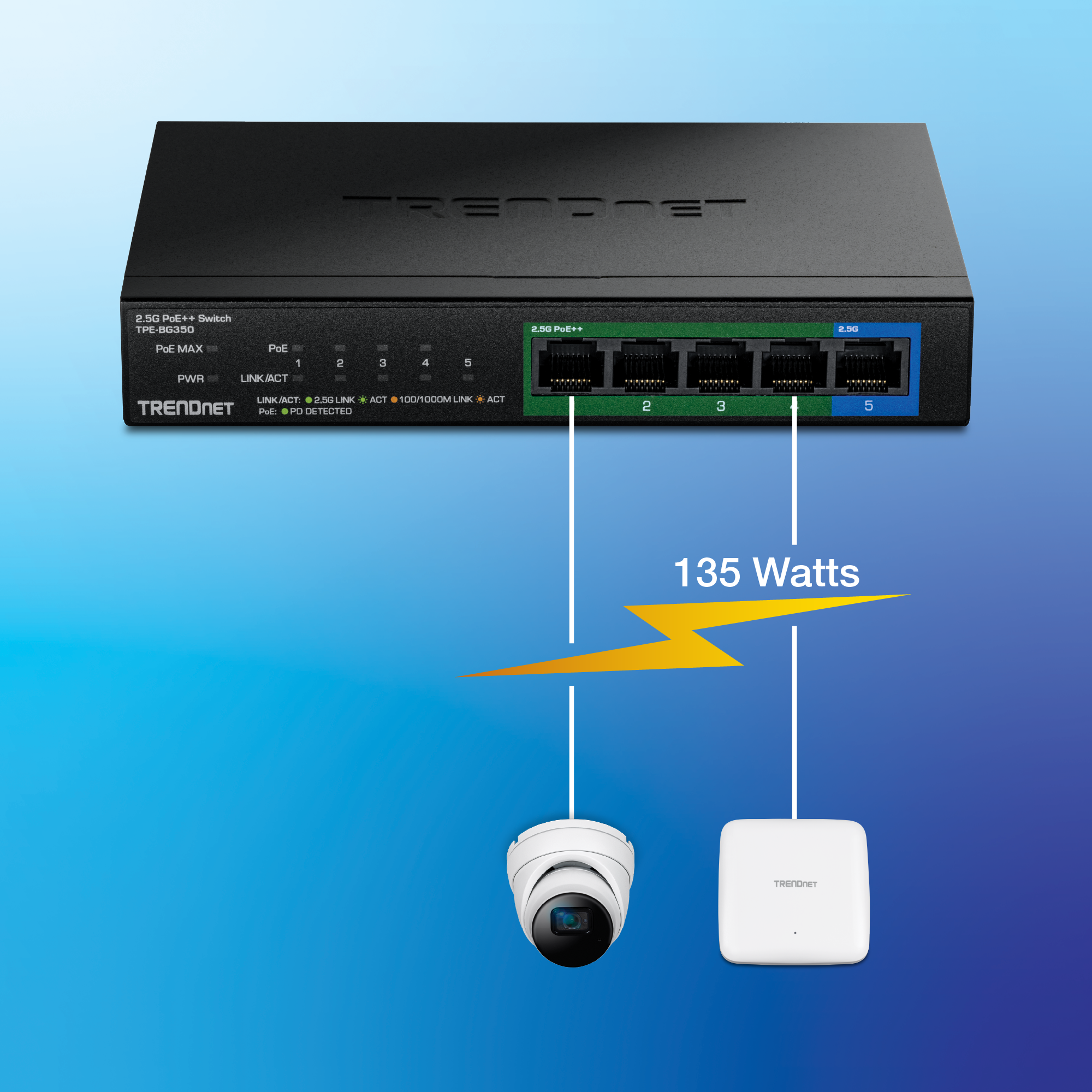

2.5G PoE++ switch connected to an IP camera and WiFi access point, illustrating a 135W PoE power budget delivered through network ports.

PoE++

A 135W total PoE power budget supplies up to four PoE devices with up to 95W per port.

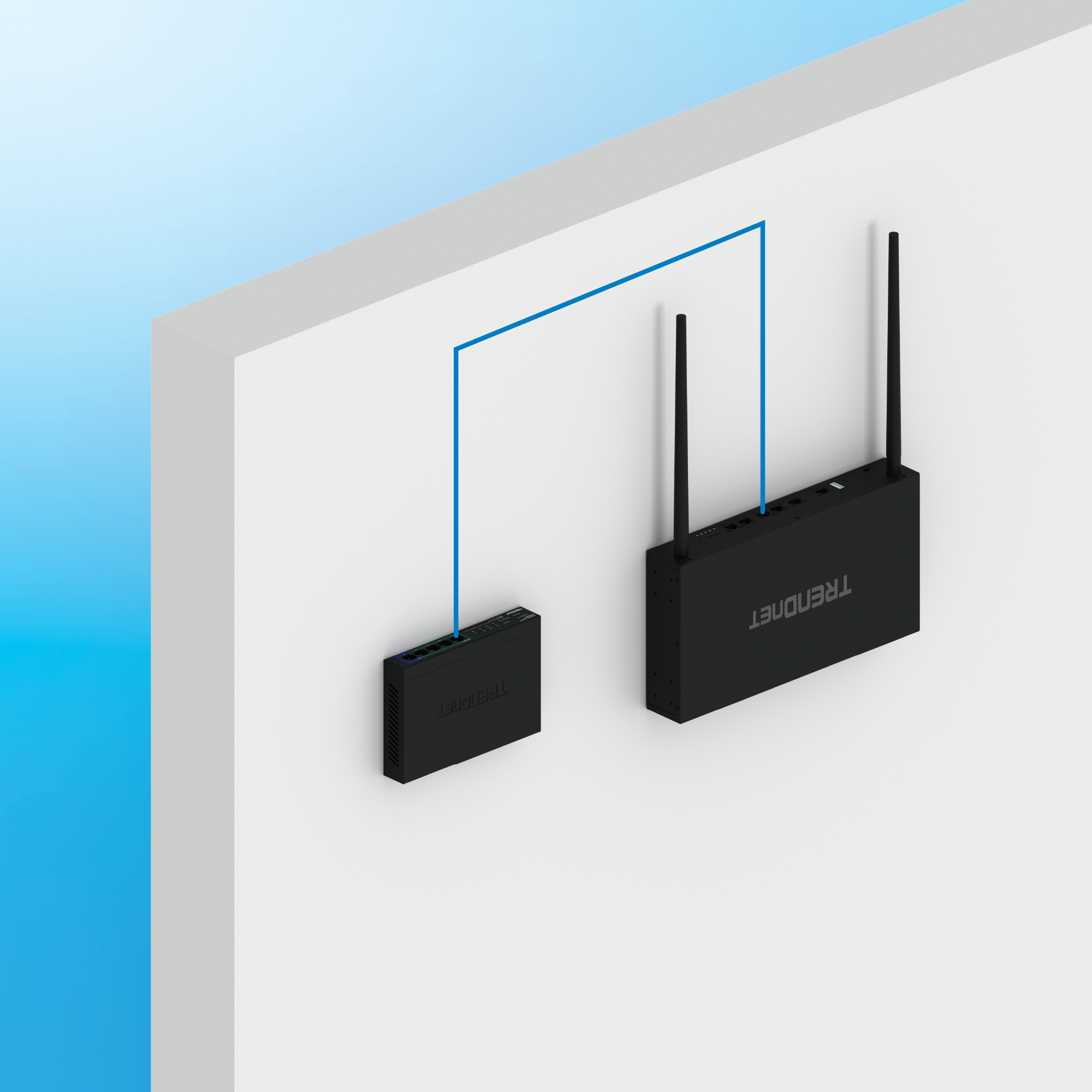

Two TRENDnet networking devices mounted on a wall and connected by an Ethernet cable, illustrating wall-mount installation and network connectivity between devices.

Wall Mountable

The 2.5G PoE++ switch features a sturdy metal housing, and a convenient wall-mountable design for installation flexibility.

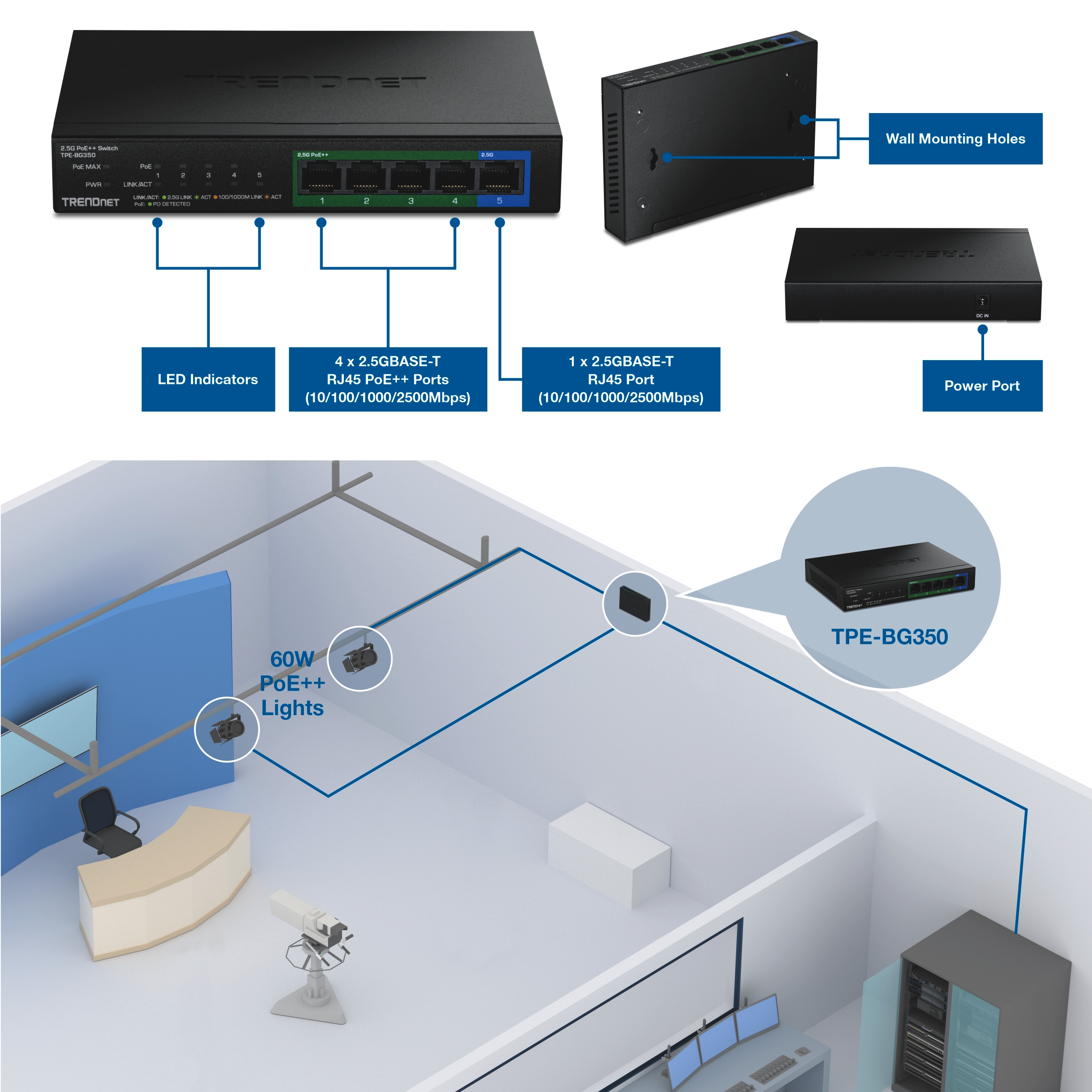

2.5G PoE++ switch with labeled ports and mounting features, shown in a network deployment powering PoE++ lighting fixtures connected through structured cabling from a server rack.

2.5G Ports

Equipped with 2.5G RJ45 ports, this switch provides higher than gigabit speeds over existing Cat5e cabling

PoE++

A 135W total PoE power budget supplies up to four PoE devices with up to 95W per port

Passive Cooling

Fanless design eliminates operating noise

Housing Design

Sturdy metal housing features a convenient wall mount design for installation flexibility

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

Switching Capacity

25Gbps switching capacity

LED Indicators

LED indicators on the 2.5G PoE++ switch display port status

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3bz
Device Interface
  • 4 x 2.5GBASE-T RJ45 PoE++ ports (10/100/1000/2500Mbps)
  • 1 x 2.5GBASE-T RJ45 port (10/100/1000/2500Mbps)
  • LED indicators
Performance
  • Switch Capacity: 25Gbps
  • RAM Buffer: 1MB
  • MAC Address Table: 4K entries
  • Jumbo Frames: 10 KB
  • Forwarding Rate: 18.6Mpps (64-byte packet size)
Power
  • Input: 100-240V AC, 50/60Hz, 2.5A
  • Output: 55V/2.73A DC
  • Max. consumption: 5.45W (no PoE load) / 140.45W (full PoE load)
Special Features
  • 802.1Q VLAN tag passthrough
  • 802.1p QoS CoS tag passthrough
  • Wall mountable
PoE
  • PoE++ up to 95W
  • PoE budget: 135W
  • Pins 1,3,4,7 (–); 2,5,6,8 (+)
Fan/Acoustics
  • Fanless design
MTBF
  • 907,832 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 160 x 110 x 26mm (6.29 x 4.33 x 1.02 in.)
Weight
  • 424g (14.95 oz.)
Certifications
  • CE
  • FCC
  • LVD
Warranty

PACKAGE CONTENTS
  • TPE-BG350
  • Power brick (54V, 2.78A)
  • Power cord (1.5m / 5 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
