8-Port 10G Unmanaged Switch

TEG-S708 (Version V2)

  • 8 x 10G RJ-45 ports
  • Compatible with existing Cat6A or better cabling for 10Gbps
  • Backward compatible Ethernet speeds of 1000Mbps and 2.5Gbps with Cat5e or better cabling
  • Smart fan
  • 160Gbps switching capacity
  • IEEE 802.3bz (2.5G) and IEEE 802.3an (10G) compliant
  • Rack mountable
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

Price: $417.99
Quantity:
Wishlist

TRENDnet’s 8-Port 10G Unmanaged Switch, model TEG-S708, is a multi-gig switch that provides advanced high-bandwidth performance, ease of use, and reliability. The TEG-S708 multi-gig switch offers eight dedicated 10G ports for high-speed network connections with a 160Gbps switching capacity and a sturdy, rack mountable metal housing. This 10G switch is a cost-effective switch solution for high-speed 10 Gigabit network connections.

Network switch with 10G speed capability connected to a desktop computer setup.

10G Ports

Eight 10G ports for high-speed network connections provide a cost-effective solution in adding 10G link capability.

Internet speed gauge showing quick data transfer rate.

2.5G Support

Supports 2.5G RJ-45 multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

Server rack with network switch with many ports using mounting brackets.

Rackmount Design

With a sturdy metal housing and included rackmount brackets, this switch is well-suited for 19” 1U rack installations.

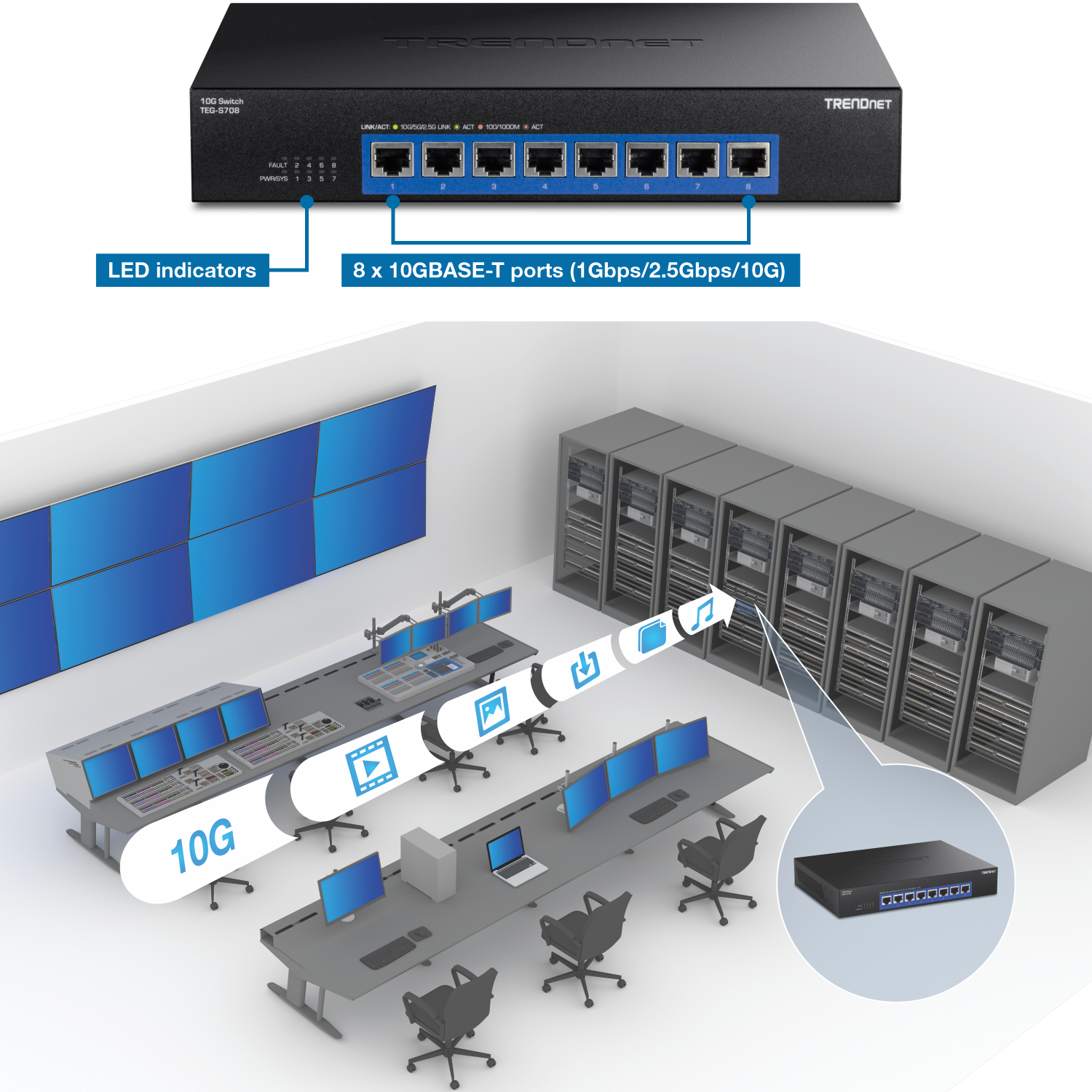

The illustration shows a network switch labeled TRENDnet TEG-S708, featuring 8 x 10GBASE-T ports with speeds of 1Gbps, 2.5Gbps, and 10Gbps. The switch has LED indicators for status monitoring. Below the switch is a control room with multiple monitors and workstations connected to a server rack. The server rack is linked to the switch, managing high-speed data connections for various applications such as video, images, and music.

Easy Installation

No configuration needed, simply connect network devices to the 10G switch

Network Ports

Provides 8 x 10G ports for high-speed network connections

10G Ports

Connect 10GBASE-T supported devices at 10Gbps for increased throughput over existing Cat6A or better cabling

Backward Compatibility

Backward compatible with Ethernet speeds of 1000Mbps and 2.5Gbps with Cat5e cabling or better

Switching Capacity

Supports a 160Gbps switching capacity

Housing Design

Sturdy metal housing

Smart Fan

Smart fan saves energy by auto adjusting the fan speed and use based on cooling needs

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

Rack Mountable

Well-suited for 19” 1U rack installations with rackmount brackets included

LED Indicators

LED indicators conveniently convey port status

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3an
  • IEEE 802.3bz
Device Interface
  • 8 x 10GBASE-T ports (1Gbps/2.5Gbps/10G)
  • LED indicators
Data Transfer Rate
  • Gigabit: 2000Mbps (full duplex)
  • 2.5 Gigabit: 5Gbps (full duplex)
  • 10 Gigabit: 20Gbps (full duplex)
Throughput & Distance
  • Cat5e Cabling: 1Gbps @ 100m (328 ft.)
  • Cat6 Cabling: 10Gbps @ 50m (164 ft.)*
  • Cat6a Cabling: 10Gbps @ 100m (328 ft.)*
Performance
  • Switching Capacity: 160Gbps
  • RAM Buffer: 1.5MB
  • MAC Address Table: 16K entries
  • Forwarding Rate: 115.9Mpps (64-byte packet size)
  • Jumbo Frames: 12KB
Special Features
  • Rack Mountable
Power
  • Input: 100 – 240V AC, 50/60 Hz, 2.0A, internal power supply
  • Max. Consumption: 34.128W
Fan/Acoustics
  • Quantity: 1
  • Noise Level: 55dB(A) (max.)
MTBF
  • 674,176 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 264 x 184 x 43mm (10.39 x 7.24 x 1.69 in.)
Weight
  • 1.63g (3.6 lbs.)
Certifications
  • FCC
  • CE
  • ETL
Warranty

PACKAGE CONTENTS
  • TEG-S708
  • Quick Installation Guide
  • Rack Mount Kit
  • Power Cord (1.5m / 4.9 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
