AC1300 Dual Band PoE Indoor Wireless Access Point

TEW-823DAP (Version v1.0R)

High performance AC1300 PoE access point
Wireless AC MU-MIMO technology boosts performance in a busy home
AC1300: concurrent 867Mbps WiFi AC + 400Mbps WiFi N bands
Access Point and Repeater modes
Supports the latest WPA3 wireless encryption
Gigabit PoE LAN port
Low-profile housing blends into most environments
Includes wall / ceiling mounting plate
NDAA / TAA compliant (U.S. and Canada only)

TRENDnet’s high performance AC1300 Dual Band Indoor Wireless PoE Access Point, model TEW-823DAP, supports Access Point (AP and Repeater modes. This wireless indoor access point generates concurrent 867Mbps WiFi AC and 400Mbps WiFi N networks. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.The wireless access point features access control, bandwidth control, and band steering. The low-profile housing design blends into most environments and includes a convenient wall / ceiling mounting plate.

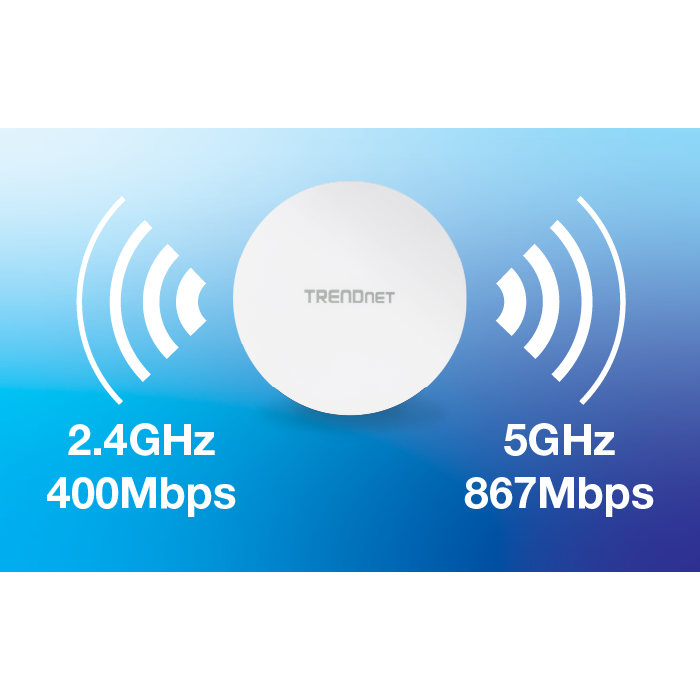

Wireless access point by TRENDnet with dual-band signals (2.4GHz and 5GHz).

AC1300 WiFi

Two concurrent high-speed WiFi bands to maximize device networking speeds: 867Mbps WiFi AC on 5GHz and 400Mbps WiFi N on 2.4GHz.

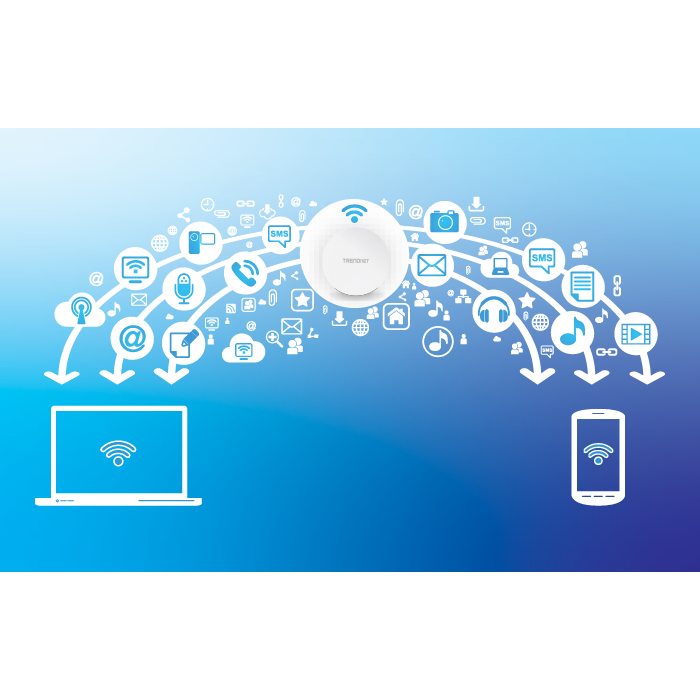

A wireless network hub connected to a laptop and smartphone, with icons representing various digital services like email, cloud storage, and social media, all linked by dotted lines.

Built For Busy Environments

MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.

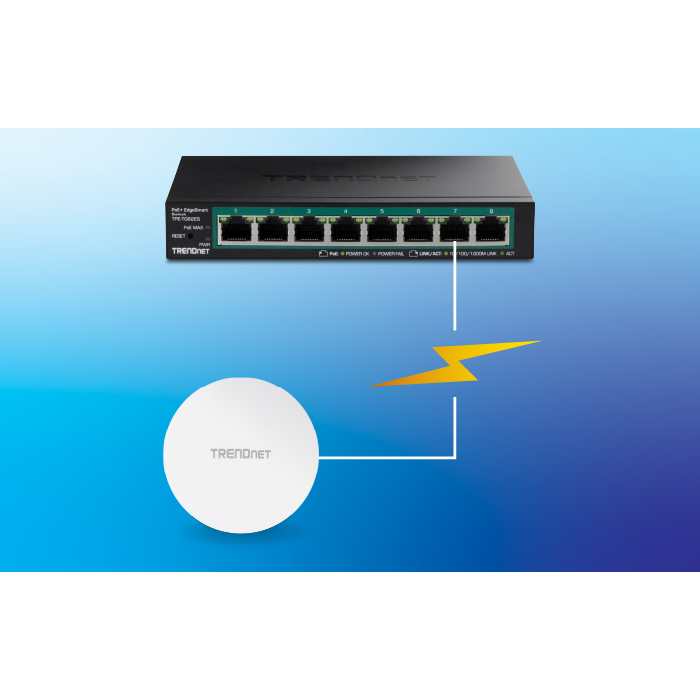

Power over Ethernet (PoE)

Saves installation time and setup costs with gigabit PoE support, delivering power and data over one set of cables.

The diagram illustrates a network setup with a TEW-823DAP device. The top section shows a close-up with labeled components: LED indicators, wall or ceiling mounting plate, reset button, power port, and a PoE Gigabit LAN port. The bottom section depicts an office layout with various connected devices, including a 4K wireless presenter, WiFi USB adapter, WiFi PCIe adapter, PoE injector, and server rack, all centrally connected to the TEW-823DAP.

Concurrent Dual Band

AC1300: concurrent 867Mbps WiFi AC + 400Mbps WiFi N bands

Power over Ethernet (PoE)

Saves installation time and costs with gigabit PoE support

WiFi Operation Modes

Supports Access Point (AP) and Repeater modes.

Gigabit Port

Gigabit PoE LAN port maintains high performance connections to the wired network

Wireless Coverage

Extended wireless coverage with MU-MIMO antenna technology

MU-MIMO Performance

MU-MIMO technology enables the access point to process multiple data streams simultaneously, and increases real-time WiFi performance

Encrypted Wireless

Support for wireless encryption of up to WPA3

Band Steering

Band steering alleviates network congestion by automatically directing wireless devices from the 2.4GHz band to the 5GHz band

Multiple SSIDs

Create up to 8 SSIDs per band (16 total)

Low Profile

Low-profile housing design blends into most environments

Mounting Plate

Wall / Ceiling mounting plate

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.1Q IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11k IEEE 802.11n (up to 400Mbps)* IEEE 802.11r IEEE 802.11v IEEE 802.11ac (up to 867Mbps)*
Hardware Interface	1 x 802.3af PoE Gigabit LAN port (power input) Power port (12V DC, 1A external power adapter not included) LED indicator Reset button
Features	MU-MIMO Band steering 802.1Q VLAN assignment per SSID IPv4 static/DHCP address assignment UPnP/Bonjour
Operation Modes	Access Point Repeater
Management/Monitoring	Web based management (HTTP/HTTPS) Command Line Interface (Telnet/SSH) SNMP v2c/v3 Spanning Tree Protocol (STP) Event logging Ping test Traceroute Schedule WiFi radio enable/disable Ping watchdog/gateway connection monitor Reboot & scheduled automatic reboot Channel utilization scan
Access Control	Wireless encryption: WPA2/WPA3-RADIUS (Enterprise), WPA2/WPA3-PSK (Personal) MAC filter with scheduling Maximum client limit Client isolation
QoS	Bandwidth control per SSID
SSID	Up to 8 SSIDs per wireless band (16 total)
Frequency	2.4GHz: 2.412 – 2.472GHz 5GHz: 5.180 – 5.825GHz
Wireless Channels	2.4GHz: FCC: 1–11, ETSI: 1–13 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165, ETSI: 36, 40, 44, 48
Modulation	DBPSK/DQPSK/CCK for DSSS technique BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
MIMO Configuration	5GHz: 2x2:2 2.4GHz: 2x2:2
Antenna Gain	2.4GHz: 2 x 4 dBi internal 5Ghz: 2 x 5 dBi internal
Wireless Output Power	802.11a: FCC: 28.5 dBm (max.) / CE: 19 dBm (max.) 802.11b: FCC: 26.5 dBm (max.) / CE: 18 dBm (max.) 802.11g: FCC: 30 dBm (max.) / CE: 19 dBm (max.) 802.11n (2.4GHz): FCC: 24.5 dBm (max.) / CE: 19.5 dBm (max.) 802.11n (5GHz): FCC: 28.5 dBm (max.) / CE: 21 dBm (max.) 802.11ac: FCC: 28.5 dBm (max.) / CE: 21 dBm (max.)
Receiving Sensitivity	802.11a: -73 dBm (typical) @ 54Mbps 802.11b: -87 dBm (typical) @ 11Mbps 802.11g: -73 dBm (typical) @ 54Mbps 802.11n (2.4 GHz): -68 dBm (typical) @ 400Mbps 802.11n (5 GHz): -67 dBm (typical) @ 400Mbps 802.11ac: -57 dBm (typical) @ 867 Mbps
Power	IEEE 802.3af Type 1 PoE PD Class 3 Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1A external power adapter (not included) Max. consumption: 11.9W
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC IC
Dimensions	130 x 130 x 46mm (5.12 x 5.12 x 1.8 in.)
Weight	188g (6.7 oz.)
Warranty:	3 year

PACKAGE CONTENTS

TEW-823DAP
Quick Installation Guide
Network cable (0.5m / 1.64 ft.)
Mounting plates

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
