2.5GBASE-T PCIe Network Adapter

TEG-25GECTX (Version v1.0R)

Converts a PCIe slot into a 2.5G Ethernet Port
Supports 802.1Q VLAN Tagging
Includes standard and low-profile brackets
Windows^® support
IEEE 802.3ab and 802.3bz compliant
Supports up to 9KB jumbo frames
NDAA / TAA compliant (U.S. and Canada only)

TRENDnet's 2.5GBASE-T PCIe Network Adapter, model TEG-25GECTX, converts a free PCI Express slot into a 2.5GBASE-T Ethernet port. The 2.5G network adapter includes advanced features such as jumbo frame and VLAN tagging support. Compatible with Windows^® desktop computer designs, the 2.5G network adapter includes both standard and low-profile brackets.

2.5G Port

2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.

Jumbo Frame

Sends larger packets, or jumbo frames (up to 9KB), for increased performance.

Operating Systems

Compatible with Windows, Windows Server operating system.

2.5G Port

2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.

PCI Express

Converts a PCIe 2.0 x1 slot into a 2.5G Ethernet Port

2.5GBASE-T Support

2.5GBASE-T specification (802.3bz) supports 2.5G speeds over standard Cat5e cables at distances up to 100m (328 ft.)

Jumbo Frame

Sends larger packets, or jumbo frames (up to 9KB), for increased performance

VLAN Support

2.5G network adapter with IEEE 802.1Q tagged-based VLAN support

Brackets

Supports most installations with included standard and low-profile brackets

Operating Systems

Compatible with Windows, Windows Server operating system

LED Indicators

LED indicators convey port status, link speed and activity

Standards	IEEE 802.3u IEEE 802.3ab IEEE 802.3bz 2.5GBASE-T IEEE 802.1Q

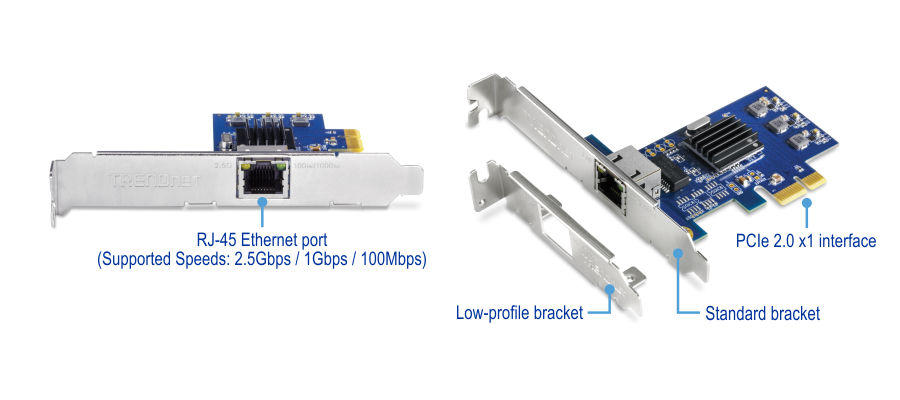

Hardware Interface	PCIe 2.0 x1 interface 1 x RJ-45 Ethernet port (Supported Speeds: 2.5Gbps / 1Gbps / 100Mbps) LED indicators
Minimum Cable Requirements	2.5GBASE-T (2.5Gbps): Cat5e twisted pair @ 100m (328 ft.) (max.) 1000BASE-T (1Gbps): Cat5e twisted pair @ 100m (328 ft.) (max.) 100BASE-TX (100Mbps): Cat5 twisted pair @ 100m (328 ft.) (max.)
Compatibility	Windows^® 10, 8.1, 7 Windows^® Server 2016, 2012
Jumbo Frames	Up to 9KB
Special Features	2.5GBASE-T 2.5Gbps support for high speed network connectivity Windows Server support
Additional Support	Virtual NIC support (VMQ 32 group) 802.1Q VLAN Tagging LTR (Latency Tolerance Reporting) Microsoft WPI (Wake Packet Indication) Large Send (up to 64KB) IP, TCP, and UDP checksum offloading Advanced cable diagnostics
Power	Max. consumption: 1.8W
Operating Temperature	0° – 40 °C (32° – 104 °F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC
Dimensions	84 x 64 x 18mm (3.3 x 2.5 x 0.7 in.)
Weight	42g (1.5 oz.)
Warranty	3 year

PACKAGE CONTENTS

TEG-25GECTX
Quick Installation Guide
Standard & low-profile brackets

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
