13 dBi Outdoor PoE Access Point (5 GHz)

TEW-734APO (Version v1.0R)

Wireless N300 building to building networking (5 GHz)
Fat AP, Thin AP, Virtual AC, and Virtual AC + Thin AP modes
Fat AP supports AP, WDS Bridge, WDS Repeater, Client, and CPE + AP modes
Built-in 13 dBi directional sector antenna
IP55 rated housing
Networks to another TEW-734APO or 5 GHz access point

DISCONTINUED PRODUCT

The TEW-734APO (Version v1.0R) has been discontinued. It has been replaced by the TEW-841APBO (Version v1.0R). For a list of discontinued products, click here.

TRENDnet's 13 dBi Outdoor PoE Access Point, model TEW-734APO, provides wireless N300 (5 GHz) building to building connectivity. It supports Fat AP, Thin AP, Virtual Access Control (controls compatible Thin AP devices), and Virtual AC + Thin AP modes. Fat AP mode supports a variety of installation scenarios with Access Point (AP), WDS Bridge, WDS Repeater, Client, and CPE + AP modes. The rugged IP55 rated TEW-734APO comes with a proprietary PoE injector and a pole mounting kit.

Illustration of two buildings with a 13 dBi Outdoor PoE Access Point (5 GHz) TEW-734APO connected on top of each building, facing each other, with signals emitting.

Building to Building

An integrated 13 dBi directional antenna, 5 GHz WiFi N300, and an included PoE injector facilitate building to building networking.

Illustration of a person inside a server room holding a laptop with a few ethernet cables connected into switches on the racks.

Installation Flexibility

Fat AP mode supports a variety of installation scenarios with Access Point (AP), WDS Bridge, WDS Repeater, Client, and CPE + AP modes.

Illustration of a woman in business attire sitting on a column's stairs, working on a laptop.

Outdoor Ready

Built for protected outdoor locations with an IP55 weather rating and an operating temperature range of -20 – 70 °C (-4 – 158 °F).

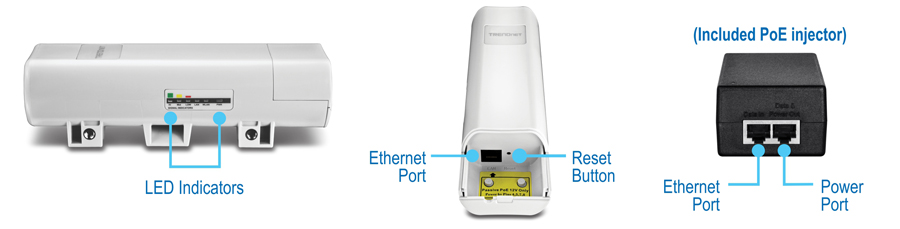

Illustration of the 13 dBi Outdoor PoE Access Point (5 GHz) TEW-734APO. On the left is the side view with labels for LED indicators. In the center is the front bottom view with labels for Ethernet port and reset button. On the right is the view of the included PoE injector with labels for Ethernet port and power port.

The illustration shows two wireless communication modes using outdoor access points mounted on buildings. Building-to-Building WDS Mode depicts two buildings with wireless signals connecting them and access points mounted on rooftops. Wireless Internet Service CPE Mode shows a single building receiving wireless signals from an antenna with an access point on the rooftop.

Multi-Mode Support

Supports Fat AP, Thin AP, Virtual Access Control (controls compatible Thin AP devices), and Virtual AC + Thin AP modes

Fat AP Mode

Fat AP mode supports a variety of installation scenarios with Access Point (AP), WDS Bridge, WDS Repeater, Client, and CPE + AP modes

Thin AP Mode

Thin AP mode supports management of the TEW-734APO by another device (such as another TEW-734APO or TEW-730APO set to Virtual Access Control) and operates in Access Point (AP) mode only

Virtual Access Control (AC) Mode

Virtual Access Control mode manages other compatible access points (TEW-734APO, TEW-730APO) set to Thin AP

Wireless N300 (5 GHz)

Compliant with 802.11n/a technology (5 GHz spectrum) with data rates up to 300 Mbps

Directional Antenna

Built in 13 dBi directional antenna

Outdoor Rated

Durable enclosure with an IP55 outdoor weather rating

Power over Ethernet (PoE)

Comes with a proprietary PoE injector (non-802.3af compliant)

Logs

Real time logs and statistics help trouble shooting

Encrypted Wireless

Support for wireless encryption of up to WPA2

Mounting Hardware

Pole mounting hardware included

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1X IEEE 802.11a IEEE 802.11f IEEE 802.11n (up to 300 Mbps)
Hardware Interface	1 x 10/100 Mbps (proprietary PoE) port** Reset button LED indicators Grounding point
Special Features	IP55 weather rated 802.1Q VLAN assignment per SSID
Access Control	Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS Firewall (CPE Mode): NAT, Port Forwarding, DMZ Host Access Controls: MAC, IP Filter, Port Filter, Per-SSID client limiting 802.1Q VLAN
QoS	WMM Traffic Shaping
Operation Modes	Fat AP Thin AP Virtual AC Virtual AC + Thin AP
FAT AP Modes	Access Point (AP) Client AP Repeater Bridge (WDS) WDS Repeater
SSID	Up to 8 SSIDs
Internet Connection Types (CPE mode)	Dynamic IP (DHCP) Static IP (Fixed) PPPoE (Dynamic IP)
Management/Monitoring	Local/remote web based management (HTTP, HTTPS) Local/remote CLI based management (Telnet, SSH) SNMP v2/v3 CPE Management Upgrade firmware Backup/restore configuration Event logging Syslog Reboot Restore to factory defaults Ping test Ping Watchdog Trace Route STP STP forward delay Traffic Shaping MAC based access control
Frequency	FCC: 5.15GHz~5.25GHz ; 5.725GHz~5.85GHz ETSI: 5.15GHz~5.35GHz; 5.47GHz~5.725GHz
Wireless Channels	FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 ETSI: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140
Modulation	802.11a: BPSK, QPSK, 16-QAM, 64-QAM with OFDM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
Antenna Gain	13 dBi internal directional antenna
Wireless Output Power/Receiving Sensitivity	802.11a: FCC/ETSI: FCC: 14 dBm (max.), ETSI: 15 dBm (max.)/ -70 dBm (typical) @ 54 Mbps 802.11n: FCC/ETSI: FCC: 17 dBm (max.), ETSI: 15 dBm (max.)/ -62 dBm (typical) @ 300 Mbps
EIRP	FCC: up to 30 dBm (with built in 13 dBi antenna) ETSI: up to 28 dBm (with built in 13 dBi antenna)
Power	Input: 100 – 220 V, 50 - 60 Hz, 0.6 A Output: 24 V / 1 A Consumption: 12 Watts Max.
Operating Temperature	-20 - 70° C (-4 - 158° F)
Operating Humidity	Max. 95 % non-condensing
Certifications	CE FCC
Dimensions	205 x 64 x 61 mm (8.1 x 2.5 x 2.4 in.)
Weight	0.8 kg (1.8 lbs.)
Warranty	3 year limited

PACKAGE CONTENTS

TEW-734APO
CD-ROM (User's Guide)
Quick Installation Guide
Poll mounting hardware
Proprietary PoE injector (24 V, 1 A)
Power cord
Grounding wire

* Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna alignment, receiving sensitivity, and radio interference. Additionally environmental factors such as weather conditions, physical obstacles, and other considerations may affect performance. For optimal results, we recommended consulting a professional installer for site survey, safety precautions, and proper installation.
**Recommended max. PoE cable length of 70 m

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
