AC1900 Dual Band Wireless Router

TEW-818DRU (Version v1.0R)

  • AC1900: 1300 Mbps Wireless AC + 600 Mbps Wireless N bands
  • High speed USB 3.0 and USB 2.0 share ports
  • Pre-encrypted for your convenience
  • Create an isolated guest network
  • One touch network connection with the WPS button
  • All Gigabit wired ports
  • High power amplifiers extend wireless coverage

TRENDnet's AC1900 Dual Band Wireless Router, model TEW-818DRU, is an extreme performance wireless router. It creates two concurrent wireless networks—a 1.3 Gigabit Wireless AC network and a 600 Mbps Wireless N network to connect common wireless devices. Use the high speed USB 3.0 port and Gigabit Ethernet ports to further expand your network.

Ease of Use

Easy Setup

Get up and running in minutes with the intuitive guided setup

One Touch Connection

Connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button

USB Share Ports

Plug in a flash or storage drive into the 5 Gbps USB 3.0 port or the USB 2.0 port

Multi Language

Multi Language Interface: English, Spanish, French, German, and Russian

Encryption

Encrypted Wireless

For your convenience the router arrives pre-encrypted with its own unique password

Guest Network

Create a isolated network for guest internet access only

Parental Controls

Control access to specific websites or types of content

Performance

Next Generation Wireless AC

802.11ac provides uninterrupted HD video streaming in a busy connected home

Simultaneous Dual Band

High speed 1300 Mbps Wireless AC band + 600 Mbps Wireless N

Gigabit Ports

Gigabit ports extend high performance wired connections

Wireless Coverage

Whole home wireless coverage for average size homes

Backward Compatible

Compatible with legacy wireless devices

Targeted Beamforming

Increased real-time performance by directing stronger wireless to your specific location

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (2.4 GHz up to 600 Mbps TurboQAM*, 5 GHz up to 450 Mbps)
  • IEEE 802.11ac (draft 2.0, up to 1.3 Gbps)

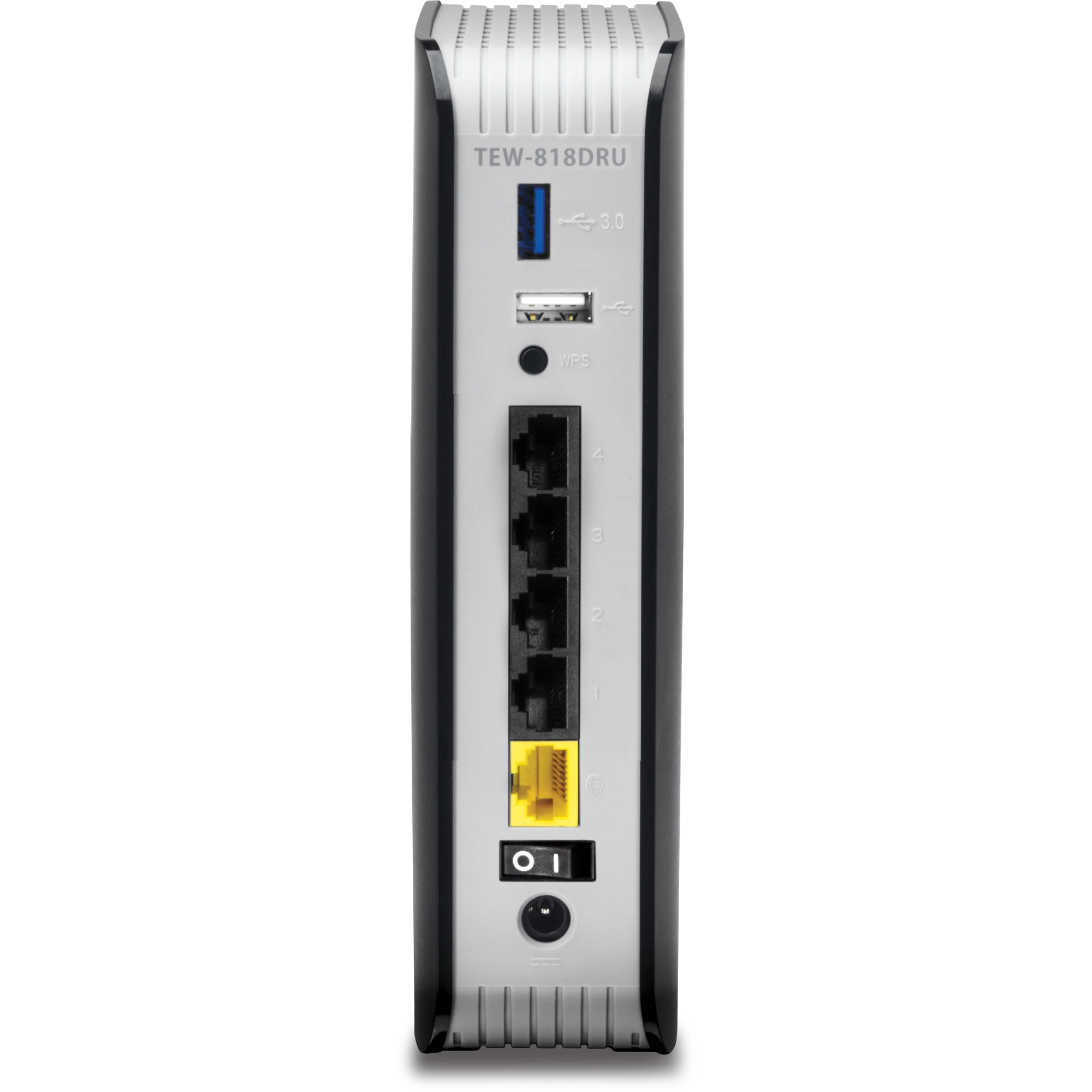

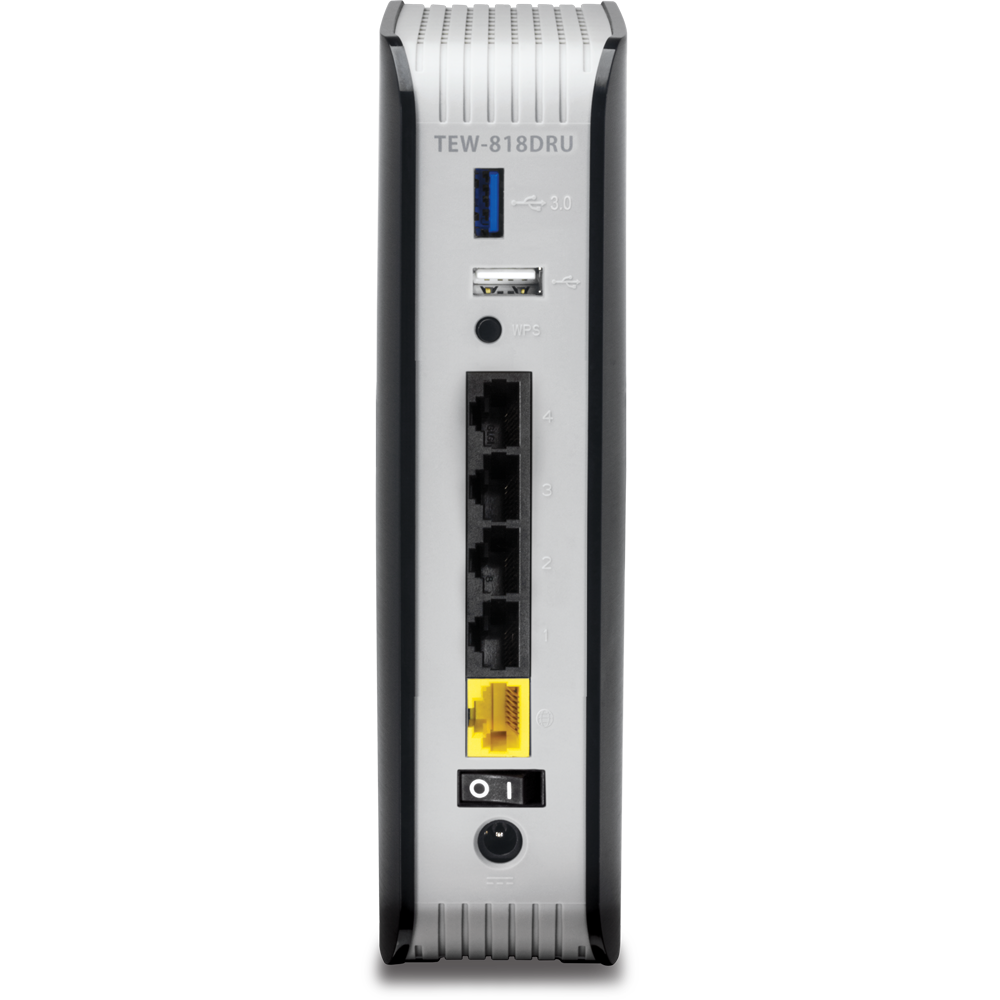

Hardware Interface
  • 4 x Gigabit LAN ports
  • 1 x Gigabit WAN port
  • 1 x USB 3.0 (Storage FTP, Samba, Printing)
  • 1 x USB 2.0 (Storage FTP, Samba, Printing)
  • Power switch (EU only)
  • WPS button

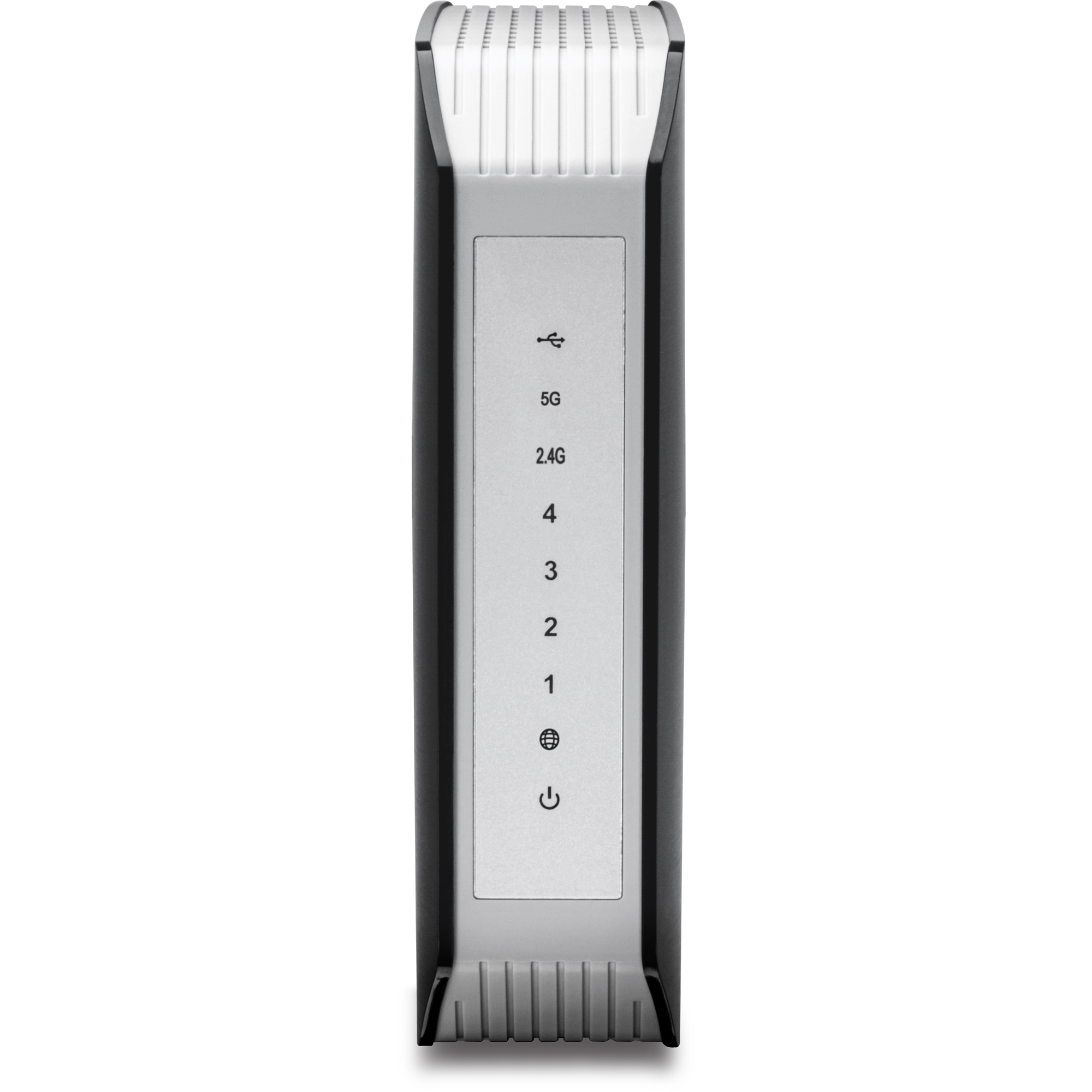

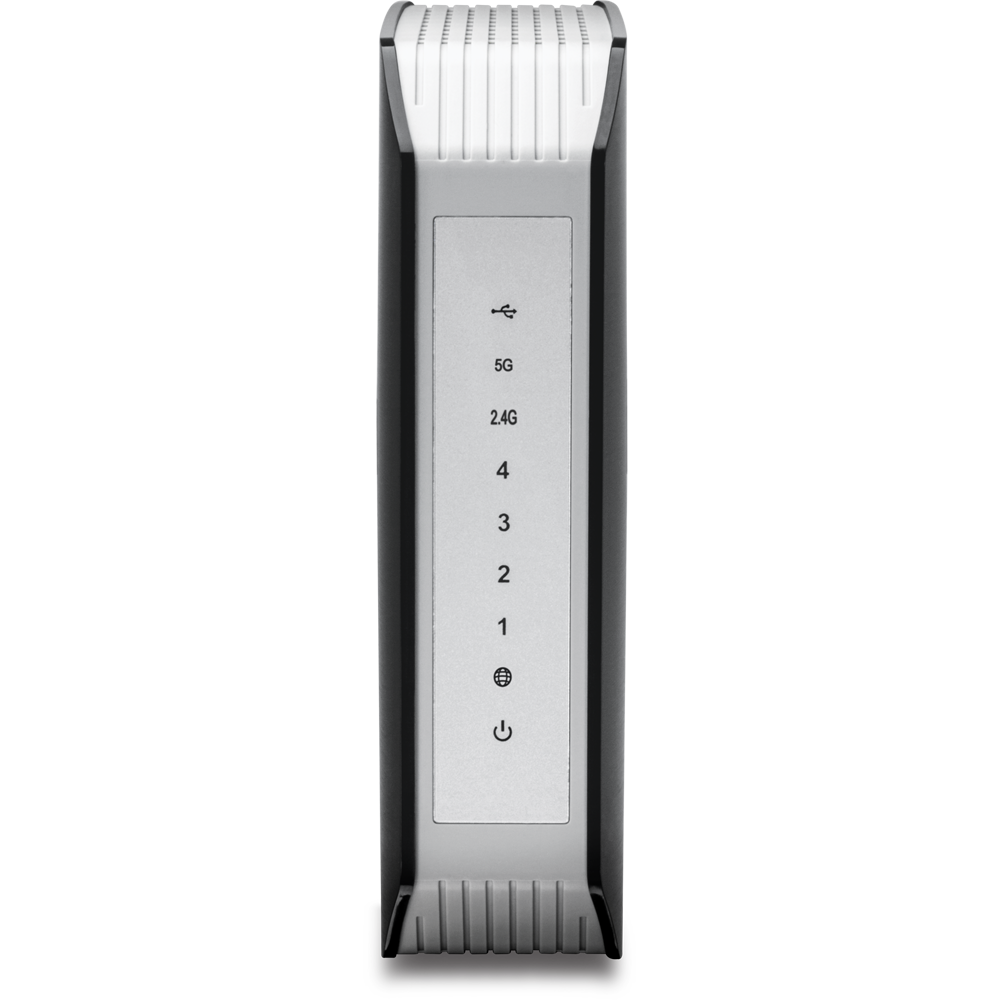

  • LED indicators
Encryption
  • Wireless encryption up to WPA2
  • Firewall: NAT, SPI
  • Parental (Access) Controls: MAC, URL, IP Filter
System Requirements
  • Optional USB Printing utility: Windows: 8.1, 8, 7, Vista, XP; Mac OS X: 10.9, 10.8, 10.7, 10.6, 10.5, 10.4
Special Features
  • QoS Management
  • IPv6 support (6to4 and Native)
  • WDS support
  • Up to 2 additional SSID per band
  • 1 guest network per band with option for Internet access only
  • Dynamic DNS support for dyn.com and no-ip.com
  • Samba/FTP server support
  • Multi-Language interface: English, French, Spanish, German, Russian
Antenna Gain
  • 2.4 GHz: 6 dBi (max.) internal/5 GHz: 6 dBi (max.) internal
Wireless Output Power/Receiving Sensitivity
  • 802.11a: FCC: 22 dBm, ETSI: 18 dBm (max.)/ -68 dBm (typical) @ 54 Mbps
  • 802.11b: FCC/ETSI: 19 dBm (max.)/ -84 dBm (typical) @ 11 Mbps
  • 802.11g: FCC/ETSI: 18 dBm (max.)/-72 dBm (typical) @ 54 Mbps
  • 802.11n: FCC/ETSI: 18 dBm (max.)/-68 dBm (typical) @ 600 Mbps 2.4 GHz
  • 802.11n: FCC: 22 dBm, ETSI: 18 dBm (max.)/ -68 dBm (typical) @ 450 Mbps 5 GHz
  • 802.11ac: FCC: 23 dBm, ETSI: 19 dBm (max.)/ -55 dBm (typical) @ 1.3 Gbps
Power
  • Input: 100 – 240 V AC, 50 - 60 Hz, 0.8 A
  • Output: 12 V DC, 2 A
  • Consumption: 22 Watts (Max.)
Operating Temperature
  • 0 - 40° C (32 - 104° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 48 x 155 x 180 mm (1.8 x 6.1 x 7.1 in.)
Weight
  • 395 g (14 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS

  • TEW-818DRU
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Network cable (1.5 m/5 ft.)
  • Power adapter (12 V, 2 A)

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and cover-age will vary depending on interference, network traffic, building materials and other conditions. 802.11n 2.4 GHz TurboQAM speeds requires clients with TurboQAM support.
** Printer Control Center utility installation required for each computer in order to access the printer.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
