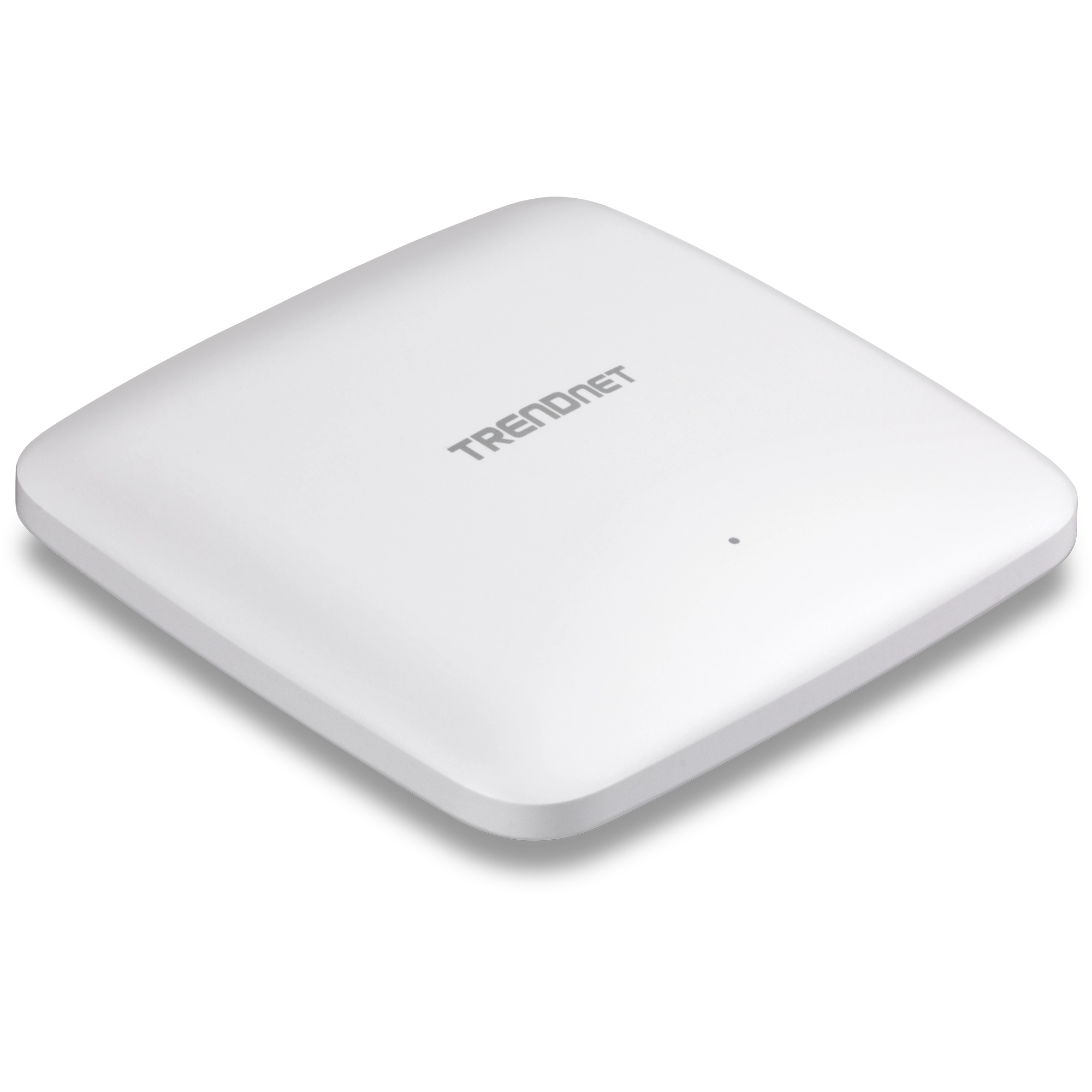

AX1800 Dual Band WiFi 6 PoE+ Access Point

TEW-921DAP (Version v1.5R)

Hardware versions of (v1.xR) can be upgraded with the latest firmware to update your model to the latest hardware version.
  • High-performance AX1800 PoE+ WiFi 6 access point
  • OFDMA and MU-MIMO technology boosts performance in a busy environment
  • Two concurrent WiFi bands maximize device networking speeds
  • AX1800 Dual Band: 1201Mbps (5GHz) + 567Mbps (2.4GHz) bands
  • Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes
  • Supports up to WPA3 encryption
  • Optional cloud management with TRENDnet Hive (Additional fee applies)
  • 1 x Gigabit PoE+ LAN port
  • Captive portal for hotspot applications

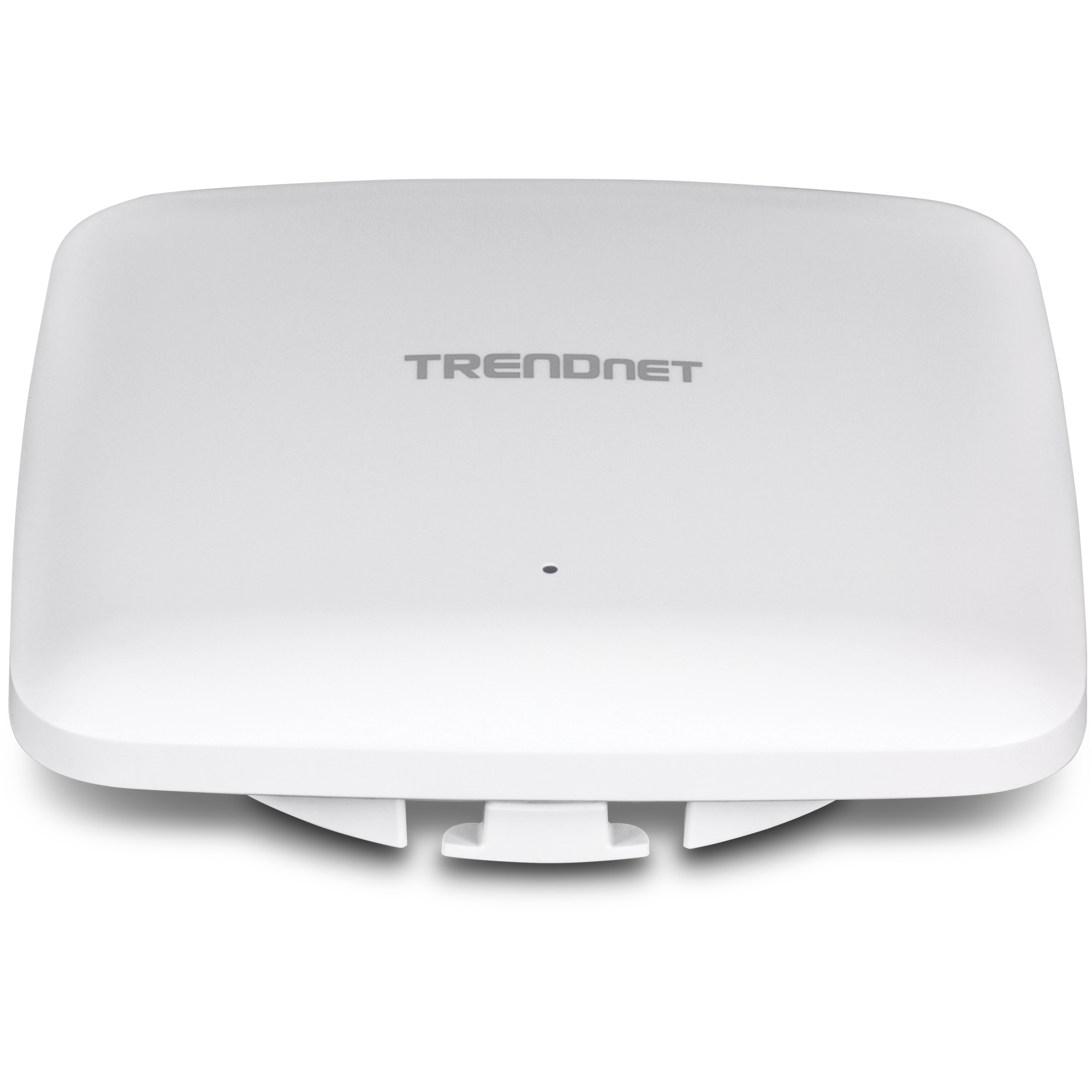

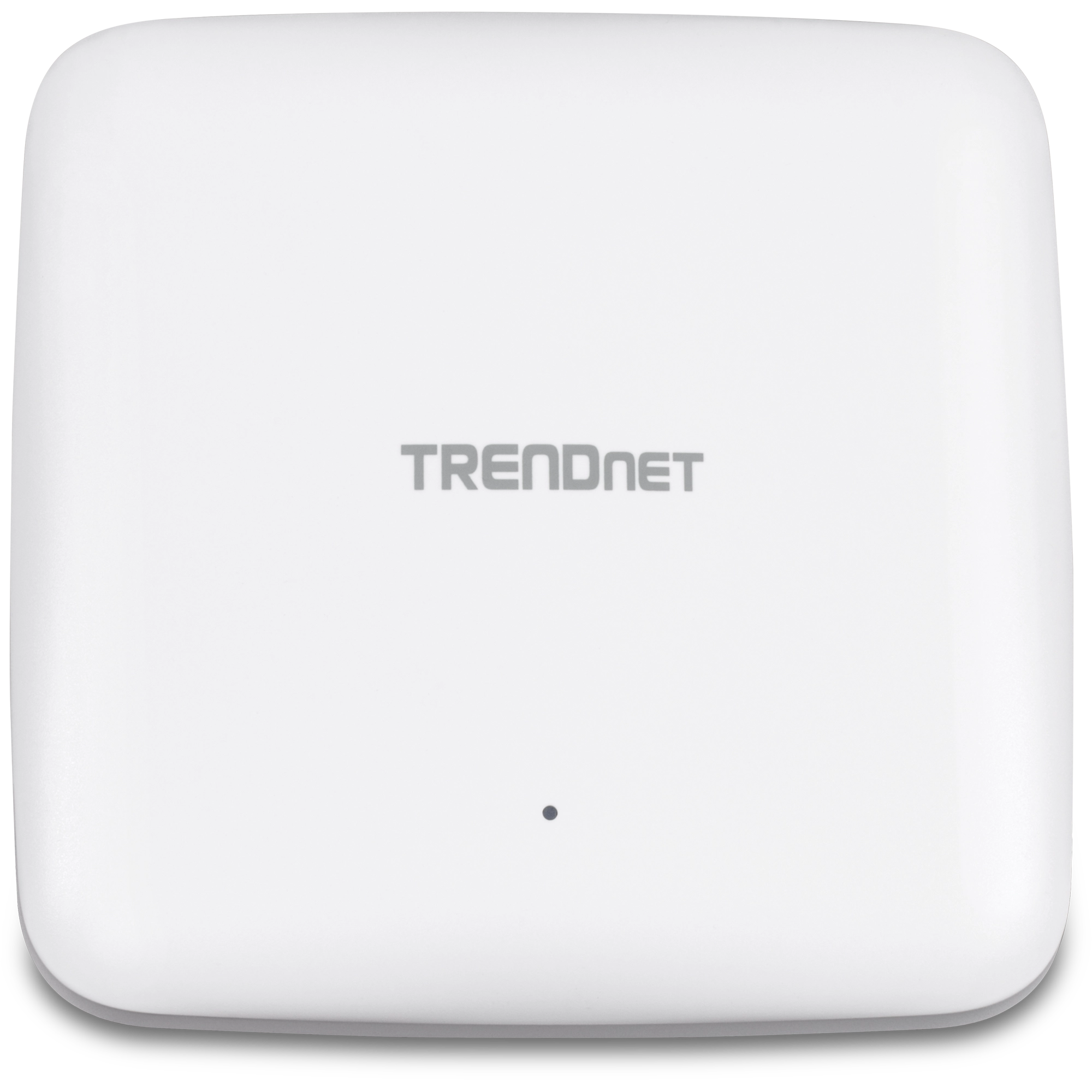

  • Low-profile housing blends into most environments
  • Includes wall / ceiling mounting plate
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet’s high-performance AX1800 Dual Band WiFi 6 PoE+ Access Point, model TEW-921DAP, features two concurrent WiFi bands to maximize device networking speeds with the latest WiFi 6 technology. The two separate high-speed WiFi 6 bands provide speeds up to 1201Mbps on the 5GHz band, and 567Mbps on the 2.4GHz band. Faster speeds are possible on this WiFi 6 access point with 1024-QAM, OFDMA, and MU-MIMO technologies.

This WiFi 6 access point supports innovative networking technology that improves coverage, speed, and capacity. The increase of QAM to 1024-QAM allows data to flow through a much wider ‘pipe’ than previous WiFi technologies. With OFDMA (Orthogonal Frequency-Division Multiple Access), the number of clients that can be connected to this WiFi 6 access point increases. OFDMA efficiently manages traffic in congested areas by separating channel frequencies into different subcarriers. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance on the WiFi 6 AP when multiple devices access the network.

The TEW-921DAP WiFi 6 access point features advanced access control, QoS, traffic management, band steering, and captive portal support. The low-profile housing design seamlessly blends into most environments, with a convenient wall / ceiling mounting plate included. For application flexibility, the TEW-921DAP supports Access Point (AP), Client Bridge, Wireless Distribution System Access Point (WDS AP), WDS Bridge, WDS Station, and Repeater modes.

Easily manage and configure TRENDnet’s AX1800 Dual Band WiFi 6 PoE+ Access Point remotely by updating the access point to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a remote network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required on this WiFI 6 access point with TRENDnet’s reliable cloud service.

Line art of a Wireless Access Point (WAP). It emits signal waves from both sides, suggesting wireless activity. The left side waves are labeled 5GHz (1201Mbps), and the right side waves are labeled 2.4GHz (576Mbps), indicating different speeds of data transmission.

AX1800 WiFi 6

Two concurrent high-speed WiFi 6 bands to maximize device networking speeds: 1201Mbps on 5GHz and 576Mbps on 2.4GHz.

Illustration of a network tunnel with icons representing gaming, video, and images moving through the network, connecting to icons of a game console, monitor, and a cellphone.

Built For Busy Environments

MU-MIMO and OFDMA technologies process multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.

Network diagram showing a AX1800 Dual Band WiFi 6 PoE+ Access Point. At the top, a central router in 'AP Mode' connects wirelessly to computers. Below, two additional routers are in 'Room 1' and 'Room 2,' extending the network through WDS connections. Each router is connected to computers in their respective rooms.

Access Point Flexibility

Supports Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes for multiple applications.

Concurrent Dual Band

AX1800: concurrent 1201Mbps on 5GHz band + 576Mbps on 2.4GHz band

Power over Ethernet (PoE+)

Saves on installation time and costs with gigabit PoE+ support (with optional power port for non-PoE installations)

WiFi Operation Modes

Supports Access Point (AP), Client Bridge, Wireless Distribution System Access Point (WDS AP), WDS Bridge, WDS Station, and Repeater modes for each WiFi band independently

Hive Enabled (Optional)

Remotely monitor, manage, configure, and diagnose this WiFi 6 access point via TRENDnet’s cloud service (Additional fee applies)

MU-MIMO & OFDMA Performance

MU-MIMO and OFDMA technologies increase coverage, speed, and capacity

Band Steering

Band steering alleviates network congestion by automatically directing wireless devices from the 2.4GHz band to the less congested 5GHz band

WiFi Traffic Shaping

Manage traffic allocation on the WiFi 6 access point per SSID for each band separately

WPA3 Encryption

This WiFi 6 access point supports wireless encryption of up to WPA3

Multiple SSIDs

Create up to 8 SSIDs per band (16 total)

Captive Portal

Create a customized web portal for your users to authenticate using unique login credentials

Airtime Fairness

Airtime fairness support on this WiFi 6 access point provides higher priority to faster WiFi clients without limiting slower WiFi clients

Gigabit PoE+ Port

One gigabit PoE+ input port to power and connect the WiFi 6 AP to the network, and one gigabit port to connect it to a nearby device

LED Control

LED controls reduce product visibility by disabling LED indicators

Low Profile

The wireless AX access point’s low-profile housing design blends into most environments

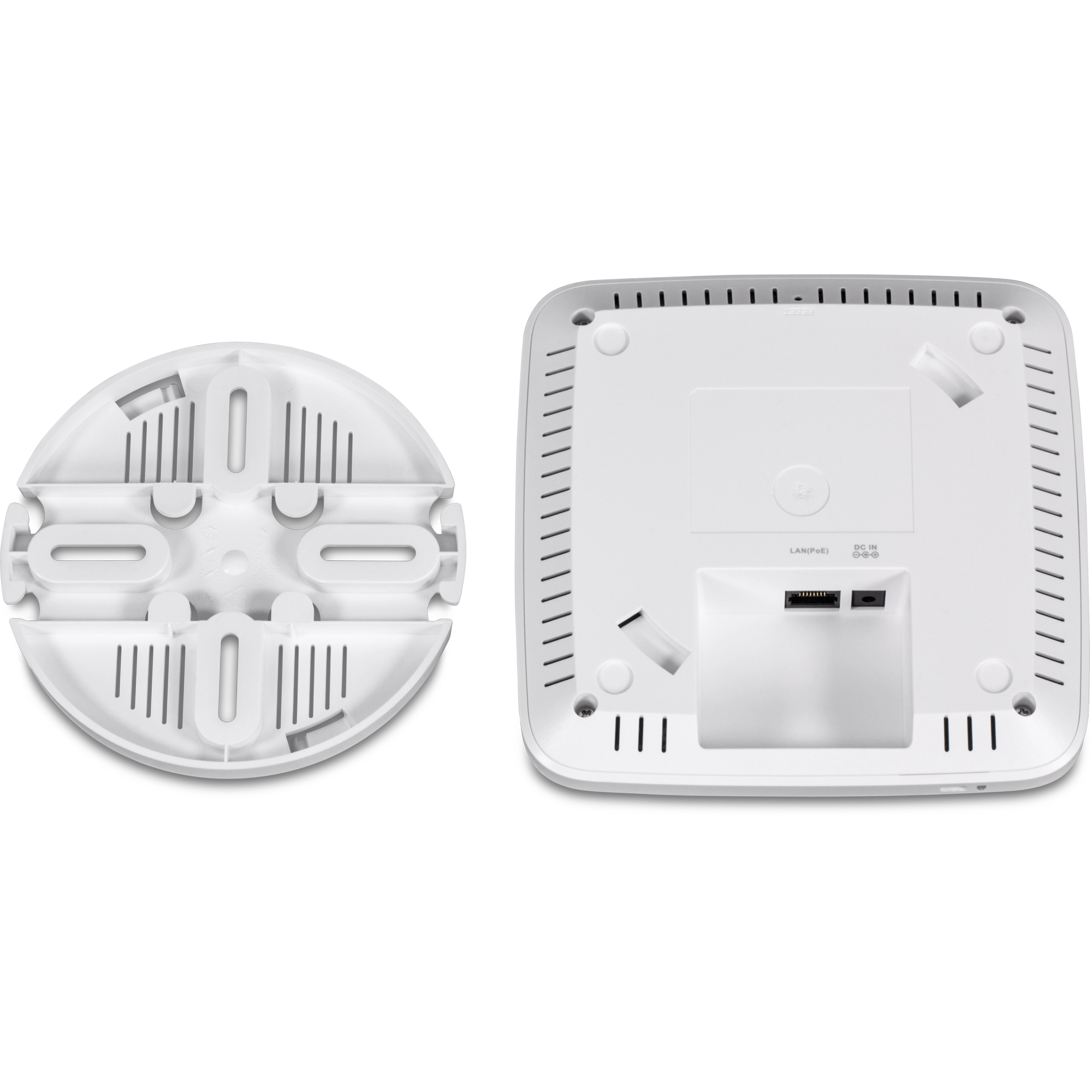

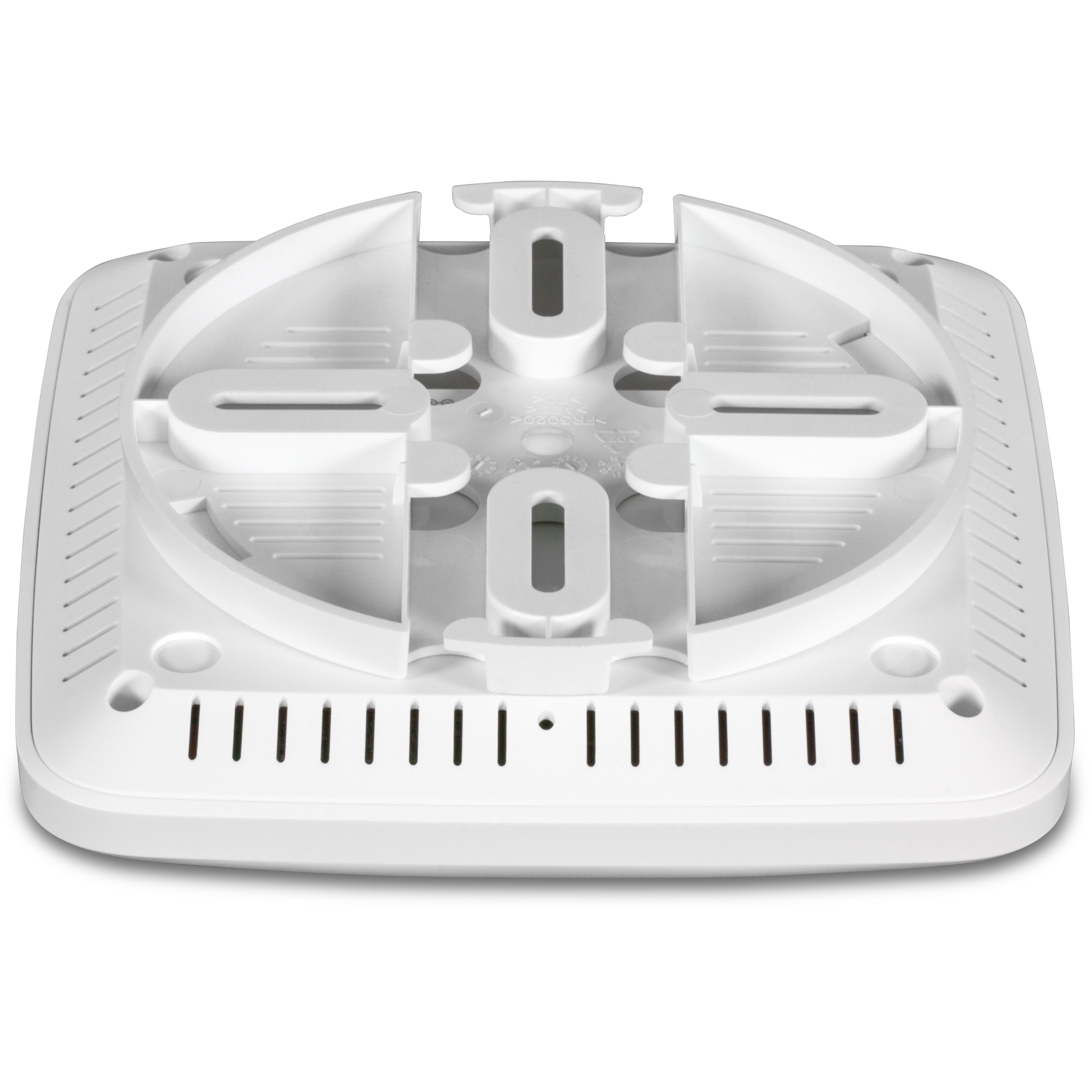

Mounting Plate

Wall / Ceiling mounting plate for this WiFi 6 access point is included

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.1Q
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11k
  • IEEE 802.11n (up to 400Mbps)*
  • IEEE 802.11r
  • IEEE 802.11v
  • IEEE 802.11w
  • IEEE 802.11ac Wave 2 (up to 867Mbps)*
  • IEEE 802.11ax (up to 1201Mbps)*

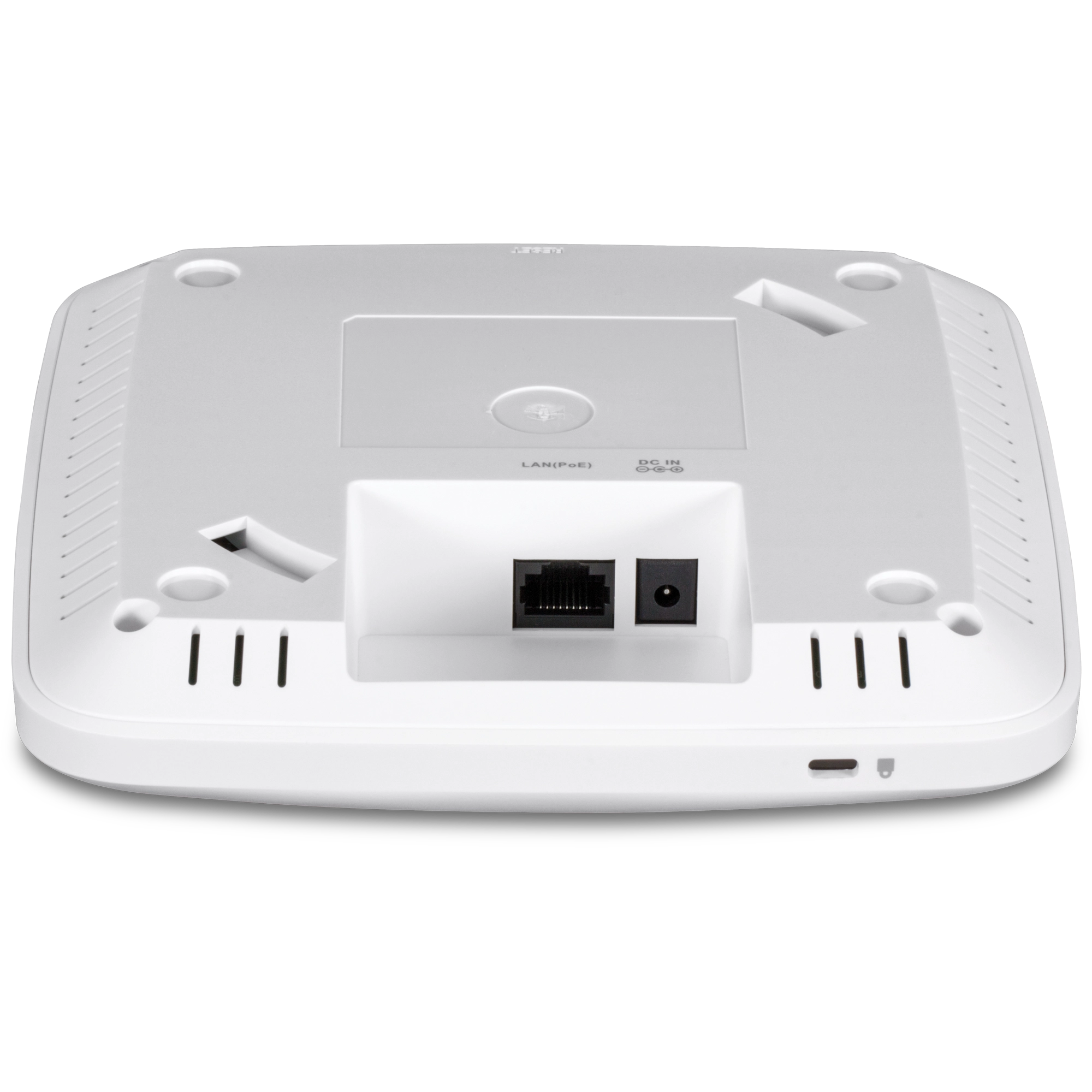

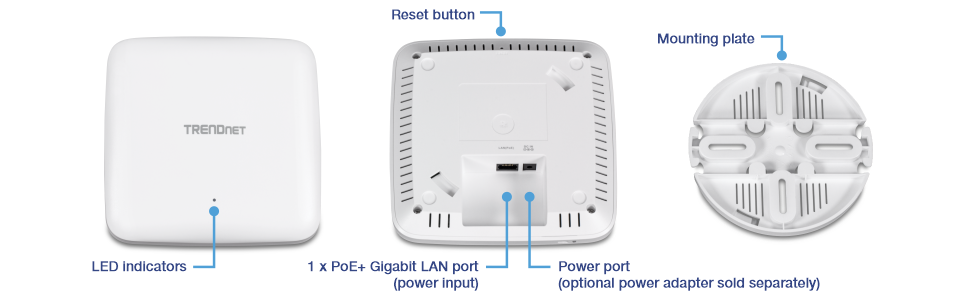

Hardware Interface
  • 1 x PoE+ Gigabit LAN port (power input)
  • Power port (optional power adapter sold separately)
  • LED indicators
  • Mounting plate

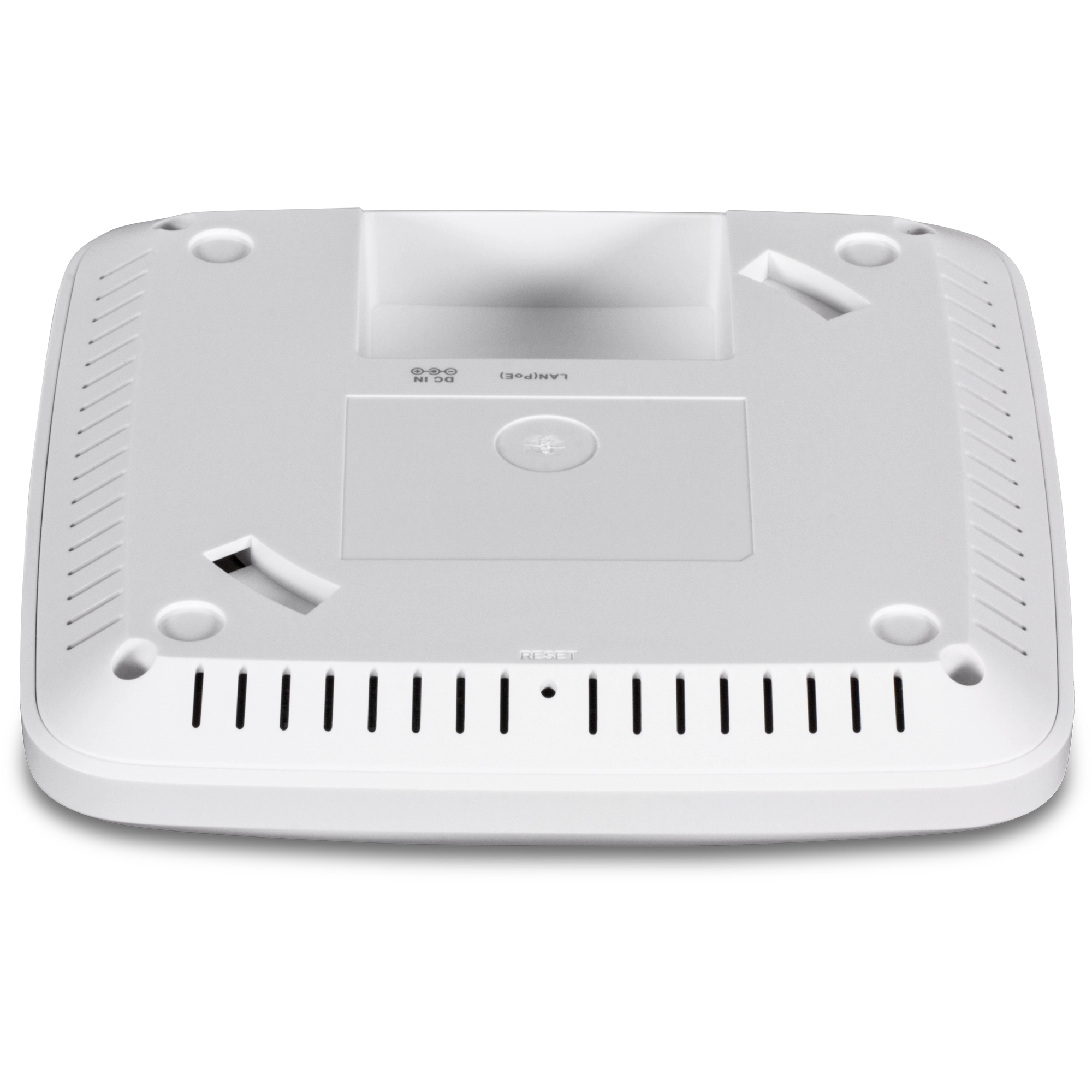

  • Reset button
Features
  • MU-MIMO
  • OFDMA
  • Band steering
  • WiFi traffic shaping
  • 802.1Q VLAN assignment per SSID
  • IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6))
  • Multi-Language interface, English, French, Spanish, German, Russian
  • LEDs on/off
  • External Captive Portal (Coovachilli server authentication)
  • Internal Captive Portal (Local user account authentication and customizable portal page)
  • Redirect Captive Portal
  • 802.11k intelligent radio resource management
  • RSSI Threshold (client signal strength and connectivity control)
  • Airtime Fairness
  • IGMP Snooping
Operation Modes
  • Access Point
  • Client Bridge
  • WDS AP
  • WDS Bridge
  • WDS Station
  • Repeater
Management/Monitoring
  • Web based management
  • SNMP v1/v3
  • STP
  • Event logging
  • Ping test
  • Traceroute
  • Telnet
  • Reboot & scheduled automatic reboot
Hive Cloud Management
  • Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser, or through the mobile app
  • Multi-device management
  • Provisioning through scheduled batch firmware or configuration updates for multiple switches
  • Event/hardware network monitoring (CPU/memory utilization)
  • Configure features such as IP address settings, WiFi settings, operation modes, and LED control through cloud management
Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS, WPA3-PSK
  • MAC filter
  • Maximum client limit
QoS
  • Bandwidth control per SSID or client
SSID
  • Up to 8 SSIDs per wireless band (24 total)
Frequency
  • 2.4GHz: 2.412 – 2.472GHz
  • 5GHz: 5.180 – 5.320GHz
Wireless Channels
  • 2.4GHz: FCC: 1–11, ETSI: 1 – 13
  • 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140) **
Modulation
  • DBPSK/DQPSK/CCK for DSSS technique
  • BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM technique
  • OFDMA
Antenna Gain
  • 2.4GHz: 2 x 3.2 dBi internal
  • 5Ghz: 2 x 4.3 dBi internal
Wireless Output Power
  • 802.11a: FCC: 30 dBm (max.) / CE: 28 dBm (max.)
  • 802.11b: FCC: 29 dBm (max.) / CE: 18 dBm (max.)
  • 802.11g: FCC: 29 dBm (max.) / CE: 19 dBm (max.)
  • 802.11n (2.4GHz): FCC: 29 dBm (max.) / CE: 19 dBm (max.)
  • 802.11n (5GHz): FCC: 30 dBm (max.) / CE: 28 dBm (max.)
  • 802.11ac: FCC: 30 dBm (max.) / CE: 28 dBm (max.)
  • 802.11ax (2.4GHz): FCC: 29 dBm / CE: 19 dBm
  • 802.11ax (5GHz): FCC: 30 dBm / CE: 28 dBm
Receiving Sensitivity
  • 802.11a: -75 dBm (typical) @ 54Mbps
  • 802.11b: -90 dBm (typical) @ 11Mbps
  • 802.11g: -77 dBm (typical) @ 54Mbps
  • 802.11n (2.4 GHz): -77 dBm (typical) @ 400Mbps
  • 802.11n (5 GHz): -71 dBm (typical) @ 400Mbps
  • 802.11ac: -71 dBm (typical) @ 867 Mbps
  • 802.11ax (2.4GHz): -65 dBm (typical) @ 574Mbps
  • 802.11ax (5GHz): -63 dBm (typical) @ 1201Mbps
Power
  • IEEE 802.3at Type 2 PoE PD Class 4
  • Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1.5A external power adapter (optional power adapter sold separately)
  • Max. consumption: 15W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 160 x 160 x 34mm (6.3 x 6.3 x 1.34 in.)
Weight
  • 486g (1.07 lbs.)
Warranty:
  • 3 year
PACKAGE CONTENTS
  • TEW-921DAP
  • Network cable (1.5m/5 ft.)
  • Quick Installation Guide
  • Mounting plate

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 1201Mbps, use with a 1201Mbps 802.11ax wireless adapter. For maximum performance of up to 867Mbps use with an 867Mbps 802.11ac wireless adapter. For maximum performance of up to 400Mbps, use with a 400Mbps 802.11n wireless adapter. Multi-User MIMO (MU-MIMO) requires the use of multiple MU-MIMO enabled wireless adapters.

**Due to regulatory requirements, the wireless channels specified cannot be statically assigned, but will be available within the available wireless channels when set to auto.


All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
