4-Port USB 3.0 Mini Hub

TU3-H4E (Version v1.0R)

Add Four SuperSpeed 5 Gbps USB 3.0 ports
No CD installation – just Plug and Play
Backward compatible with USB 2.0 ports
Reduced clutter with this compact adapter
No bulky power adapter – powered by USB port

DISCONTINUED PRODUCT

The TU3-H4E (Version v1.0R) has been discontinued. It has been replaced by the TU3-H4E (Version v2.0R). For a list of discontinued products, click here.

TRENDnet's 4-Port USB 3.0 Mini Hub, model TU3-H4E, instantly adds four 5 Gbps SuperSpeed USB 3.0 ports to a computer. No CD installation required-simply plug in flash drives, printers, scanners and other USB 3.0 devices at speeds ten times faster than a USB 2.0 connection. The TU3-H4E is also compatible with older USB 2.0 and 1.1 devices.

An illustration shows a network setup where a gaming console with a controller, a desktop computer with a monitor, and a laptop are all connected to a central hub, represented as a router or network switch within a speech bubble. The bottom portion shows a USB 3.0 port.

USB 3.0

Easily connect up to four USB 3.0 devices to a USB 3.0 enabled desktop or notebook PC

The illustration shows three electronic devices connected by curved lines, suggesting a network or communication. On the left is a gaming console with a controller. In the center is a desktop computer with a monitor. On the right is a laptop. The curved lines indicate a relationship or interaction among these devices, possibly representing a network or shared functionality.

Supports Most Operating Systems

Compatible with Windows, Mac, and Linux operating systems

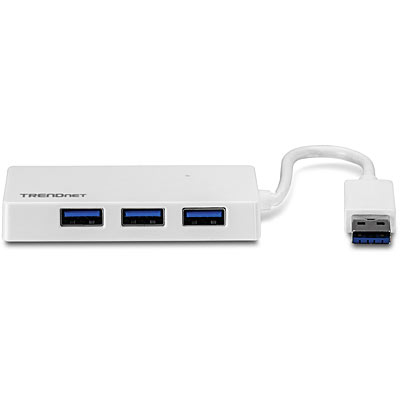

A 4-Port USB 3.0 Mini Hub with three rectangular ports on its front side and a cable extending from the right side, ending in a USB connector.

Flexible Connector

Attached flexible 14 cm (5.5 in.) USB 3.0 cable accommodates most installation scenarios

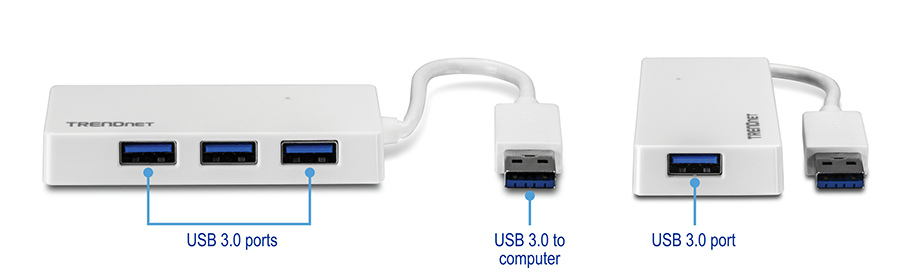

A TRENDnet USB 3.0 hub features three USB 3.0 ports on the front and a single USB 3.0 port on the side. It is connected to a computer using a USB 3.0 cable. The labels indicate the locations of the USB 3.0 ports and the connection to the computer.

Easy Setup

No CD installation – just Plug and Play

Flexible Connector

Attached flexible 14 cm (5 in.) USB 3.0 cable accommodates most installation scenarios

Operating Systems

Compatible with Windows, Mac, and Linux operating systems

LED Indicator

LED indicator confirms USB connectivity

USB Powered

No bulky power brick—compact adapter powered by USB port

Backwards Compatibility

Compatible with USB 2.0 and 1.1 ports

SuperSpeed USB 3.0

5 Gbps USB 3.0 ports

Power

Provides up to 4.5 Watts total power

Standards	USB 3.0 USB 2.0
Interfaces	1 x Type-A (male) USB 3.0 connector 4 x Type-A (female) USB 3.0 ports LED indicator
Maximum Data Rate	Up to 5 Gbps
Special Features	Compact form factor Flexible USB 3.0 connector
Power Consumption	USB 3.0: 4.5 Watts total (max.) USB 2.0: 2.5 Watts total (max.)
Operating Temperature	0 - 40°C (32 - 104°F)
Operating Humidity	Max. 95% non-condensing
Certifications	CE FCC
Dimensions	80 x 37 x 13 mm (3.15 x 1.46 x 0.51 in.) 35 g (1.2 oz)
Warranty	2 year limited

PACKAGE CONTENTS

TU3-H4E
Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
