4-Port USB 3.0 Hub

TU3-H4 (Version v2.0R)

Add Four SuperSpeed 5 Gbps USB 3.0 ports
No CD installation
Convenient 1 m (3 ft.) USB 3.0 cable
Reduce clutter with this compact adapter
Full power for power hungry USB devices

DISCONTINUED PRODUCT

The TU3-H4 (Version v2.0R) has been discontinued. It has been replaced by the TU3-H4 (Version v3.0R). For a list of discontinued products, click here.

TRENDnet's 4-Port USB 3.0 Hub, model TU3-H4, instantly adds four 5 Gbps SuperSpeed USB 3.0 ports to a computer. No CD installation required-simply plug in flash drives, storage enclosures, and other USB 3.0 devices at speeds ten times faster than a USB 2.0 connection. The TU3-H4 is also compatible with older USB 2.0 and 1.1 ports. An included power adapter provides full power to connected, power hungry, USB devices.

The speech bubble features icons of electronic devices, including a desktop computer, printer, laptop, and camera. Below the speech bubble is a USB 3.0 port.

USB 3.0

Easily connect up to four USB 3.0 devices to a USB 3.0 enabled desktop or notebook PC

It shows a power adapter plugged into an outlet and connected to a device.

Included Power Adapter

Power adapter provides a total power of 15 Watts

Line art of a USB 3.0 Cable, it shows cable flexibility.

Flexible Connector

Flexible 1 m (3 ft.) USB 3.0 cable accommodates most installation scenarios

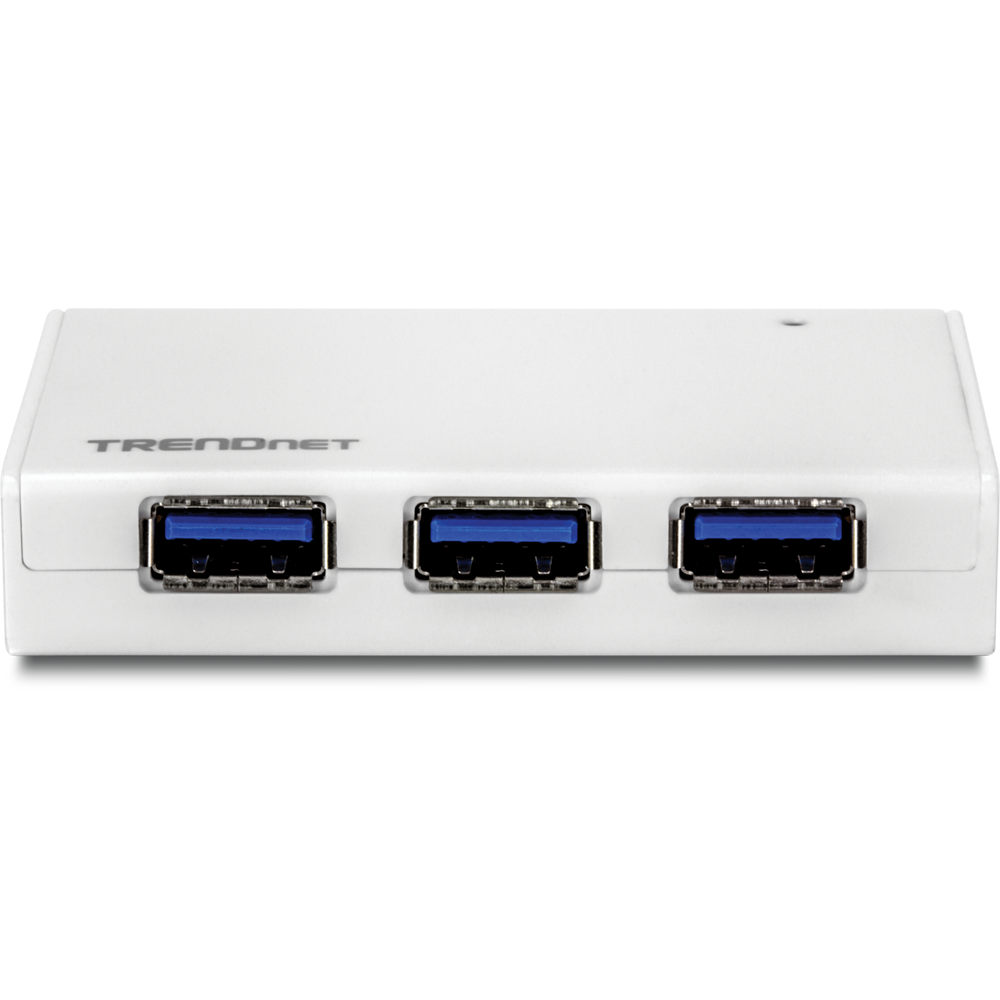

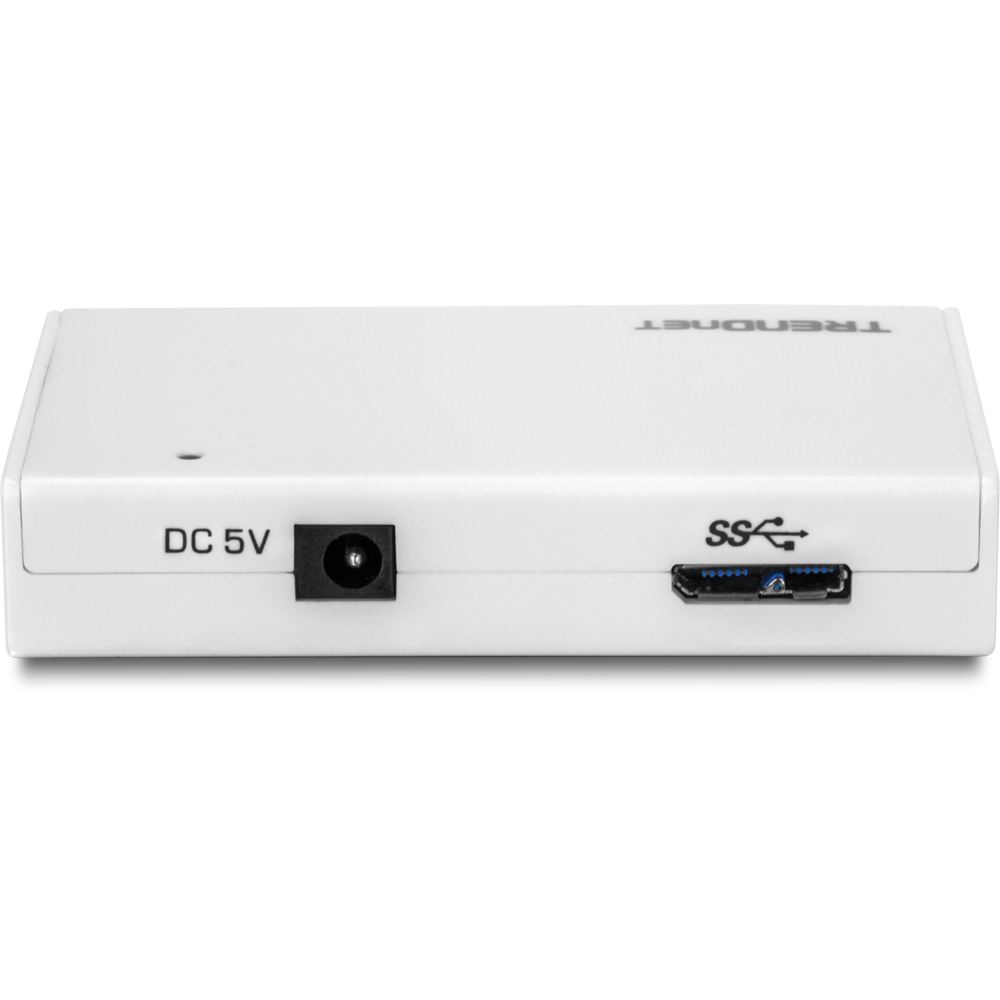

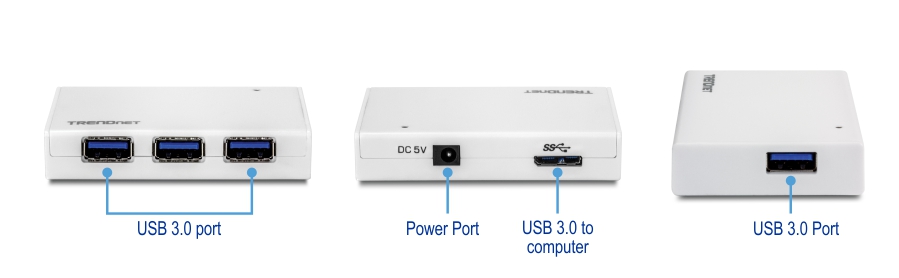

Three views of a white device labeled TRENDnet, featuring three USB 3.0 ports on the front, a power port and USB 3.0 port on the back, and a single USB 3.0 port on the side.

Ease of Use

Easy Setup

No CD installation – just plug in

USB 3.0

Easily connect up to four USB 3.0 devices to a USB 3.0 enabled desktop or notebook PC

Installation Flexibility

Included 1 m (3 ft.) USB 3.0 cable accommodates most installations

Operating Systems

Compatible with Windows, Mac, and Linux operating systems

LED Indicator

LED indicator confirms USB connectivity

Performance

Power Adapter

Power adapter provides a total power of 15 Watts

Backwards Compatibility

Compatible with USB 2.0 and 1.1 devices

Standards	USB 3.0 USB 2.0 USB 1.1
Device Interfaces	1 x Type-B (female) micro USB 3.0 port 4 x Type-A (female) USB 3.0 ports Power socket LED indicator
Maximum Data Rate	Up to 5 Gbps
Special Features	Compact form factor Flexible USB 3.0 cable Full power to connected devices
Power Adapter	Input: 100-240 V, 50/60 Hz Output: 5 V DC 3, A Consumption: Max. 15 Watts
USB Bus Powered	Output: 5 V DC, 0.9 A Consumption: Max. 4.5 Watts
Operating Temperature	0 - 60°C (32 - 140°F)
Operating Humidity	Max. 95% non-condensing
Certifications	CE FCC
Dimensions	75 x 51 x 14.5 mm (2.95 x 2.01 x 0.57 in.)
Weight	35 g (1.2 oz.)
Warranty	2 year limited

PACKAGE CONTENTS

TU3-H4
USB 3.0 Cable (1 m/3 ft.)
Multi-language Quick Installation Guide
Power adapter (5 V DC, 3 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
