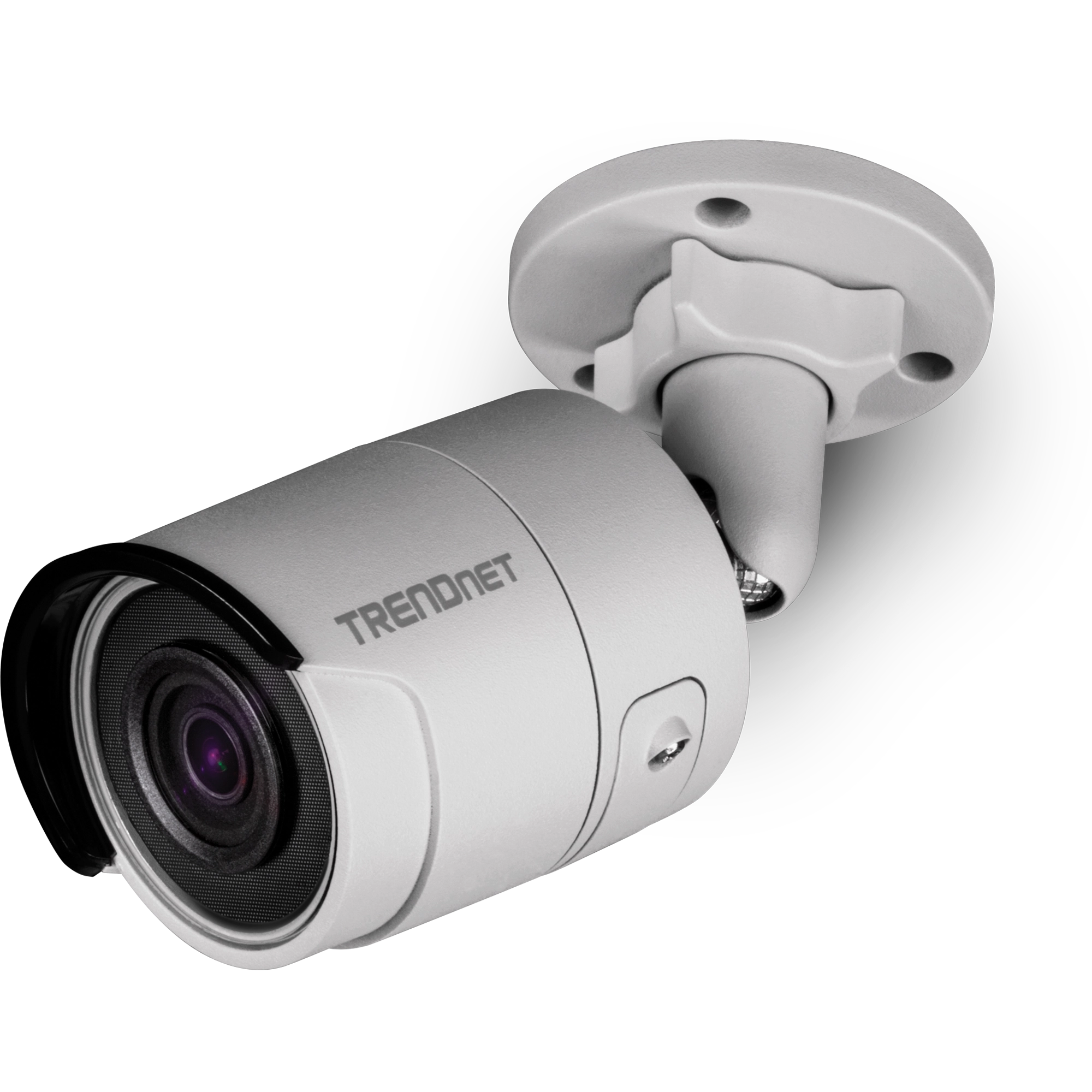

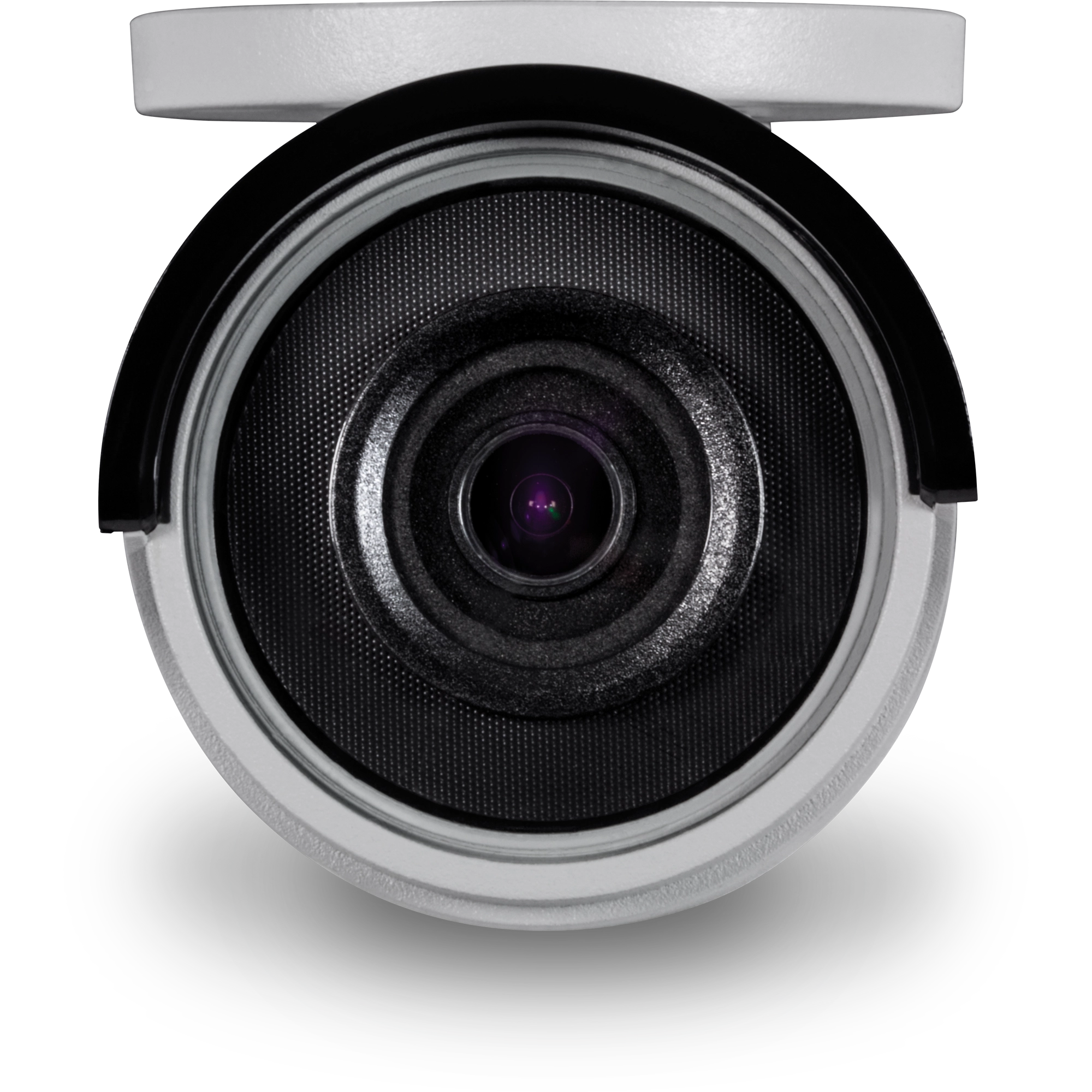

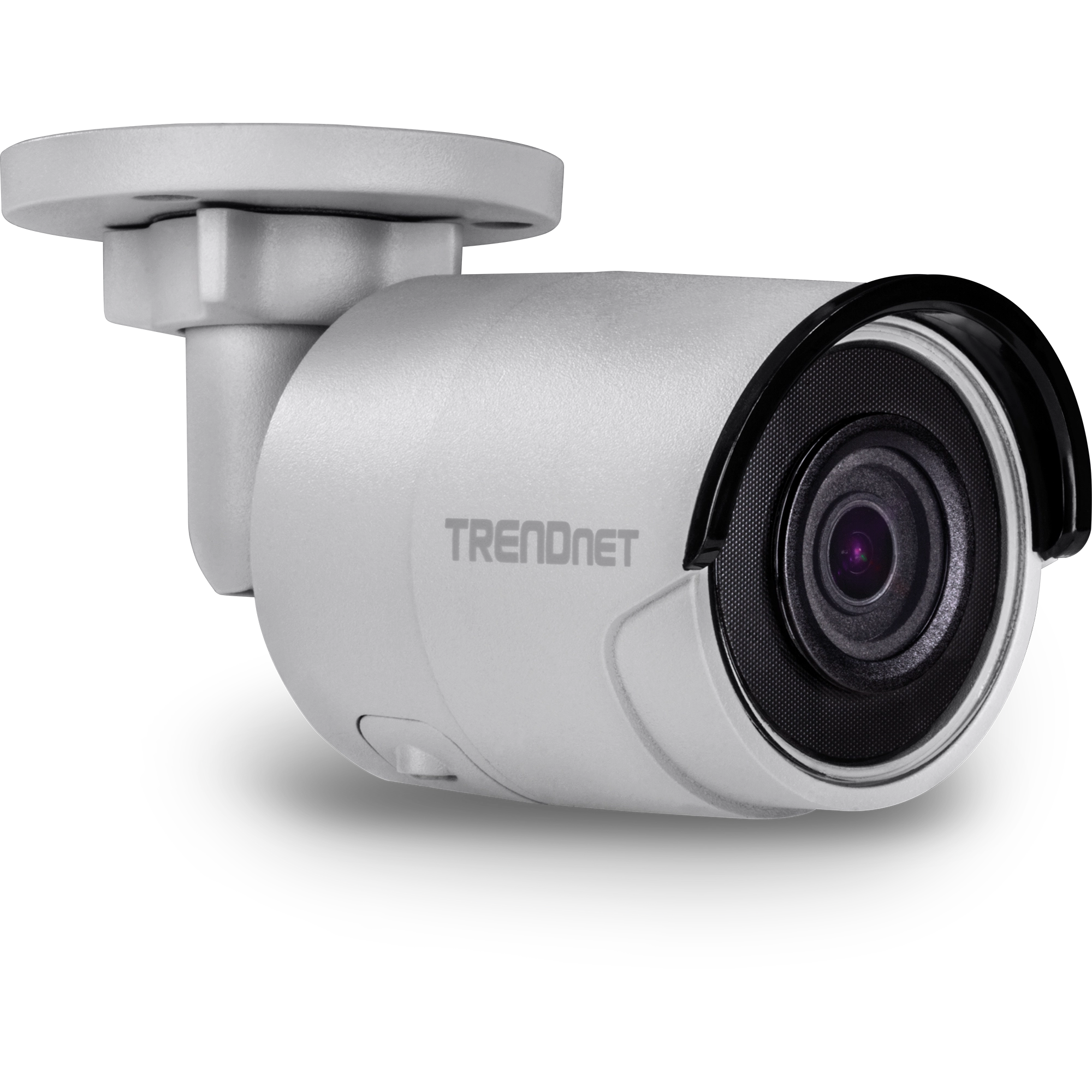

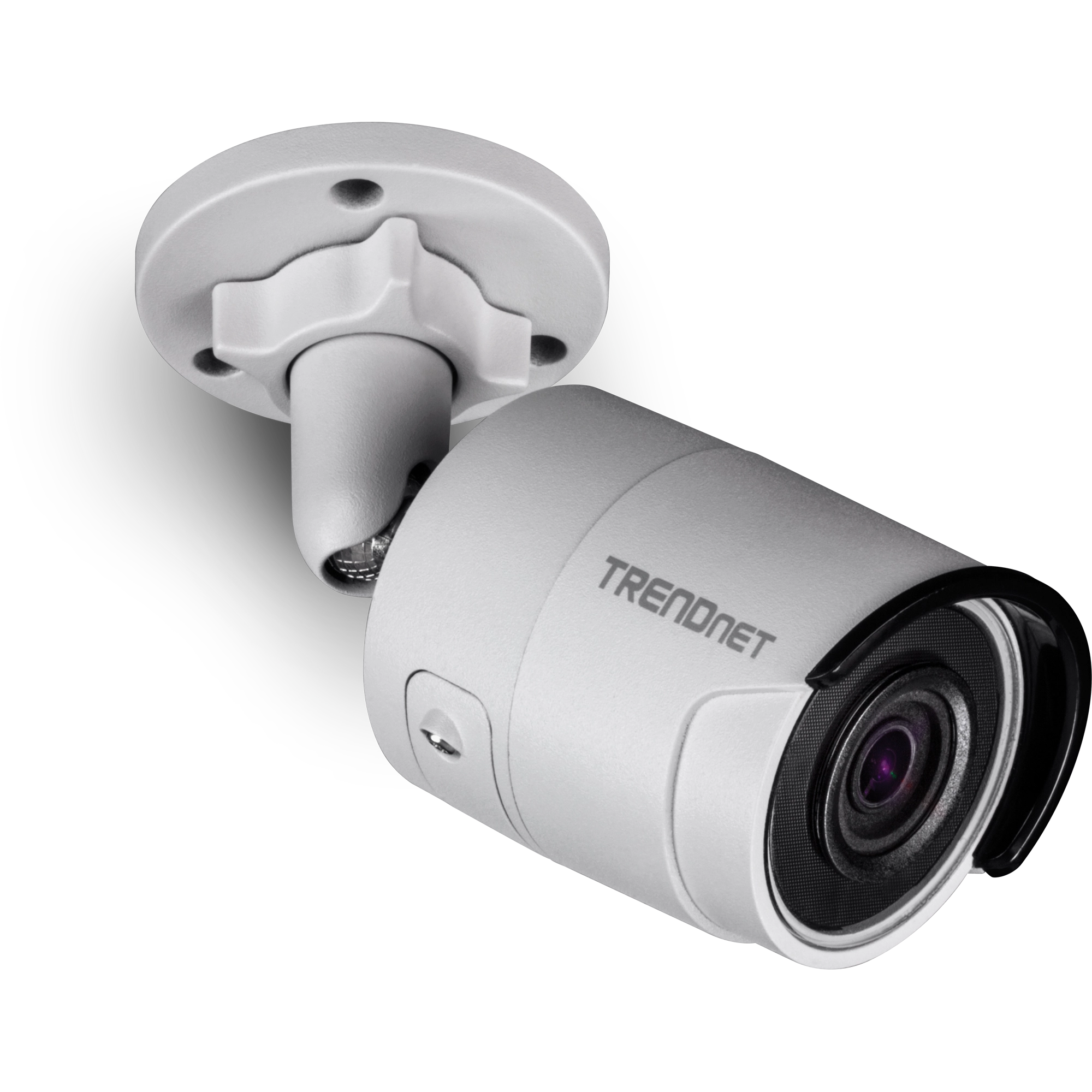

TRENDnet's Indoor/Outdoor 5MP H.265 WDR PoE IR Bullet Network Camera, model TV-IP316PI, provides day and night surveillance with a night vision range of up to 30 meters (98 ft.) This IR bullet network camera delivers year-round surveillance with an IP67 weather rated housing to withstand harsh environments. Record up to 5MP video (2944 x 1656) at 20 fps in a space saving H.265 compression format. View live video with included complimentary software and mobile apps.
Day/Night HD Surveillance
Powerful 5MP video in H.265 compression and 30m night vision provide 24-hour surveillance. Masked IR LEDs provide covert night-time viewing invisible to the human eye.
Power over Ethernet (PoE)
PoE offers cost savings and the flexibility to install this IR bullet camera up to 100m (328 ft.) from the PoE source equipment.
Built for outdoor environments with an IP67 weather rating and an operating temperature range of -30° – 60°C (-22° – 140°F).
Record up to 5MP (2944 x 1656) HD video at 20 fps in the space saving H.265 compression format
Masked IR LEDs provide covert night-time viewing invisible to the human eye, up to 30 meters (98 ft.).
Smart IR dynamically adjusts the IR LEDs by lowering the IR intensity when objects are near, and increasing IR intensity when objects are farther away.
Save on installation costs with Power over Ethernet (PoE)
Outdoor IP67 weather rated housing
Adjustable Mounting Base
Fully adjustable integrated mounting base provides installation flexibility
Record video to a network storage device or to a Micro SD card (up to 128GB sold separately).
Advanced in-camera archived video review functionality
Create custom motion detection zones to record video and send email notifications when a zone is triggered.
Create custom tamper detection zones to send an email notification when the camera's view has been obstructed.
Wide Dynamic Range (WDR)
Adjustable 120dB WDR setting improves image quality and focus when a camera is exposed to high contrast lighting environments, enhancing the dark areas of the image to make them more visible.
Define custom schedules using continuous (24/7) and event based recording modes.
ONVIF Profile S, Profile G and PSIA compliant
Complimentary pro-grade software to manage TRENDnet cameras
Live video to your mobile device with free iOS®and Android™apps
Focal length: 2.8mm @ F1.2
Sensor: 1/2.9” CMOS sensor
Digital zoom: 4x
Horizontal angle: 81˚
Pan: 0° to 360°
Tilt: 0° to 90°
Rotate: 0° to 360°
IR off: 0.01 lux
IR on: 0 lux
IR distance: 30m (98 ft.)
IR LED wavelength: 850nm
H.265+ / H.265
H.264+ / H.264
Main stream: H.265+/H.265/H.264+/H.264: 2944 x 1656 up to 20 fps
Sub stream: H.265/H.264/MJPEG: 640 x 360 up to 30 fps
Third stream: H.265/H.264: 1280 x 720 up to 30 fps
10/100Mbps PoE port
Micro SD card slot
Micro SD slot
Supports Micro SD/SDHC/SDXC (not included)
Up to 128GB
IP67 weather rated
IPv4, IPv6, UDP, TCP/IP
DHCP, NTP, DDNS, SMTP, FTP, LLTD
SNMP v1, v2c, v3, QoS/DSCP, IEEE 802.1X
UPnP, RTSP, RTP
ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
155 x 70 x 70mm (6.1 x 2.75 x 2.75 in.)
400g (0.9 lb.)
-30° – 60° C (-22° – 140° F)
Max. 95% non-condensing
Consumption: Max. 7W
Power Adapter (optional model: 12VDC1A)
Input: 100 – 240V AC , 50/60Hz
Output: 12V DC, 1A external power adapter
Multi-language support: English, French, German, Spanish, and Portuguese
Image settings: Brightness, Contrast, Saturation, Sharpness, Exposure Time, image Gain, Day/Night switch. Smart Supplement Light (Smart IR), BLC, WDR, white balance, Digital Noise Reduction, Mirror, Rotate, Scene Mode, Video Standard
WDR enhances video quality in high contrast daytime lighting
Digital Noise Reduction removes digital noise from the video signal
Recording: to computer, or SAMBA share
Time, date, and text overlay
IP Address Filter
Video Recording: scheduled, motion detection, and tamper detection
Motion detection: define up to three motion detection areas and motion sensitivity
Privacy masks: define custom privacy masks
Tamper detection function: email notification
Snapshot: real time snapshot and motion triggered
Supported dynamic DNS services: dyn.com and no-ip.com
Supports remote management
Compatible browsers: Chrome™ or Firefox® (live view resolution up to 1280 x 720), Internet Explorer®
TRENDnetVIEW EVO Software
Supports up to 32 TRENDnet cameras
Multiple language support
Set recording options (motion detection, schedule, event trigger)
Search and playback
Custom viewing modes and options
Compatibility: Windows® 10, 8.1, Windows Server® 2012, 2008
TRENDnet IPVIEW App
Free iOS® and Android™ apps
View live camera video on a mobile device
Quick installation guide
Camera mounting hardware
CD-ROM (Utility, Software, & User's Guide)
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
