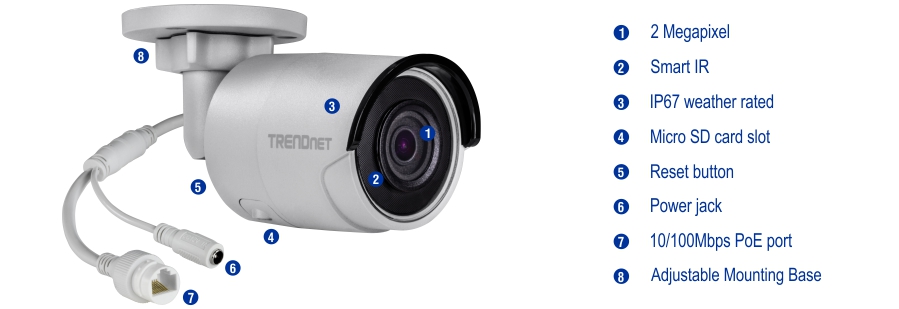

Indoor / Outdoor 2MP H.265 WDR PoE IR Bullet Network Camera

TV-IP326PI (Version v1.0R)

2MP 1080p HD video (1920 x 1080) at 30 fps
Smart covert IR LEDs for night vision up to 30 meters (98 ft.)
Outdoor IP67 weather rating
120dB Wide Dynamic Range image balancing
Save installation costs with Power over Ethernet (PoE)
Program motion detection recording and email alerts
Micro SD card slot (up to 128GB)
Free iOS^® and Android^™ mobile apps

DISCONTINUED PRODUCT

The TV-IP326PI (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

TRENDnet's Indoor/Outdoor 2MP H.265 WDR PoE IR Bullet Network Camera, model TV-IP326PI, provides day and night surveillance with a night vision range of up to 30 meters (98 ft.) This IR bullet network camera delivers year-round surveillance with an IP67 weather rated housing to withstand outdoor environments. Record up to 2MP 1080p HD video at 30 fps in a space saving H.265 compression format. View live video with included complimentary software and mobile apps.

A stylized representation of the sun and moon, with the sun's rays extending outward and a crescent moon overlapping the sun. Inside the crescent moon are four stars, all in a blue color scheme.

Day/Night HD Surveillance

Powerful 2MP video in H.265 compression and 30m (98 ft.) night vision provides 24-hour surveillance.

A security camera is depicted with a cable extending from it, leading to a connector. A magnified view of the connector shows a symbol indicating Power over Ethernet (PoE).

Power over Ethernet (PoE)

PoE offers cost savings and the flexibility to install this IR bullet camera up to 100m (328 ft.) from the PoE source equipment.

The illustration depicts two icons side by side. The first icon, on the left, shows several raindrops representing water resistance. The second icon, on the right, features a cloud with small dots, signifying dust resistance. These icons emphasize the product's durability in outdoor conditions.

Outdoor Ready

Built for outdoor environments with an IP67 weather rating and an operating temperature range of -30° – 60°C (-22° – 140°F).

2 Megapixel

Record up to 2MP HD video (1920 x 1080) at 30 fps in the space saving H.265 compression format.

Covert Night Vision

Masked IR LEDs provide covert night-time viewing up to 30 meters (98 ft.) away.

Smart IR

Smart IR dynamically adjusts the IR LEDs by lowering the IR intensity when objects are near, and increasing IR intensity when objects are farther away.

PoE

Save installation costs with Power over Ethernet (PoE)

Outdoor Ready

Outdoor IP67 weather rated housing

Adjustable Mounting Base

Fully adjustable integrated mounting base provides installation flexibility

Storage

Record video to a network storage device or to a Micro SD card (up to 128GB not included).

Advanced Playback

Advanced in-camera archived video playback functionality

Motion Detection

Create custom motion detection zones to record video and send email notifications when a zone is triggered.

Tamper Detection

Create custom tamper detection zones to send an email notification when the camera view has been obstructed.

Wide Dynamic Range (WDR)

Adjustable 120dB WDR setting improves image quality and focus when a camera is exposed to high contrast lighting environments by enhancing the dark areas of the image to make them more visible.

Recording Flexibility

Define custom schedules using continuous (24/7) and event based recording modes.

ONVIF

ONVIF Profile S Certified

Complimentary Software

Complimentary pro-grade software to manage TRENDnet cameras

Complimentary Apps

View live video on a mobile device with free iOS® and Android™ apps

Lens	Focal length: 4mm @ F1.2 Sensor: 1/2.8” CMOS sensor Digital zoom: 4x WDR: 120dB
Viewing	Horizontal angle: 86˚
Minimum Illumination	IR off: 0.01 lux IR on: 0 lux IR distance: 30m (98 ft.) IR LED wavelength: 850nm
Compression	H.265+ / H.265 H.264+ / H.264 MJPEG
Resolution	Main stream: H.265+/H.265/H.264+/H.264: 1920 x 1080 up to 30 fps Sub stream: H.265/H.264/MJPEG: 640 x 480 up to 30 fps Third stream: H.265/H.264: 1920 x 1080 up to 10 fps
Hardware Standards	IEEE 802.1x IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af
Device Interface	10/100Mbps PoE port Micro SD card slot Power jack Reset button
Micro SD slot	Supports Micro SD/SDHC/SDXC (not included) Up to 128GB
Housing	IP67 weather rated
3-Axis Manually Adjustable Mounting Arm	Pan: 0° to 360° Tilt: 0° to 90° Rotate: 0° to 360°
Network Protocol	IPv4, IPv6, UDP, TCP/IP DHCP, NTP, DDNS, SMTP, FTP, LLTD SNMP v1, v2c, v3, QoS/DSCP, IEEE 802.1X NFS, SMB/CIFS HTTP, HTTPS PPPoE UPnP, RTSP, RTP
Standard	ONVIF certified (Profile S, Profile G)
Dimension	155 x 70 x 70mm (6.1 x 2.75 x 2.75 in.)
Weight	400g (0.9 lb.)
Operating Temperature	-30° – 60° C (-22° – 140° F)
Humidity	Max. 95% non-condensing
Power	Input: PoE Consumption: Max. 7.5W
Power Adapter (optional model: 12VDC1A)	Input: 100 – 240V AC , 50/60Hz Output: 12V DC, 1A external power adapter
Management Interface	Multi-language support: English, French, German, Spanish, and Portuguese Image settings: Brightness, Contrast, Saturation, Sharpness, Exposure Time, image Gain, Day/Night switch, Smart IR, BLC, WDR, white balance, Digital Noise Reduction, Mirror, Rotate, Scene Mode, Video Standard WDR enhances video quality in high contrast daytime lighting Digital Noise Reduction removes digital noise from the video signal Recording: to computer, or SAMBA share Time, date, and text overlay IP Address Filter Video Recording: scheduled, motion detection, and tamper detection Motion detection: define up to three motion detection areas and motion sensitivity Privacy masks: define custom privacy masks Tamper detection function: email notification Snapshot: real time snapshot and motion triggered Supported dynamic DNS services: dyn.com and no-ip.com Supports remote management Compatible browsers: Chrome^™, Firefox^®, Internet Explorer^®
TRENDnetVIEW EVO Software	Supports up to 32 TRENDnet cameras Multiple language support Set recording options (motion detection, schedule, event trigger) Search and playback Custom viewing modes and options Compatibility: Windows^® 10, 8.1, Windows Server^® 2012, 2008
TRENDnet IPVIEW App	Free iOS^® and Android^™ apps View live camera video on a mobile device Take snapshots Zoom
Certifications	CE FCC UL
Warranty	3 year

PACKAGE CONTENTS

TV-IP326PI
Weather seal
Quick installation guide
Camera mounting hardware

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
