8-Port Gigabit GREENnet Switch

TEG-S80g (Version V1.0R)

  • GREENnet technology reduces power consumption by up to 70%*
  • 8 x Auto-Negotiation Gigabit ports
  • Build a high performance energy efficient Gigabit network in minutes
  • Sturdy metal switch with a simple Plug and Play installation

The compact 8-Port Gigabit GREENnet Switch provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Boost your office efficiency and eliminate network congestion with Gigabit speeds and total switching capacity of 16Gbps with Full-Duplex Mode. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

  • 8 x 10/100/1000Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet ports
  • GREENnet technology reduces power consumption when:
    1. Ethernet port is not in use
    2. Connected device is turned off
    3. Connected device is in power-saving mode
    4. Based on Ethernet cable length
  • Store-and-Forward switching architecture with non-blocking wire-speed performance
  • IEEE 802.3x Flow Control for full-duplex mode
  • Back pressure Flow Control for half-duplex mode
  • Integrated address look-up engine with 4K absolute MAC address table and 128KBytes RAM data buffering
  • Operates and maximizes packet filtering and forwarding rate
  • Jumbo Frame support up to 9612Bytes
  • Sturdy metal housing
  • Diagnostic LEDs and Plug & Play
  • 3-year limited warranty
->
Hardware
Standards
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3x Flow Control
Network Media
  • Ethernet: Cat. 3,4,5, up to 100m
  • Fast Ethernet: Cat. 5, up to 100m
  • Gigabit Ethernet: Cat. 5, 5e, 6, up to 100m
Data Rate
  • Ethernet: 10Mbps/20Mbps (Half/Full-Duplex)
  • Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
  • Gigabit Ethernet: 2000Mbps (Full-Duplex)
Protocol / TopologyCSMA/CD, Star
Power Consumption5w (max)
Switch Fabric16Gbps Forwarding Capacity
Interface8 10/100/1000Mbps Auto-MDIX RJ-45 Ports
Data RAM Buffer128KBytes
Filtering Table4K entries

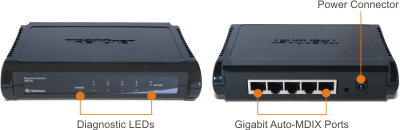

Diagnostic LEDPower, Link/ACT, 100Mbps, 1000Mbps
Power Adapter7.5V DC, 1A external power adapter
Dimension171 x 98 x 28mm (6.7 x 3.86 x 1.1 in)
Weight450g (15.9 oz)
TemperatureOperating: 0° ~ 40° C (32° ~ 104° F)
Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity5%~90% (non-condensing)
CertificationsFCC, CE
PACKAGE CONTENTS
  • TEG-S80g
  • Multi-Language Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
