Intelligent 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter

TFC-1000MSC (Version v5.0R)

  • SC-type 1000Base-SX Multi-Mode fiber port
  • 1 x 100/1000BASE-T RJ-45 port
  • Fiber networking over distances of up to 550m (1800 ft.)
  • Functions as a standalone converter
  • Compatible with TRENDnet's TFC-1600 fiber chassis system
  • 2Gbps switching capacity
  • LEDs convey power and copper/fiber link and activity
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
DISCONTINUED PRODUCT
The TFC-1000MSC (Version v5.0R) has been discontinued. For a list of discontinued products, click here.

TRENDnet's Intelligent 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter, model TFC-1000MSC, is compatible with the TFC-1600 chassis system or can function as a standalone unit. This multi-mode fiber converter is an SC fiber converter that supports SNMP (when used TFC-1600MM) and spans distances up to 550m (1,800 ft.). Ports include a 1000Base-T (RJ-45) port and a 1000Base-SX (SC-Type) fiber port.

A signal wave with bidirectional arrows, labeled as 550m (1,800 ft.).

Multi-Mode

This multi-mode converter is an SC-Type fiber converter that supports SNMP (when used TFC-1600MM) and spans distances up to 550m (1,800 ft.). Ports include a 1000Base-T (RJ-45) port and a 1000Base-SX (SC-Type) fiber port.

A line drawing showing a media converter connected to a power adapter, which is plugged into an electrical outlet. This illustration highlights that the media converter includes a power adapter for independent use.

Power Adapter

The multi-mode fiber media converter includes a power adapter for standalone use.

Depiction of a TRENDnet TFC-1600 Chassis, featuring the front panel with various slots and indicators. The image emphasizes that the chassis can operate independently or be integrated.

TFC-1600 Chassis Compatible

Functions as a standalone unit, or can be used with TRENDnet's expandable 16-Bay Fiber Converter Chassis System, model TFC-1600 (sold separately).

A black device labeled TFC-1000MSC is positioned in the center. It has two ports on the left side and one port on the right side. The device is connected by cables to two sets of network equipment racks, one on each side. Each rack contains multiple network switches or servers, depicted in a blue outline. The cables connect from the ports on the TFC-1000MSC to the ports on the network equipment racks. The device appears to be a network media converter, facilitating connections between different network hardware.

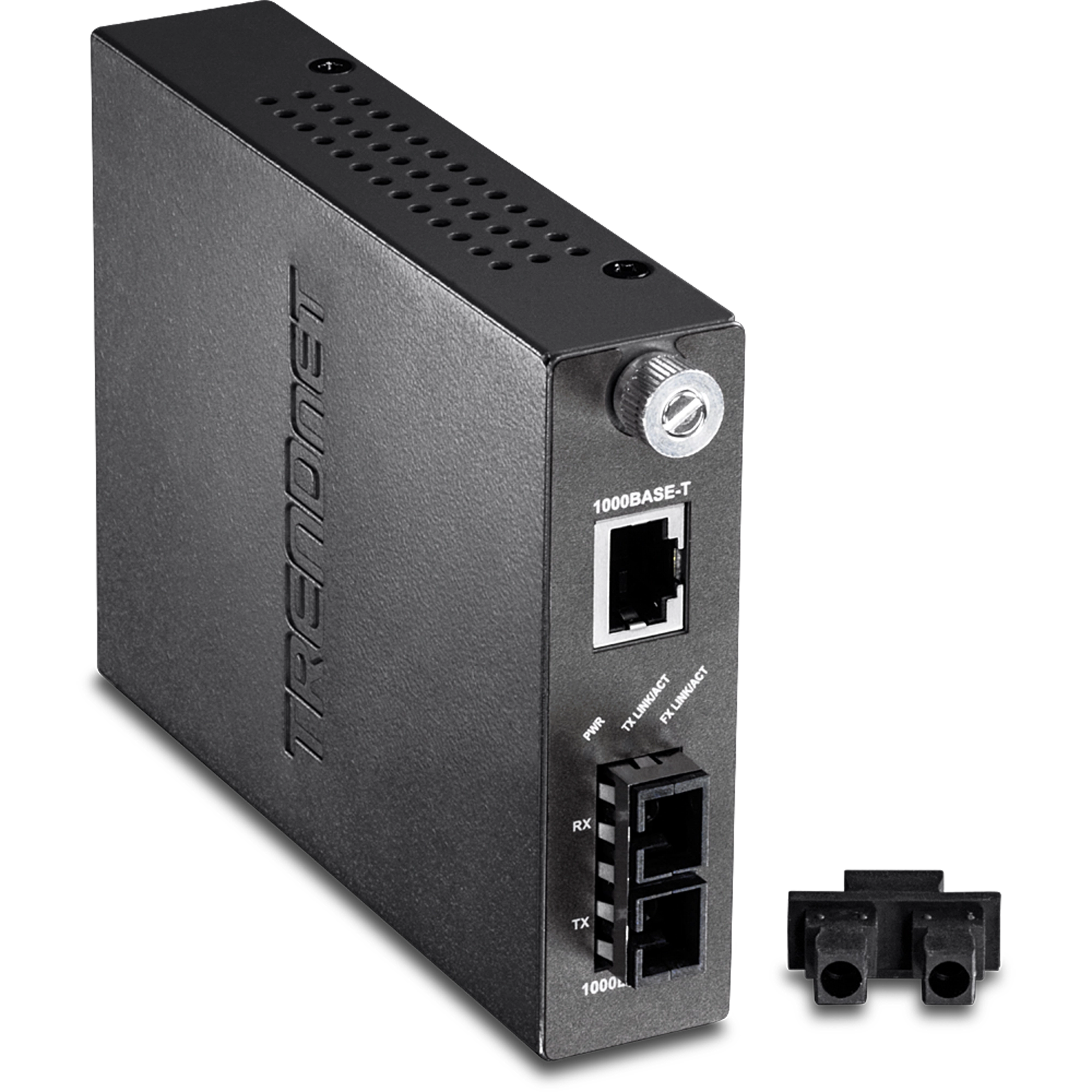

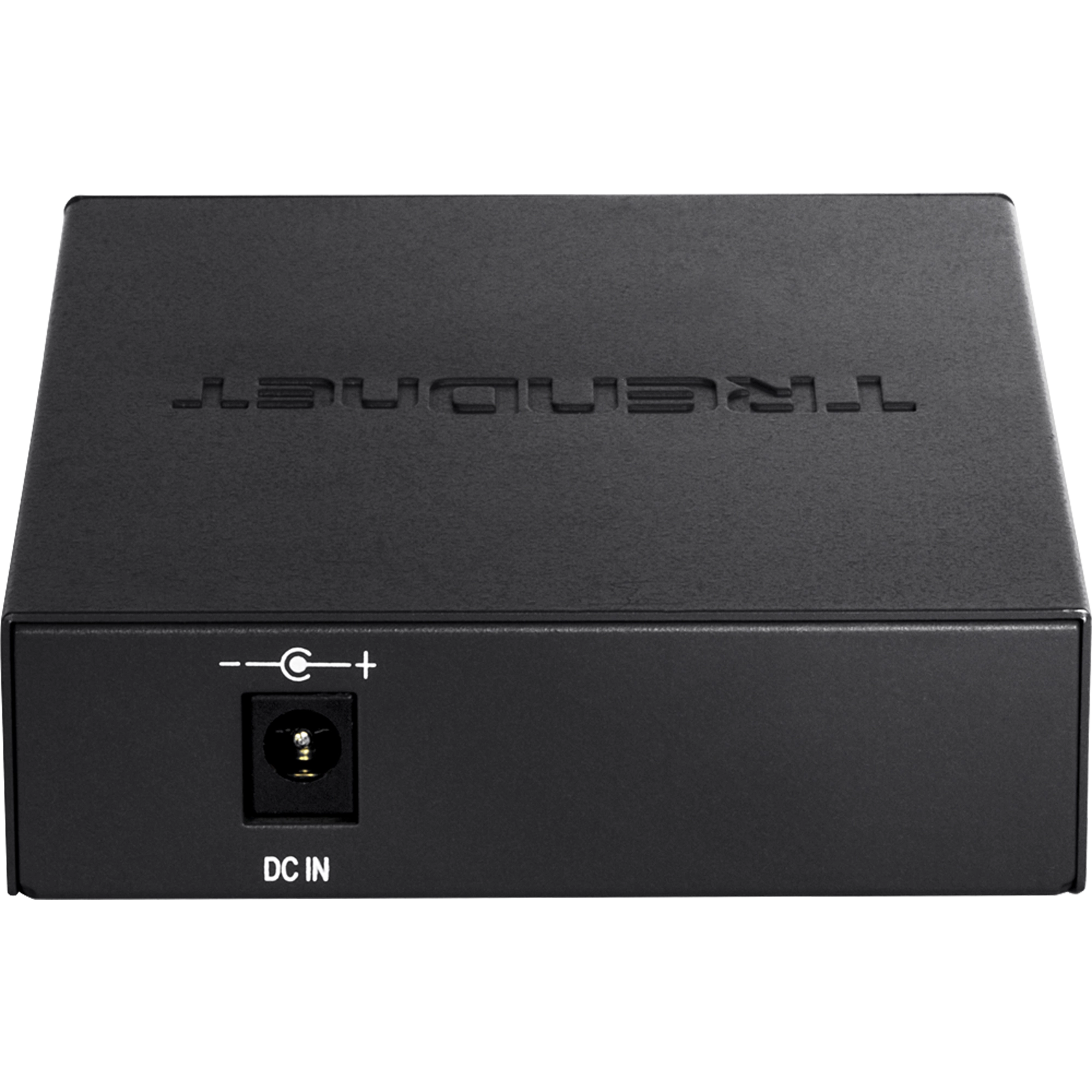

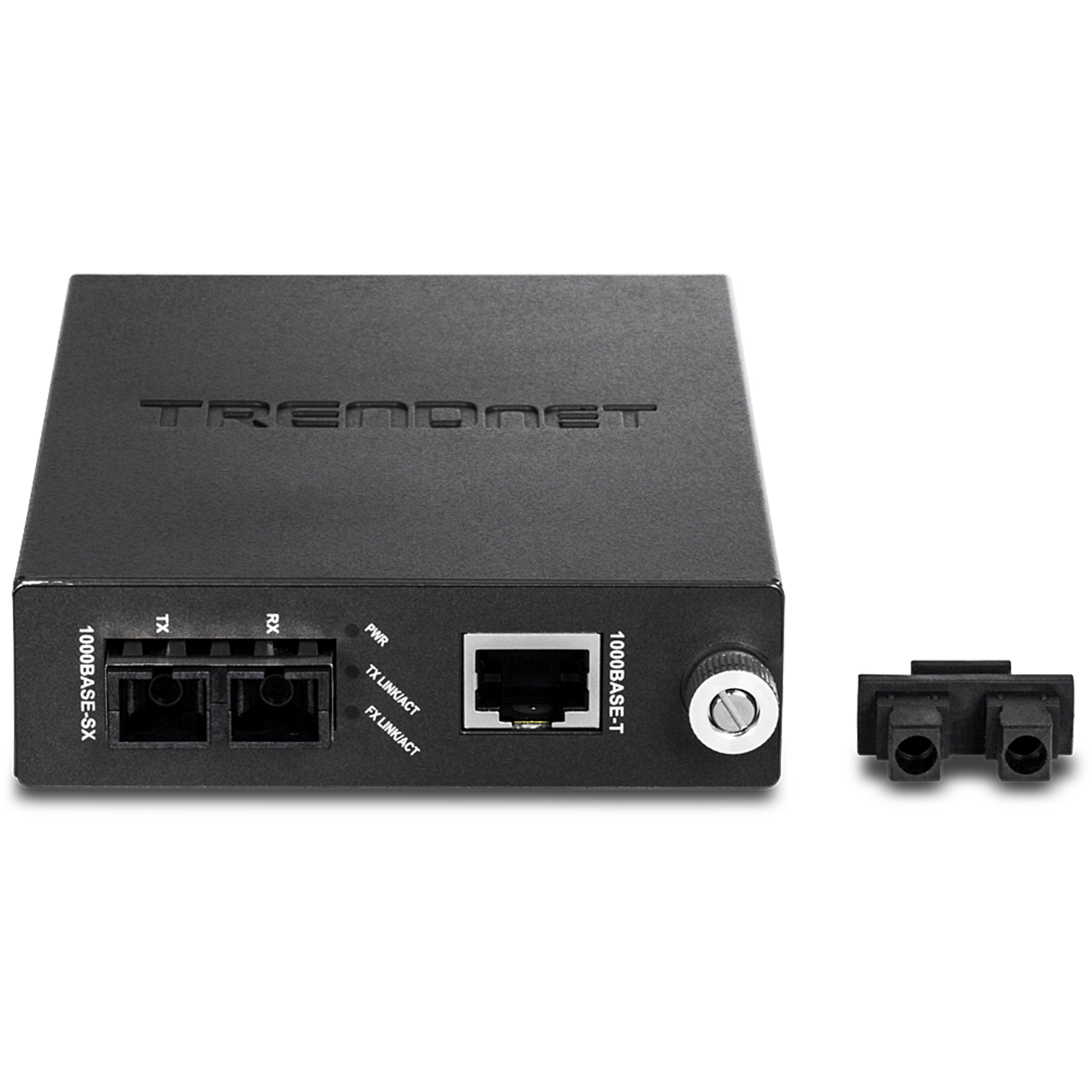

A TRENDnet device with SC type fiber ports, LED indicators, and a 100/1000BASE-T RJ-45 port on the front. The back has a power adapter input labeled 5V DC, 1A. The device is black with the TRENDnet logo on top.

Network Ports

1 x 100/1000Mbps RJ-45 copper port and 1 x 1000Mbps Duplex Fiber SC port

Switching Capacity

2Gbps switching capacity

Jumbo Frame

Sends larger packets, or jumbo frames (up to 9KB), for increased performance from the multi-mode fiber media converter

Standards
  • IEEE 802.3ab (1000Base-T)
  • IEEE 802.3z (1000Base-SX)
  • IEEE 802.3x
Device Interface
  • 1 x Gigabit port
  • 1 x SC type fiber port
  • LED indicators
Network Media
  • 1000Base-TX: Cat.5e, 6 EIA/TIA-568 100-ohm STP, up to 100 m
  • 1000Based-SX: 50/125μm multi-mode SC-Type fiber optic, up to 550 m
Protocol
  • CSMA/CD
Dip Switch
  • LLCF (enable & disable)
Data Transfer Rate
  • Gigabit Ethernet: 2000 Mbps (full duplex)
Jumbo Frame
  • Up to 9KB
Wavelength
  • 850 nm
Optical Output Power
  • Min: -9.5 dBm
  • Max: -4 dBm
Optical Input Power
  • Min. (Sensitivity): -18 dBm
  • Max: 0 dBm
Power Budget
  • 8.5 dBm
Distance
  • 550m. (1800 ft.)
Power
  • Input: 100 – 240V AC, 50 – 60Hz, 0.2 A
  • Output: 5 V DC, 1A external power adapter
  • Consumption: 2.4 W (max.)
Special Features
  • Support LLCF (Link Loss Carry Forward) and built-in LLR (Link Loss Return)
  • Monitor and configure Ethernet or Fiber’s duplex mode, LLCF, and receive link down information via management module TFC-1600MM and chassis TFC-1600
  • Status LED indicators for Power and Link/Activity
  • Wall mountable
  • Optional 19” system chassis (TFC-1600), houses up to 16 TFC-100/1000 series Media Converters
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 120 x 88 x 25mm. (4.7 x 3.46 x 0.98 in.)
Weight
  • 280g (9.9 oz.)
Certifications
  • CE
  • FCC
Warranty

PACKAGE CONTENTS
  • TFC-1000MSC
  • Quick Installation Guide
  • Power Adapter (5V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
