4-Port USB KVM Switch

TK-407K (Version V3)

  • 4-Port KVM switch with VGA and USB connections to computers
  • Control four computers with one set of console controls
  • High quality 2048 x 1536 resolution
  • Device switching with auto scan and audible feedback
  • Supports most operating systems and advanced mouse designs
  • USB powered – No external power adapter required
  • All required cabling included
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Coming Soon

TRENDnet’s 4-Port USB KVM Switch, model TK-407K, allows you to manage four PCs with just one set of keyboard, monitor, and mouse. Switch between four PCs with a simple press of a button. Separate sets of KVM cables are included with the KVM switch so that users can start controlling four PCs instantly. The KVM cables also provide power to the KVM switch, eliminating the need for a power adapter. Hotkey operations provide immediate access to features, such as computer switching and auto scanning. With its hotkey feature and audible feedback, the 4-Port USB KVM Switch is an ideal choice for managing multiple PCs.

Computer monitor displaying the acronym VGA in large white letters on a screen with a dark to light blue gradient, set against a matching blue background.

VGA

Designed for VGA systems with resolutions up to 2048 x 1536 with a 60Hz refresh rate.

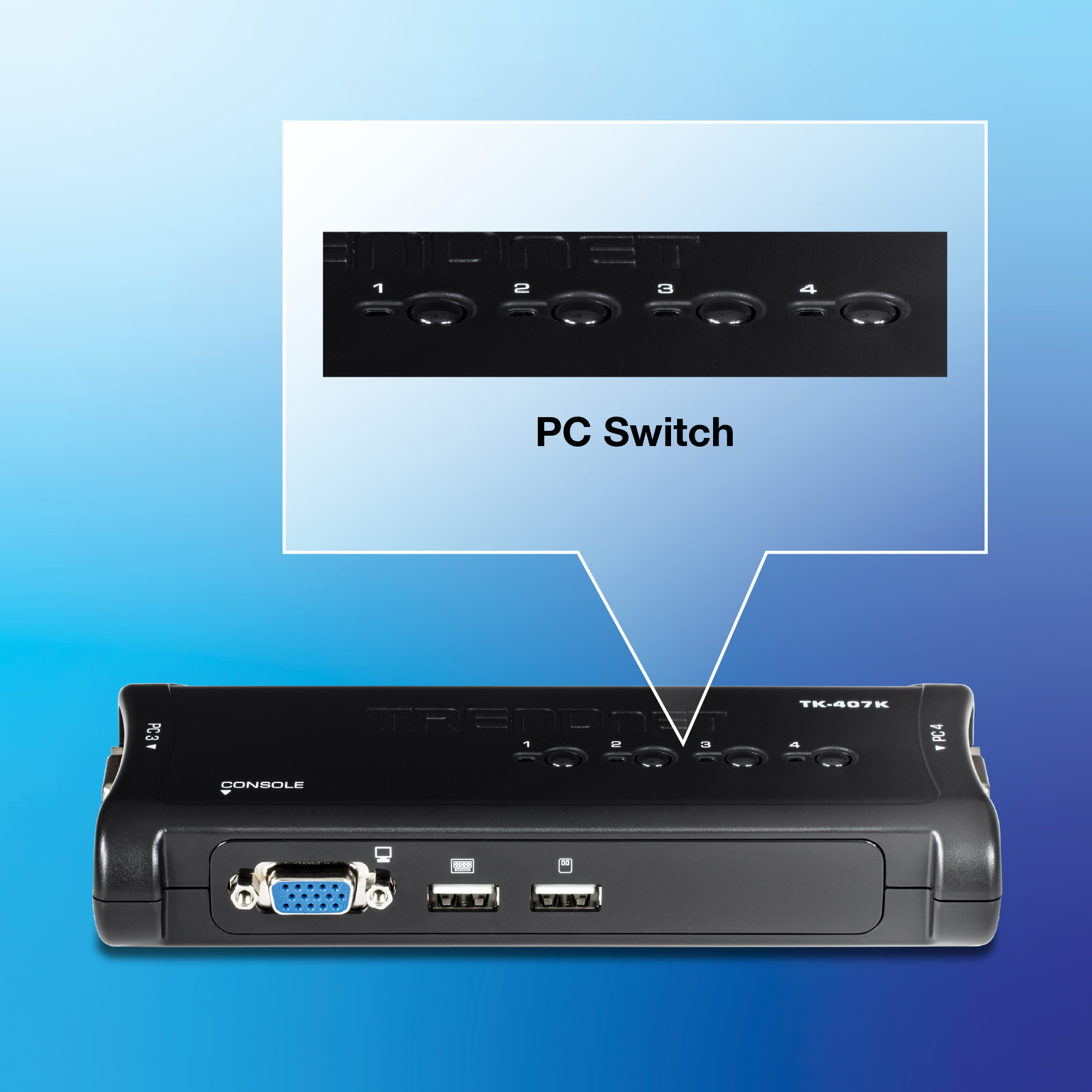

Front panel of TRENDnet TK-407K KVM switch with four numbered PC Switch buttons 1 2 3 4 for selecting connected PCs Close-up of CONSOLE section with VGA port and two USB ports for keyboard monitor and mouse TRENDnet branding and TK-407K model label visible PR-1 and PR-4 labels present on device sides Device resting on a desk focused on controls and ports

Push Button Controls

Use the front panel push buttons to easily switch between computers.

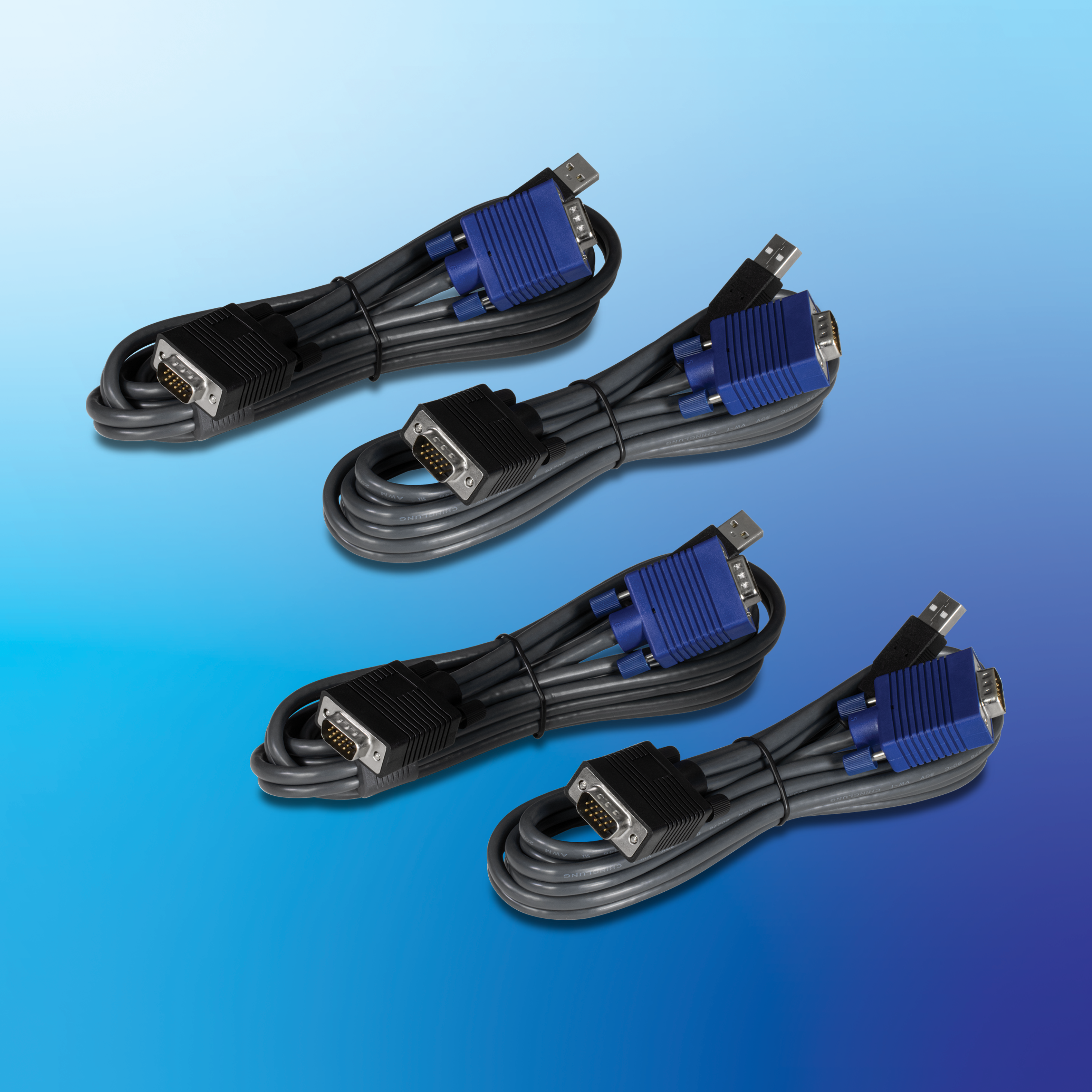

Four coiled cables on a gradient blue background, each with a blue 15-pin VGA connector and a USB connector, bundled with twist ties and arranged side by side for dual video and USB connectivity

Included Cables

This KVM kit includes four sets of KVM cables.

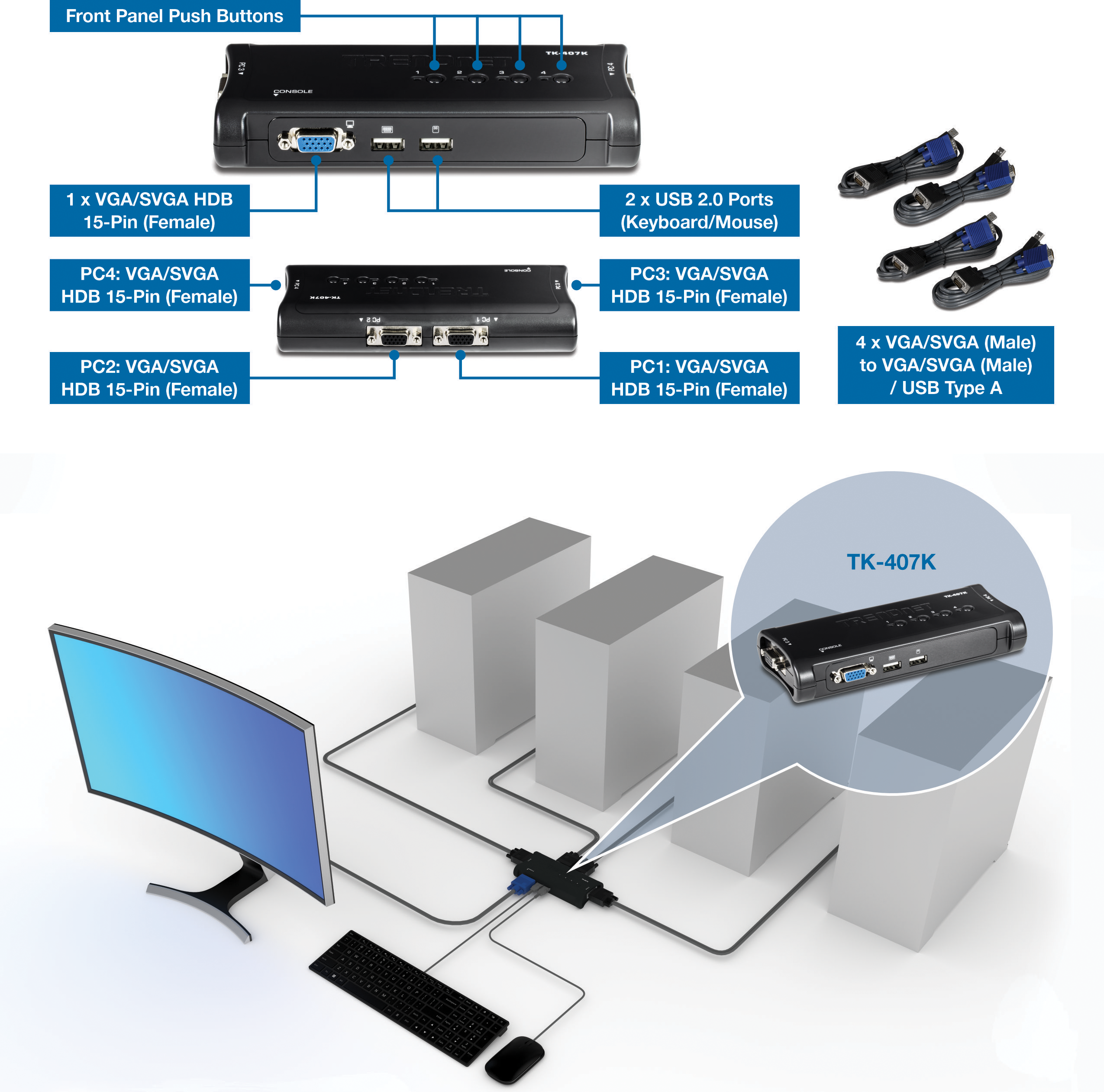

TRENDnet TK-407K 4-Port VGA KVM Switch Kit shown with front and back views of the device, labeled ports for PC1 through PC4, push buttons, VGA and USB connections, and four included VGA to USB cables. Bottom section displays the switch connected to four computers, a monitor, keyboard, and mouse in a workstation setup.

Computers

Control up to four computers with one set of console devices

VGA

This VGA KVM switch supports resolutions up to 2048 x 1536 with a 60Hz refresh rate

Push Button Controls

Use the front panel push buttons on the KVM switch to easily switch between computers

Hot Keys

This VGA KVM switch features keyboard hotkey commands for switching between computers

USB Mouse & Keyboard

Features USB keyboard and mouse connections

Included Cables

This KVM kit includes four sets of KVM cables

Computer Ports

Requires available USB and VGA ports from connected computers

Console Port Connectors
  • 1 x VGA /SVGA HDB 15-pin (Female)
  • 2 x USB ports (Keyboard / Mouse)
  • 2 x 3.5mm microphone/speaker jacks
Computer Interface (up to 4)
  • 1 x USB 2.0 Type A
  • 1 x VGA/SVGA HDB 15-pin (female)
Cables (4 sets)
  • Length: 1.2m (4 ft.)
  • VGA /SVGA (Male) to VGA /SVGA (Male) / USB Type A
Monitor Resolution
  • 2048 x 1536 @ 60Hz
Switching Control
  • Front panel push buttons
  • Keyboard hot key commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • USB powered
  • Max. consumption: 0.7W
Dimensions
  • 95 x 63 x 24mm (3.74 x 2.48 x 0.95 in.)
Weight
  • 96g (3.4 oz.)
Warranty
  • 2 year
Certifications
  • CE
  • FCC

PACKAGE CONTENTS
  • TK-409K
  • 4 x KVM cables (1.2m/4 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
