16-Port Gigabit Web Smart Switch

TEG-160WS (Version D1.0R)

IPv6, 802.3ad, Private and Voice VLAN support
16 x Gigabit ports
2 shared SFP slots
Fanless rack-mount metal housing
Lifetime Warranty*

DISCONTINUED PRODUCT

The TEG-160WS (Version D1.0R) has been discontinued. It has been replaced by the TEG-204WS (Version v1.1R). For a list of discontinued products, click here.

TRENDnet's 16 Port Gigabit Web Smart Switch, model TEG-160WS, delivers advanced management features with a 32 Gbps switching capacity. This fanless rack-mountable IPv6 ready switch comes with an intuitive web-browser interface. Advanced traffic management, security, trouble shooting, and monitoring protocol support makes this a powerful backbone solution for SMB networks.

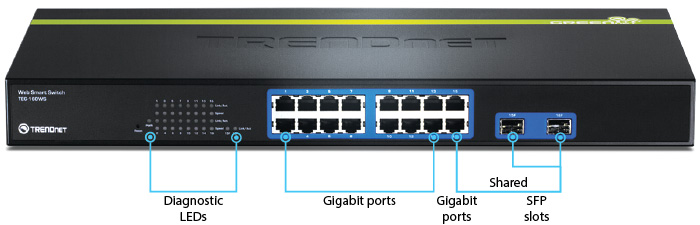

A front view of a 16-Port Gigabit Web Smart Switch labeled Diagnostic LEDs, Gigabit ports, and 2 shared SFP slots.

Hardware Design

Fanless rack mountable 1U metal housing features 16 Gigabit ports and two shared SFP slots.

IPv6 Ready

This switch supports IPv6 configuration and IPv6 neighbor discovery.

Traffic Management

A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling.

Troubleshooting

Real time traffic comparison charts, error group charts, and a convenient cable diagnostic test aid in rapid troubleshooting.

Security

Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered security controls.

Monitoring

RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions.

Standards	IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ad IEEE 802.3az
Device Interface	16 x Gigabit ports (ports 1-16) 2 x shared SFP slots (shared with ports 15-16) LED indicators
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit Ethernet: 2000 Mbps (full duplex)
Performance	Switch fabric: 32 Gbps RAM buffer: 1 MB MAC Address Table: 16K entries Jumbo Frames: 10 Kbytes HOL Blocking Prevention Forwarding rate: 23.8 Mpps (64-byte packet size)
Management	HTTP/HTTPS (SSL v2/3 TLS) Web based GUI SNMP v1, v2c, v3 RMON v1 Static Unicast MAC Address Enable/disable 802.3az Power Saving LLDP Virtual Cable Test IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
MIB	MIB II RFC 1213 Bridge MIB RFC 1493 Bridge MIB Extension RFC 2674 SNMPv2 MIB RFC 1907 Ethernet Interface MIB RFC 1643 Ethernet –like MIB RFC 2863 Interface Group MIB RFC2233 MIB Traps Convention RFC 1215 RMON MIB RFC 1757, RFC 2819 802.1p MIB RFC 2674 RADIUS Client Authentication MIB RFC 2618 LLDP-MIB IEEE 802.1ab Ping MIB RFC 2925, RFC 4560
Spanning Tree	IEEE 802.1D STP (Spanning Tree protocol) IEEE 802.1w RSTP (Rapid Spanning Tree protocol) IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation	Static Link Aggregation 802.3ad Dynamic LACP
Quality of Service (QoS)	802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth Control per port Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN	Multiple management VLAN assignment Asymmetric VLAN 802.1Q Tagged VLAN Dynamic GVRP Up to 256 VLAN groups, ID Range 1-4094 Private VLAN (Protected Ports) Voice VLAN (10 user defined OUIs)
Multicast	IGMP Snooping v1, v2, v3 (per VLAN) Static Multicast Address Up to 256 multicast entries
Port Mirror	RX, TX, or Both One to one Many to one
Security	802.1X Port-Based Network Access Control , RADIUS, TACACS+ Local Dial In User Authentication DHCP Snooping (per VLAN) Loopback Detection Duplicated Address Detection Trusted Host Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6	MAC Address VLAN ID Ether Type (IPv4 only) IP Protocol 0-255 TCP/UDP Port 1-65535 802.1p DSCP (IPv4 only) IPv6 Address (IPv6 only)
Compatibility	Optional Software Utility: Windows® 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Special Features	Fanless Design IPv6 802.3az power saving Rack mountable
Power	Input: 100 - 240 V AC, 50/60 Hz, internal power supply Consumption: 10.8 Watts (max.)
Fan/Acoustics	Quantity: 0 Noise Level: 0 dB(A) (max.)
MTBF	884,189 hours
Operating Temperature	0 – 45°C (32 - 113°F)
Operating Humidity	Max. 90% non-condensing
Dimensions	440 x 210 x 44.45 mm (17.3 x 8.27 x 1.75 in.) Rack mountable 1U height
Weight	2.6 kg (5.8 lbs.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TEG-160WS
Quick installation guide
CD-ROM (Utility & User's Guide)
Power cord (1.8 m/6 ft.)
Rack mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
