8-Port Gigabit PoE+ Switch

TPE-TG80g (Version v4.1R)

8 x Gigabit PoE+ ports
123 W PoE power budget
16 Gbps switching capacity
Sturdy metal switch
Plug and Play installation

TRENDnet's 8-Port Gigabit PoE+ Switch, model TPE-TG80g, offers 8 x Gigabit PoE+ ports (30 Watts/port), a 16Gbps switching capacity, and a PoE power budget of 123 Watts. Plug and Play this sturdy metal switch for reliable high speed PoE networking.

PoE+

A 123W PoE power budget supports up to eight Power over Ethernet devices.

Gigabit Ethernet

Eight gigabit PoE+ ports provide a 16Gbps switching capacity to support edge network installations.

Compact Design

With a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation.

PoE+

Supplies up to 30 Watts of PoE power per port with a 123 Watt power budget

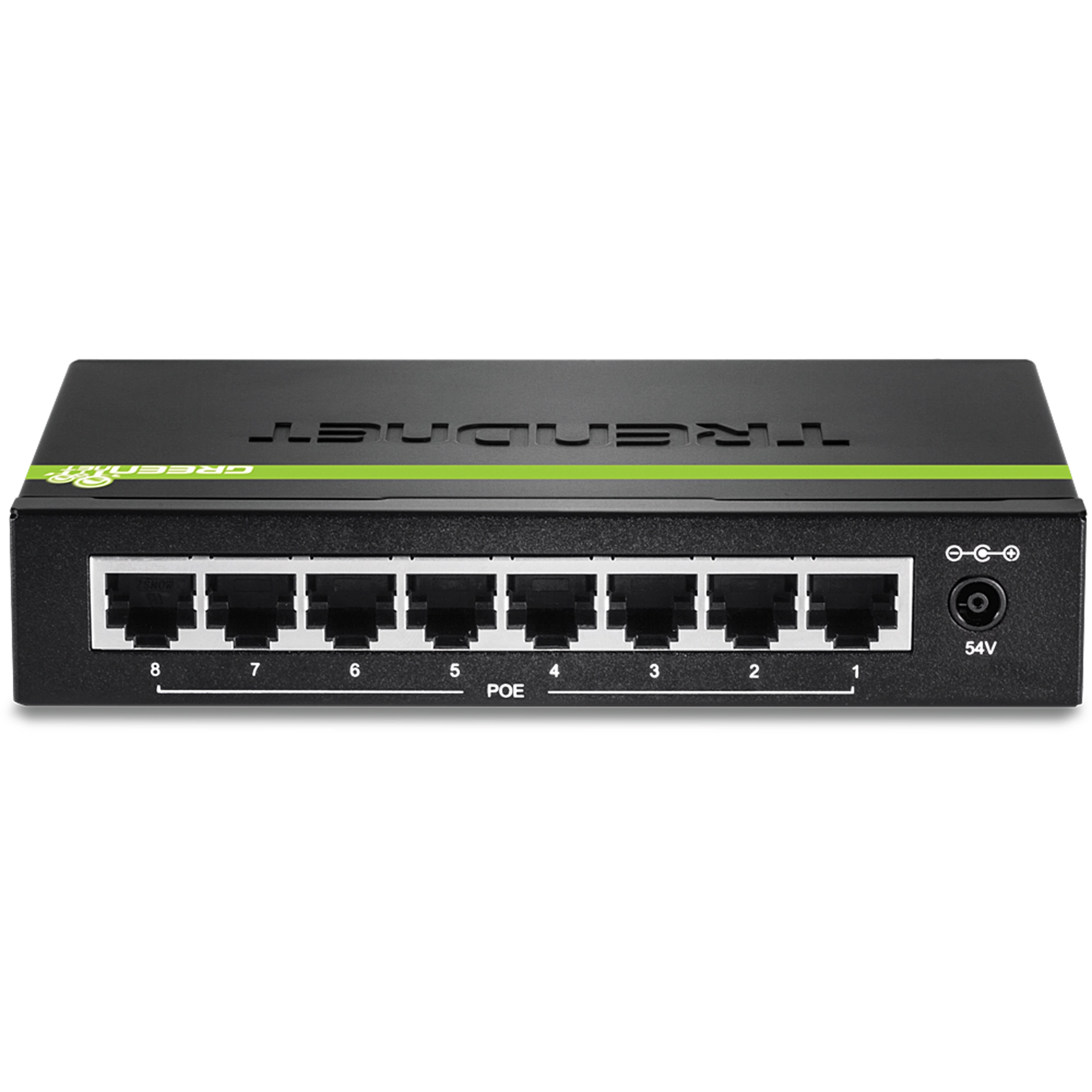

Ports

8 x Gigabit PoE+ Ethernet ports

Switching Capacity

16 Gbps switching capacity

Jumbo Frame

Sends Jumbo Frames (up to 9 Kbytes) for increased performance

Energy Savings

Embedded GREENnet technology reduces power consumption

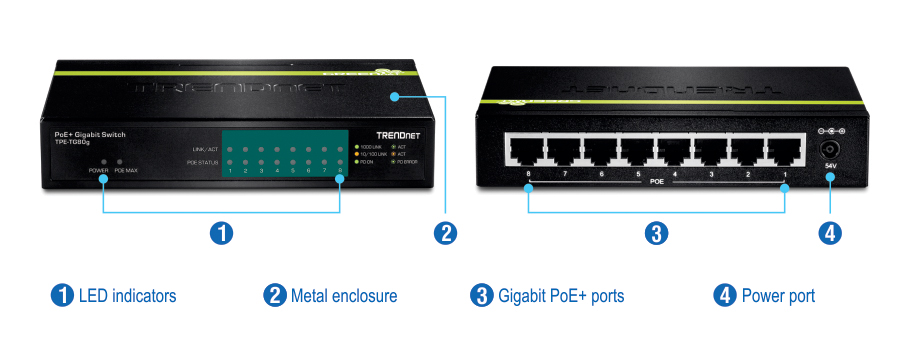

Housing

Rugged metal enclosure

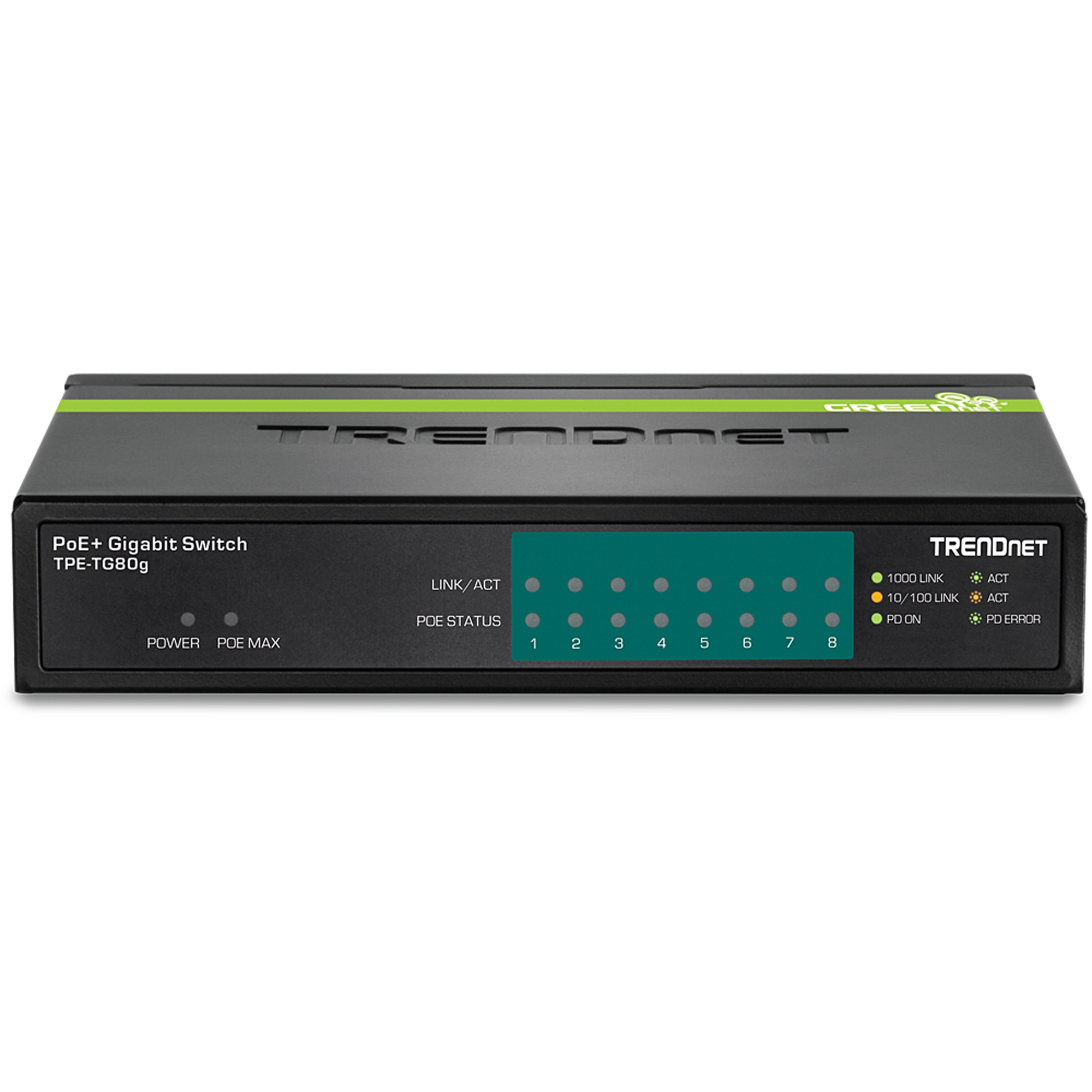

LED Indicators

LED indicators convey port status

Standards	IEEE 802.1p IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3az
Device Interface	8 x Gigabit PoE/PoE+ ports LED indicators
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex)
Performance	Data RAM Buffer: 128KB Switch Fabric: 16Gbps MAC Address Table: 4K entries Forwarding rate: 11.9Mpps (64-byte packet size) Jumbo Frame: 9K
Special Features	GREENnet energy saving technology
Power	Input: 100-240 V AC, 50/60 Hz, 1.9 A Output: 54V DC, 2.77A Max. consumption: 5.3W
PoE	PoE budget: 123 W Pin 1,2 for power+ and pin 3,6 for power- (mode A)
Operating Temperature	0 – 45 °C (32 - 113 °F)
Operating Humidity	Max. 90% non-condensing
Dimensions	150 x 96 x 28mm (5.9 x 3.8 x 1.1 in.)
Weight	400g (14 oz.)
Certifications	CE FCC
Warranty	3 year

PACKAGE CONTENTS

TPE-TG80g
Quick Installation Guide
Power adapter (54 V DC, 2.77 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
