Megapixel HD PoE Dome Network Camera

TV-IP262P (Version v1.0R)

Megapixel resolution with H.264 compression
Tamper resistant interior wall and ceiling mount applications
Adjustable fixed position camera
Save installation costs with Power over Ethernet (PoE)
Program motion detection recording, email alerts, and more with complimentary software
Free mobile viewing App

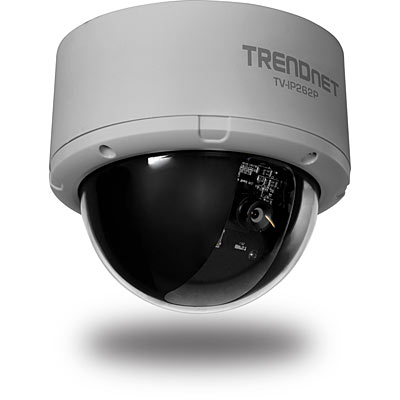

The Megapixel HD PoE Dome Network Camera, model TV-IP262P, is an indoor, enterprise class surveillance camera capable of transmitting H.264 video at up to 1280 x 1024 resolution. View and manage the tamper resistant dome IP camera from any computer with an internet connection. Manually pan the camera side-to-side 350° and tilt it up-and-down 70° to fix its final viewing position. No need to install this camera near a power source, power and data are received through a single Ethernet cable using Power over Ethernet (PoE) technology. View this camera on your mobile device with TRENDnet's free App.

Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Define up to three motion detection windows with email alert, image snapshot, and continuous recording triggers. Scheduled recording sessions and define video storage location with Samba client support. Multiple video streaming support for H.264, MPEG-4, and MJPEG compression types. Other features include two-way audio support (mic and speaker sold separately), date / time text overlay, mask overlay to conceal sensitive areas, and image flip capabilities for upside down installations. Integrated cabling allows for easy wall / ceiling mounting and the off-white IP camera housing blends into most environments.

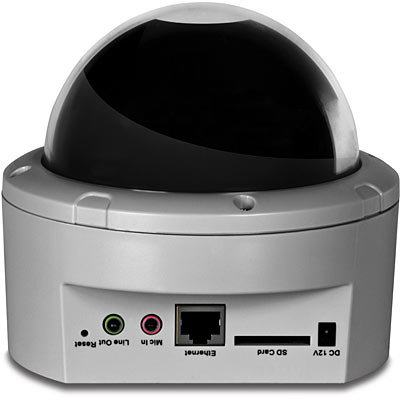

IEEE 802.3af PoE compliant device
1 x 10/100 Mbps PoE Auto-MDIX port
Optional power port for non-PoE installations
SD/SDHC card slot*
Microphone and speaker audio ports
Tinted dome
Camera LEDs display link and activity status (can be turned off)
Supports H.264, MPEG-4, and MJPEG video compression
3GPP support
Resolution up to 1280 x 1024 pixels at up to 15 frames per second (fps) and 640 x 480 pixels at up to 30 fps
Supports simultaneous video streaming
Video mirror support (horizontal/vertical) enables upside down installations
Two way audio (optional third party microphone and speakers required)
Fully integrated cabling simplifies installation
Dynamic DNS support
Images controls: brightness, saturation, and sharpness
Mask overlays conceal sensitive areas
Date, time, and text overlays
Supports TCP/IP networking, email, HTTP, and other Internet protocols
Record streaming video to your computer or Network Storage device with Samba support
Three motion detection windows with just-in-time snapshot, motion detection triggered email alerts, and image upload to FTP
Send instant messages to Jabber client via Jabber Server
Supports Quality of Service (QoS) with Differentiated Services Code Point (DSCP)
Quick Universal Plug and Play (UPnP) installation
3-year limited warranty

TRENDnetVIEW Camera Software Features

Manage up to 32 cameras**
Compatible with Windows and Microsoft Server 2008
Multiple language support

Camera Viewing
Preset viewing modes
Program custom viewing modes
Full screen view
Drag and drop live feeds to a new location
Program camera cycle viewing sequence
Motion detection brings video forward
Side, top, and bottom tool bars can be hidden
Web based access from smart phones and tablets

Recording options

Program weekly recording schedules
Motion detection recording
- Define motion detection areas of any shape
- Define motion detection sensitivity
Event trigger recording
Date and time overlay
Mask overlay to conceal sensitive areas
Save a single video stream to multiple locations simultaneously
Define recording quotas by recording time or space allocation
Disk clean feature condenses and optimizes old files
Real time recording stats to help manage files

Search and Playback

Navigation timeline provides a quick visual reference to the recorded content
Search continuous recordings by motion
Search recordings by motion within a defined field (a portion of the viewing area)
Time lapse playback search

Map cameras on an image such as a floor plan
Map cameras on Google Maps™

* SD card sold separately** Monitoring multiple cameras may require a high performance CPU

Camera
General	Sensor: 1/4” Megapixel CMOS sensor Max. Resolution: 1280 x 1024 pixels Board Lens Focal Length: 3.58 mm Aperture (F/No): F2.0 +/- 5% Minimum illumination: 1 Lux Viewing angle: Horizontal: 63° Vertical: 46° Diagonal: 74°
Audio	Microphone outport (microphone sold separately) Audio outport: Mono (speakers sold separately) Sensitivity: -42 dB +/- 3 dB Frequency: 100~10,000 Hz S/N: 65 dB Format: PCM/AMR
Pan/Tilt (Manually)	Manually adjust camera to final fixed position Pan: -175° ~ +175° Tilt: 20° ~ 90°
SD Slot	Supports SD/SDHC (up to 32 GB)
Hardware
Network	IEEE 802.3u 10/100 Mbps Fast Ethernet IEEE 802.3af PoE
LED	Power, Link/Act (can turn off LEDs)
Reset Button	Reboot or restore to factory default
Power Consumption	7 Watts max
Power	Input: 100 ~ 240V AC , 0.5A, 50~60Hz Output: 12VDC 1.5A external power adapter (for non-PoE installations)
Dimension	131 x 131 x 127 mm (5.2 x 5.2 x 5 in.)
Weight	570 g (20.1 oz.)
Temperature	Operating: 0°C ~ 50°C (32°F ~ 122°F) Storage: -15°C ~ 60°C (5°F ~ 140°F)
Humidity	Max 90% (non-condensing)
Certifications	CE, FCC
Requirement
Management Interface	Internet Explorer 6.0 or above
To Run TRENDnetVIEW	Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit) Windows Server 2003, 2008
TRENDnetVIEW	Channel: supports up to 32 cameras Record/Playback/Motion Detection/Audio
Network Protocols	TCP/IP, IPv4, IPv6, UDP, ICMP DHCP client, NTP client, DNS client, DDNS client, SMTP client, FTP client HTTP, HTTPs Samba client PPPoE UPnP Bonjour RTP (Real Time Protocol) RTSP (Real Time Streaming Protocol) RTCP (Real Time Control Protocol) SSL ONVIF 3GPP (video only)
Management
Remote	Remote management supported
Backup/Restore	Save/retrieve configuration files
Settings
Image	Automatic exposure, white balance, and gain control Brightness, saturation, sharpness, light frequency, and mirror (horizontal/vertical)
Video	Encoding type: H.264, MPEG-4, MJPEG Compression: 5 levels Resolution/Frame Rate: SXGA (1280 x 1024) up to 15fps 720p (1280 x 720) up to 20fps VGA (640x480) up to 30fps QVGA (320x240) up to 30fps QQVGA (160x120) up to 30fps Multi-Stream: H.264: SXGA, VGA, QVGA, QQVGA, 720P MPEG-4: VGA, QVGA, QQVGA MJPEG: SXGA, VGA, QVGA, QQVGA, 720P
Recording/snapshot	Recording type: continuous, schedule, motion detection, or snapshot Event Management Event trigger: motion, schedule Store video file to SD card or storage device Send Instant message to Jabber client via Jabber server
Overlay	Text overlay: time, date, and text Mask overlay: define up to 2 opaque boxes to conceal portions of the recording area
QoS	DSCP
Port Settings	HTTP port: 80 (default) RTSP port: 554 (default)
Digital Zoom	3x
Dynamic DNS	Yes
Time	Synchronize with NTP server or set time/date manually
Email	Supports up to 2 destination accounts
System Log	100 entries (max.)

PACKAGE CONTENTS

TV-IP262P
Multi-language Quick Installation Guide
CD-ROM (Utility, Software, & User's Guide)
Power adapter (12 V DC, 1.5 A)
Network cable (1.5 m / 5 ft.)
Camera mounting Kit
