Products » » » TV-IP410WN

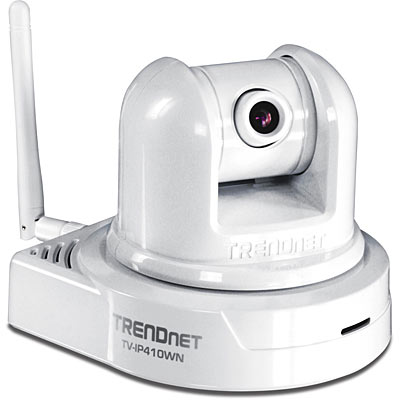

SecurView Wireless N Pan/Tilt/Zoom Network Camera
TV-IP410WN (Version v1.0R)
- High speed wireless n connection
- Pan 330° side-to-side and tilt 105° up-and-down from any Internet connection
- One touch Wi-Fi Protected Setup (WPS) connection
- Program motion detection recording and email alerts with complimentary software
 |  |
The SecurView Wireless N Pan/Tilt/Zoom Network Camera, model TV-IP410WN, covers a large surveillance area. Pan the camera side-to-side a remarkable 330° and tilt up-and-down 105°.
Wireless n technology provides unsurpassed wireless coverage and improved streaming video quality. Add this camera to your wireless network at the touch of a button with Wi-Fi Protected Setup (WPS).
Manage up to 32 SecurView cameras with the included complimentary camera management software. Advanced features include motion detection recording, email alerts, scheduled recording sessions, 3GPP support, preset Auto-Patrol, and digital zoom. A wall/ceiling mounting kit is included and the off-white camera housing blends into most environments.
- Wi-Fi compliant with IEEE 802.11b/g/n networks
- 3 x digital zoom
- 1 x 10/100Mbps Fast Ethernet port
- 1 x Wi-Fi Protected Setup button
- Pan 330° side-to-side and tilt 105° up-and-down from any Internet connection
- High quality MJPEG video recording with up to 30 frames per second
- Resolution up to 640 x 480 pixels
- Power and activity LED indicators (can be disabled)
- Dynamic DNS support
- Network Input/Output (GPIO) ports to an alarm system
- Image control: brightness, contrast, saturation, and mirror (horizontally/vertical)
- Supports TCP/IP networking, SMTP Email, HTTP, and other Internet protocols
- Record streaming video to your computer and Network Storage Server
- Supports 64/128-bit WEP and WPA/WPA2-PSK wireless encryption
- Two adjustable motion detection windows with just-in-time snapshot, triggered video recording, and email alerts
- Quick Universal Plug and Play installation
- Complimentary SecurView Pro software: manage up of up to 32 cameras*
- 3-year limited warranty
* Monitoring multiple cameras may require a high performance CPU
| Camera | |
| General | Sensor: 1/4" color CMOS sensor Resolution: 640 x 480 pixels Board lens Focal length: 4.0 mm Aperture (F/No): F1.8 Minimum illumination: 0.5 Lux Diagonal viewing angle: 64 degree |
| Pan & Tilt |
|
| Image & Video |
|
| Hardware | |
| Network | IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX |
| LED | Power, Link |
| Reset Button | Restore to factory default |
| WPS Button | Push button for Wi-Fi Protected Setup |
| Power Consumption | 9 Watts max. |
| Power | 12V DC, 1.5 A external power adapter (3.5 mm plug) |
| Dimension | 115 x 110 x 105 mm (4.53 x 4.33 x 4.13 in) |
| Weight | 340 g (12 oz.) |
| Temperature |
|
| Humidity | Max. 90% (non-condensing) |
| Certifications | CE, FCC |
| Requirement | |
| Management Interface | Internet Explorer 6.0 or above |
| To Run SecurView Pro | Windows 7 (32/64 bit), Vista (32/64 bit), XP (32/64 bit) |
| SecurView Pro | Channel: supports up to 32 cameras Record/Playback/Motion Detection |
| Network Protocols | TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, PPPoE, UPnP |
| Wireless | |
| Standard | Based on IEEE 802.11n technology IEEE 802.11g/b compliant |
| Frequency | 2.4 ~ 2.4835GHz |
| Antenna | 1 x 2dBi dipole antenna (Reverse-SMA connector) |
| Data Rate (auto fallback) |
|
| Security | 64/128-bit WEP, WPA/WPA2-PSK |
| Output Power |
|
| Receiving Sensitivity |
|
| Channel | 1~11 (FCC), 1~13 (ETSI) |
| Management | |
| Remote | Remote management supported |
| Backup / Restore | Save/retrieve configuration files |
| Settings | |
| Recording | Recording type: continuous, schedule, or motion detection with software |
| Port Settings | HTTP port: 80 (default) |
| Digital Zoom | 3x |
| Dynamic DNS | Yes |
| Time | Synchronize with NTP server or set time/date manually |
| SMTP | SMTP mail supported up to 2 accounts with software |
| System Log | 100 items (max.) |
| PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
