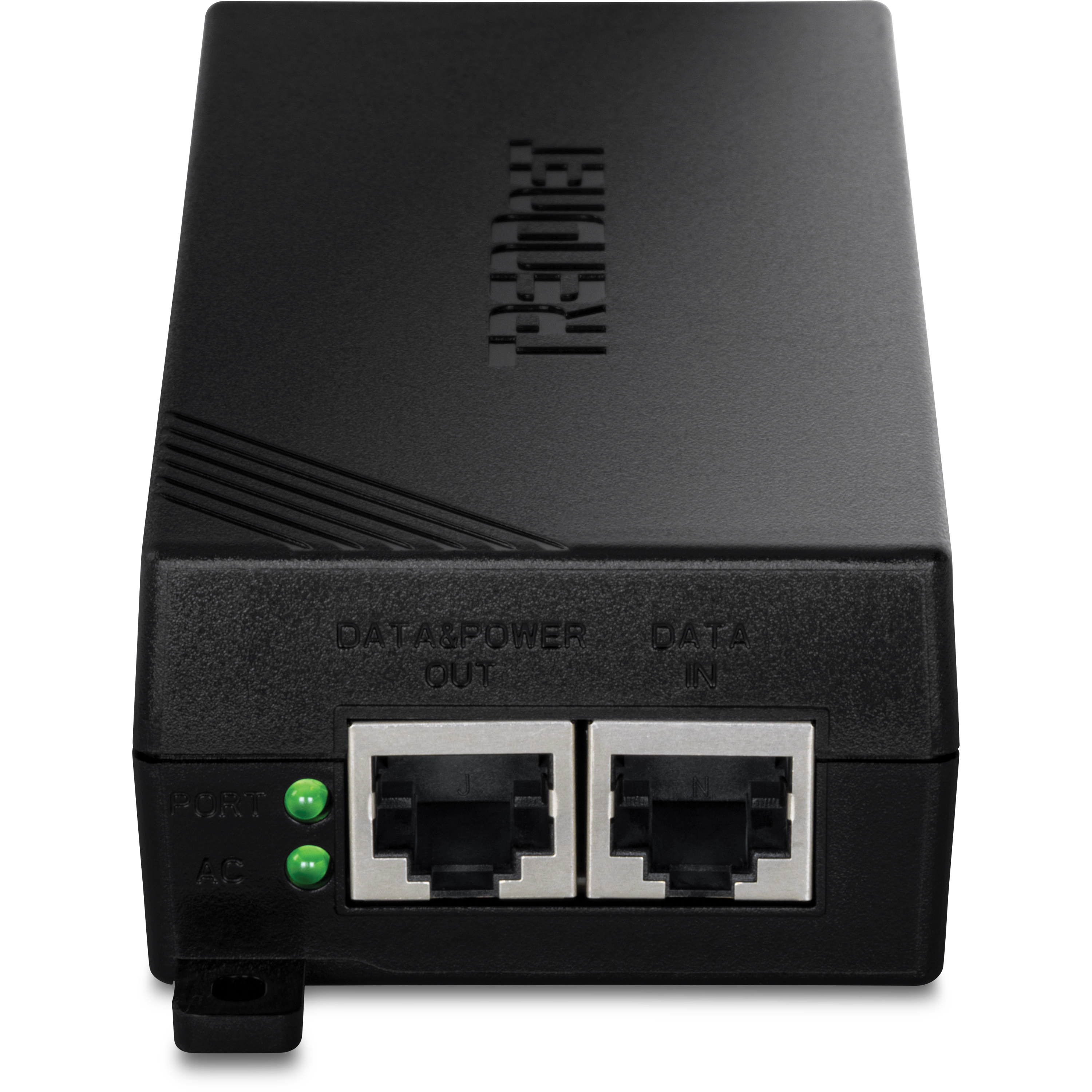

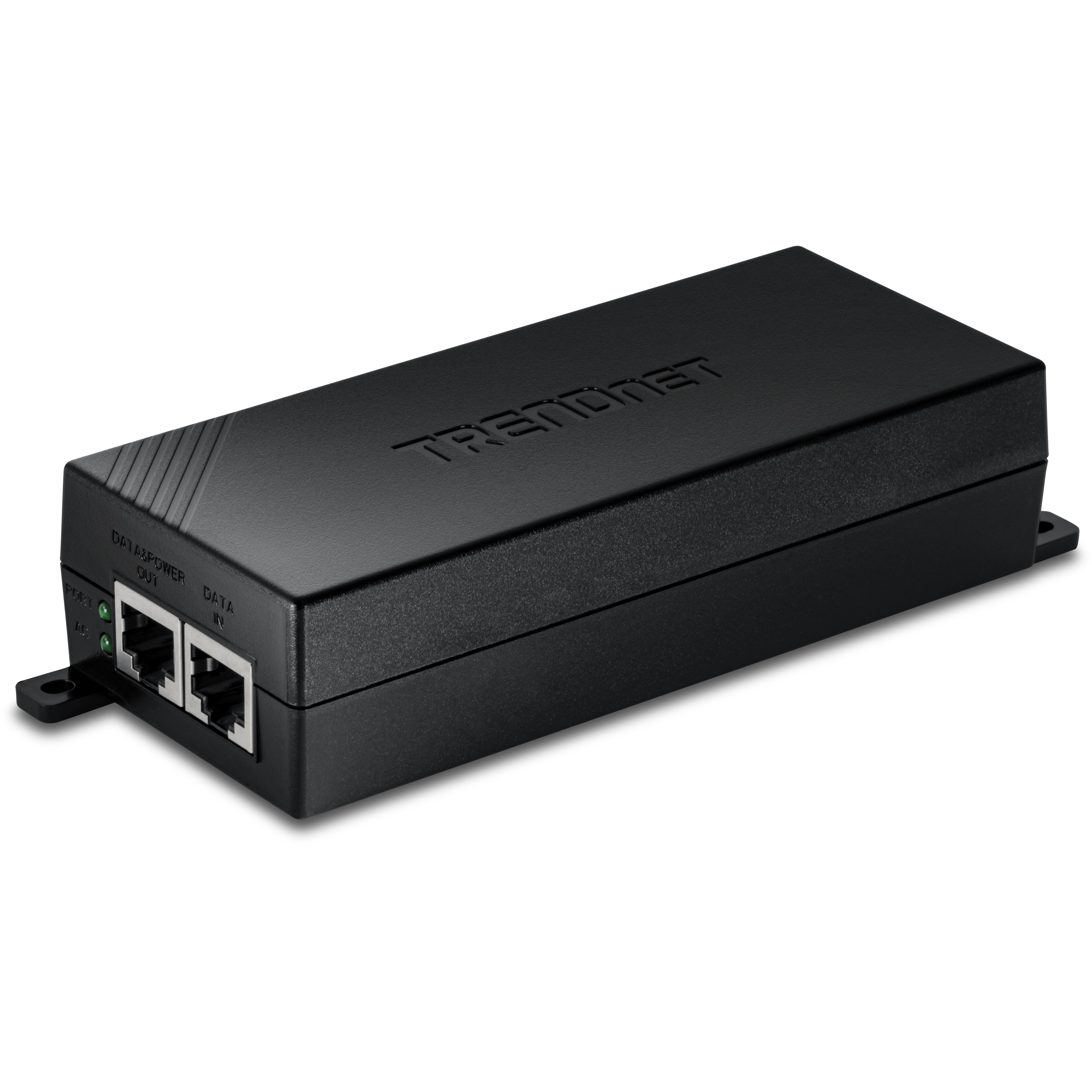

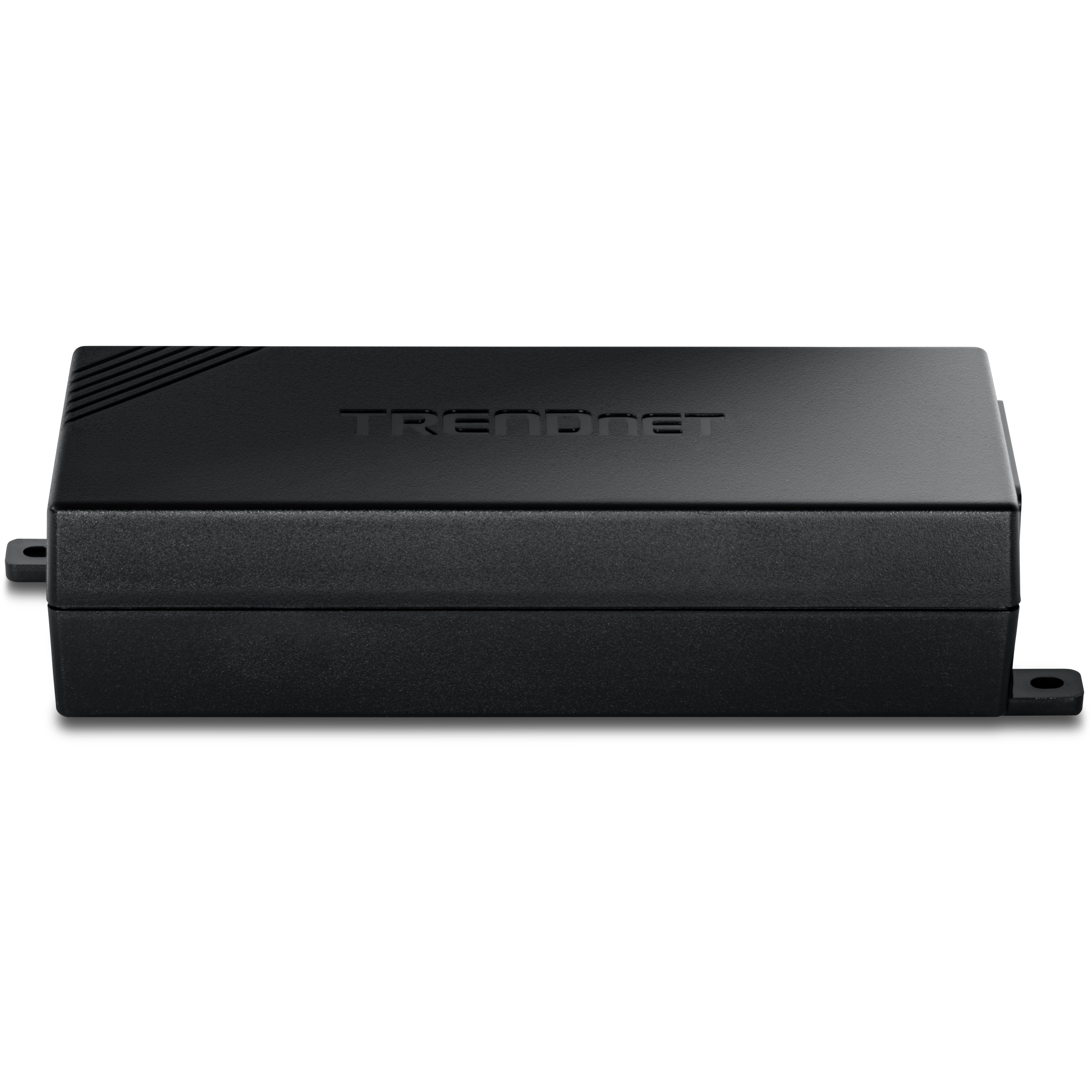

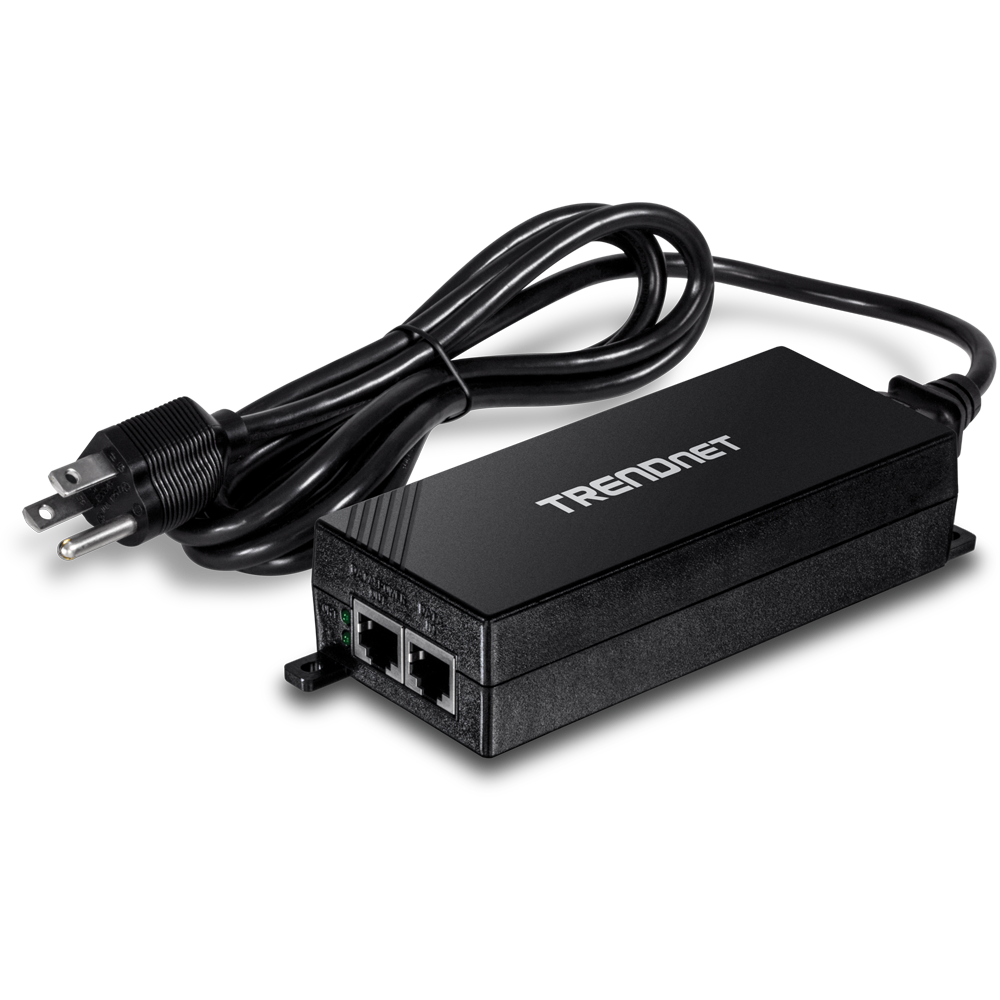

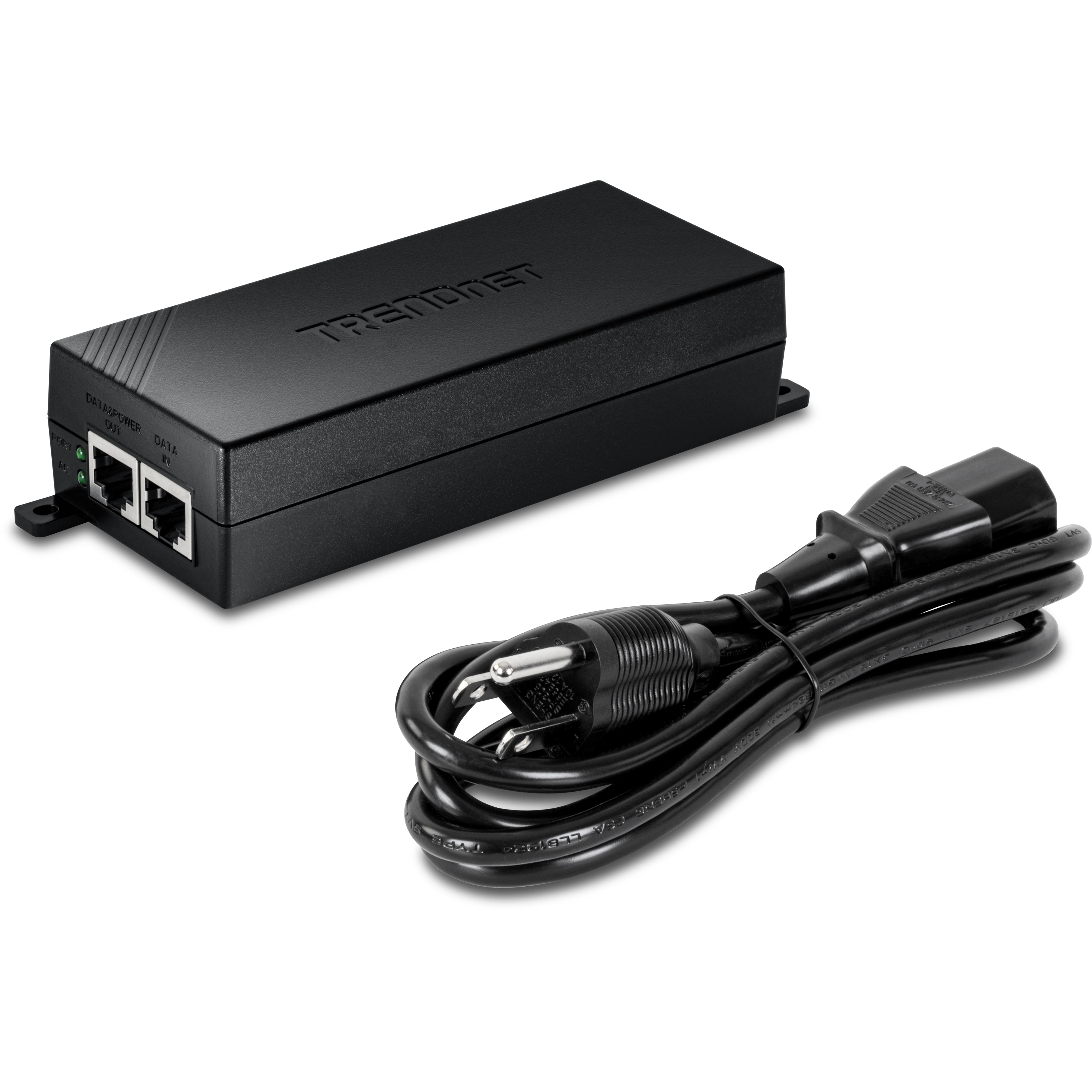

TRENDnet's Gigabit PoE+ Injector, model TPE-115GI, combines electrical power with a Gigabit network connection to produce a Gigabit PoE+ signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE and PoE+ devices. Connect the injector to a non-PoE Gigabit switch and then run an Ethernet cable with data + power to network a PoE or PoE+ device up to 100 meters (328 ft.) away.
Supplies a PoE device with PoE (15.4W) or PoE+ (30W) power.
Wall-mountable design accommodates most installations scenarios.
Full Duplex 2Gbps Ethernet speeds with this PoE+ injector.
Supplies a PoE device with PoE (15.4W) or PoE+ (30W) power
No configuration needed, simply connect a PoE network device
Wall-mountable design accommodates most installations scenarios
1 x Gigabit Ethernet port and 1 x PoE+ Gigabit Ethernet port
Provides a PoE+ network connection up to 100 meters (328 ft.)
LED indicators confirm PoE connectivity
Auto-sensing technology delivers up to 30W to an 802.3at PoE+ device with backwards compatibility for 802.3af PoE (15.4W) devices.
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)

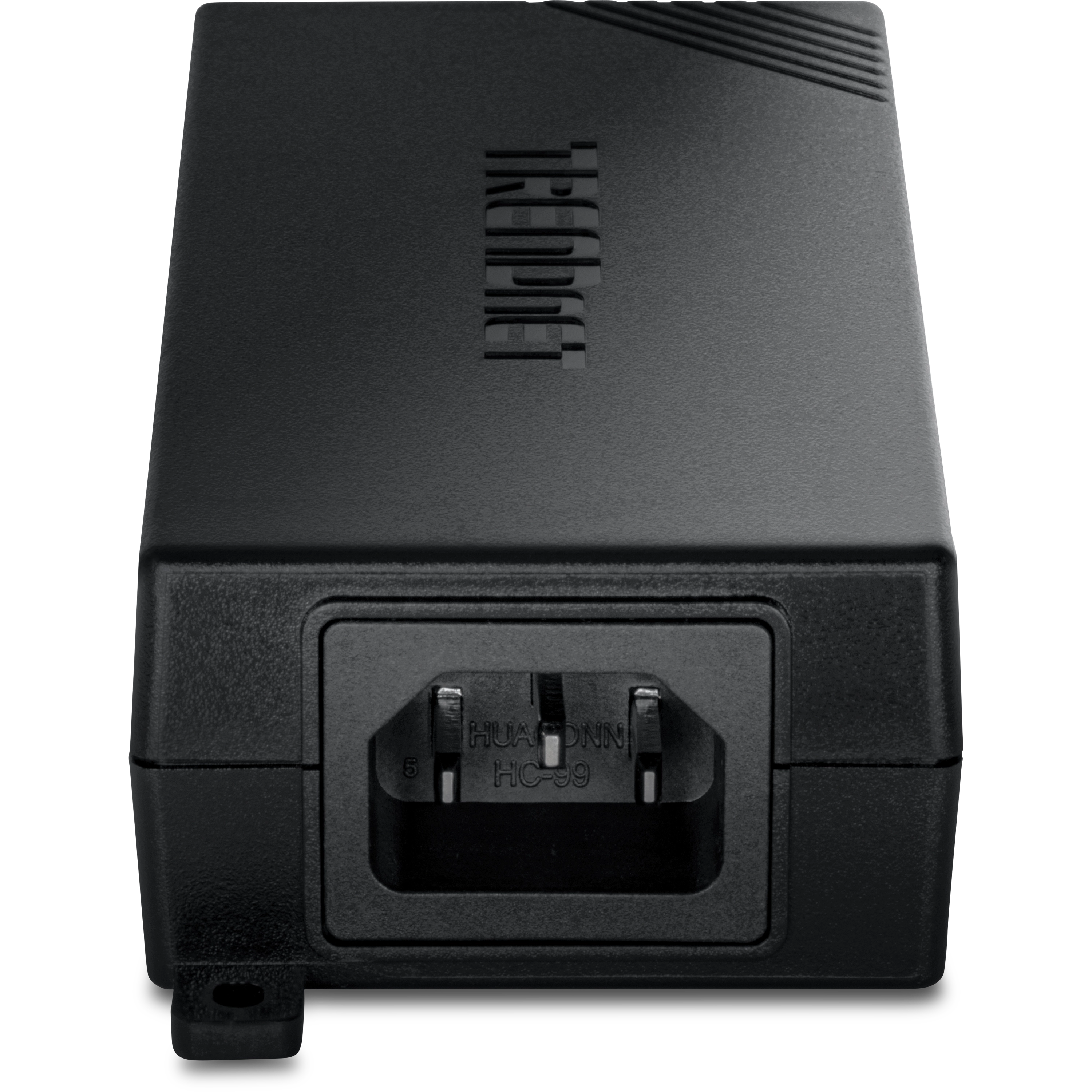

Input: 100~240V AC, 50/60Hz, 0.6A max.
Max 1.03W (No PD connected)
0 – 40 °C (32 - 104 °F)
Max. 90% non-condensing
155 x 57 x 33mm (6.1 x 2.3 x 1.3 in.)
188g (6.64 oz.)
Quick Installation Guide
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
