54Mbps Wireless G ADSL 2/2+ Modem Router

TEW-436BRM (Version v1.0R)

Combination ADSL 2/2+ modem and wireless g router
Proven wireless g performance, reliability and ease of use
Compatible with most ADSL services – no need to rent a modem from an ADSL service provider
Double firewall and advanced wireless encryption safeguard your network.

DISCONTINUED PRODUCT

The TEW-436BRM (Version v1.0R) has been discontinued. It has been replaced by the TEW-829DRU (Version v1.0R). For a list of discontinued products, click here.

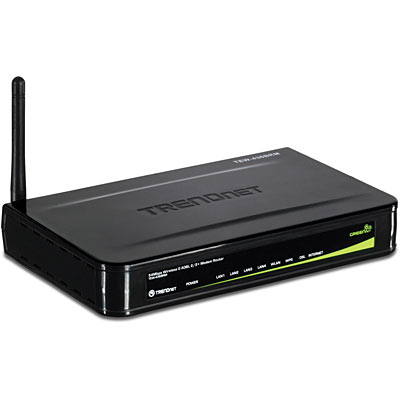

The 54Mbps Wireless G ADSL 2/2+ Modem Router (model TEW-436BRM) is an all-in-one modem and wireless g router.

No need to buy a separate modem and router. This sleek device provides an ADSL 2/2+ modem, wireless g router and 4-port switch, all in a single product.

Quickly install this device to surf the Internet, download files, play games and talk online. Advanced wireless encryption and a double firewall protect your valuable data. Wi-Fi Protected Setup (WPS) allows users to securely synchronize WPS supported wireless peripheral devices at the touch of a button.

Wi-Fi compliant with IEEE 802.11g and IEEE 802.11b wireless devices
Compliant with ADSL, ADSL2 and ADSL2+ standards and Compliant with PPPoE, PPPoA or IPoA connection types
Wi-Fi Protected Setup (WPS) for simple network connectivity
Supports RIP, Static routing and dynamic DNS service
Supports the TR-069 remote management protocol
Wi-Fi Multimedia (WMM) Quality of Service (QoS) technology
Advanced Firewall protection with Network Address Translation (NAT) and Stateful Packet Inspection (SPI)
Internet Access Control (MAC Address, Domain, URL, and IP Filtering) support
Supports Windows, Linix, and Mac operating systems
Easy configuration and remote management with a Web browser (HTTP)
Advanced wireless encryption: 64/128-bit WEP, WPA/WPA2-RADIUS, and WPA/WPA2-PSK
Universal Plug and Play (UPnP) and Application Level Gateway support for Internet applications such as email, FTP, gaming, remote desktop, Net Meeting, telnet and more
On / off power button
3-year limited warranty

Hardware
Standards	Compliant with ADSL standards - ANSI T1.413 Issue2 - G.992.1 (G.dmt, Annex A) - G.992.2 (G.lite) Compliant with ADSL2 standard - G.992.3 (G.dmt.bis) Compliant with ADSL2+ standard - G.992.5 Annex A IEEE 802.11b & 802.11g Wireless LAN IEEE 802.3u 10/100Base TX Fast Ethernet
Protocol	TCP/IP,NAT, HTTP, DHCP Server/Relay/Client, DDNS, DNS Proxy
Firewall	NAT Firewall Stateful Packet Inspection (SPI) Packet Filtering – IP, MAC Domain, Keyword Management Access Control for LAN/WLAN
ATM	VC and LLC Multiplexing Bridged/Routed Ethernet over ATM (RFC1483/2684) OAM F4/F5 loop-back PPP over ATM (RFC2364) PPP over Ethernet (RFC2516) ATM TrafficShaping QoS(UBR, CBR, rt-VBR, nrt-VBR)
Management	Web based Configuration (HTTP Command Line Interface (CLI) via Telnet TR-069 Remote Management SNMP Support IGMP v1/v2 Support SW upgrade
WAN Port (ADSL line Interface)	Complies with ADSL standards - ANSI T1.413 Issue2 - G.992.1 (G.dmt, Annex A) - G.992.2 (G.lite) Complies with ADSL2 standard - G.992.3 (G.dmt.bis) Complies with ADSL2+ standard - G.992.5 Annex A

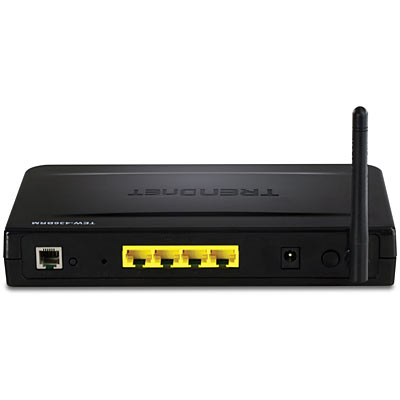

LAN Port	4 x 10/100Mbps Auto-MDIX and Auto-Negotiation RJ-45 Port
Reset Button	Reset to Factory Default
On/Off Power Button	Electrical power on/off button
WPS Button	Wi-Fi Protected Setup (WPS) automated wireless connection push button

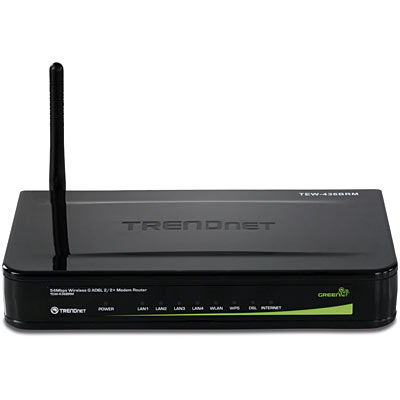

LED	Power, LAN1~4: Link/ACT WLAN: Link/ACT WPS ADSL Internet
Power	12V DC 1A external power adapter
Power Consumption	6.5 watts (max)
Dimensions	195 x 120 x 30 mm (7.6 x 4.7 x 1.2 in) without antenna
Weight	351g (12.4 oz)
Temperature	Operating: 0˚~ 40˚C (32˚~ 104˚F) Storage: -10˚~ 70˚C (-14˚~ 158˚F)
Humidity	10% ~ 90% (non- condensation)
Certifications	FCC, CE
Wireless
Standards	IEEE 802.11b, IEEE 802.11g
Modulation	DBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-QAM)
Data Rate	802.11g: up to 54Mbps 802.11b: up to 11Mbps
Frequency	2.412 ~ 24.84 GHz
Antenna	1 x fixed 2dBi dipole antenna
Security	64/128-bits WEP , WPA/WPA2 - PSK, WPA-PSK/WPA2-RADIUS
Output Power	802.11b: 14.5dBm (typical) 802.11g: 14dBm (typical)
Receiving Sensitivity	54Mbps: Typical - 65dBm @ 10% PER 11Mbps: Typical - 80dBm @ 8% PER
Channel	1 ~ 11 (FCC),1 ~ 13 (ETSI)

PACKAGE CONTENTS

TEW-436BRM
Multi-language Quick Installation Guide
CD-ROM (User's Guide)
Power adapter (12V DC 1A)
Cat. 5 Ethernet cable (1.5m /5ft.)
RJ-11 telephone cable (1m /3ft)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
