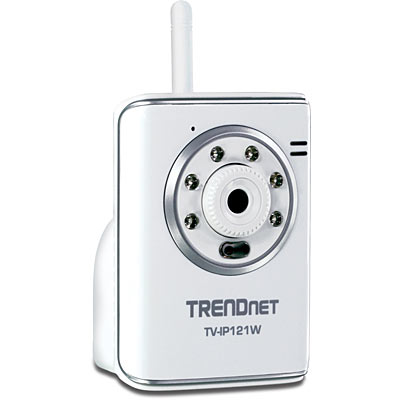

SecurView Wireless Day/Night Network Camera
TV-IP121W (Version A1.0R)
- Night vision of up to 5m (16 ft.)
- No need for an Ethernet connection, video is transmitted over a secure encrypted wireless signal
- Program motion detection recording and email alerts* with complimentary software
- Mount this compact Network Camera on most surfaces
 |  |
The SecurView Wireless Day/Night Network Camera (model TV-IP121W) transmits real-time high quality video over the Internet. See and hear people in your camera's viewing field in complete darkness for distances up to 5 meters (16 feet) from any Internet connection.
Manage of up to 16 cameras with complimentary SecurView camera management software. This stylish Network Camera provides crystal clear MJPEG video streams over a secure encrypted wireless connection.
Mount the camera on most surfaces with an included mounting kit. Advanced software features motion detection recording, email alerts*, scheduled recordings, video viewing options and digital zoom. The camera's brilliant image quality, compact size, audio support and night vision capability make it ideal for your home or office.
* Does not support SSL
** Windows 32-bit only. Monitoring multiple cameras may require a high performance CPU and graphics card
SecurView cameras are not compatible with TRENDnet's IPView Pro camera application for ProView cameras.
- Compatible with 802.11g and b wireless networks
- Compatible with 802.11n wireless networks when set to 802.11n/g/b mixed mode
- Encryption support for WEP, WPA-PSK and WPA2-PSK standards
- Infrared lens enables night vision for distances up to 5 meters (16 feet)
- 60 degree viewing angle, 4.5mm focal length and 2.8 F/No
- Supports still image snapshot to FTP and email*
- Record streaming video to your computer
- Supports TCP/IP networking, SMTP email* and HTTP
- High quality MJPEG video recording with up to 30 frames per second at 640x480 VGA resolution
- Motion detection and scheduled recording
- Control two adjustable motion detection windows with just-in-time snapshot and email notification* capabilities
- Supports time stamp overlay
- Hear people in your camera's viewing area through your computer
- Embedded Watchdog feature automatically reboots camera if an operational errors is detected
- Quick Universal Plug and Play installation
- Complimentary SecurView™ software: view and record up to 16 SecurView cameras simultaneously **
- Complimentary SecurView™ software: supports Windows 2000/XP/Vista/Windows 7 operating systems
- 3-year limited warranty
* Does not support SSL** Windows 32-bit only. Monitoring multiple cameras may require a high performance CPU and graphics card
SecurView cameras are not compatible with TRENDnet's IPView Pro camera application for ProView cameras.
| Camera | |
| General | Sensor: 1/4" color CMOS sensor Resolution: 640 x 480 pixels Focal Length: 4.5mm F/No: F2.8 (Board Lens) Minimum illumination: 0.5 Lux @ F2.8 View angle: 60 degrees diagonal |
|---|---|
| Audio | Built-in omni-directional microphone Sensitivity: -48dB +/- 3dB (5 meters max) Frequency: 50~16000Hz Codec: PCM |
| Image & Video | Compression: MJPEG Resolution: VGA (640x480), QVGA (320x240), QQVGA (160x120) up to 30fps Exposure/white balance control: automatic Flip Images: Vertical/horizontal Light Frequency: 50Hz, 60Hz or outdoor |
| Hardware | |
| Network | IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX |
| LED | Power, Link/Act |
| IR Wavelength | 850nm |
| Reset Button | Reset settings |
| Power Consumption | 6 watts (max) |
| Power | 5V DC, 2.5A external power adapter |
| Dimension | 70 x 100 x 57mm (2.67 x 3.94 x 2.95 in.) |
| Weight | Camera: 165g (5.8 oz.) Stand: 135g (4.76 oz.) |
| Temperature | Operating: 0°C ~ 45°C (32°F ~ 113°F) Storage: -15°C ~ 60°C (14°F ~ 140°F) |
| Certification | CE, FCC |
| Requirement (SecurView™) | |
| To View | Internet Explorer 6.0 or above |
| To Run Software | Windows 2000, XP, Vista, Windows 7 |
| SecurView™ Software | Channel: supports up to 16 cameras Record/Playback/Motion Detection/Audio |
| Wireless | |
| Standard | IEEE 802.11b/g |
| Frequency | 2.412 ~ 2.484 GHz |
| Antenna | 1 x 2dBi detachable Reverse SMA connector |
| Security | 64/128-bit WEP, WPA-PSK, WPA2-PSK |
| Settings | |
| Image | Brightness, contrast, saturation, sharpness, white balance, flip, mirror (horizontal/vertical) |
| Recording | Recording type: event based (motion detection and digital input trigger), continuous and scheduled Storage size: 32MB (minimum) |
| Snapshot | Trigger event: motion detection Action: send alert email and/or upload to FTP |
| Port Settings | HTTP port: 80 (default) |
| Digital Zoom | 3x |
| Dynamic DNS | Yes |
| Time | Synchronize with NTP server or set time/date manually |
| Hardware | |
| Network | IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX |
| LED | Power, Link/Act |
| Reset Button | Reset settings |
| Power Consumption | 6 watts (max) |
| Power | 5V DC, 2.5A external power adapter |
| Dimension | 70 x 100 x 57mm (2.67 x 3.94 x 2.95 in.) |
| Weight | Camera: 165g (5.8 oz.) Stand: 135g (4.76 oz.) |
| Temperature | Operating: 0°C ~ 45°C (32°F ~ 113°F) Storage: -15°C ~ 60°C (14°F ~ 140°F) |
| Certification | CE, FCC |
| Requirement (SecurView™) | |
| To View | Internet Explorer 6.0 or above |
| To Run Software | Windows 2000, XP, Vista, Windows 7 |
| SecurView™ Software | Channel: supports up to 16 cameras Record/Playback/Motion Detection/Audio |
| Wireless | |
| Standard | IEEE 802.11b/g |
| Frequency | 2.412 ~ 2.484 GHz |
| Antenna | 1 x 2dBi detachable Reverse SMA connector |
| Security | 64/128-bit WEP, WPA-PSK, WPA2-PSK |
| Settings | |
| Image | Brightness, contrast, saturation, sharpness, white balance, flip, mirror (horizontal/vertical) |
| Recording | Recording type: event based (motion detection and digital input trigger), continuous and scheduled Storage size: 32MB (minimum) |
| Snapshot | Trigger event: motion detection Action: send alert email and/or upload to FTP |
| Port Settings | HTTP port: 80 (default) |
| Digital Zoom | 3x |
| Dynamic DNS | Yes |
| Time | Synchronize with NTP server or set time/date manually |
PACKAGE CONTENTS |
|
