SecurView Wireless Network Camera
TV-IP110W (Version A1.0R)
- Monitor your home or office with high quality MJPEG streaming video
- Access, monitor and record up to 16 cameras from the Internet
- Mount this compact stylish Network Camera on most surfaces
 |  |

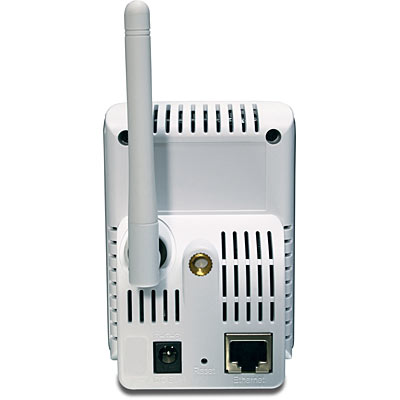

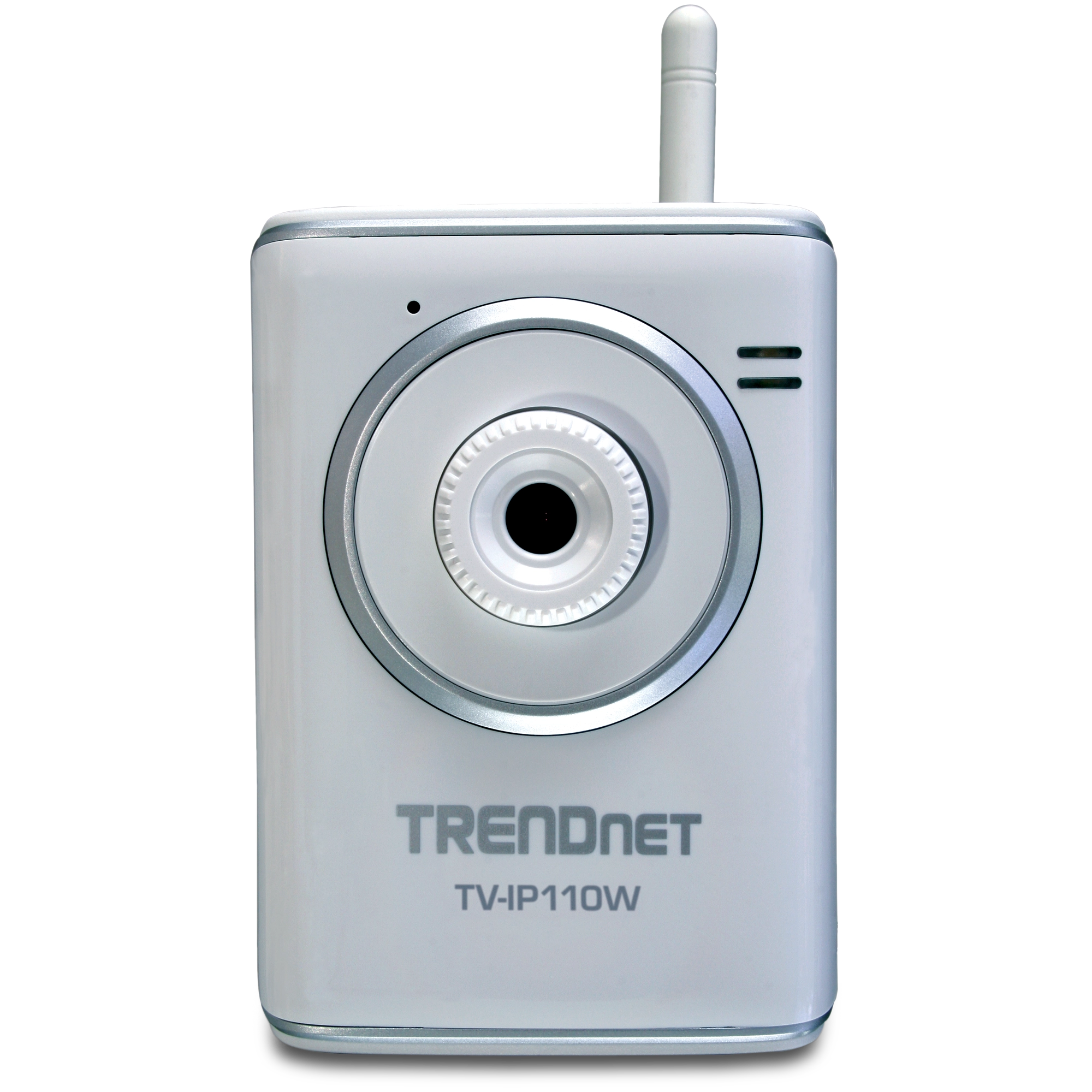

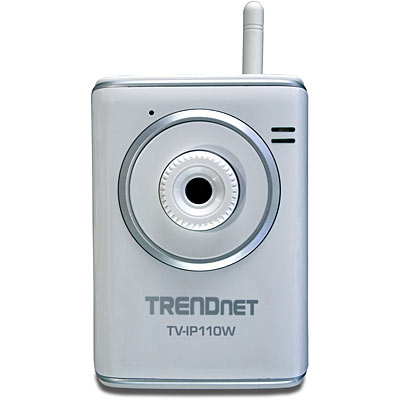

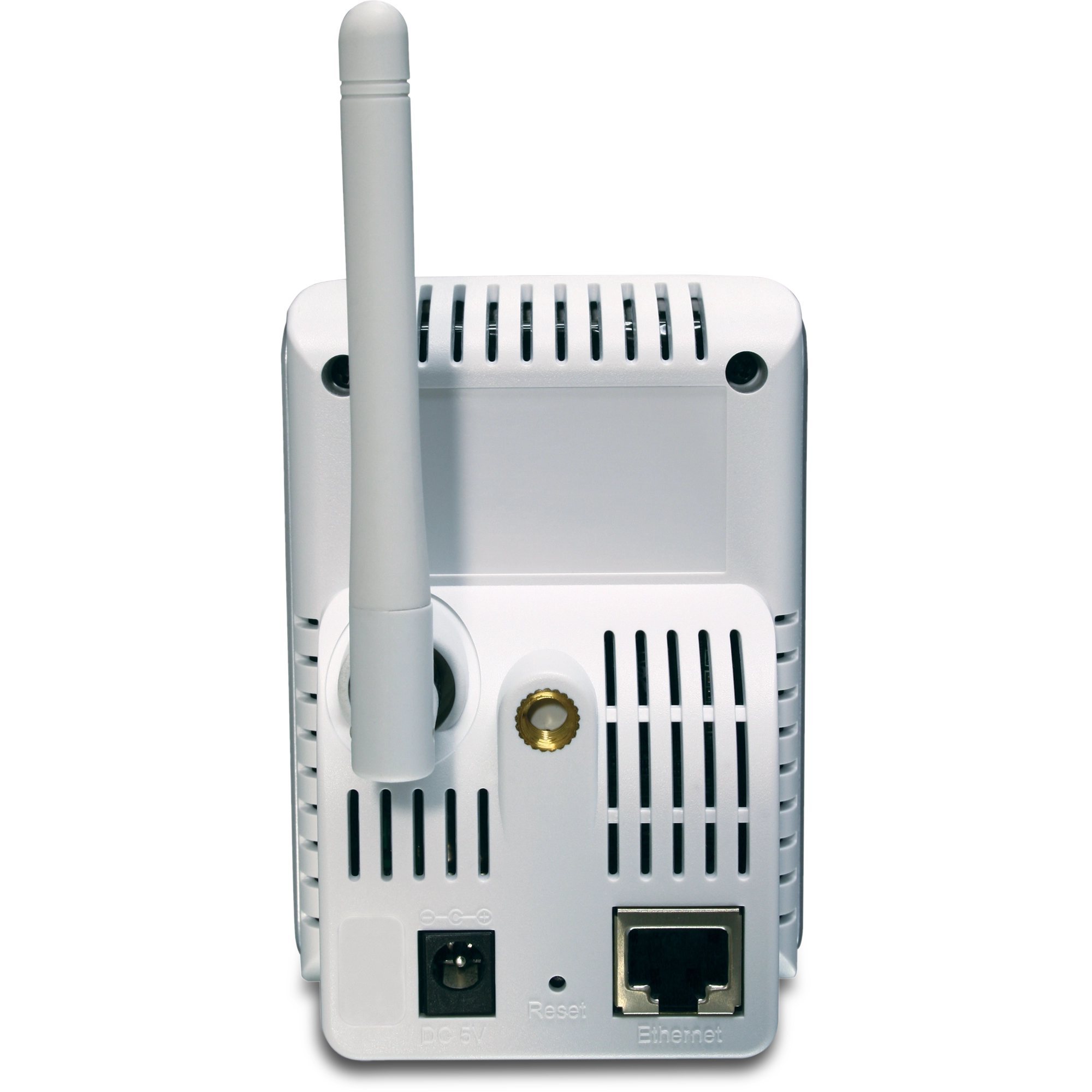

The Wireless Network Camera Server (TV-IP110W) transmits real-time high quality video over the Internet. View your camera from any Internet connection. Complimentary SecurView camera management software provides advanced monitoring of up to 16 cameras to protect what you value most.
This stylish and compact Network Camera provides crystal clear MJPEG video streams.
Mount the wireless camera on most surfaces with an included mounting kit. Intuitive software features motion detection recording, email alerts*, and scheduled recordings. The camera's brilliant image quality, intuitive setup and complimentary software make it ideal for your home or office.
* Does not support SSL
** 32-bit only. Monitoring multiple cameras will require a high performance CPU and graphics card
SecurView cameras are not compatible with TRENDnet's IPView Pro camera application for ProView cameras.
 |  |  |  |
- Quick Plug and Play installation
- Supports TCP/IP networking, SMTP Email*, and HTTP
- High quality MJPEG video recording with up to 30 frames per second
- Record streaming video to your computer
- Compatible with wireless g and b devices
- Advanced encryption mode include WEP, WPA-PSK(TKIP), WPA2-PSK
- Supports still image snapshot to FTP or Email*
- Motion detection with Email notification*
- Embedded Watchdog feature automatically reboots camera if an operational errors is detected
- Control two adjustable motion detection windows with just-in-time snapshot
- Supports time stamp overlay
- Free SecurView™ software: view and record up to 16 cameras simultaneously **
- 3-year warranty
* Does not support SSL** 32-bit only. Monitoring multiple cameras will require a high performance CPU and graphics card
SecurView cameras are not compatible with TRENDnet's IPView Pro camera application for ProView cameras.
| Image Sensor | |
Sensor | 1/4” Color CMOS Sensor |
Resolution | 640 x 480 Pixel |
Fixed Lens | f: 4.6mm, F: 2.6 (Board Lens) |
Viewing Angle | 60 Degree |
Minimum Illumination | 0.5Lux |
| Video/Image Setting | |
Video Format | MJPEG |
Image Frame Rate | 30fps @VGA, QVGA, QQVGA |
Frame Rate Setting | 1 ~ 30fps |
Zoom | 3 x Digital Zoom |
Compression Ratio Setting | 5 Levels |
Resolution | 640 x 480, 320 x 240, 160 x 120 |
Exposure Control, White Balance, Gain Control | Automatic |
Image Setting | Adjustable Brightness, Contrast, Saturation |
Flip Images | Vertical/Horizontal |
Light Frequency | 50Hz, 60Hz or Outdoor |
| Communication | |
| LAN | 10/100Mbps Auto MDIX |
| Protocol | HTTP, FTP, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, PPPoE, UPnP |
| Wireless | |
Standard | IEEE802.11b/g |
Security | 64/128bit WEP (HEX/ASCII),WPA-PSK(TKIP/AES), WPA2-PSK (TKIP/AES) |
Antenna | 2dBi detachable Reverse SMA Connector |
| Hardware Specifications | |
| System | |
CPU | ARM9 base |
RAM | 16Mbyte SDRAM |
ROM | 4Mbyte NOR Flash |
OS | Linux |
| System Requirement (Web Configuration) | |
CPU | 350MHz or above |
Memory | 256MB RAM or above |
Resolution | 800 x 600 or above |
Browser | Internet Explorer 6.0 or above |
Supported OS | Windows 7, Vista, XP, 2000 |
| System Requirement (SecurView™ Software) | |
| CPU | 1GHz or above |
| Memory | 512MB or above |
| Resolution | 1024 X 768 or above |
| Supported OS | Windows 7 (32-bit), Vista (32-bit), XP (32-bit), 2000 |
| Physical /Environment | |
Dimension | 70 x 100 x 57mm (2.67 x 3.94 x 2.95 in.) |
Weight | Camera: 125g (4.4oz.) |
Power | 5VDC, 2.5A External Power Adapter |
Power Consumption | 6 Watts (Max) |
LEDs | Power (Orange), Link (Green) |
Temperature | Operation: 0ºC ~45ºC (32ºF ~ 113ºF) |
PACKAGE CONTENTS |
|
