24-Port 10/100Mbps Web Smart PoE Switch with 4 Gigabit Ports and 2 Mini-GBIC Slots (Certified Refurbished)

RB-TPE-224WS (Version B1.4R)

  • Reduces equipment cost by delivering data and power over existing network cables
  • 24 PoE 10/100Mbps and 4 Gigabit Auto-MDIX and Auto-Negotiating ports
  • Features Port-Based VLAN support, QoS, Trunking and more

TPE-224WS 28-port Smart Switch integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-224WS reduces equipment cost by delivering data and power over existing network cable infrastructure. The switch offers advanced network management features such as VLAN and QoS to meet today's secured network applications.

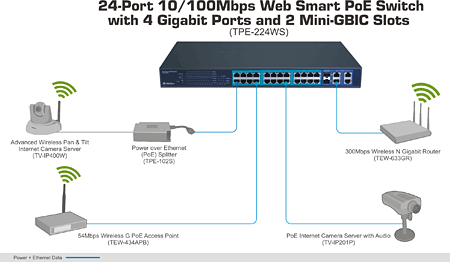

The TRENDnet setup includes a PoE Splitter TPE-104S, an 8-Port PoE Switch TPE-S44, and a Wireless N Internet Camera TV-IP551W. Additionally, a 24-Port Smart PoE Switch TPE-224WS connects to devices like an Advanced Wireless Pan & Tilt Camera TV-IP400W, a PoE Splitter TPE-102S, a 300Mbps Wireless N Gigabit Router TEW-639GR, a 54Mbps Wireless G PoE Access Point TEW-430APB, and a PoE Internet Camera TV-IP301P, with lines showing power and data flow.
  • IEEE 802.3af Power over Ethernet (PoE) Standard Compliant
  • 24 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet PoE RJ-45 Ports
  • 4 x 10/100/1000Mbps Auto-Negotiating and Auto-MDIX Gigabit Ports
  • 2 x 1000Base-SX/LX Mini-GBIC Slots for Optional Mini-GBIC Modules
  • Supports PoE Power up to 15.4 watts for each PoE port
  • Supports PoE Power maximum up to 170 watts for all PoE ports
  • Supports PoE Powered Device(PD) classification identify
  • Full Wire-Speed Non-Blocking Reception and Transmission
  • Store and Forward Switching Method
  • 1Mits RAM Data Buffer and 8K entries MAC Address Table
  • Extensive Diagnostic LED's on the Front Panel
  • Proprietary Windows Based Management/Monitoring Utility (similar to SNMP Trap)
  • Supports 802.1Q VLAN (VID 1 ~ 4094), IGMP Snooping, Trunking and Port Mirroring
  • Port Setting Function, Users can set each Port's Availability, Speed, Duplex Mode, and Flow Control
  • Easy configuration via Web browser
  • Standard 19” (1U) Rack-Mount size (kit included)
  • 90-day limited warranty
Hardware

Standard

IEEE 802.3 10Base-T IEEE802.3u 100Base-TX
IEEE 802.3ab 1000base-T IEEE 802.3af Power over Ethernet

Network Media

  • 10BASET: 2-pair UTP Cat. 3, 4, 5; up to 100m
  • 100BASE-TX: 2-pair UTP Cat. 5, 5E; up to 100m
  • 1000BASE-T: 4-pair UTP Cat. 5, 5E, 6; up to 100m
  • PoE: 4-pair UTP Cat. 5; up to 100m

Protocol / Topology

CSMA/CD ; Star

Ports

  • 24 x 10/100Mbps Auto-MDIX PoE Ports
  • 4 x 10/100/1000Mbps Auto-MDIX Gigabit Ports
  • 2 x 1000Base-SX/LX Mini GBIC ports for optional Mini-GBIC modules
    (share with port 25,26)

Data Transfer Rate

  • Ethernet: 10/20Mbps (half/full duplex)
  • Fast Ethernet: 100/200Mbps (half/full duplex)
  • Gigabit: 2000Mbps (full duplex)

RAM Buffer / Filtering

1Mits / 8K entry per device

Power

100~240VAC 50/60Hz, Internal Universal Switching Power Supply

Diagnostic LEDs

  • Per Unit: Power, System
  • Per Port: Link/Activity, Speed
  • PoE: PoE Status

Power Consumption
(170w max for PoE)

26.5 watts (no PD Device connected)
196.5 watts max (11 x 15.4 watts PoE Device connected)

Temperature

Operating: 0° ~ 40° C (32° ~ 104°F);
Storage: -10° ~ 70° C (14° ~ 158°F)

Humidity

10%- 90% (non-condensing)

Dimensions

440 x 310 x 44 mm (17.3 x 12 x 1.73 inch) (W x H x D)

Weight

4.43kg (9.75 lbs)

Certification

FCC, CE

PoE
Power over Ethernet
  • Up to 15.4 watts per port; Max 170W for all PoE ports
  • PD classification Identify; Manual setting for PoE power limitation
  • Supports PoE priority setting; PoE over current protection
  • PoE circuit sorting protection
  • PoE power on RJ-45 pin 3,6 for Power+ and pin 1,2 for Power-

PACKAGE CONTENTS
  • TPE-224WS
  • Multi-Language User's Guide
  • Web-Smart Utility CD-ROM
  • Power Supply
  • Rack Mount Kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
