Power over Ethernet (PoE) Splitter (Certified Refurbished)

RB-TPE-104S (Version v1.0R)

  • Used to install a non-PoE device in remote locations
  • Splits a networked PoE signal into separate power and data sources
  • Set the output power to either 5V, 7.5V, 9V, or 12V
  • Use this compact device with TRENDnet PoE switches or injectors
  • Save on installation and equipment costs

The Power over Ethernet Splitter, model TPE-104S, is used to install non-PoE devices in remote locations. It splits a networked PoE signal into separate power and data sources. Run an Ethernet cable from a PoE switch (or injector) for distances up to 100 meters and then split the PoE signal into separate data and power sources in order to network a non-PoE device.

No need to install non-PoE devices near a power outlet. Save installation and equipment cost when installing access points, IP cameras, and more in a remote location. A handy toggle switch adjusts output power to 5V, 7.5V, 9V, or 12V in order to match non-PoE device power requirements. This compact splitter safeguards valuable network equipment with short circuit protection. Quickly create an integrated PoE and non-PoE network.

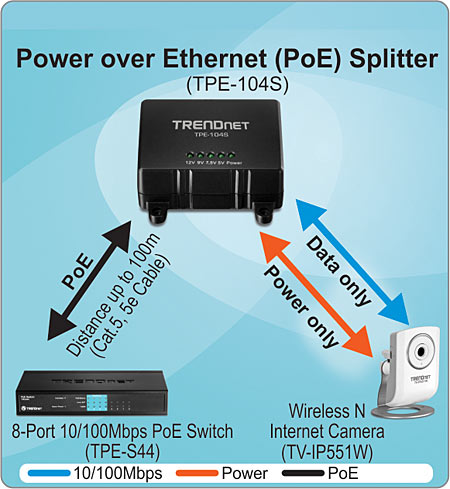

Lo splitter PoE Power over Ethernet TPE-104S di TRENDnet, con distanza PoE fino a 100 metri utilizzando Cat. Cavo 5e, include opzioni solo dati e solo alimentazione, uno switch PoE a 8 porte 10/100Mbps TPE-S44 e una telecamera Internet Wireless N TV-IP551W, con alimentazione PoE 10/100Mbps.
  • Converts non-PoE devices with Power over Ethernet support
  • 1 x 10/100Mbps PoE Auto-MDIX Data In port
  • 1 x 10/100Mbps Auto-MDIX Data Out port
  • Power out port
  • 1 x 33cm (13”) jumper cable with a 2.0mm connection to the splitter and 2.0mm pin connection to powered device
  • 1 x 33cm (13”) jumper cable with a 2.0mm connection to the splitter and 2.5mm pin connection to powered device
  • For a product with a 1mm pin power connection, use TRENDnet's TV-JC35 (3.5mm to 1mm Jumper Cable-sold separately)
  • Power LED indicator
  • Install non-PoE devices where a power outlet is not available
  • Reduce installation and network equipment costs
  • Safeguards network device with short circuit protection
  • Adjustable output DIP switch 5V, 7.5V, 9V, and 12V adjustable output
  • Auto-sensing power drawn from 802.3af power source equipment(PSE) devices
  • Supplies power up to 15.4 Watts
  • Light weight and compact size
  • Wall mounting points
  • 90-day limited warranty
Hardware
Standard
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3x Flow Control
  • IEEE 802.3af Power over Ethernet
Network Media
  • 10Mbps: UTP/STP Cat. 5 Up to 100 meters
  • 100Mbps: UTP/STP Cat. 5 and 5e Up to 100 meters
Ports
  • 1 x 10/100Mbps Data and Power In
  • 1 x 10/100Mbps Data Out
  • 1 x 5.5mm pin Power Out
Switch
  • Adjustable output power DIP switch (5V, 7.5V, 9V, 12V)
Power
  • Power In: 48VDC 0.38A
  • Power Out: 5V(2A), 7.5V(2A), 9V(1.7A), 12V(1.2A)
Power Consumption
  • Max. 0.3 watt
Jumper Cable
  • 1 x (2.0 x 2.0mm)
  • 1 x (2.5 x 2.0mm)
Dimensions
  • 70 x 45 x 25 mm (2.75 x 1.8 x 1 in.)
Weight
  • 45g (1.6 oz.)
Temperature
  • Operation: 0°C~45°C (32°F~ 113°F)
  • Storage: -20°C~90°C (-4°F~194 °F)
Humidity
  • Max. 90% (non-condensing)
Certifications
  • CE, FCC

PACKAGE CONTENTS
  • TPE-104S
  • Quick Installation Guide
  • 2 x Jumper Cable (2.0 x 2.0mm, 2.0 x 2.5 mm)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
