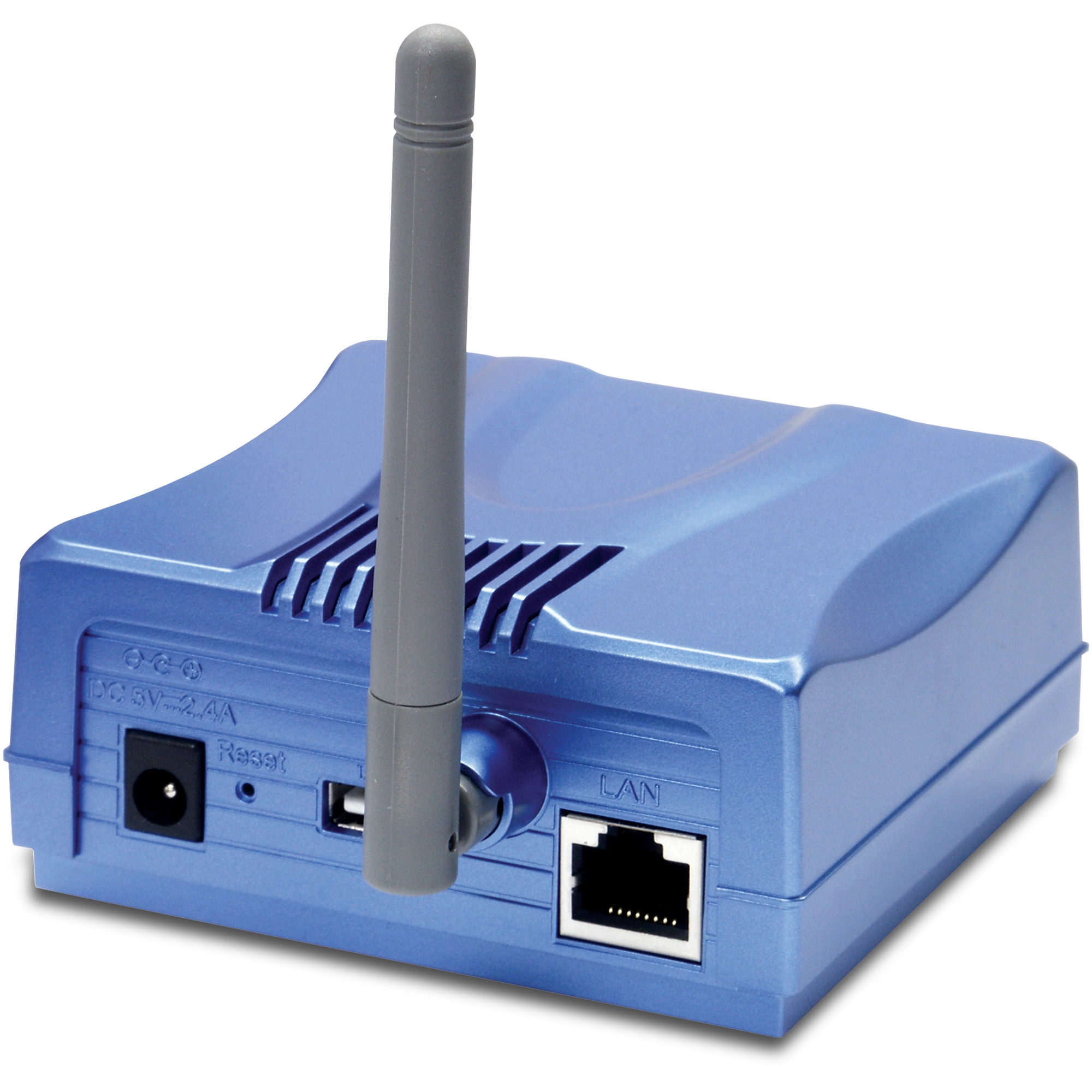

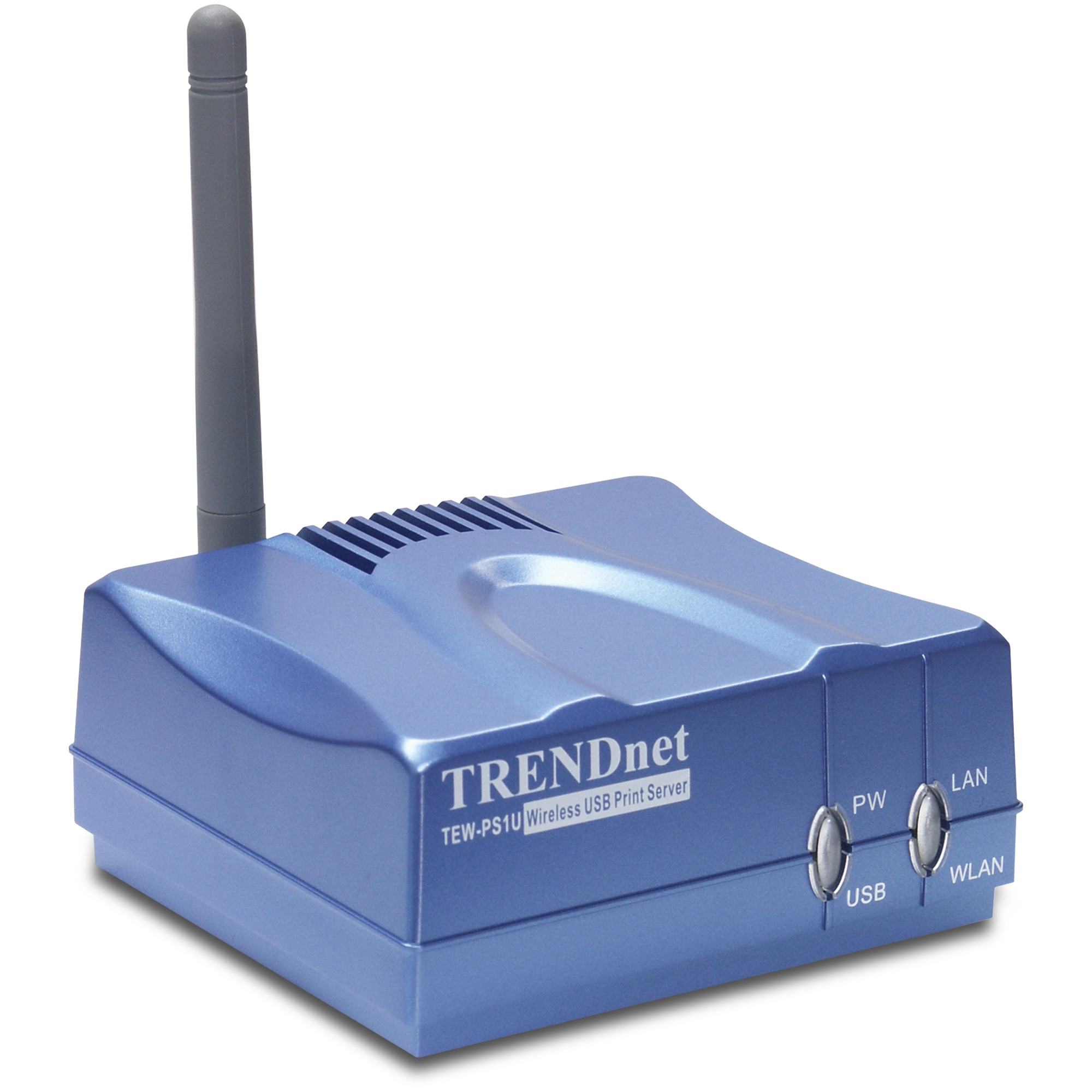

TEW-PS1U Product Photo
TEW-PS1U Product Photo TEW-PS1U Product Photo

11Mbps Wireless Multi-Protocol USB Print Server

TEW-PS1U (Version v1.0)

Coming Soon
DISCONTINUED PRODUCT
The TEW-PS1U (Version v1.0) has been discontinued. For a list of discontinued products, click here.

TRENDnet TEW-PS1U is a multi-protocol print server that transforms any stand-alone USB printer into a shared network printer. The TEW-PS1U provides IEEE 802.11b wireless interface for integrating into existing wireless network. The TEW-PS1U can be effortlessly implemented without wiring restriction. A standard auto-sensing 10/100Mbps interface is also available for trouble-free wired network installation. Network professionals can choose wired or wireless interface depending on the networking project. The TEW-PS1U is designed for printers equipped with USB 1.1 compliant interface. The TEW-PS1U is an ideal network solution to transform conventional USB printer into shared resource on the network. Network managers can utilize the TEW-PS1U to promote productivity in a workgroup environment and lower equipment cost.

  • Compliant with IEEE 802.11b 11Mbps Wireless LAN standard
  • Supports Ad-Hoc or Infrastructure wireless mode
  • 64/128-bit Wired Equivalent Privacy (WEP) in wireless mode (ASCII or HEX key)
  • One RJ-45 10/100Mbps auto-sense Fast Ethernet port
  • One USB Type A port
  • USB 1.1 compliant
  • Compact pocket size
  • Supports TCP/IP, NetBEUI and AppleTalk transport protocols
  • Supports Windows 95/98/NT/Me/2000/XP, NetWare5.x/6.x (NPDS LPR printing), HP-UX, Sun OS, UnixWare, Solaris, SCO Unix, IBM AIX, Mac OS AppleTalk and Linux
  • Supports Bi-Directional Communication
  • Includes windows-based administrative program and web-based configuration
  • Latest MIB-II (RFC 1213) for SNMP management
  • TCP/IP protocol supports SNMP, Telnet, TFTP, FTP, LPD, DHCP, BOOTP and RARP
  • Includes LPR program for Windows 95/98/ME TCP/IP printing
  • Upgradeable Firmware
  • 3-years warranty
LAN Standards:
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX
  • ANSI/IEEE 802.3 NWay auto-negotiation
LAN Port:
  • Auto-negotiating NWay UTP/STP RJ-45 port
Wireless Standard:
  • Auto-negotiating NWay UTP/STP RJ-45 port
Wireless Mode:
  • Ad-Hoc, Infrastructure
Wireless Encryption:
  • Ad-Hoc, Infrastructure
Wireless Data Rate:
  • 11Mbps, 5.5Mbps, 2Mbps, 1Mbps (auto-fallback)
Antenna:
  • 2dBi diversity fixed antenna (length = 87 mm / 3.5 inches)
Printer Interface:
  • USB Type A Male, USB 1.1 compliant
Network Cables:
  • Cat.3, 4, 5 UTP/STP for 10Base-T (100 meters max.)
  • Cat.5 UTP/STP for 100Base-TX (100 meters max.)
Supported Protocols:
  • TCP/IP, NetBEUI, and AppleTalk/EtherTalk
LED Indicator:
  • Power, LAN, USB, WLAN
Power:
  • External Power Supply 5V DC 2.4A
Dimensions:
  • 90 x 90 x 40 mm (3.54 x 3.54 x 1.57 inches); (not including antenna)
Weight:
  • approx. 141.7 g. (5 Oz.)
  • Operating Temperature:
  • 0°~50°C (32°~122°F)
Storage Temperature:
  • -25°~55°C (-13°~131°F)
Humidity:
  • Operating 10%~90%
  • Storage 5%~95% (non-condensing @ 30°C/86°F)
Emission:
  • FCC class B, CE class B, VCCI Class B
Integration Friendly:
  • Supports multiple protocols and all popular Operating Systems.
Flexible:
  • Integrates with 10Base-T, 100Base-TX or IEEE 802.11b Wireless network.
Cost Effective:
  • Integrates with 10Base-T, 100Base-TX or IEEE 802.11b Wireless network.
Performance:
  • Integrates with 10Base-T, 100Base-TX or IEEE 802.11b Wireless network.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
