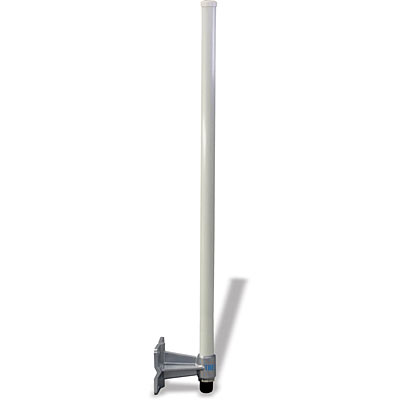

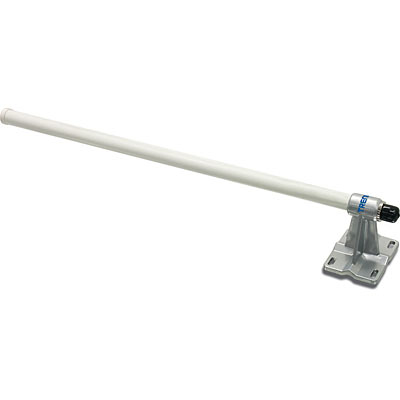

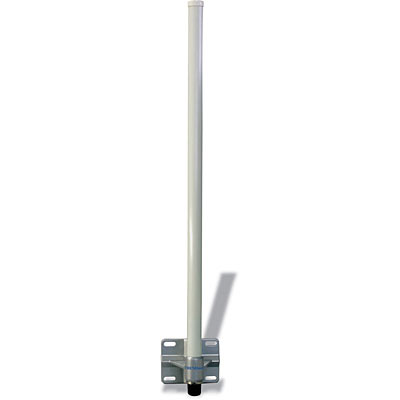

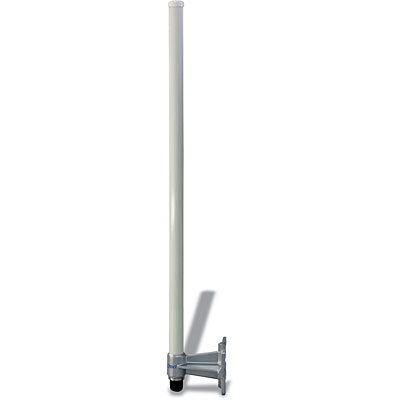

8dBi Outdoor Omni Directional Antenna

TEW-AO08O (Version 1.0R)

  • Create a high powered blanket outdoor Wi-Fi hotspot
  • Compatible with wireless b, g and n standards
  • Ensure protection from lightning strikes with TRENDnet's TEW-ASAK Outdoor Arrestor Kit
  • Includes mounting kit
  • Compatible with TEW-739APBO, requires TEW-L412 / TEW-L406 and TEW-ASAL1
DISCONTINUED PRODUCT
The TEW-AO08O (Version 1.0R) has been discontinued. It has been replaced by the TEW-AO14D (Version 2.0R). For a list of discontinued products, click here.

The 8dBi Outdoor Omni Directional expands wireless coverage for existing 802.11b/802.11g wireless networks to improve wireless performance at longer distances. Perfect for Wi-Fi hotspots and wireless home networks, the antenna blankets any given area with Wi-Fi signals to provide continuous connectivity in every direction. In outdoor applications, the TEW-AO08O can withstand winds of up to134mph as well as multiple lightning strikes with the addition of the TEW-ASAK Outdoor Arrestor Kit

The graphic displays two circular polar plots. The left plot, titled Horizontal Coverage, shows a circular pattern with angles marked at intervals of 30 degrees, ranging from 0 degrees to 360 degrees. The right plot, titled Vertical Coverage, depicts a more complex pattern with multiple lobes, also marked at intervals of 30 degrees, ranging from 0 degrees to 360 degrees.
  • Compatible with 2.4GHz 802.11b/g wireless products.
  • Boosts and increases the effective range coverage by 8X the area covered by the base station alone.
  • Easy-to-install wall / pole mounting.
  • No configuration or installation software required.
  • 3-year limited warranty

* This dBi gain does not factor cable loss. Performance estimations are for typical use; range will vary with site conditions* Note: For optimal results in extending your wireless range with wireless antenna installations, we recommended that you consult a professional installer for site survey, safety precautions, and proper installation.

Hardware
Frequency Range
  • 2400 ~ 2500MHz
Gain
  • 8dBi
VSWR
  • 2.0:1 Max
Polarization
  • Linear, vertical
HPBW/ Horizontal
  • 360°
HPBW/ Vertical
  • 15°
Power handling
  • 50W (cw)
Down tilt
  • 0°
Impedance
  • 50 Ohms
Connector
  • N-Type Female
Survival wind speed
  • 216 km/h (134miles/h)
Lightning protection
  • DC ground
Radome color
  • Gray white
Radome material
  • Fiberglass
Dimension
  • 25 x 80 x 520mm (0.98 x 3.15 x 20.47 in.)
Weight
  • 323 g (11.4oz.)
Temperature
  • -40°C ~ 80°C (-40°F ~ 176°F)
Humidity
  • 100% at 25°C (77°F)
Certification
  • CE, FCC
Warranty
  • 3 Years

PACKAGE CONTENTS
  • TEW-AO08O
  • User's Guide
  • Mounting Kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
