Wireless AC1750 Router and Two AC1200 USB Adapters Bundle (Certified Refurbished)

RB-TEW-812DRUB2K

  • Bundle includes one AC1750 router (TEW-812DRU) and two AC1200 USB Adapters (TEW-805UB)
  • AC router supports up to 1750Mbps total wireless: 1300Mbps AC + 450Mbps N
  • Each AC USB adapter supports up to 1200Mbps total wireless: 867Mbps AC + 300Mbps N
  • One touch network connection with the WPS button
  • Supports the latest encryptions standards (up to WPA2)
  • Backward compatible with older wireless devices

Designed to produce the ultimate wireless experience in a busy connected home, TRENDnet's AC1750 Dual Band Wireless Router, model TEW-812DRU, creates two concurrent wireless networks—a 1.3 Gigabit Wireless AC network and a 450 Mbps Wireless N network to connect common wireless devices. Use the high speed USB 3.0 port and Gigabit Ethernet ports to further expand your network.

TRENDnet's AC1200 Dual Band Wireless USB Adapter, model TEW-805UB, connects a laptop or desktop computer to a revolutionary Wireless AC network. Connect to a Wireless AC network at an amazing 867Mbps or to a Wireless N network at up to 300Mbps. A SuperSpeed 5Gbps USB 3.0 port maintains a high speed connection to your computer. Easily upgrade your computer's wireless connection to experience the speed of revolutionary Wireless AC.

TEW-812DRU Features

Next Generation Wireless AC

802.11ac provides uninterrupted HD video streaming in a busy connected home

Simultaneous Dual Band

High speed 1300 Mbps Wireless AC band + 450 Mbps Wireless N

Gigabit Ports

Gigabit ports extend high performance wired connections

Wireless Coverage

Whole home wireless coverage for average size homes

Targeted Beamforming

Increased real-time performance by directing stronger wireless signals to your specific location

Backward Compatible

Compatible with legacy wireless devices

Open Source

Compatible with DD-WRT open source firmware***

USB 3.0 Share Port

Plug in a USB 3.0 flash or storage drive to share content at 5 Gbps USB 3.0 speeds

Encrypted Wireless

For your convenience, the router arrives pre-encrypted with its own unique password

Guest Network

Create an isolated network for guest internet access only

Parental Controls

Control access to specific websites

TEW-805UB Features

Next Generation Wireless AC

802.11ac provides HD video streaming in a busy connected home

Dual Band

High speed 867Mbps Wireless AC or 300Mbps Wireless N network connection

Backward Compatible

Compatible with older wireless devices

Operating Systems

Compatible with Windows®and Mac®operating systems

Encrypted Wireless

Supports the latest encryptions standards (up to WPA2)

TEW-812DRU Specifications
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 450 Mbps)
  • IEEE 802.11ac (draft 2.0, up to 1.3 Gbps)

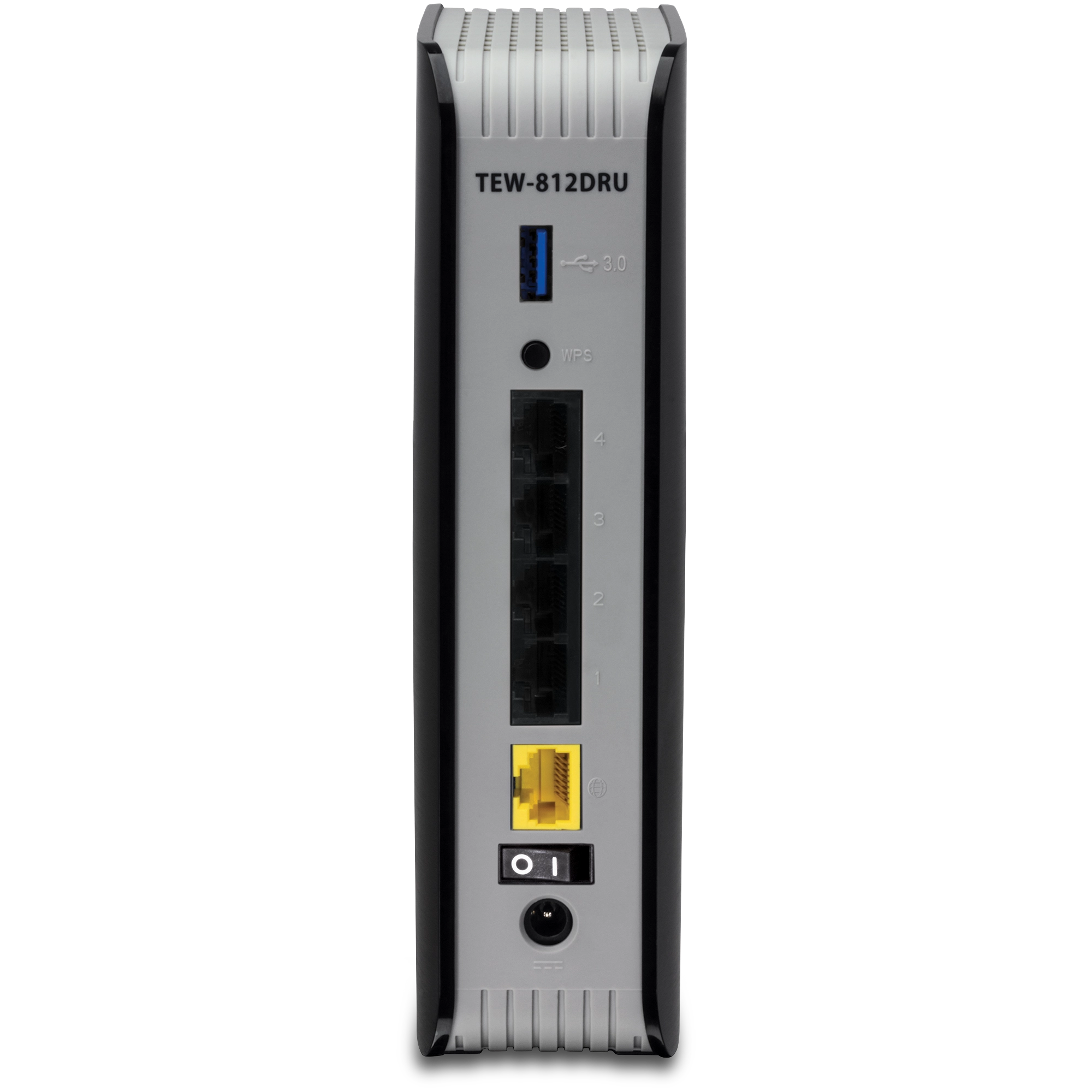

Hardware Interface
  • 4 x Gigabit LAN ports
  • 1 x Gigabit WAN port
  • USB 3.0 (Storage FTP, Samba, Printing)
  • Power switch (EU only)
  • WPS button
  • LED indicators
Encryption
  • Wireless encryption up to WPA2
  • Firewall: NAT, SPI
  • Parental (Access) Controls: MAC, URL, IP Filter
System Requirements
  • Optional USB Printing utility: Windows: 8.1, 8, 7, Vista, XP, Mac OS X: 10.8, 10.7, 10.6, 10.5, 10.4
Special Features
  • QoS Management
  • IPv6 support (6to4 and Native)
  • WDS support
  • Up to 3 multiple SSID per band
  • 1 guest network per band with option for Internet access only
  • DDNS support for dyn.com & no-ip.com
  • Samba/FTP server support
  • Multi-Language interface: English, French, Spanish, German, Russian
Open Source
  • Compatible with DD-WRT Firmware
Antenna Gain
  • 2.4 GHz: 6 dBi (Max) internal/5 GHz: 6 dBi (Max) internal
Wireless Output Power/Receiving Sensitivity
  • 802.11a: FCC: 22 dBm, CE: 18 dBm (Max)/-68 dBm (typical) @ 54 Mbps
  • 802.11b: 19 dBm (Max) /-84 dBm (typical) @ 11 Mbps
  • 802.11g: 18 dBm (Max) /-72 dBm (typical) @ 54 Mbps
  • 802.11n: FCC: 18 dBm (Max) /-68 dBm (typical) @ 450 Mbps 2.4 GHz
  • 802.11n: FCC: 22 dBm, CE: 18 dBm (Max)/-68 dBm (typical) @ 450 Mbps 5 GHz
  • 802.11ac: FCC: 23 dBm, CE: 19 dBm (Max)/-55 dBm (typical) @ 1.3 Gbps
Power
  • Input: 100 - 240 V, 50 – 60 Hz, 0.8 A
  • Output: 12 V DC, 2 A
  • Consumption: 21 Watts (Max)
Operating Temperature
  • 0 - 40°C (32 - 104°F)
Operating Humidity
  • Max 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions/Weight
  • 48 x 155 x 180 mm (1.8 x 6.1 x 7.1 in)
  • 395 g (14 oz.)
TEW-805UB Specifications
Hardware
Interface
  • USB 3.0, 2.0, 1.1 standard
Standards
  • IEEE 802.11a, IEEE 802.11ac (draft), IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n
WPS Button
  • Enables WPS connection
Power Consumption
  • Receive mode: 167 mA (max.)
  • Transmit mode: 224 mA (max)
Supported OS
  • Windows® 10, 8.1, 8, 7, Vista, XP
  • Mac OS® 10.4-10.12
Dimensions (L x W x H)
  • 80 x 27 x 12 mm (3.1 x 1 x 0.5 in.)
Weight
  • 20 g (0.7 oz)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
  • Max 95% (non-condensing)
Certifications
  • CE, FCC
Wireless
Modulation
  • DBPSK / DQPSK / CCK / OFDM (BPSK / QPSK / 16-QAM / 64-QAM / 128-QAM / 256-QAM)
Antenna
  • 2 internal antennas
Frequency
  • 802.11b/g/n: 2.412 ~ 2.472 GHz
  • 802.11a/n/ac: 5.150 GHz ~ 5.350 GHz / 5.725 GHz ~ 5.825 GHz (FCC), 5.150 GHz ~5.350 GHz / 5.470 GHz ~ 5.725 GHz (ETSI)
Media Access Protocol
  • CSMA/CA with ACK
Data Rate (auto fallback)
  • 802.11a: up to 54 Mbps
  • 802.11b: up to 11 Mbps
  • 802.11g: up to 54 Mbps
  • 802.11n: up to 300 Mbps (for both 2.4 & 5 GHz)
  • 802.11ac: up to 867 Mbps
Output Power
  • 802.11b: 15 dBm (typical)
  • 802.11g: 15 dBm (typical)
  • 802.11n: 15 dBm (typical) (for both 2.4 & 5 GHz)
  • 802.11a: 15 dBm (typical)
  • 802.11ac: 12 dBm (typical)
Receiving Sensitivity
  • 802.11b: -76 dBm (typical)
  • 802.11g: -65 dBm (typical)
  • 802.11n: -61 dBm (typical)
  • 802.11a: -65 dBm (typical)
  • 802.11ac: -51 dBm (typical)
Encryption
  • 64/128-bit WEP, WPA / WPA2-RADIUS, WPA / WPA2-PSK (AES/TKIP)
Channels
  • 2.4 GHz: 1~11 (FCC), 1~13 (ETSI)
  • 5 GHz: 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165 (FCC) 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 (ETSI)

PACKAGE CONTENTS
  • 1 x RB-TEW-812DRU (Version v2.1R)
  • 2 x RB-TEW-805UB (Version v1.0R)
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Network cable (1.5 m/5 ft.)
  • Power adapter (12 V, 2 A)

* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and cover-age will vary depending on interference,network traffic, building materials and other conditions
** Printer Control Center utility installation required for each computer in order to access the printer
***The provided open source firmware has no affiliation with, nor was it produced by TRENDnet. Using this firmware requires advanced knowledge and experience with OpenSource code. TRENDnet does not provide support for this firmware. Use of this firmware voids the product warranty. This firmware may damage your product, use at your own risk.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
