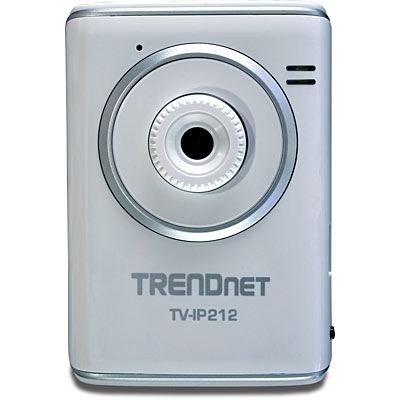

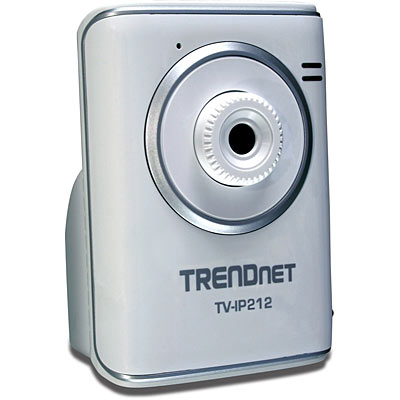

SecurView Network Camera
TV-IP212 (Version A1.0R)
- 2-way audio to listen and talk through the camera
- Superb image quality with MPEG-4 compression
- View streaming video, hear sounds, verbally respond and record from any Internet connection
The 2-Way Audio Network Camera transmits real-time high quality video and audio over the Internet. See, hear and talk to people, in your camera's viewing area from any Internet connection. Complimentary SecurView camera management software allows you to monitor what you value most at home or at work.
The camera provides crystal clear MPEG4 video streams over an internet connection. A built-in microphone and optional speakers accommodate 2-way audio communication. Advanced intuitive software includes motion detection recording, email alerts*, scheduled recordings and progressive search options. This cameras brilliant image quality, USB flash support and 2-way audio make it ideal for home, small office and business use.
* Does not support SSL
** USB port supports up to 500mA power device with FAT16/32 format
*** The 3G service from a mobile phone provider is required
**** Windows 32-bit only. Monitoring multiple cameras may require a high performance CPU and graphic card.
SecurView cameras are not compatible with TRENDnet's IPView Pro camera application for ProView cameras.
 |  |  |
- Built-in USB port allows you to store still image directly onto a USB flash or hard drive*
- Supports TCP/IP networking, SMTP Email, HTTP, Samba and other Internet protocols
- High quality MPEG-4 and MJPEG video recording with up to 30 frames per second
- Hear and talk to people in your camera's viewing area through your computer
- Record streaming video to your computer and Network Storage
- Supports still image snapshot to FTP, Email and Flash drive
- Motion detection with Email notification
- Supports two adjustable motion detection windows with just-in-time snapshot
- Supports time stamp overlay
- Quick Universal Plug and Play installation
- Free SecurView™ software: view and record up to 16 camerassimultaneously ***
- 3-year limited warranty
* Does not support SSL** USB port supports up to 500mA power device with FAT16/32 format*** The 3G service from a mobile phone provider is required**** Windows 32-bit only. Monitoring multiple cameras may require a high performance CPU and graphic card.
SecurView cameras are not compatible with TRENDnet's IPView Pro camera application for ProView cameras.
| Camera Specifications | |
| Image Sensor | |
| Sensor | 1/4” Color CMOS Sensor |
| Resolution | 640 x 480 Pixel |
| Fixed Lens | f: 4.6mm, F: 2.8 (Board Lens) |
| Viewing Angle | 60 Degree |
| Minimum Illumination | 0.5Lux @ F2.0 |
| Audio | |
| Microphone Input | Internal Omni-Directional Sensitivity: -48dB + 3dB Response Frequency:50 ~ 16000Hz |
| Audio Output | 3.5mm Speaker Output Jack |
| Format | PCM/AMR (Mono) |
| Video/Image Setting | |
| Video Format | MPEG4(Simple Profile), MJPEG, 3GPP |
| Image Frame Rate | 30fps @VGA, QVGA, QQVGA |
| Frame Rate Setting | 1 ~ 30fps |
| Compression Ration Setting | 5 Levels |
| Resolution | 640 x 480, 320 x 240, 160 x 120 |
| Exposure Control, White Balance, Gain Control | Automatic |
| Image Setting | Adjustable Brightness, Contrast, Saturation |
| Flip Images | Vertical/Horizontal |
| Light Frequency | 50Hz, 60Hz or Outdoor |
| Communication | |
| LAN | 10/100Mbps Auto MDIX |
| Protocol | HTTP, FTP, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, PPPoE, UPnP, RTP, RTSP, RTCP |
| Hardware Specifications | |
| System | |
| CPU | ARM9 base |
| RAM | 32Mbyte SDRM |
| ROM | 8Mbyte Nor Flash |
| OS | Linux |
| System Requirement (Web Configuration) | |
| CPU | Pentium III 350MHz or above |
| Memory Size | 128MB or above |
| Resolution | 800 x 600 or above |
| Browser | Internet Explorer 6.0 or above |
| Supported OS | Windows 2000/XP/Vista/Windows 7 |
| System Requirement (SecurView™ Software) | |
| CPU | Pentium 4 1GHz or above |
| Memory Size | 512MB or above |
| Resolution | 1024 X 768 or above |
| Supported OS | Windows 2000/XP/Vista/Windows 7 |
| Physical /Environment | |
| Dimension | 70 x 100 x 57mm (2.67 x 3.94 x 2.95 in.) |
| Weight |
|
| Power | 5VDC, 2.5A External Power Adapter |
| Power Consumption | 8 Watts (Max) |
| LEDs | Power (Orange), Link (Green) LED Enable/Disable Support |
| Temperature |
|
| Other | |
| USB Port | USB 1.1 (Type 1) Up to 500mA Power Device with FAT16/32 Format |
 | |
PACKAGE CONTENTS |
|
