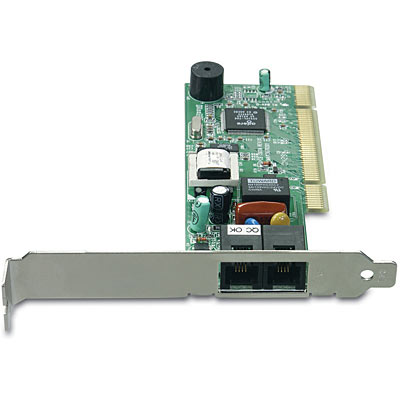

56K (V.92) High Speed Internal PCI Data/Fax/TAM Modem

TFM-PCIV92A (Version A)

  • Save time with fast data transfer rates
  • Quickly install this compact device into any PCI computer port
  • User friendly data, fax and voice software
DISCONTINUED PRODUCT
The TFM-PCIV92A (Version A) has been discontinued. For a list of discontinued products, click here.

The TFM-PCIV92A Internal PCI Fax Modem with Agere Chipset delivers faster access to the Internet for more efficient upload and downloads. The V.92/V.90 standard modem provides you with the highest possible data transfer rates and reliable fax transmissions. The modem complies with the latest V.92 standard, which provides Quick Connect, Modem-on-Hold, and 48Kbps Upload Rate features for your Internet connection. TFM-PCIV92A delivers quick and easy installation with free communication software. Save money and surf faster with TRENDnet's TFM-PCIV92A.

  • Compliant with V.92, V.90, V.44 Standards
  • Supports V.44 and V.92 Quick Connect, PCM Upstream and Modem On Hold Features
  • Up to 56Kbps Data Download, 48Kbps Data Upload
  • Supports TAM (Telephone Answering Machine) via Sound Card
  • Supports Group III, Class 1 Fax with Fax Transfer Rate up to 14.4kbps (T.31 Protocol)
  • Video Phone ready (Interface to H.324 Video Conferencing Support)
  • Compatible with Windows 98SE/Me/2000/XP
  • AT commands for data, Class 1 Fax and IS-101voice
  • ACPI Power Management with PME pin supply for Low Power Consumption
  • Free Data/Fax/Voice Communication Software
  • 3-year limited warranty
Hardware
Interface:
  • PC: PCI Specification 2.2
  • PSTN: RJ-11
Data Mode:V.92 & V.90, V.34, V.32(bis), V.22(bis), V.23, V.21, Bell 212A, Bell 103
Error Correction:V.42, LAPM & MNP 2-4
Data Compression: V.44, V.42(bis) & MNP5
Fax Mode:Group III Send & Receive, ITU-T V.17, V.29, V.27ter and V.21 ch2
Voice Function:
  • TAM (USA) Support with Concurrent DRMD Detect, Ring Detect
  • 8-Bit u- Law/A-Law/Linear Coding
  • TIA-695 Command Set
  • 8000 Hz Sample Rate
Video Phone Ready:
  • V.80 sync Access mode Supports Host-Controlled Communication Protocol
  • H.324 interface Support
Multiple Country: Call Progress, Blacklisting Support
Other:
  • Data/Fax/Voice Call Discrimination
  • Single Profile Stored in Host
  • Modem and Audio Paths Concurrent Across PCI Slot
  • DTMF
Power Management:
  • ACPI Power Manager Registers
  • PME# pin and APM Support
Power Consumption (Input 3.3VDC) :
  • Sleep Mode: 25mW
  • Idle Mode: 200mW
  • Operating Mode: 300mW
Dimensions: 133 x 124 x 21mm (5.2 x 4.8 x 0.8 inches)
Weight: 55g (1.94 oz)
Temperature:
  • Operating: 0°~ 55°C (32°~ 131°F)
  • Storage: -20°~ 60°C (-4°~140°F)
Humidity: 10%~90% (non-condensing)
Supported OS: Windows 98SE/ME/2000/XP
System Requirements:
  • CPU: Pentium K6 200Mhz or Above
  • Memory: 32Mbytes or Above
  • HDD Space: 4Mbytes or Above
Certifications: FCC, CE

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
