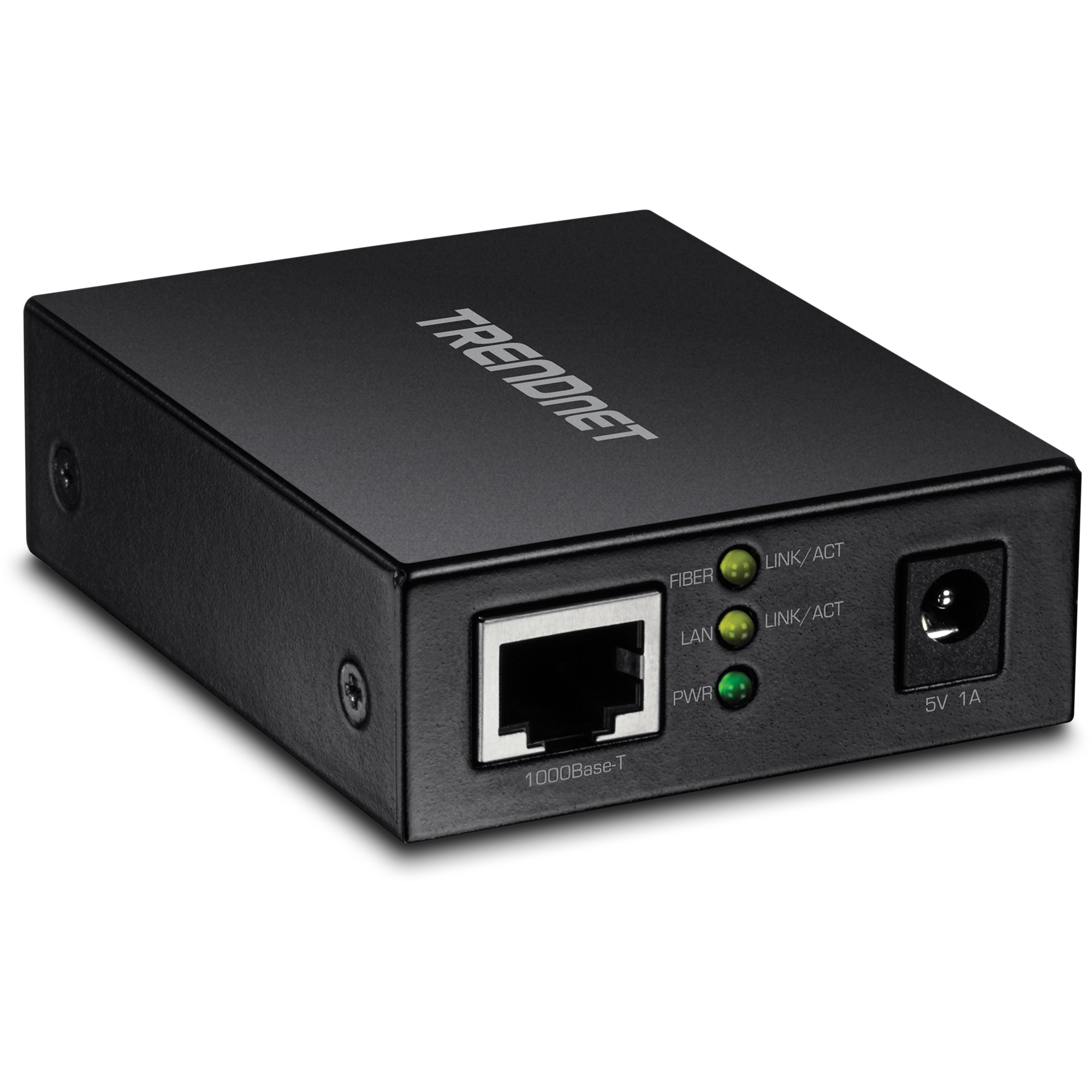

1000BASE-T to SFP Fiber Media Converter

TFC-GSFP (Version v1.2R)

  • 1 x 1000BASE-T RJ-45 port
  • 1 x 1000BASE-SX/LX SFP slot
  • SFP slot accommodates multimode or single-mode modules
  • Auto-MDIX 1000BASE-T RJ-45 port supports full-duplex mode
  • Not compatible with TFC-1600
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

This compact fiber media converter transforms 1000BASE-T (Copper Gigabit) media to 1000BASE-SX/LX (Fiber) SFP media and vice versa. The 1000BASE-T RJ-45 port supports a full-duplex Gigabit connection at wire speed. The SFP slot supports both multimode (SX) or single-mode (LX) SFP modules.

A line drawing of a device with a Dual-Speed SFP (Small Form-factor Pluggable) Slot, highlighting its rectangular shape and internal port structure.

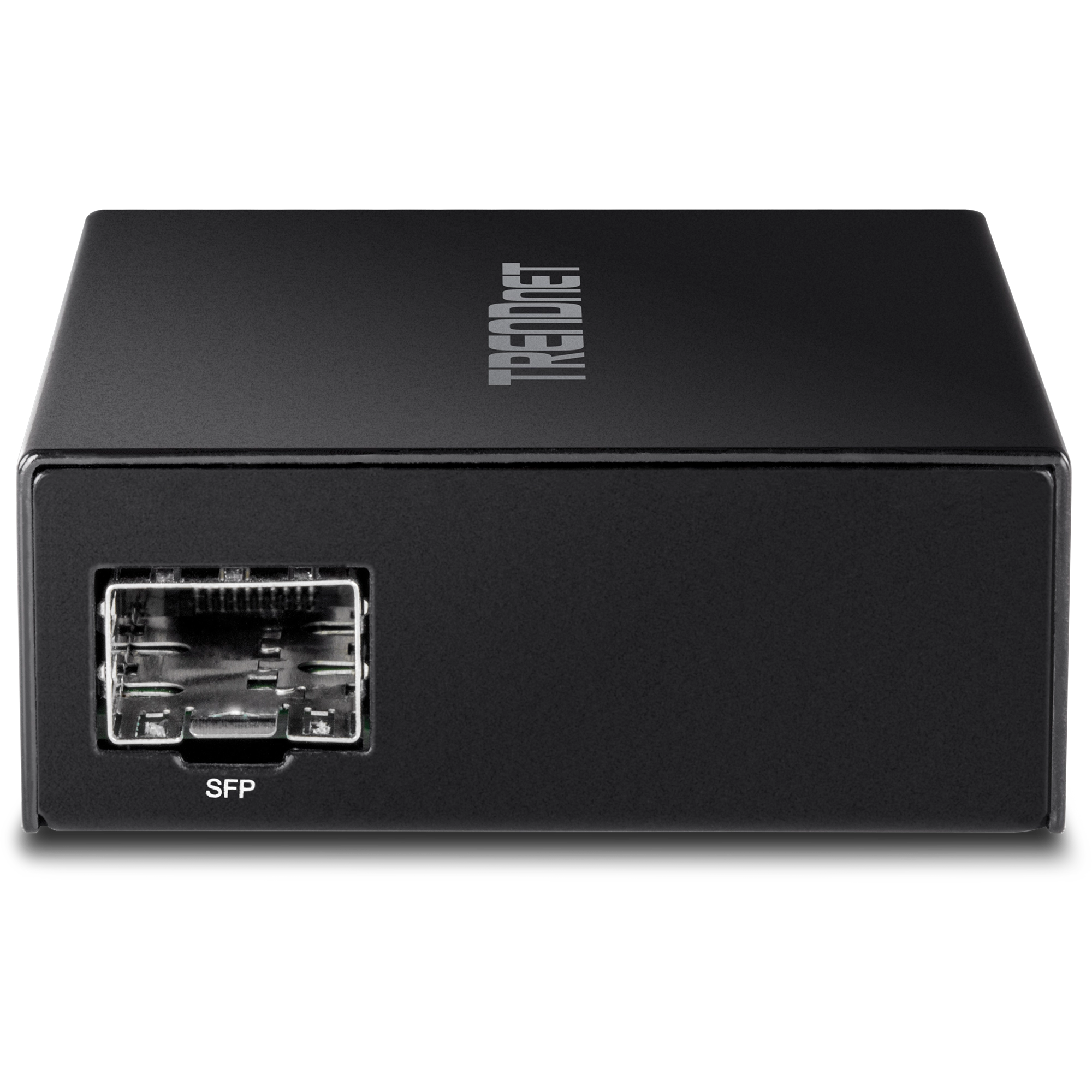

Dual-Speed SFP Slot

Dual-speed SFP slot supports both 100 Mbps and 1000 Mbps SFP modules.

A line drawing showing a media converter connected to a power adapter, which is plugged into an electrical outlet. This illustration highlights that the media converter includes a power adapter for independent use.

Power Adapter

Included power adapter for standalone use.

A hand emphasizing the small size of the Fiber Media Converter.

Compact

Small and compact metal housing design provides greater installation flexibility.

Network Ports

1 x 10/100 Mbps copper RJ-45 port and 1 x 100 Mbps SFP slot

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Compact Design

Small, compact, and lightweight metal housing provides greater installation flexibility

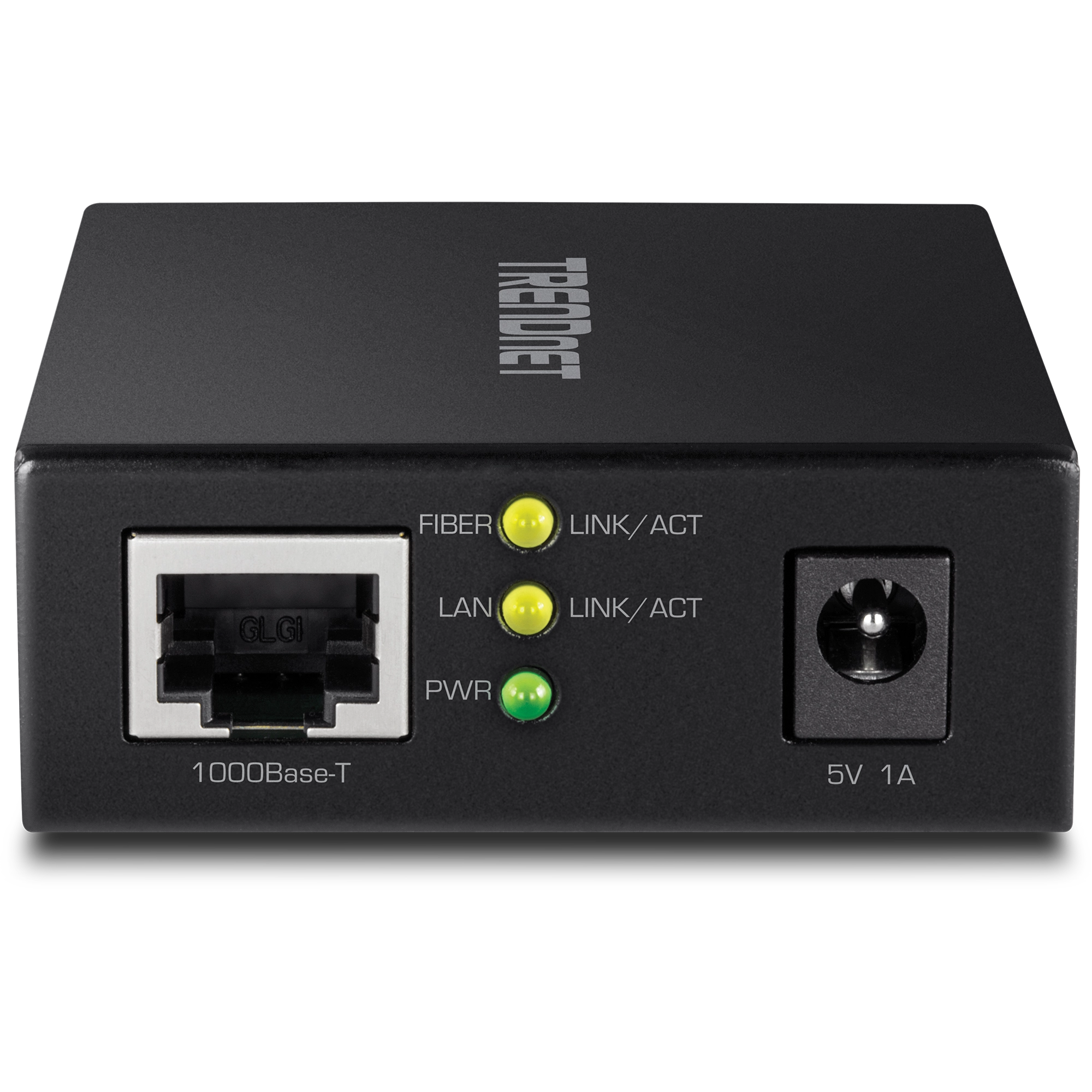

LED Indicators

LED indicators convey port status

Fiber Wavelength

Compatible with multi-mode and single mode transmissions

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3z

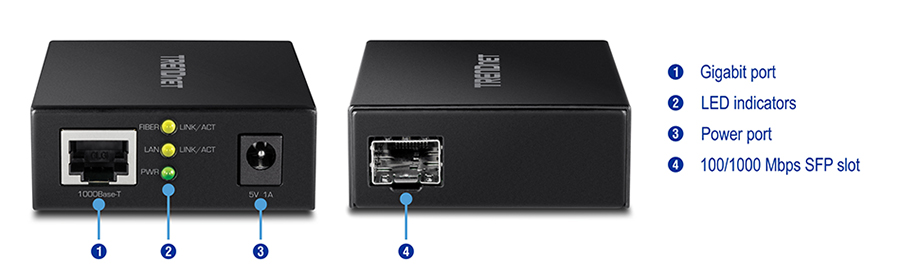

Device Interface
  • 1 x Gigabit port
  • 1 x 100/1000 Mbps SFP slot
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Power
  • Input: 110 – 240 V AC, 50/60 Hz
  • Output: 5V DC, 1A
  • Consumption: 5 Watts (Max.)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 75 x 60 x 12 mm (3 x 2.4 x 0.5 in.)
Weight
  • 156 g (5.5 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3-year warranty
PACKAGE CONTENTS
  • TFC-GSFP
  • Quick Installation Guide
  • Power Adapter (5V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

Not Available in Europe
