8-Port Industrial Gigabit PoE+ DIN-Rail Mini Switch

TI-PGLC80 (Version V2)

  • 8 x Gigabit PoE+ ports
  • 240W PoE+ power budget
  • Hardened IP50 rated metal mini switch
  • Redundant power inputs with overload current protection
  • Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
  • 16Gbps switching capacity
  • Includes DIN-Rail mount and wall mount brackets
  • Power supply sold separately (model: TI-S25052, TI-S24048, TI-S48048)
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Coming Soon

TRENDnet’s 8-Port Industrial Gigabit PoE+ DIN-Rail Mini Switch, model TI-PGLC80, is a reliable and rugged networking solution designed for use in both extreme and demanding environments. This Industrial Gigabit DIN-Rail Mini Switch features a rugged IP50 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial switch features eight copper gigabit PoE+ ports for high-speed device connections. The mini-sized housing is designed to fit into most compact installation areas.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Gigabit PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

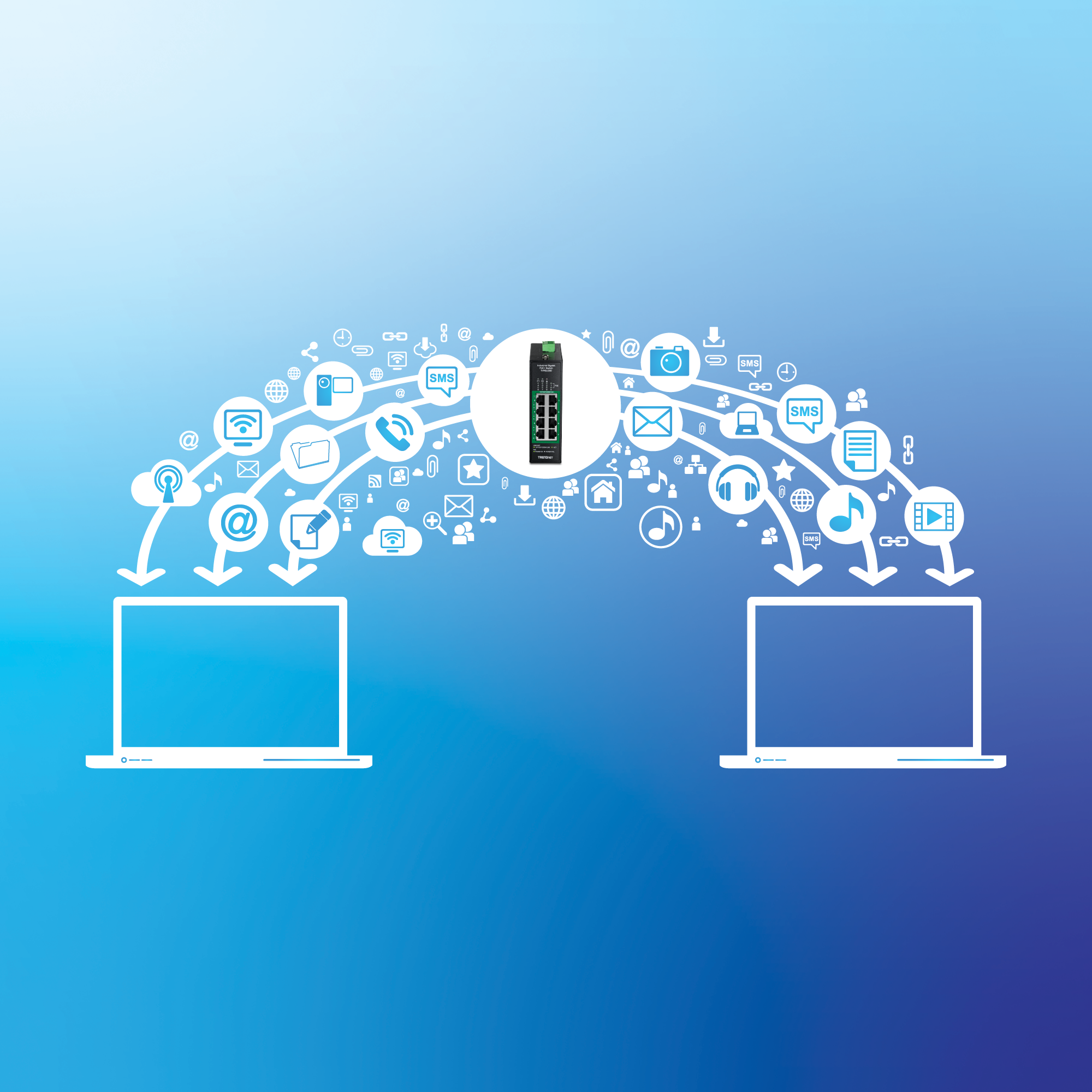

Conceptual illustration of data transfer between two laptops connected to a top-center network switch, with directional arrows showing flow. Various icons for email, cloud storage, music, video, documents, and social media cluster around the switch and along the arrows. Blue gradient background with a clean, modern digital aesthetic.

Gigabit PoE+ Ports

This industrial switch features eight copper gigabit PoE+ ports for high-speed device connections.

Four-quadrant layout showcasing device features with checkmarks in each quadrant. Top-left shows an Ethernet switch flanked by vibration waves indicating vibration resistance. Top-right displays a thermometer icon indicating wide temperature tolerance. Bottom-left features a yellow lightning bolt indicating electrical or surge protection. Bottom-right shows text IP50 indicating limited dust protection and no water protection. Blue background with white panels and clean industrial style.

Industrial Hardened Design

Equipped with a rugged IP50 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° – 75° C (-40° – 167° F).

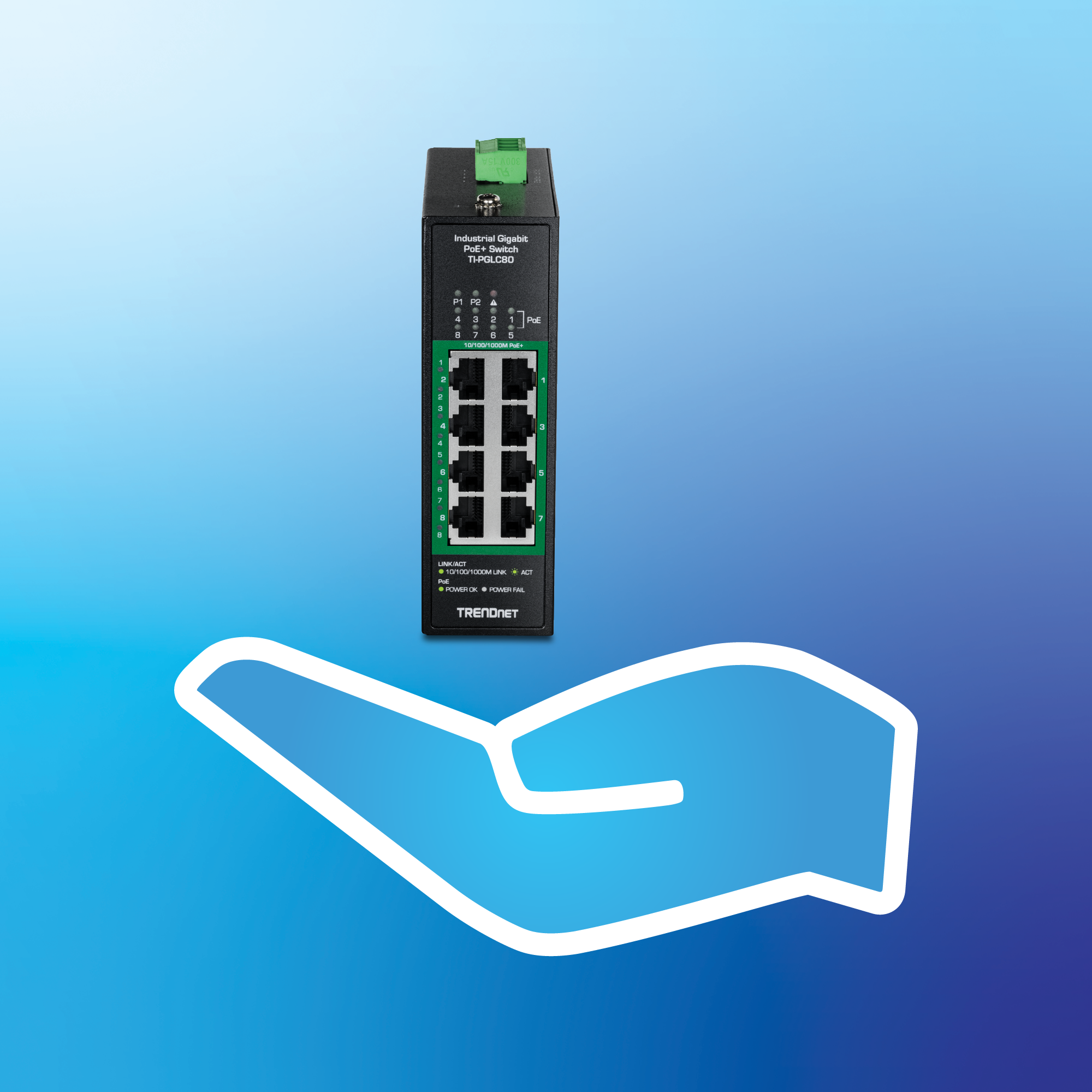

TRENDnet TI-PGLC80 industrial Gigabit PoE+ switch with eight Ethernet ports arranged in two vertical columns, each outlined in green. LED indicators labeled P1, P2, and ports one through eight appear above the ports. Status labels include LINK ACT, 100 1000 Mbps, ACT, and POWER ON POWER FAIL. Device is positioned above a stylized white hand graphic on a blue gradient background suggesting compactness or ease of handling. Clean industrial layout emphasizing port configuration and product labeling.

Compact Design

With a compact metal housing design, this mini network switch is well-suited for installations into most environments.

TRENDnet TI-PGLC80 industrial Gigabit PoE+ switch mounted on a DIN rail with labeled components including grounding point, LED indicators, eight Gigabit PoE+ ports, four-pin removable terminal block, and DIN-rail mount. Lower section shows drive-thru deployment with the switch inside a building powering a PoE camera, PoE+ wireless access point, and PoE+ extender. Inset highlights the switch and power supply installed in a utility box. Blue background with clean technical layout and labeled connections.

Gigabit Ports

This switch is equipped with eight gigabit PoE+ ports

Full PoE Power Budget

Up to 30W of power per port and data over a single Ethernet cable to PoE devices with a maximum 240W PoE budget

DIN-Rail / Wall Mounts

Switch can be mounted with the included DIN-Rail mount and wall mount hardware

IP50 Rated

This industrial switch is IP50 rated for ingress dust protection

Jumbo Frame

Supports larger packets, or Jumbo Frames (up to 9KB), for increased performance

Compact Housing Design

Compact and sturdy metal housing

Operating Temperature Range

An operating temperature range of -40° – 75° C (-40° – 167° F) allows for the installation of the industrial switch in environments with extreme hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (61000-4-5) Surge: Power: 2kV | Signal: 6kV

Grounding Point

The industrial switch features a grounding point for protection against external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 8 x Gigabit PoE+ ports (10/100/1000Mbps)
  • 4-pin removable terminal block
  • LED indicators
Performance
  • Data RAM Buffer: 192KB
  • Switching Fabric: 16Gbps
  • MAC Address Table: 4K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 11.9Mpps (64-byte packet size)
Power
  • Input: 48 – 57V DC
  • Compatible power supply: TI-S25052, TI-S24048, TI-S48048 (sold separately)
  • Max. consumption: 5.1W (without PoE)
PoE
  • 802.3at: Up to 30W per port
  • PoE budget: 240W
  • Mode A: pin 1, 2 for power+ and pin 3, 6 for power-
Terminal Block
  • 4-pin terminal block
  • Wire range: 1.5mm^2
  • Solid wire (AWG): 16
  • Stranded wire (AWG): 16
  • Torque: 3 lb. – In / 0.56Nm
  • Wire strip length: 6-7mm
MTBF
  • 1,923,817 hours @ 25° C
Housing
  • IP50 metal case
  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • 6kV ESD protection
  • 2kV Surge protection
  • 6kV Surge RJ45 protection
Operating Temperature
  • - 40° - 75° C (-40° - 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 127 x 101 x 39mm (5 x 4 x 1.54 in.)
Weight
  • 483g (16.9 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • Shock (IEN 60068-2-27)
  • Freefall (IEN 60068-2-31/2)
  • Vibration (IEN 60068-2-6)
Warranty
  • 2-year

PACKAGE CONTENTS
  • TI-PGLC80
  • Removable terminal block
  • DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
