TRENDnet's Industrial Fast Ethernet DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial Ethernet switches are designed to withstand high levels of vibration and shock, operate in both low and high temperatures for industrial environments within a -40° – 75° C (-40° – 167° F) wide-temperature range. Redundant power inputs with overload current protection on each industrial Ethernet switch minimizes network downtime.
![](/images/products/keypoints/TI-E50/Easy_Installation.png)
Easy Installation
No configuration needed, simply connect network devices to the industrial Ethernet switch.
![](/images/products/keypoints/TI-E50/Redundant_Power.png)
Redundant Power
The industrial Ethernet switches feature dual power inputs to provide redundant power with overload current protection.
![](/images/products/keypoints/TI-E50/Hardened_Design.png)
Industrial Hardened Design
Equipped with a rugged IP30 rated housing, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F).
Standards | - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
|

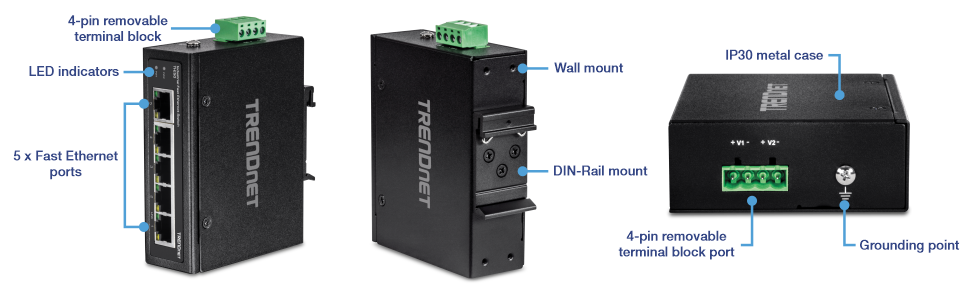

Device Interface | - 5 x Fast Ethernet ports
- 4-pin removable terminal block
- LED indicators
- Wall mount
- DIN-Rail mount
- Grounding point
|
Data Transfer Rate | - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
|
Performance | - Data RAM Buffer: 56KB (change unit of measure)
- Switching Fabric: 1Gbps
- MAC Address Table: 1K entries
- Forwarding rate: 0.744Mpps (64-byte packet size)
|
Special Features | - Hardened components rated for extreme temperatures
- Redundant power inputs
- ESD 8kV support
- Low-profile design
|
DC Power | - Input: 12 – 56V DC
- Recommended power supply: TI-M6024 (sold separately)
- Max. consumption: 2.24W
|
Terminal Block | - Redundant power inputs, 4-pin
- Wire range: 0.34mm^2 to 2.5mm^2
- Solid wire (AWG): 12-24/14-22
- Stranded wire (AWG): 12-24/14-22
- Torque: 5 lb. – in. / 0.5Nm / 0.56Nm
- Wire strip length: 7-8mm
|
MTBF | |
Housing | - IP30 metal case
- DIN-Rail mount
- Wall mount
- Grounding point
|
Operating Temperature | - - 40° – 75° C (-40° – 167° F)
|
Operating Humidity | |
Dimensions | - 104 x 82 x 32mm (4 x 3.2 x 1.25 in.)
|
Weight | |
Certifications | - CE
- FCC
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
|
Warranty | |
PACKAGE CONTENTS |
- TI-E50
- Quick Installation Guide
- Removable terminal block
- DIN-Rail and wall mount kit
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
