TRENDnet’s 8-Port 10G EdgeSmart Switch, model TEG-7080ES, is a cost-effective switch solution for high-speed 10 Gigabit network connections. This EdgeSmart switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, VLAN, QoS, access controls, link aggregation, and monitoring. TRENDnet’s TEG-7080ES allows for simple network integration into your SMB network.
Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and, offers a combination of more commonly used SMB management features for easy deployment.
Managed features include access control lists, VLAN, IGMP Snooping, and QoS for flexible network integration.
Offers eight 10GBASE-T Ethernet ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network.
Provides eight 10GBASE-T ports for high-speed network connections, and 1U rack mountable.
Connect NBASE-T supported devices at 2.5Gbps or 5Gbps for increased throughput over Cat5e or better cabling.
Smart fan saves energy by auto-adjusting the fan speed and use based on cooling needs.
This switch supports IPv6 configuration and IPv6 neighbor discovery.
A broad range of network configurations are supported by: 802.3ad link aggregation, 802.1Q VLAN, bandwidth controls, IGMP, loopback detection, port mirroring and 802.1p (QoS).
Traffic statistics and a convenient cable diagnostic test aid in network troubleshooting.
LED indicators convey port status
8 x 10GBASE-T (10Gbps, 5Gbps, 2.5Gbps, 1Gbps, 100Mbps)
1 x RJ-45 console port
LED on/off button
Data Transfer Rate
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2Gbps (full duplex)
2.5 Gigabit Ethernet: 5Gbps (full duplex)
5 Gigabit Ethernet: 10Gbps (full duplex)
10 Gigabit Ethernet: 20Gbps (full duplex)
Switch fabric: 160Gbps
RAM buffer: 2MB
MAC Address Table: 16K entries
Jumbo Frames: 9KB
Forwarding rate: 119Mpps (64-byte packet size)
CLI (Console) for IP address settings and password configuration only
HTTP / HTTPS (SSL v2/3 TLS 1.2) web based GUI
Enable/disable 802.3az Power Saving
Cable diagnostic test
IPv6: IPv6 Static IP
Static link aggregation and 802.3ad dynamic LACP (Up to 4 groups)
Quality of Service (QoS)
802.1p Class of Service (CoS)
Bandwidth Control per port
Queue Scheduling: Strict Priority (All-High-Before-Low), Weighted Round Robin (WRR)

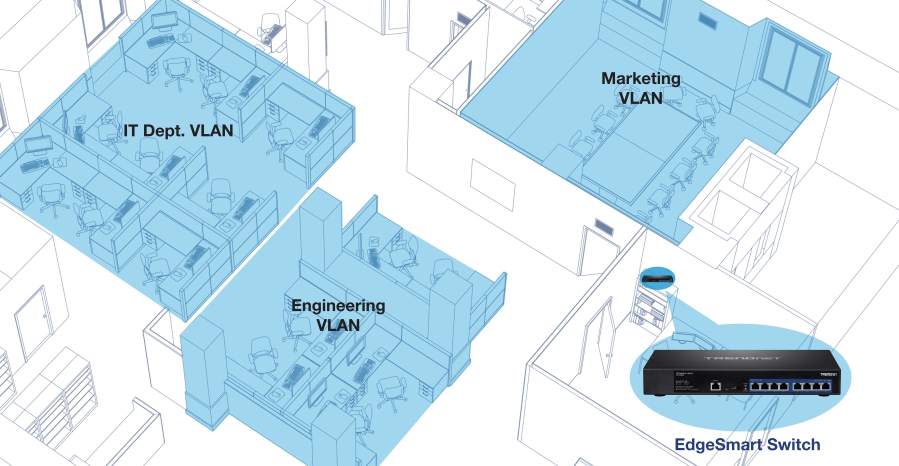

802.1Q Tagged VLAN
Up to 16 VLAN groups, ID Range 1-4094
IGMP Snooping v1, v2
One to one
Many to one
Trusted Host/IP Access List
Input: 100 – 240V AC, 50/60Hz, internal power supply
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
