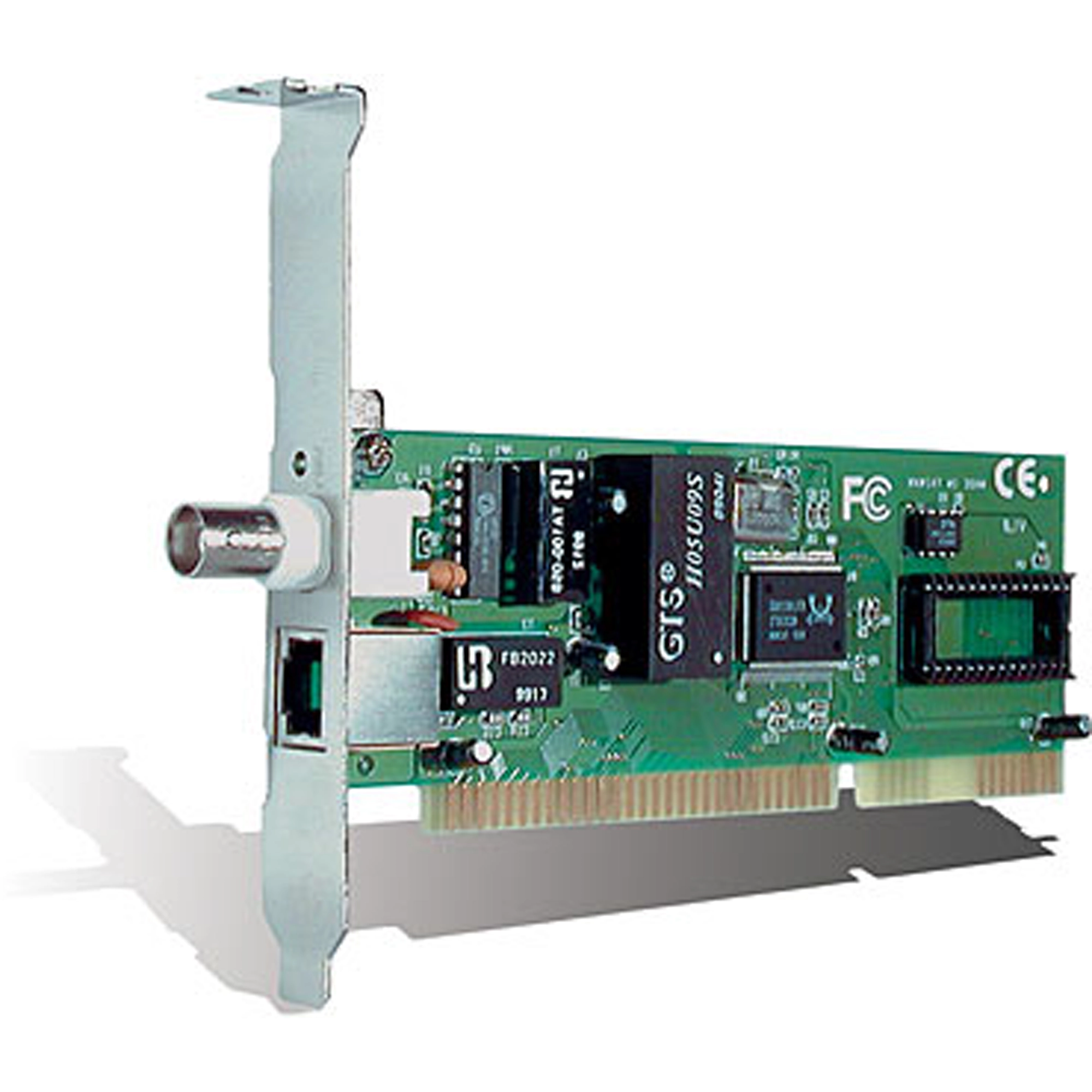

16-bit ISA Plug-and-Play Ethernet Adapter with BNC + RJ-45 Connectors

TE-16PCTplus (Version 1.0)

TRENDnet's ISA Plug-and-Play (PnP) Ethernet adapters built on the technology of TRENDnet's best-selling Ethernet adapter. They incorporate PnP technology to configure installed devices without users' intervention automatically. This revolutionary feature eliminates the guesswork involved in upgrading PCs. The PnP and full-duplex functions increase the channel bandwidth from 10Mbps to 20Mbps and avoid the performance-degrading problem. They provide software configuration of the jumperless Ethernet through a setup program.

  • Comply with IEEE 802.3 10Base-2 and 10Base-T (TE-16PCTplus) and IEEE 802.3 10Base-T (TE-16Ptplus) Ethernet standards
  • Comply with Plug-and-Play (PnP) ISA specification version 1.0a
  • On fully functional PnP systems, simply insert the card for automatic configuration
  • Setup program provided for non-PnP system - no jumpers or switches on board
  • 10Mbps (half-duplex)/20Mbps (full-duplex) data transfer rate
  • Auto detection on 8-bit or 16-bit ISA bus and for media type
  • 10Base-T port supports UTP/STP
  • NE-2000 compatible, support Windows 95/98/ME/2000/XP
  • On-board socket for remote boot ROM
  • Easy-to-view LED indicators
  • 5-year limited warranty
Hardware
Standards:
  • IEEE 802.3
Protocol:
  • CSMA/CD
Wiring Connector:
  • BNC, RJ-45 Bus Interface: 16-Bit ISA
Bus Network Media:
  • UTP CAT 3, 4, 5 (100m), EIA/TIA-568 100-ohm screened twisted pair (STP) (100m), or thin coax
Data Transfer Rate:
  • 10Mbps (Half-duplex), 20Mbps (Full-duplex)
Diagnostic LED:
  • LINK
IRQ Support:
  • 2 (9), 3, 4, 5, 10, 11, 12, 15
I/O Base Address:
  • 200H, 220H, 240H, 260H, 280H, 2A0H, 2C0H, 2E0H, 300H, 320H, 340H, 360H, 380H, 3A0H, 3C0H, 3E0H
Boot ROM Address:
  • C0000H, C4000H, C8000H, CC000H, D0000H, D4000H, D8000H, DC000H
Operating Temperature:
  • 0° to 50° C (32° to 122° F)
Humidity:
  • 10 % to 90 % non-condensing
Certifications:
  • FCC, UL, CE, VCCI Class A

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
