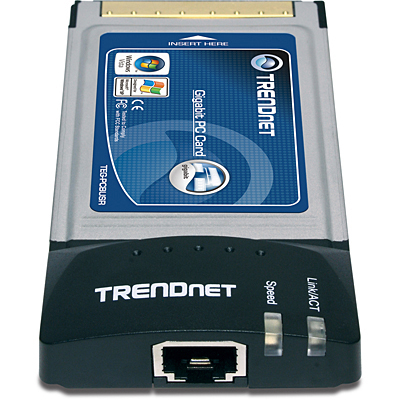

Gigabit PC Card

TEG-PCBUSR (Version A2.xR)

  • Install a Gigabit Ethernet port on your laptop in minutes
  • Save time by sharing files and accessing data quickly
  • Experience 2000Mbps speed in Full-Duplex mode
DISCONTINUED PRODUCT
The TEG-PCBUSR (Version A2.xR) has been discontinued. It has been replaced by the TU3-ETG (Version v2.0R). For a list of discontinued products, click here.

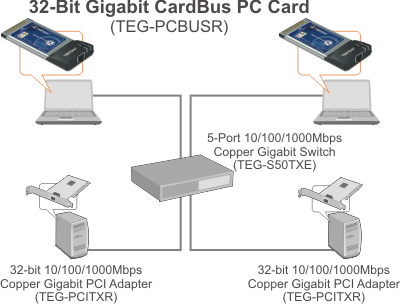

TEG-PCBUSR transforms your laptop PCs into powerful Gigabit workstations. The TEG-PCBUSR features latest 1000Mbps technology and it is fully compatible with existing 10/100Mbps networks. The TEG-PCBUSR dramatically improves network performance up to 2000Mbps with switched full-duplex operations. Mobile users can now incorporate Gigabit Ethernet with the TEG-PCBUSR.

  • PCMCIA CardBus 68-pin Connector Type II Card
  • 32-Bit Bus-Mastering Data Transfer
  • 10/100/1000Mbps Data Rate Auto-Negotiation Operation
  • Built-in Transmit 8K/Receive 64K Bytes RAM Data Buffer
  • Supports Full-Duplex Mode Doubles Network Data Rate to 20/200/2000Mbp
  • Supports Windows 7/Vista/XP/2000/ME/98SE Operating Systems
  • Ultra Low Power Consumption
  • Supports IEEE 802.3x Flow Control
  • Supports IEEE 802.1Q VLAN Tagging (Windows 2000/XP/Vista only)
  • Supports Promiscuous Mode
  • Compatible with Extensive Notebook Models
  • Supports Hot Swap and True Plug-and-Play
  • 3-years limited warranty
Hardware
Standards:
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000Base-T Gigabit
  • ANSI/IEEE 802.3 Auto-Negotiation
  • PCMCIA 2.x
Network Media:
  • Ethernet: UTP/STP Cat. 3, 4, 5
  • Fast Ethernet: UTP/STP Cat. 5, 5E
  • Gigabit: UTP/STP Cat. 5E, 6
Protocol: CSMA/CD
Interface: 32-Bit CardBus Type II
Dimension: 120 x 53 x 3mm (4.7 x 2 x 0.1 inches)
Power Consumption: 3.3V DC
Diagnostic LED: Link/Activity
Speed
Supported Drivers: Windows 7 (32/64-bit)/ Vista (32/64-bit) /XP (32/64-bit) /2000/NT4.0/ME /98
Data Rates:
  • Ethernet: 10Mbps/20Mbps (Half/Full-Duplex)
  • Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
  • Gigabit: 2000Mbps(Full Duplex)
Temperature:
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity:
  • Operating: 10%~90% (Non-Condensing)
  • Storage: 5%~90% (Non-Condensing)
Certification: FCC, CE

PACKAGE CONTENTS
  • TEG-PCBUSR
  • Multi-Language Quick Installation Guide
  • CD-ROM (Drivers & User's Guide)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
