16-Port USB/PS/2 Rack Mount KVM Switch w/ OSD

TK-1604R (Version v1.0R)

  • 16-port stackable (1U height) KVM switch with VGA and USB connection to computers
  • On Screen Display (OSD) interface for easy management
  • Device monitoring with adjustable Auto-Scan, audible feedback and cascade up to 128 computers
  • Supports most operating systems and advance mouse designs
DISCONTINUED PRODUCT
The TK-1604R (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

The 16-Port USB KVM Switch with On Screen Display (TK-1604R) lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB interface on the PC side. Users can switch between PCs using hot-key, push button or On Screen Display for flexible management. Hot-plug PCs quickly to avoid downtime. A maximum of 128 PC connections are supported when you daisy chain multiple TK-1604R(s). The 16-Port USB KVM Switch is the perfect choice for managing multiple PC's.

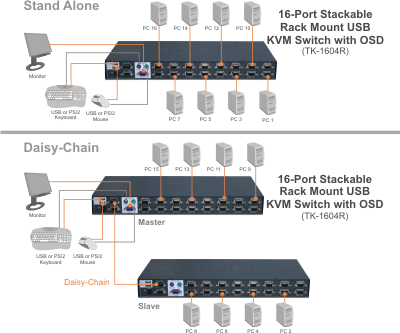

The TRENDnet 16-Port Stackable Rack Mount USB KVM Switch with OSD model TK-1604R is shown in two configurations. In the stand-alone setup, the KVM switch connects to a monitor, a USB or PS/2 keyboard, a USB or PS/2 mouse, and sixteen PCs labeled from PC 1 to PC 16. The daisy-chain setup involves a master KVM switch connected to a monitor, a USB or PS/2 keyboard, a USB or PS/2 mouse, and eight PCs labeled from PC 1 to PC 8. This master switch is linked to a slave KVM switch, which connects to an additional eight PCs labeled from PC 9 to PC 16. The setups demonstrate the switch's capability to manage multiple PCs from a single set of peripherals in both standalone and daisy-chain configurations.
  • 16-port stackable USB KVM switch with On Screen Display (OSD)
  • Console port supports both USB & PS/2 interface
  • Supports Microsoft IntelliMouse, IntelliMouse Explorer, Logitech NetMouse, Optical Mouse, and other MS compatible mice
  • Supports Windows 98SE / ME / 2000 / XP / 2003 Server / Vista, Linux, Mac OS and more
  • High video quality; up to 2048 x 1536 VGA resolution
  • Firmware upgradeable via computer's serial port
  • On Screen Display (OSD) control for easy management
  • Adjustable auto-scan via OSD control for monitoring multiple computers
  • Keyboards status restored when switching between computers
  • LED display for easy status monitoring
  • Password protection with auto timeout logout
  • Auto-detect bank number when daisy-chaining
  • Built-in daisy-chain port for cascading up to 8 levels (128 computers)
  • Beeping sound for port switching confirmation (enable/disable)
  • Plug & play and hot-pluggable
  • Standard 19” (1U) rack mount design
  • 2-year limited warranty
Hardware
Management
  • 16 computers
Standard
  • USB 1.1 compliant
PC Port
  • 16 x VGA HDB 15-pin (female)
Console Port
  • 1 x USB (type A)/ PS/2 mouse 6-pin mini din
  • 1 x USB (type A)/ PS/2 keyboard 6-pin mini din
  • 1 x VGA HDB 15-pin (female)
Supported OS
  • Windows 95/98(SE)/ME/ 2000/NT/XP/2003 Server/Vista Linux, Mac and more
PC Selection
  • Hot-key, push buttons or On Screen Display Control (OSD)
Daisy Chain
  • 8 levels (up to 128 computers)
Auto-Scan Interval
  • 10-100 seconds (programmable through OSD menu)
LEDs
  • On-line (red), select (green)
Keyboard Status
  • Saved & restored
Power Adapter
  • 9V DC 1A external power adapter
Dimensions
  • 407 x 164 x 45mm (16 x 6.5x 1.8in)
Weight
  • 2.06kg (4.54lb.)
Temperature
  • Operating: 0°C~40°C (32°F~104°F)
  • Storage: -20°C~60°C (-4°F~140°F)
Humidity
  • 0%~80% (non-condensing)
Certification
  • CE, FCC

PACKAGE CONTENTS
  • TK-1604R
  • Multi-language quick installation guide
  • 1 x daisy-chain cable
  • 1 x daisy-chain terminator
  • 1 x firmware upgrade cable
  • Power Adapter (9V DC, 1A)
  • Rack Mount Kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
