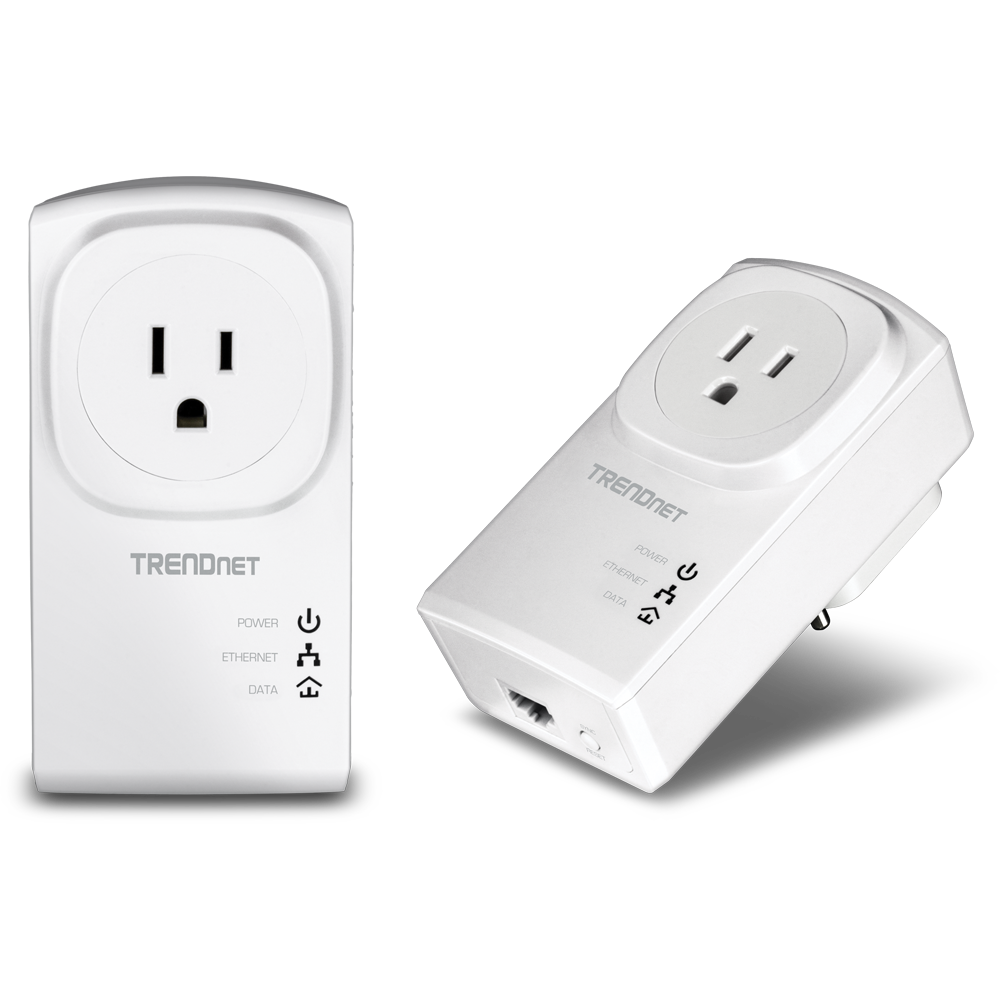

Powerline 500 AV Adapter Kit with Built-In Outlet

TPL-407E2K (Version v2.0R)

  • Includes two TPL-407E adapters
  • Powerline 500 networking
  • Never lose an electrical outlet with the built-in socket
  • Connects over electrical lines
  • Two adapters are needed to start a network.
  • Compact form factor saves space
  • Easy Installation
  • NDAA compliant
NDAA Compliant

The Powerline 500 AV Adapter Kit with Built-In Outlet, model TPL-407E2K, uses existing electrical lines to create a high-speed network. Two adapters are needed to start a network. Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high-speed network access. The compact form factor saves space and offers an additional electrical outlet.

Line drawing of a Powerline adapter plug aiming towards an electrical outlet.

Plug In Install

Simply plug in TRENDnet adapters! The encrypted Powerline signal auto-connects over an existing electrical system.

An illustration of a Powerline adapter with a built-in outlet, plugged into a wall outlet. A lamp is connected to the adapter. A speech bubble emphasizes the connection.

Built-In Outlet

With so many devices needing power, you don't lose an outlet when plugged in. Plug the adapter into an outlet, then plug a power strip into the adapter.

Network diagram of two Powerline adapters with a dashed line showing connectivity.

Network Stability

Ultra-stable Powerline networking is preferred by internet service providers.

The image shows a diagram of the Powerline 500 AV Adapter Kit with Built-In Outlet (model TPL-407E2K) by TRENDnet, illustrating how to extend an internet connection through a building's electrical wiring. On one side, devices like a 4K HD streamer, PC, and gaming console are connected to a Powerline adapter via a Gigabit connection. This adapter plugs into an electrical outlet. On the other side, another Powerline adapter is plugged into an outlet and linked to a router connected to the internet. The adapters transmit data via the electrical wiring, creating a wired network in areas with weak Wi-Fi.
Ease of Use

Adapters

Includes two TPL-407E adapters

Powerline 500

Powerline networking over existing electrical lines**

Built-In Outlet

Never lose an electrical outlet with the built-in socket-Plug the adapter into an outlet, then plug in other devices

Noise Filter

Advanced electrical noise filter boosts performance

Multiple Adapters

Two adapters are needs to start a network-use up to 8 adapters

Easy Installation

Simply plug in the adapters

Cross Compatible

Backward compatible with all Powerline 600, 500, and 200 adapters

Sync Button

Press the Sync button to change existing encryption keys

Energy Savings

Power Save mode reduces electrical consumption by up to 80%

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 1901
Device Interfaces
  • Ethernet port
  • Sync / reset button
  • Status LEDs
  • Power plug
  • A: North America Type B (NEMA 5–15)
  • EU: Euro Type C (CEE 7/16)
  • UK: United Kingdom Type G (BS 1363)
Frequency Band
  • 2 – 68 MHz
Data PHY Rate
  • 500 Mbps
Networking Distance
  • Up to 300 m (980 ft.) linear distance over electrical power lines
Encryption
  • 128-Bit AES (Advanced Encryption Standard)
Optional Utility: OS Compatibility
  • Windows® 10, 8.1, 8, 7, Vista, XP
Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Outlet Current
  • 110V AC, 20A (max.)
  • 220V AC, 16A (max.)
Power
  • Input: 100 – 240 V AC, 50/60 Hz
  • Consumption: Active mode: 2.7 Watts (max.); Standby mode: 0.34 Watts (max.)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90 % non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 112 x 68 x 40 mm (4.4 x 2.7 x 1.1 in.)
Weight
  • A: 104 g (3.7 oz.)
  • EU: 190 g (6.7 oz.)
  • UK: 190 g (6.7 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • 2 x TPL-407E
  • Quick Installation Guide
  • 2 x Network cable (1.5 m / 5 ft.)

* Maximum of 8 adapters (nodes) recommended for streaming video across your network.

** 500 Mbps is the maximum theoretical Powerline data rate. Actual throughput will vary depending on environment. Networked Powerline devices need to be plugged into power outlets that are on the same electrical system. GFCI outlets and AFCI circuit breakers may degrade Powerline network signals.

Do not use this unit with a power strip that is powering other devices. Max voltage cannot exceed 120V AC, 10A.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
