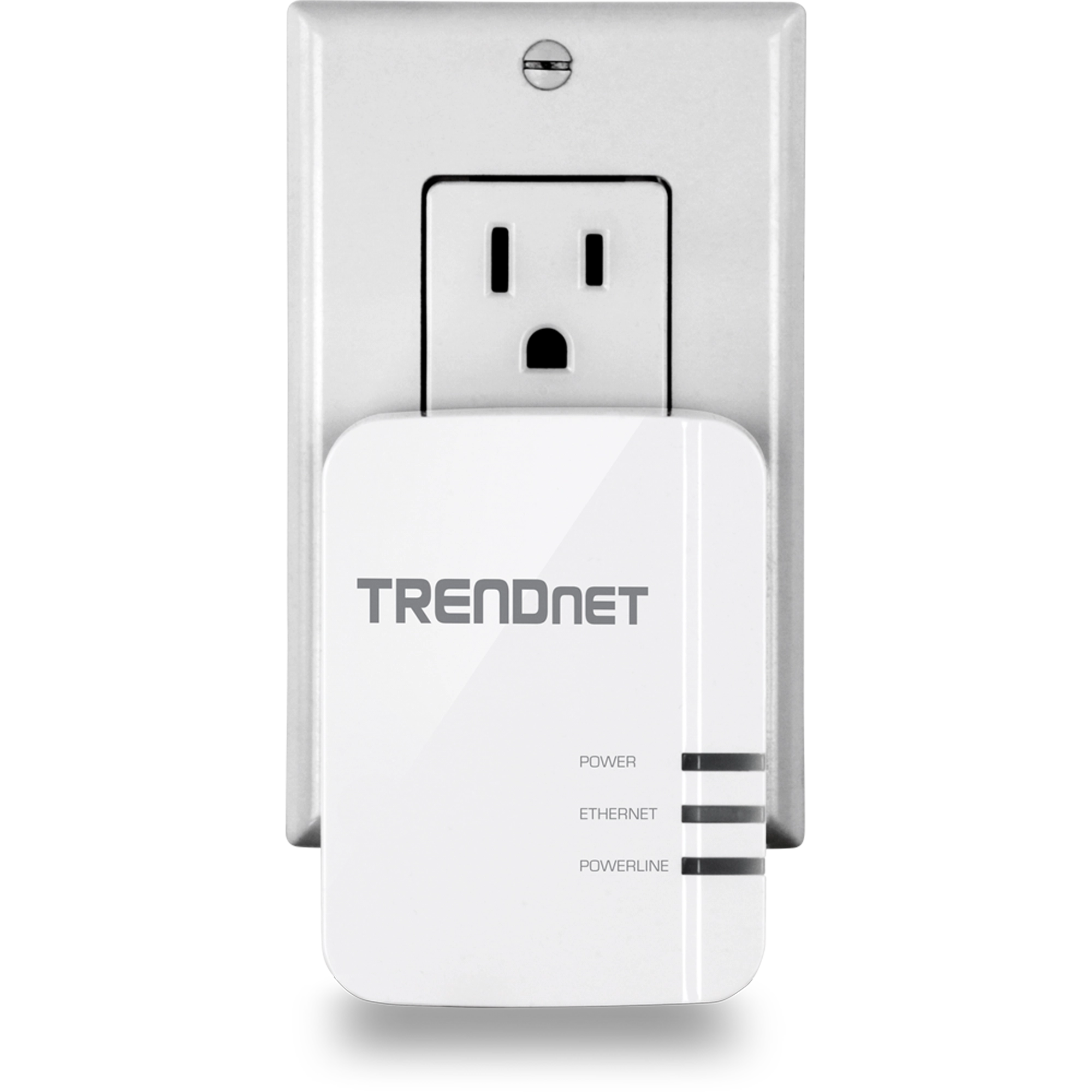

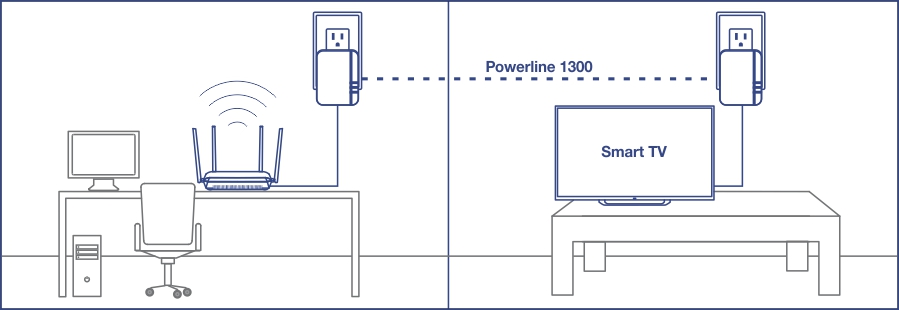

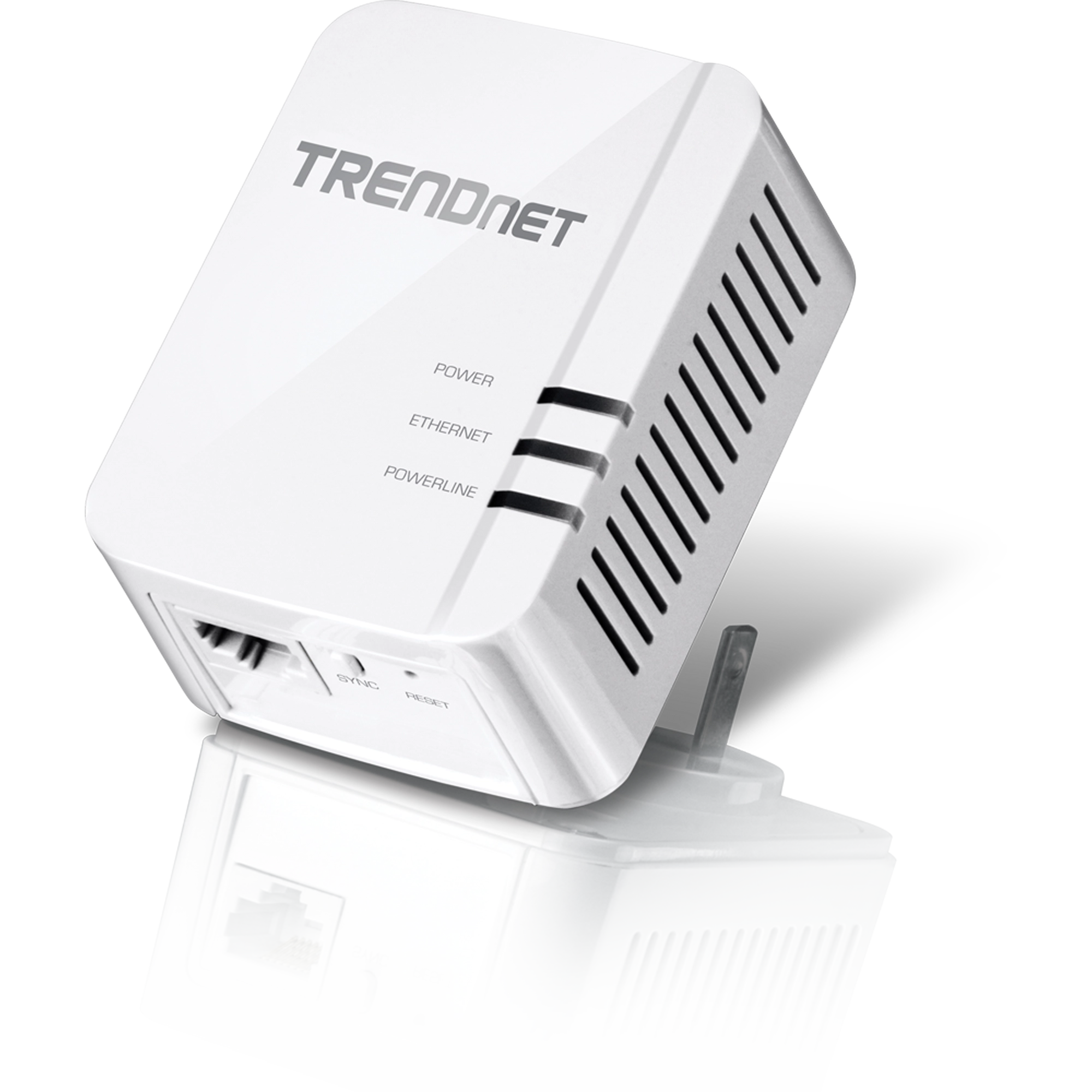

TRENDnet's Powerline 1300 AV2 Adapter, model TPL-422E, creates a high-speed Powerline 1300 network using your home's existing electrical system. Two adapters are needed to start a network. TRENDnet adapters are protected with 128-bit AES Encryption. Plug in the first adapter and network it to your existing router. Plug in other adapters on the same electrical system and they auto-connect to the first adapter for instant internet access.
Simple Plug-in Installation
No configuration needed – simply plug in TRENDnet Powerline adapters and they will auto-connect out of the box.
High-Speed Powerline 1300
Powerline 1300 technology and a gigabit port deliver fast and stable networking to seamlessly connect devices and stream 4K video.
Multiple Input Multiple Output (MIMO) Powerline with Beamforming technology uses live, neutral, and ground wires to increase performance between adapters.
Press the Sync button to change existing Powerline encryption keys
Powerline 1300 technology delivers fast and stable networking to seamlessly connect devices and stream 4K video.
Gigabit port for computers, smart TVs, or other network enabled devices
Cross compatible with Powerline 1200, 600, 500, and 200 adapters
MIMO with Beamforming Technology
Multiple Input Multiple Output (MIMO) with Beamforming technology uses live, neutral, and ground wires to increase performance between adapters.
Use up to 8 adapters on a single Powerline network
TRENDnet adapters auto-connect out of the box
128-bit AES Encryption
Powerline communication is protected with 128-bit AES encryption
Powerline: Up to 300m (980ft.) linear distance over electrical power lines***
128-Bit AES (Advanced Encryption Standard)
Up to 8 (max.)
Overlapping Powerline Networks
Up to 4 (per electrical system)
Auto-connects to other TRENDnet Powerline adapters
IGMP / MLDv2 Streams
Optional Utility: OS Compatibility
Windows® 10, 8.1, 8, 7, Vista, XP
Input: 100 - 240V AC, 50-60Hz
Consumption: Active mode: 4W (max.); Standby mode: 0.5W (max.)
0 – 50°C (32 – 122°F)
Max. 90 % non-condensing
58 x 77 x 65 mm (2.3 x 3.0 x 2.6 in.)
108g (3.8 oz.)
Quick Installation Guide
CD-ROM (Utility & User's Guide)
Network cable (1.5 m/5 ft.)
* Maximum of 8 adapters (nodes) recommended for streaming video across your network. ** 1.3 Gbps is the maximum theoretical Powerline data rate when connected to another Powerline 1300 device. Data throughput may vary by circuit wire conditions. If an electrical system does not have a grounded connection, the theoretical networking speed is reduced to 650 Mbps. *** Powerline communication works on a single electrical system. (Usually controlled by a single distribution panel). Power strip, GFCI outlets, and AFCI circuit breakers may degrade Powerline network signals.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
