Industrial Gigabit PoE++ Splitter

TI-SG104 (Version v2.0R)

Power a non-PoE device up to 100m (328 ft.) away from PSE
Splits a gigabit 90W PoE++ signal into separate power and data sources
A single PoE++ source can power up to two devices
Adjustable voltage output supports 12V, 16V, 24V or 48V devices
Extreme operating temperature range -40 to 75 °C (-40 to 167 °F)
IEEE 802.3bt compliant
For best performance pair with TRENDnet PoE++ switches or injectors
NDAA / TAA compliant (U.S. and Canada only)

Coming Soon

TRENDnet’s Industrial Gigabit PoE++ Splitter, model TI-SG104, networks a non-PoE device by using a Gigabit PoE++ connection and splitting it into separate power and gigabit data sources. The industrial gigabit PoE++ splitter can power to up to two devices from a single PoE source. A convenient DIP switch on the PoE++ splitter adjusts output power to 12V, 16V, 24V, or 48V to match varying power requirements for non-PoE devices. The PoE++ splitter’s dual DC power output provides greater device compatibility.

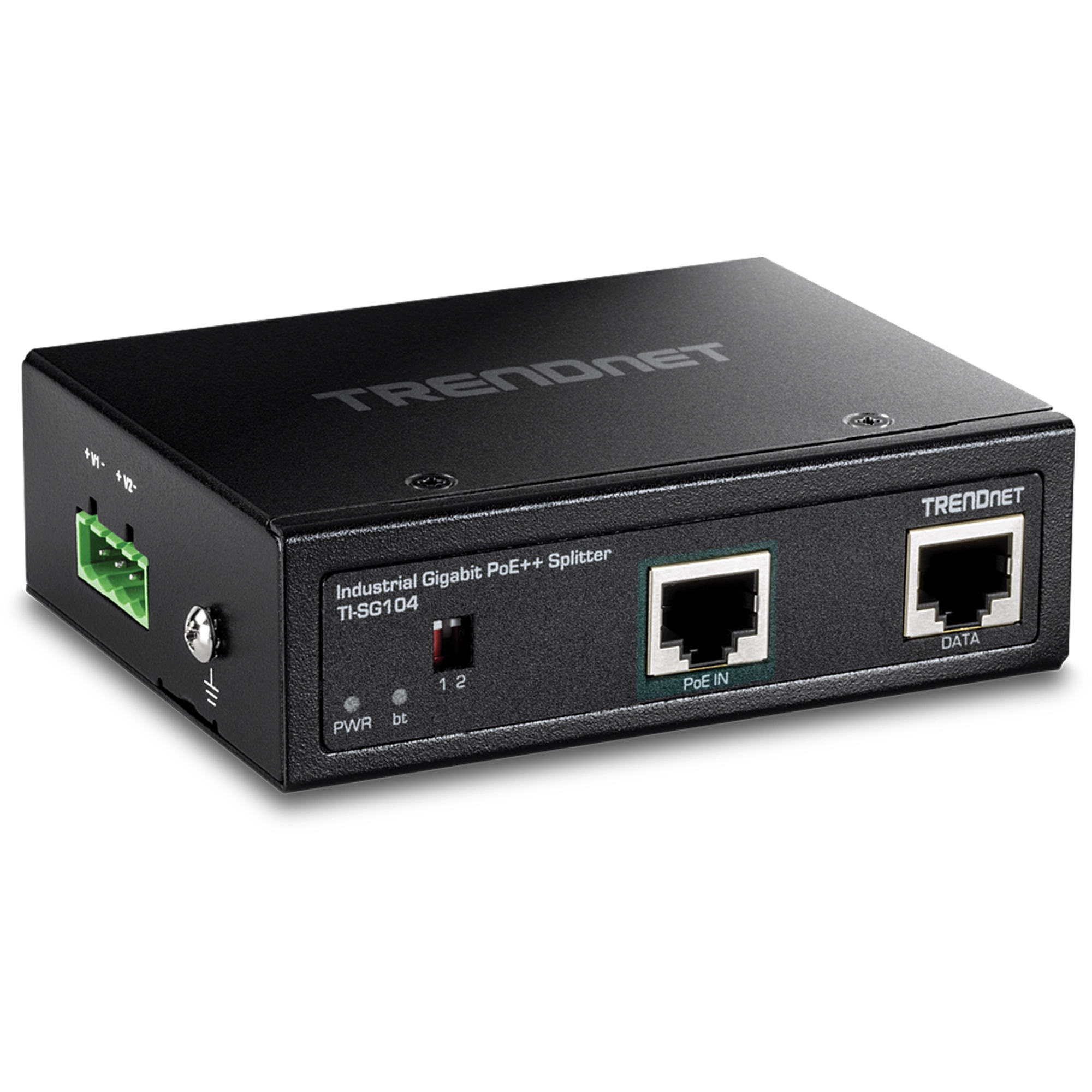

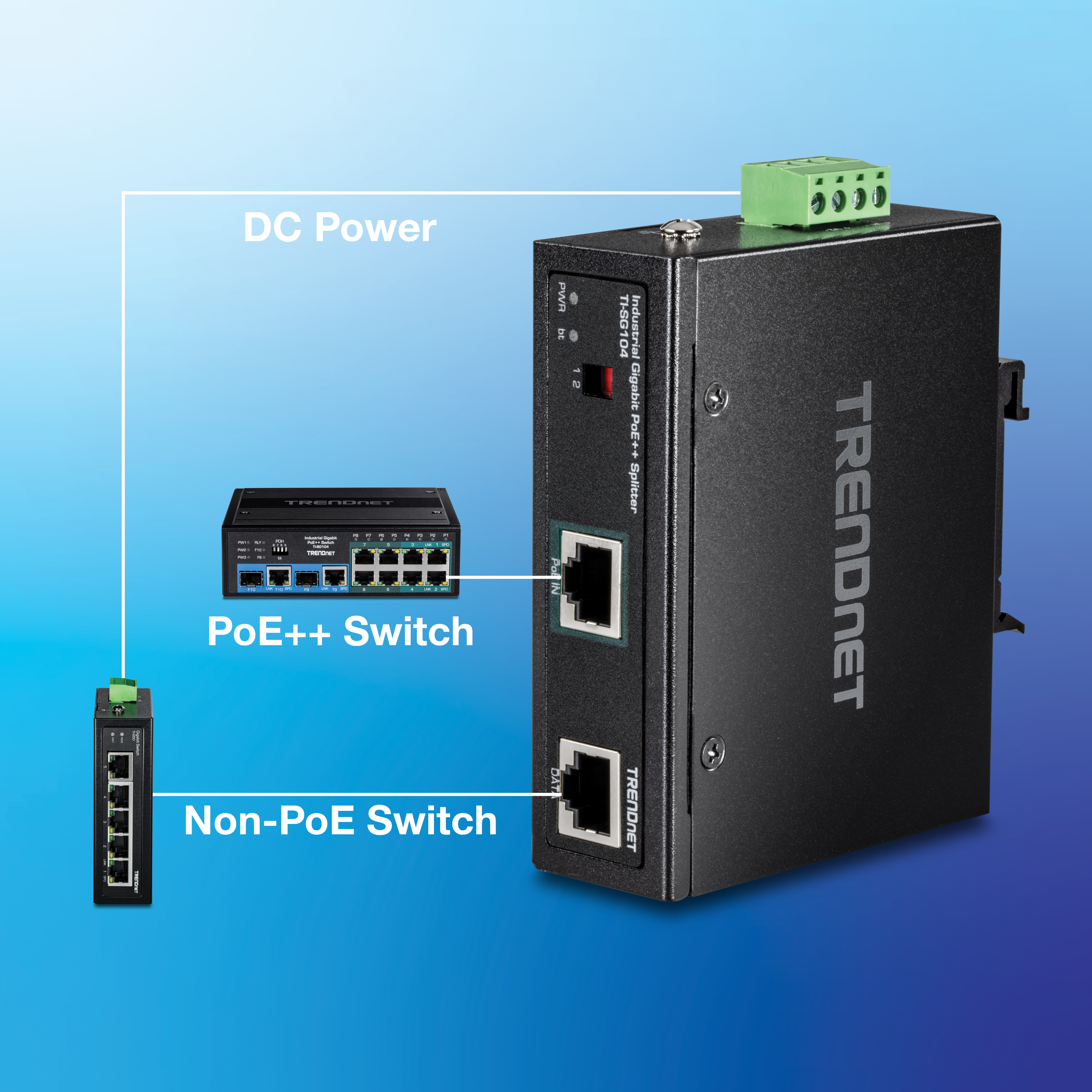

PoE++ Powered

No power adapter necessary; the PoE++ splitter takes a PoE++ network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328ft.) away.

Adjustable Voltage Output

Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A), or 48V (1.5A) to accommodate varying non-PoE device power requirements.

Flexible Mounting Options

The PoE++ splitter’s wall and DIN-Rail mounting options provide better setup flexibility and accommodate most installation scenarios.

Gigabit Ethernet

1 x Gigabit PoE++ in port, 1 x Gigabit out port

PoE++ Powered

No power adapter necessary; the PoE++ splitter takes a PoE++ network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328ft.) away

Adjustable Voltage Output

Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A), or 48V (1.5A) to match non-PoE device power requirements

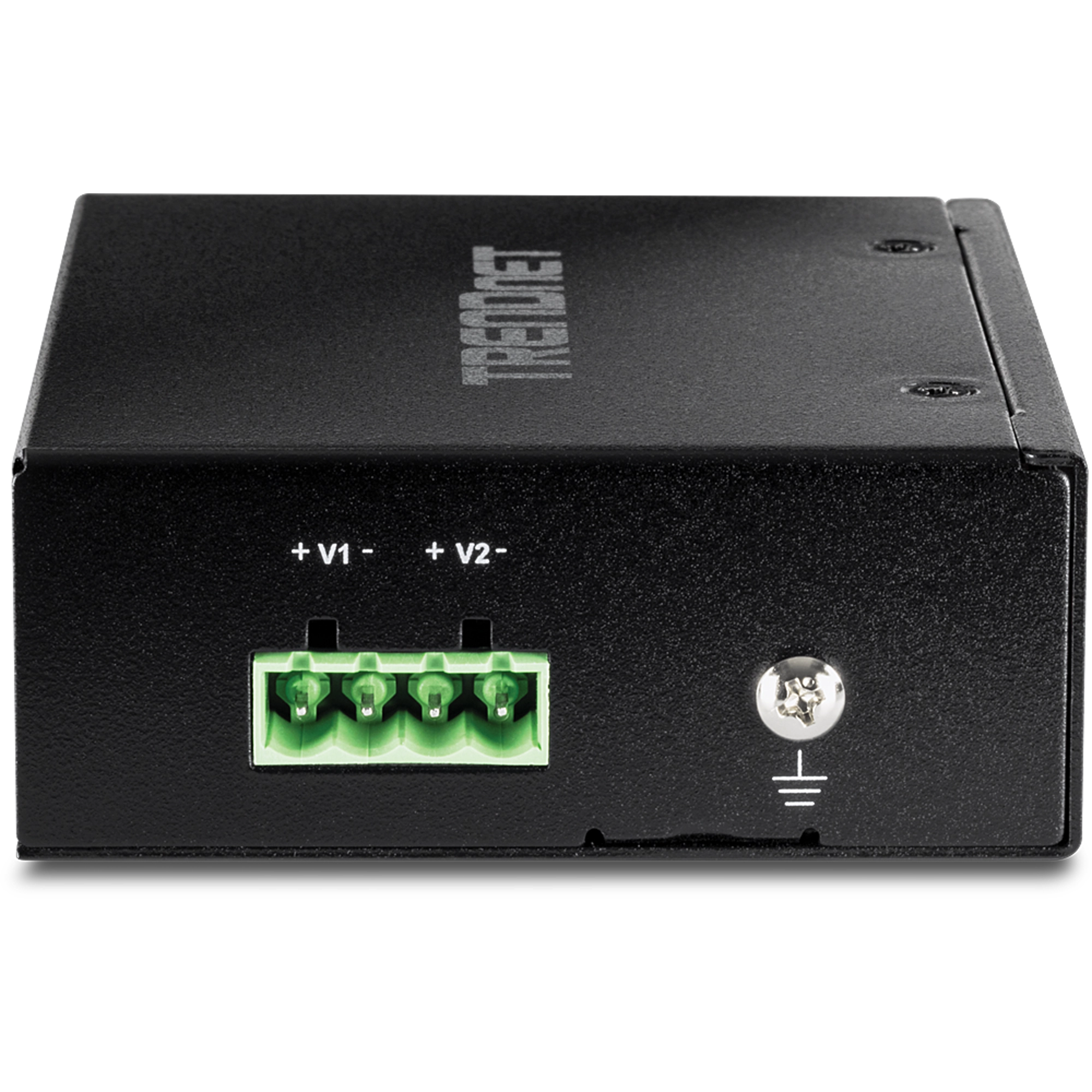

Dual DC Power Output Terminal Block

The PoE++ splitter includes a dual DC power output terminal block, powering up to two devices

Extreme Temperatures

An operating temperature range of - 40° – 75° C (-40° – 167° F) allows for installations in industrial environments with extreme hot or cold conditions.

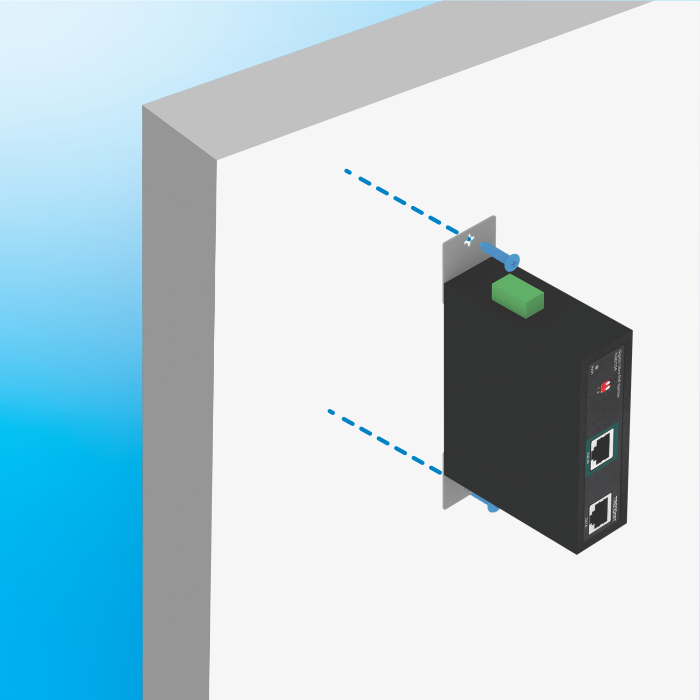

Wall Mountable

Wall mountable design accommodates most installation scenarios

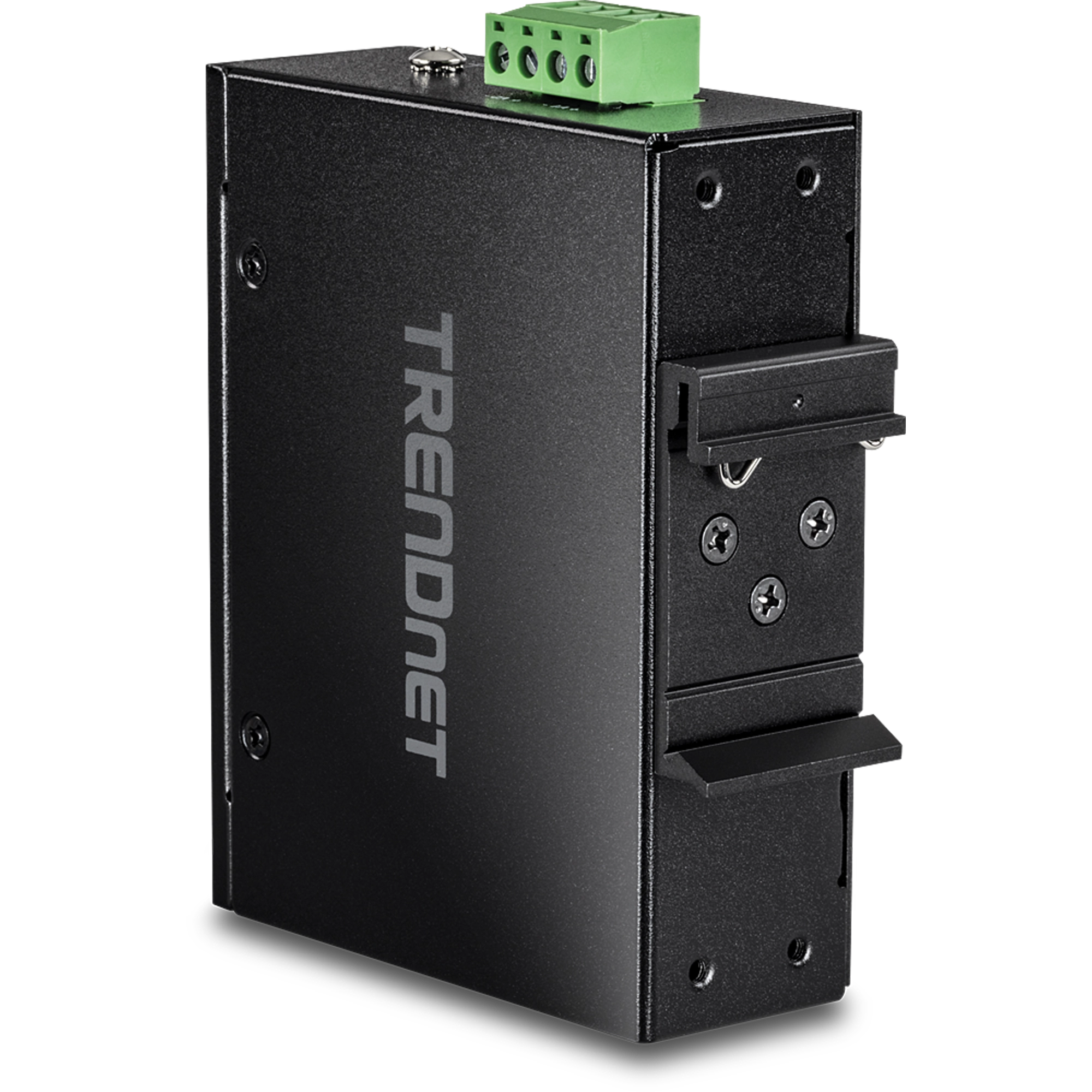

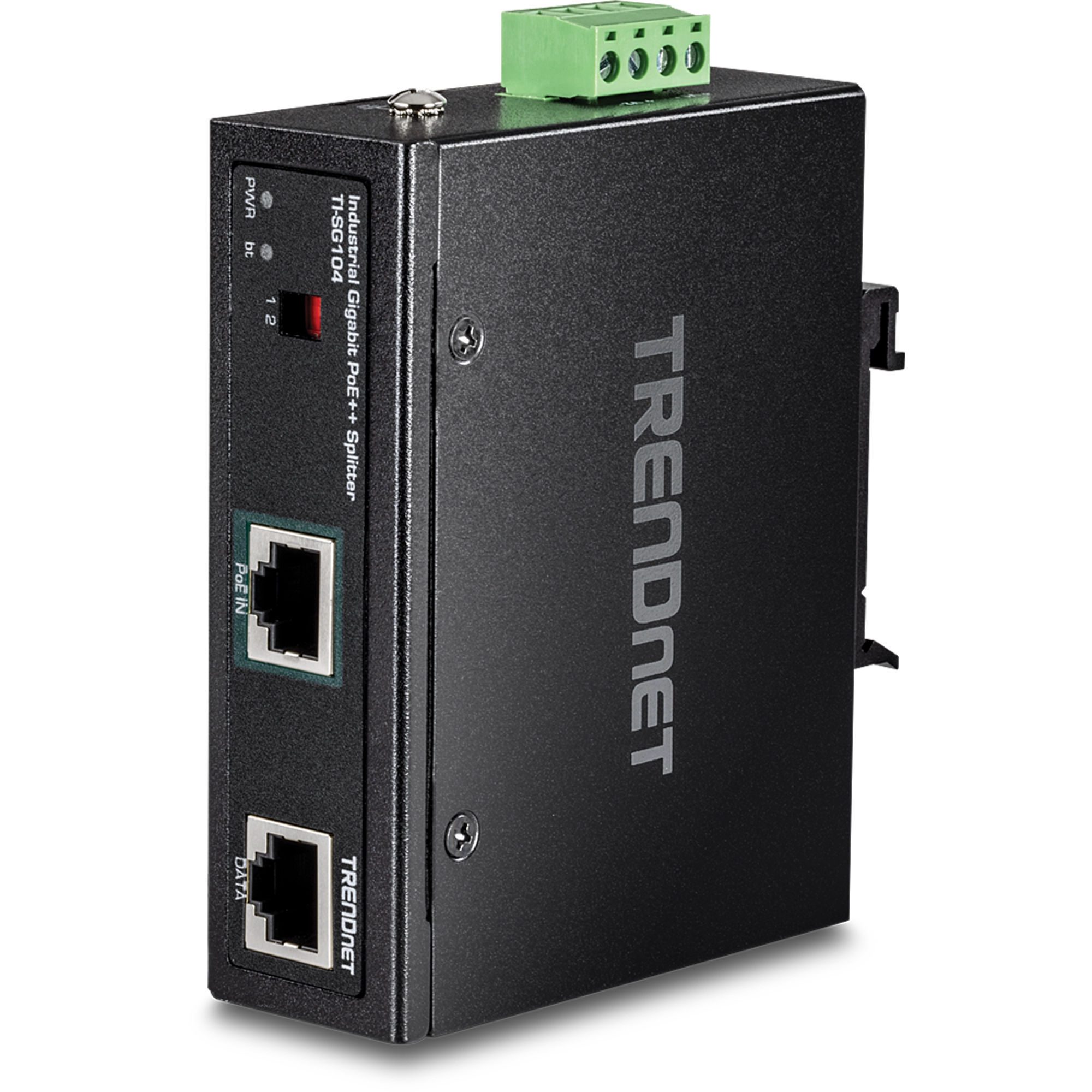

DIN-Rail Mountable

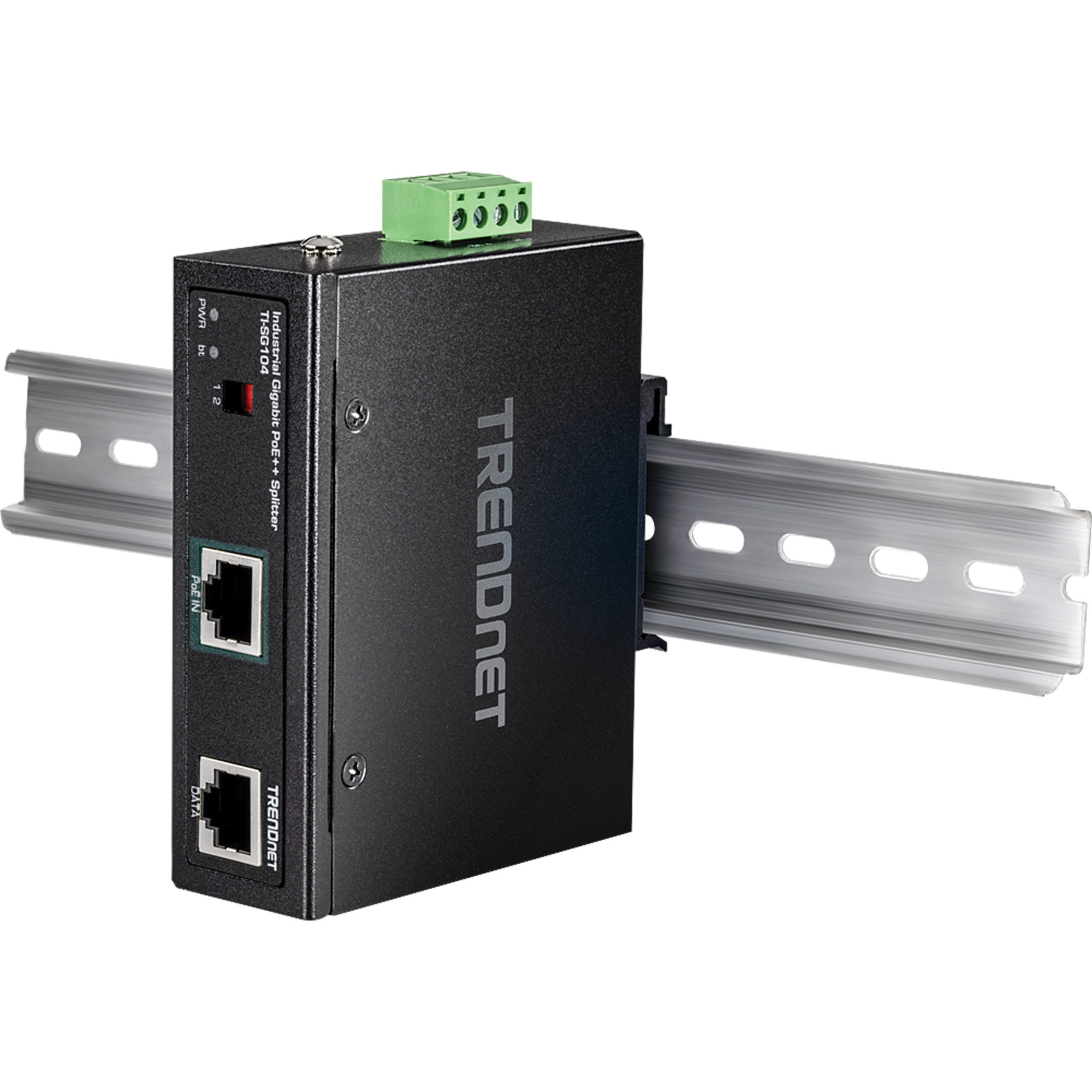

DIN-Rail mountable design of the industrial PoE++ splitter fits a standard TS35 DIN-Rail

Standards

IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt

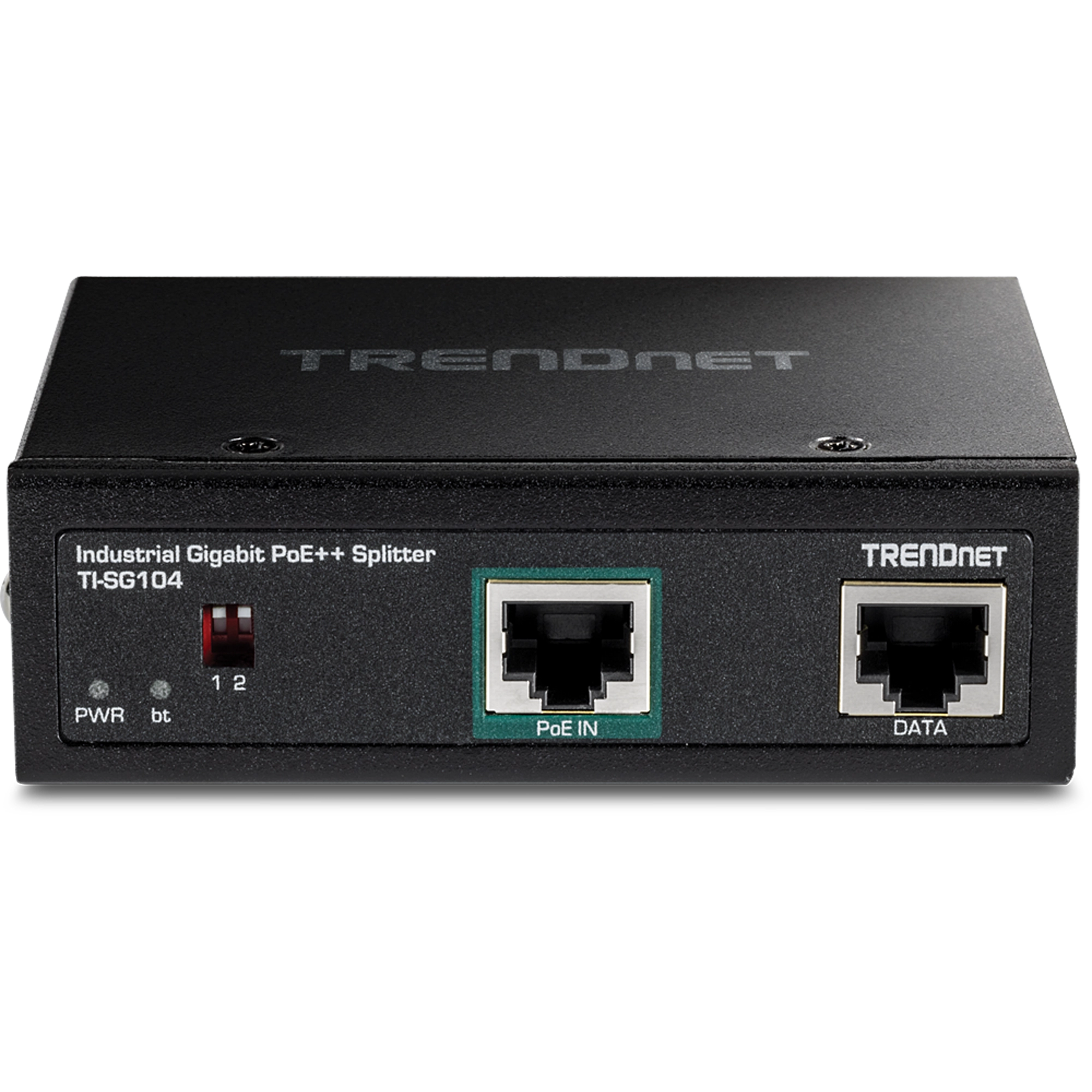

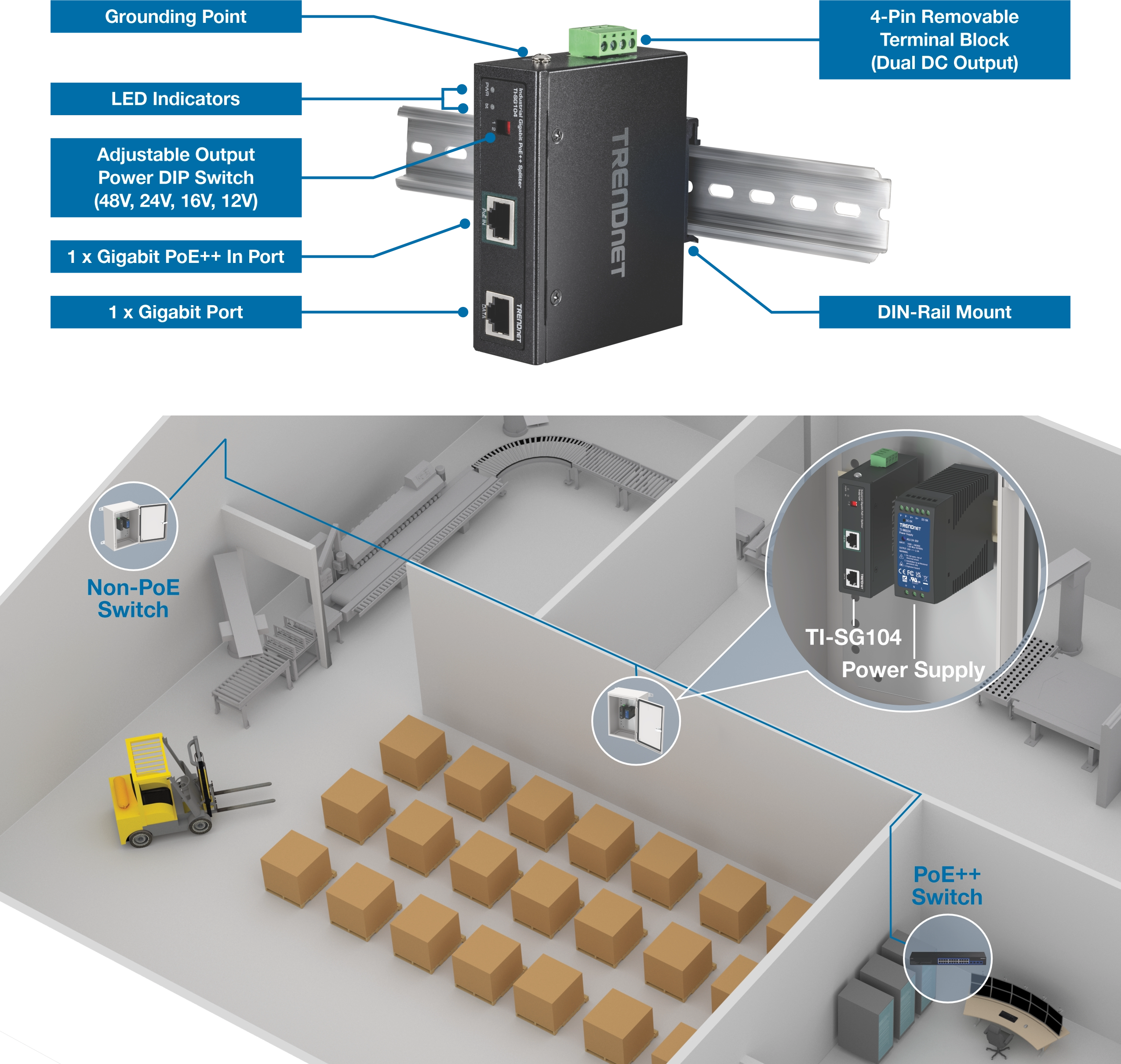

Device Interface

1 x Gigabit port
1 x Gigabit PoE++ in port
4-pin removable terminal block (dual DC output)
Adjustable output power DIP switch (48V, 24V, 16V, 12V)
LED indicator
DIN-Rail mount
Wall mount
Grounding point

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)

Special Features

Hardened components rated for extreme temperatures
Dual DC power output
Auto-Negotiation
ESD 6kV and Surge 2kV protection

Power

Input: 15.4W/30W/60W/95W PoE power
Max. Consumption: 7W (splitter only)
Max. Combined DC Output: 48V (1.25A), 24V (2.3A), 16V (2.3A), 12V (2.3A)

PoE Input	Max. DC Output (split between two devices)
90W	48V(1.5A) DC Output: 72W 24V(2.3A) DC Output: 55W 16V(2.18A) DC Output: 35W 12V(2.25A) DC Output: 27W
60W	48V(1.16A) DC Output: 56W 24V(2.12A) DC Output: 51W 16V(2.18A) DC Output: 35W 12V(2.16A) DC Output: 26W
30W	48V(0.52A) DC Output: 25W 24V(0.95A) DC Output: 23W 16V(1.37A) DC Output: 22W 12V(1.83A) DC Output: 22W
15.4W	48V(0.22A) DC Output: 10.6W 24V(0.44A) DC Output: 10.7W 16V(0.63A) DC Output: 10.2W 12V(0.85A) DC Output: 10.2W

Terminal Block

Dual DC power outputs, 4 pin
Wire range: 0.34mm2 to 2.5mm2
Solid wire (AWG): 12-24
Stranded wire (AWG): 12-24
Torque: 5 lb. – In / 0.5Nm / 0.56Nm
Wire strip length: 7-8mm

DIP Switch

DIP 1	DIP 2	Function
Up	Up	48V DC (default)
Down	Up	24V DC
Up	Down	16V DC
Down	Down	12V DC

MTBF

684,452 hours

Housing

IP30 metal housing
DIN-Rail mount
Wall mount
Grounding point
6kV ESD protection
2kV surge protection

Operating Temperature

- 40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

104 x 82 x 32mm (4.1 x 3.2 x 1.2 in.)

Weight

150g (5.2 oz.)

Certifications

CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)

Warranty

3 year

PACKAGE CONTENTS

TI-SG104
Quick Installation Guide
Removable terminal block
DIN-Rail and wall mount kit
