Gigabit PoE+ Injector

TPE-115GI (Version v2.1R)

Full Duplex Gigabit speeds
Supplies PoE (15.4W) or PoE+ (30W) power
Integrated power supply
Network a PoE device located up to 100 meters (328 ft.) away
Converts a non-PoE Gigabit port to a PoE+ Gigabit port
Save on installation and equipment costs
IEEE 802.3af and IEEE 802.3at compliant
NDAA compliant

DISCONTINUED PRODUCT

The TPE-115GI (Version v2.1R) has been discontinued. It has been replaced by the TPE-115GI (Version v2.3R). For a list of discontinued products, click here.

TRENDnet's Gigabit PoE+ Injector, model TPE-115GI, combines electrical power with a Gigabit network connection to produce a Gigabit PoE+ signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE and PoE+ devices. Connect the injector to a non-PoE Gigabit switch and then run an Ethernet cable with data + power to network a PoE or PoE+ device up to 100 meters (328 ft.) away.

Network Diagram of a PoE+ Injector connected into a Non-PoE Switch and Poe + Wireless Access Point with Up to 30W of power.

PoE

Supplies a PoE device with PoE (15.4W) or PoE+ (30W) power.

An illustration of a Injector with an arrow pointing toward a wall.

Installation Flexibility

Wall-mountable design accommodates most installations scenarios.

Illustration of a network cable labeled Full Duplex Gigabit with icons representing music, video, gaming, data transfer moving through the network.

Gigabit Speeds

Full Duplex 2Gbps Ethernet speeds with this PoE+ injector.

PoE

Supplies a PoE device with PoE (15.4W) or PoE+ (30W) power

Easy Installation

No configuration needed, simply connect a PoE network device

Installation Flexibility

Wall-mountable design accommodates most installations scenarios

Gigabit Ports

1 x Gigabit Ethernet port and 1 x PoE+ Gigabit Ethernet port

PoE Distance

Provides a PoE+ network connection up to 100 meters (328 ft.)

LED Indicators

LED indicators confirm PoE connectivity

Auto-Sensing Technology

Auto-sensing technology delivers up to 30W to an 802.3at PoE+ device with backwards compatibility for 802.3af PoE (15.4W) devices.

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at
Device Interface	1 x Gigabit Data in port 1 x Gigabit Data & Power out port LED indicators
Special Features	Wall-mountable
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
PoE Delivery	Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Power	Input: 100~240V AC, 50/60Hz, 0.6A max.
Power Consumption	Max 1.03W (No PD connected)
Operating Temperature	0 – 40 °C (32 - 104 °F)
Operating Humidity	Max. 90% non-condensing
Dimensions	155 x 57 x 33mm (6.1 x 2.3 x 1.3 in.)
Weight	188g (6.64 oz.)
Certifications	CE FCC
Warranty	3 year

PACKAGE CONTENTS

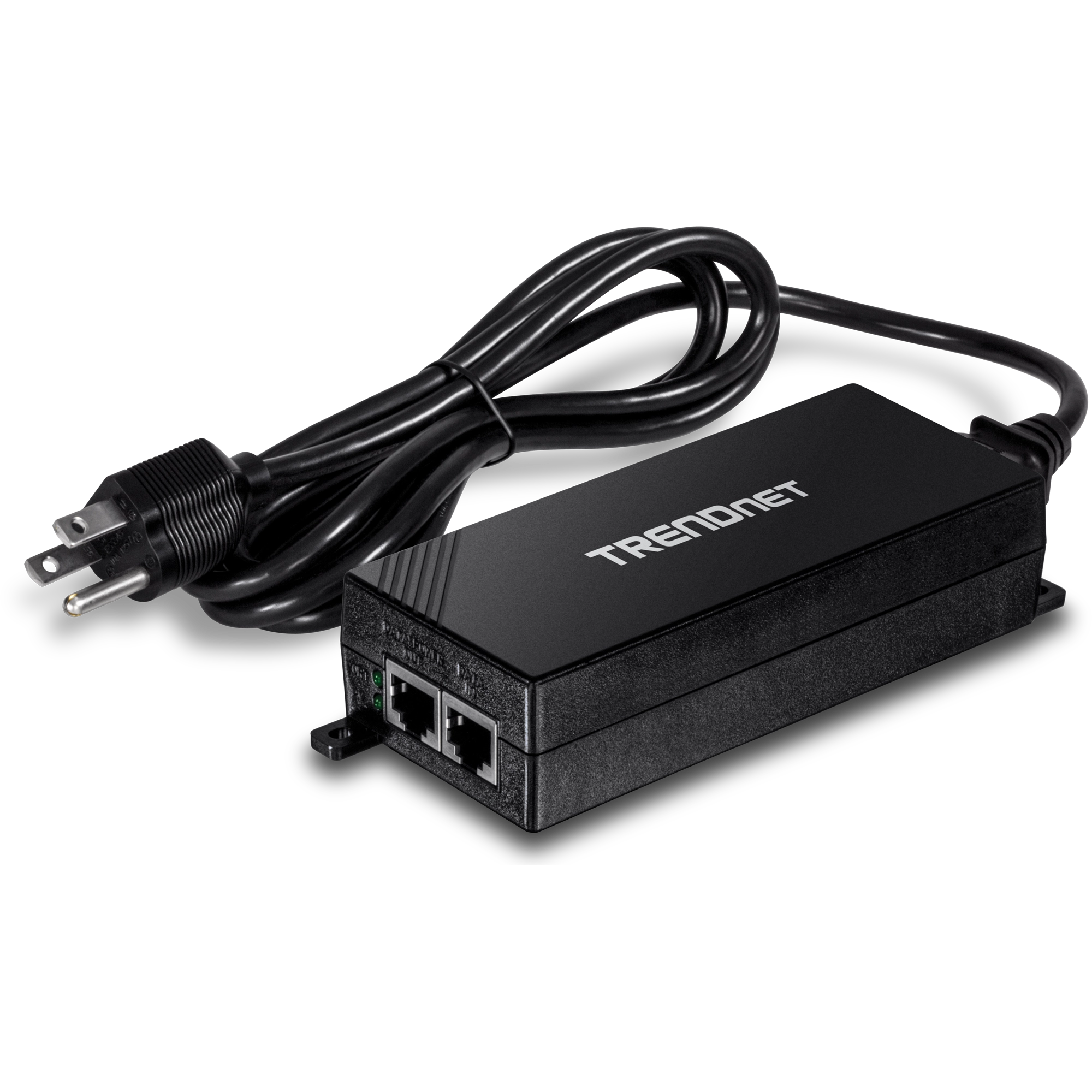

TPE-115GI
Quick Installation Guide
Power cord

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
