Gigabit PoE Splitter

TPE-104GS (Version v1.0R)

Install a non-PoE device in a remote location
Splits a Gigabit PoE signal into separate power and Gigabit data sources
Set the output power to either 5 V, 7.5 V, 9 V, or 12 V
Use this compact device with TRENDnet PoE switches or injectors
Save on installation and equipment costs

DISCONTINUED PRODUCT

The TPE-104GS (Version v1.0R) has been discontinued. It has been replaced by the TPE-104GS (Version V2). For a list of discontinued products, click here.

TRENDnet's Gigabit PoE Splitter, model TPE-104GS, networks a non-PoE device in a remote location using a PoE network connection. The TPE-104GS splits a Gigabit PoE connection into separate power and Gigabit data sources. A handy toggle switch adjusts output power to 5 V, 7.5 V, 9 V, or 12 V in order to match non-PoE device power requirements. The included 2 and 2.5 mm jumper cables increase power pin device compatibility.

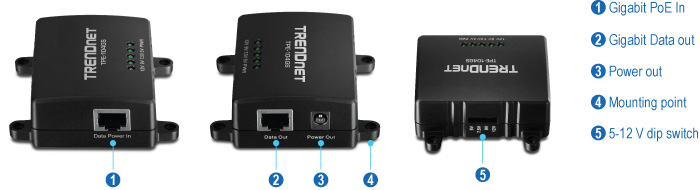

Three views of a TRENDnet device model TPE-104GS. The first view highlights the Gigabit PoE In port labeled as 1. The second view shows the Gigabit Data Out port labeled as 2 and the Power Out port labeled as 3. The third view displays the Mounting Point labeled as 4 and the 5-12 V dip switch labeled as 5.

Performance

PoE

Compatible with PoE (802.3af ) network connections

Gigabit Ethernet

Supports Gigabit network speeds

Adjustable Dip Switch

A handy toggle switch adjusts output power to 5 V, 7.5 V, 9 V, or 12 V in order to match non-PoE device power requirements

Jumper Cables

The included 2 and 2.5 mm jumper cables increase power pin device compatibility with the non-PoE networked device

No Power Adapter

The TPE-104GS is powered by the PoE connection

Mounting

Built-in mounting points increase installation flexibility

Hardware
Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af
Device Interface	1 x Gigabit data/power in port 1 x Gigabit data out port 1 x Power out port LED indicators Adjustable output power DIP switch (5 V, 7.5 V, 9 V, 12 V)
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex)
Jumper Cable	2.0 to 2.0 mm 2.0 to 2.5 mm
Power	PoE network cable input: 48 V DC, 0.38 A Output: 5 V (2 A), 7.5 V (2 A), 9 V (1.7 A), 12 V (1.2 A) Consumption: 0.3 Watts (max.)
Operating Temperature	0 – 45 °C (32 - 113 °F)
Operating Humidity	Max. 90% non-condensing
Dimensions	70 x 45 x 25 mm (2.8 x 1.8 x 1 in.)
Weight	60 g (2.1 oz.)
Certifications	CE FCC
Warranty	3 year limited

PACKAGE CONTENTS

TPE-104GS
Quick Installation Guide
2 x Jumper cables (2.0 to 2.0 mm, 2.0 to 2.5 mm)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
