10/100Mbps PCI Adapter

TE100-PCIWN (Version 2.xR)

  • Seamlessly surf the Internet and share data rich content
  • Double your network speed to 200Mbps with full duplex technology
  • Easy Plug and Play installation
DISCONTINUED PRODUCT
The TE100-PCIWN (Version 2.xR) has been discontinued. It has been replaced by the TEG-10GECTX (Version v3.0R). For a list of discontinued products, click here.

TE100-PCIWN is a 10/100MbpsFast Ethernet Plug-and-Play PCI adapter. Utilizes the latest chipset technology and provides easy installation. Automatic sense and connects to Fast Ethernet network with a RJ-45connector. With TRENDnet adapter, your desktop will turn into a high-bandwidth graphic and multimedia workstation or a power server running at full-duplex speed.

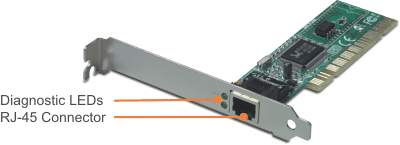

A computer network interface card is shown with a metal bracket attached. The bracket has two labeled components: Diagnostic LEDs and an RJ-45 Connector. The Diagnostic LEDs are small lights used for troubleshooting and status indication, while the RJ-45 Connector is a port for connecting an Ethernet cable. The card has a green circuit board with various electronic components and a gold edge connector for inserting into a computer's motherboard.
  • Compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards
  • Supports 32-bit PCI bus master specification Rev 2.1/2.2
  • Supports 10/100Mbps auto-negotiation
  • Supports advanced power saving mode
  • Half or full-duplex flow control
  • Compatible with Windows 7/Vista/XP/2000/ME/98(SE) operating systems
  • Supports Magic Packet™ remote wake-up method – Wake-on-LAN
  • Supports ACPI, PCI power management
  • Diagnostic LEDs
  • Plug & play
  • 3-year limited warranty
Hardware
Standard
  • IEEE 802.3 10Base-T, IEEE 802.3μ 100Base-TX
  • ANSI/IEEE 802.3Auto-Negotiation
  • IEEE 802.3xFull-Duplex Flow Control
Interface
  • 32-bitPCI BUS Rev 2.1/2.2
Protocol
  • CSMA/CD
Network Media
  • Ethernet: UTP/STP CAT3, 4, 5 EIA/TIA-568 100-ohm
  • Fast Ethernet: UTP/STP CAT5, EIA/TIA-568 100-ohm
Data Transfer Rate
  • 10Mbps:10/20Mbps (Half/Full-duplex)
  • 100Mbps:100/200Mbps (Half/Full-duplex)
Diagnostic LED
  • Link, Activity
Network Drivers
  • Windows 7 (32/64-bit) / Vista (32/64-bit) /XP (32-bit)/2003 server/NT/ 2000 /98(SE) /95
  • Novell NetWare ODI, NDIS, SCO UNIX, Linux, LAN Manager
Temperature
  • Operating:0° C ~ 50° C (32° F ~ 122° F)
  • Storage:-20° C ~ 70° C (-4° F ~ 158° F)
Humidity
  • Operating:10 % to 90 % non-condensing
  • Storage:5 % to 90 % non-condensing
Certifications
  • CE,FCC

PACKAGE CONTENTS
  • TE100- PCIWN
  • Multi-language quick installation guide
  • CD-ROM (Drivers)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
