10 dBi Wireless N300 Outdoor PoE Access Point

TEW-740APBO (Version v2.0R)

Wireless N300 point-to-point networking (2.4 GHz)
Supports Access Point (AP), Wireless Distribution System (WDS), Client Bridge + AP, Wireless ISP (WISP) + AP, CPE + AP, and control AP (CAP) modes
IPX6 outdoor weather rated housing
Built-in 10 dBi directional antenna

DISCONTINUED PRODUCT

The TEW-740APBO (Version v2.0R) has been discontinued. It has been replaced by the TEW-740APBO (Version v3.0R). For a list of discontinued products, click here.

TRENDnet's 10 dBi Outdoor PoE Access Point, model TEW-740APBO, provides wireless N300 point-to-point connectivity. A variety of installation scenarios are facilitated with Access Point (AP), Wireless Distribution System (WDS), Client Bridge + AP, Wireless ISP (WISP) + AP, CPE + AP, and control AP (CAP) modes. The IPX6 rated housing comes with wall and pole mounting hardware.

Point-to-Point Bridge

Wireless N300 point-to-point networking (2.4 GHz)

The setup shows a power adapter and LAN cables connecting to a device. On the left, a device has ports labeled for power and data output with a magnified view highlighting these ports. On the right, a power adapter features a port for power adapter input and two LAN ports for data input, with cables indicating where they should be plugged in.

PoE Power Adapter

Included power adapter provides power and data over a single Ethernet cable with a maximum distance of 20m (66 ft.)

Water drops symbols and a label indicating IPX6 rating.

Outdoor Ready

Durable enclosure with an IPX6 outdoor weather rating

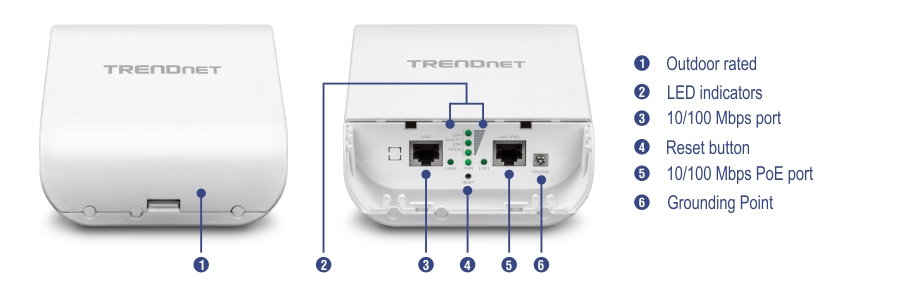

The TRENDnet device has a front view highlighting its outdoor-rated feature and a back view labeling six components: LED indicators, a 10/100 Mbps port, a reset button, a 10/100 Mbps PoE port, and a grounding point. Designed for outdoor use, the device includes ports for network connectivity and power over Ethernet.

Wireless Modes

Supports Access Point (AP), Wireless Distribution System (WDS), Client Bridge + AP, Wireless ISP (WISP) + AP, CPE + AP, and control AP (CAP) modes

Wireless N300 (2.4 GHz)

Compliant with 802.11b/g/n technology (2.4 GHz) with data rates up to 300 Mbps*

Outdoor Rated

Durable enclosure with an IPX6 outdoor weather rating

Directional Antenna

Built-in 10 dBi directional antenna

PoE Power Adapter

Proprietary PoE power adapter included

Logs

Real time logs and statistics help troubleshooting

Encrypted Wireless

Support for wireless encryption of up to WPA2

Multiple SSID

Create up to eight additional SSIDs

Mounting Hardware

Pole and wall mount hardware included

Compatibility

Compatible with legacy wireless devices

LED Indicators

LEDs convey wireless link quality in WISP mode

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1X IEEE 802.11d IEEE 802.11e IEEE 802.11f IEEE 802.11h IEEE 802.11i IEEE 802.11b IEEE 802.11g IEEE 802.11n (2.4 GHz up to 300 Mbps) IEEE 802.11r IEEE 802.11k

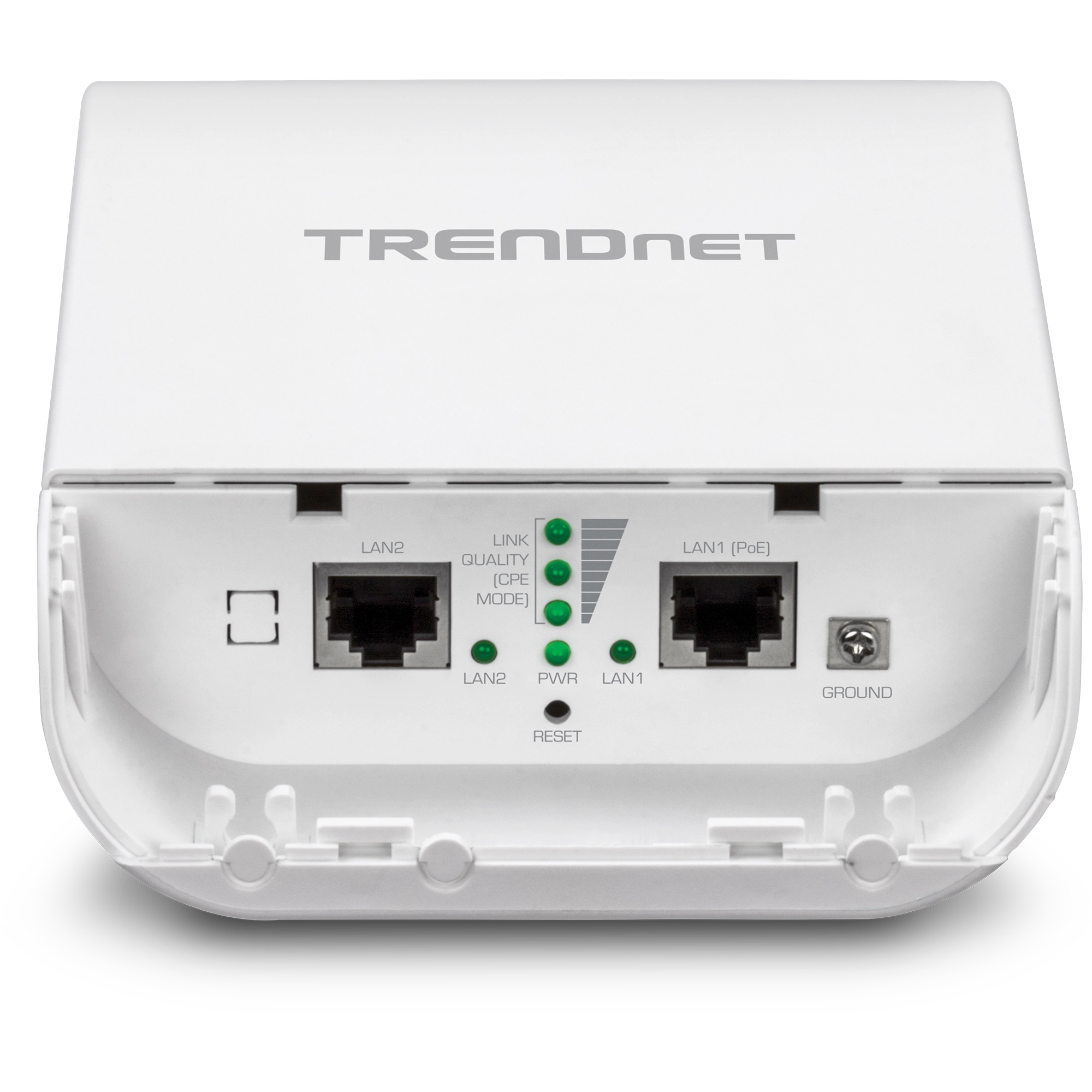

Hardware Interface	1 x 10/100 Mbps LAN1 port (proprietary PoE max. cable length 20 m (66 ft.)) 1 x 10/100 Mbps LAN2 port LED indicators Reset button Grounding Point
Special Features	IPX6 weather rated 802.1Q VLAN assignment per SSID Schedule radio on / off time policy 802.11r / 802.11k fast roaming
Access Control	Wireless encryption: WPA / WPA2-PSK, WPA / WPA2-Enterprise, 802.1X Firewall (CPE Mode): NAT, Virtual Server, DMZ Host, PPTP / L2TP / IPsec VPN Passthrough Access Controls: MAC, IP Filter, Layer 2 Client Isolation, Per-SSID client limiting 802.1Q VLAN Authentication 2.0 / Walled Garden for guest authentication Customizable captive portal for guest authentication
QoS	WMM
Operation Modes	Access Point (AP) Access Point (AP) + WDS Wireless Distribution System (WDS) WISP (CPE) + AP Client Bridge + AP Router Control AP (CAP)
SSID	Up to 7 SSIDs
Internet Connection Types (WISP (CPE) + AP & Router modes)	Dynamic IP (DHCP) Static IP (Fixed) PPPoE (Dynamic IP / Static IP) PPTP (Dynamic IP / Static IP)
Management / Monitoring	Local / remote web based management (HTTP, HTTPS) Local / remote CLI based management (Telnet, SSH) SNMP v2c / v3 SNMP Trap Upgrade firmware Backup / restore configuration Event logging Authentication log Reboot Restore to factory defaults Ping test Traceroute LED Control
Frequency	FCC: 2.412 - 2.462 GHz ETSI: 2.412 - 2.472 GHz IC: 2.412 - 2.462 GHz
Wireless Channels	FCC: 1-11 ETSI: 1-13
Modulation	802.11b: DBPK, DQPSK, CCK with DSSS 802.11g/n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
Media Access Protocol	CSMA / CA with ACK
Antenna Gain	10 dBi internal sector antenna
Wireless Output Power / Receiving Sensitivity	802.11b: FCC / ETSI: FCC: 28 dBm (max.), ETSI: 10.4 dBm (max.), IC: 28 dBm (max.) / -88 dBm (typical) @ 11 Mbps 802.11g: FCC / ETSI: FCC: 26 dBm (max.), ETSI: 10.5 dBm (max.), IC: 26 dBm (max.) / -74 dBm (typical) @ 54 Mbps 802.11n: FCC / ETSI: FCC: 26 dBm (max.), ETSI: 10.6 dBm (max.), IC: 26 dBm (max.) / -69 dBm (typical) @ 300 Mbps
Power	Input: 100 – 220 V, 50 - 60 Hz, 0.5 A Output: 12V / 1A Consumption: 13.5 Watts Max.
Operating Temperature	-20 - 60° C (-4 - 140° F)
Operating Humidity	Max. 99 % non-condensing
Certifications	CE FCC
Dimensions	195 x 118 x 61 mm (7.6 x 4.6 x 2.4 in.)
Weight	320 g (0.7 lbs.)
Warranty	3 year limited

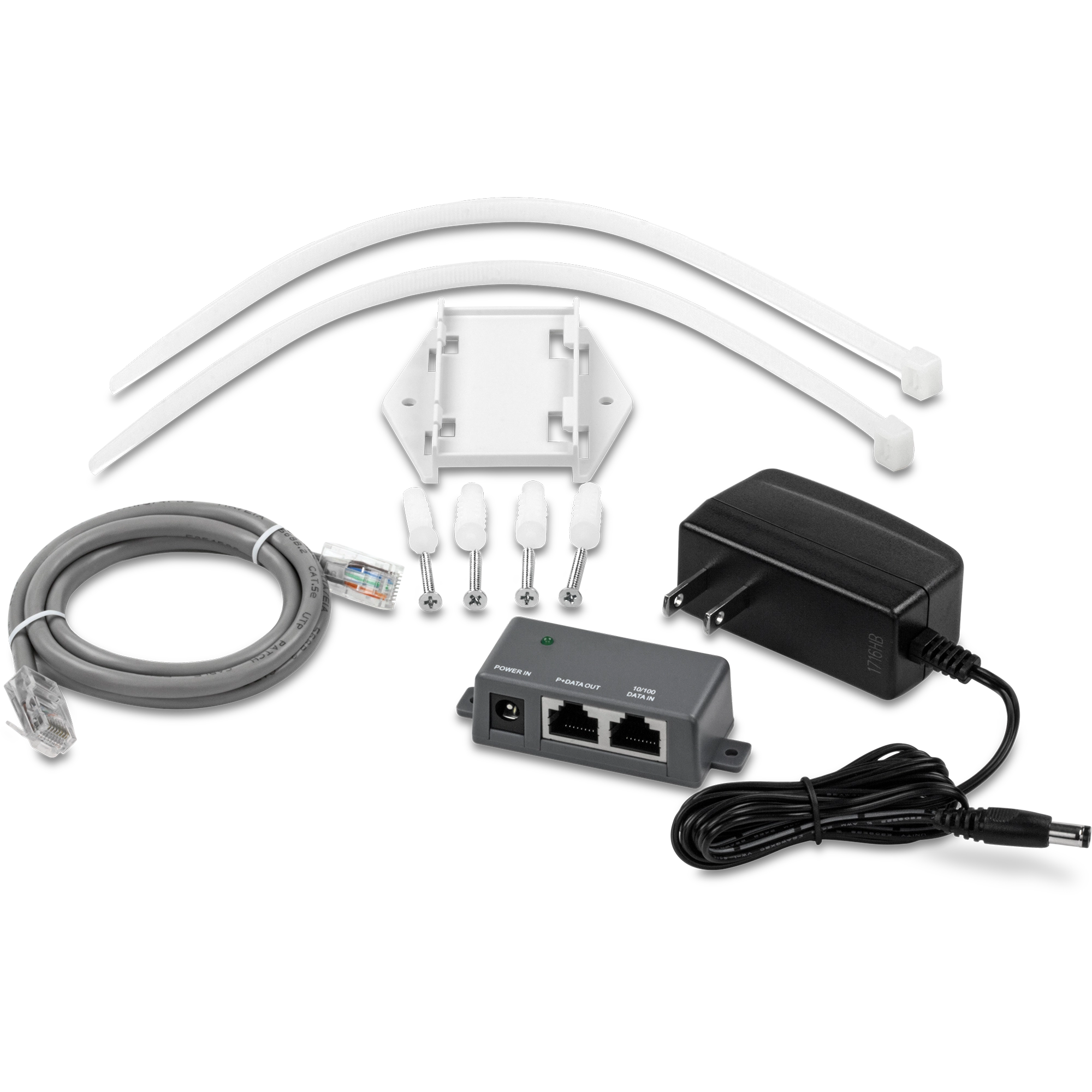

PACKAGE CONTENTS

TEW-740APBO
CD-ROM (User's Guide)
Quick Installation Guide
Power adapter (12 V DC, 1 A)
Proprietary PoE injector
Grounding wire
Mounting hardware

* Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna alignment, receiving sensitivity, and radio interference. Additionally, environmental factors such as weather conditions, physical obstacles, and other considerations may affect performance. For optimal results, we recommended consulting a professional installer for site survey, safety precautions, and proper installation.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
