6-Port 10G Switch

TEG-S762 (Version v1.0R)

  • 4 x 2.5G RJ-45 ports
  • 2 x 10G RJ-45 ports
  • Compatible with existing Cat5e or better cabling
  • 60Gbps switching capacity
  • Fanless design for silent operation
  • Wall mountable
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
DISCONTINUED PRODUCT
The TEG-S762 (Version v1.0R) has been discontinued. It has been replaced by the TEG-S762 (Version v2.0R). For a list of discontinued products, click here.

TRENDnet’s 6-Port 10G Switch, model TEG-S762, is a multi-gig switch that provides advanced high bandwidth performance, ease of use, and reliability. The TEG-S762 multi-gig switch offers two dedicated 10G ports and four dedicated 2.5G ports for high-speed network connections with a 60Gbps switching capacity. Having a sturdy compact metal housing and fanless design, the 10G switch is a cost-effective switch solution for high-speed 10 Gigabit network connections.

Illustration of a network cable labeled HIGH-SPEED CAPABILITY with icons representing music, video, data transfer moving through the network.

10G Ports

Offers two 10G ports for high-speed network connections providing a cost-effective solution in adding 10G link capability.

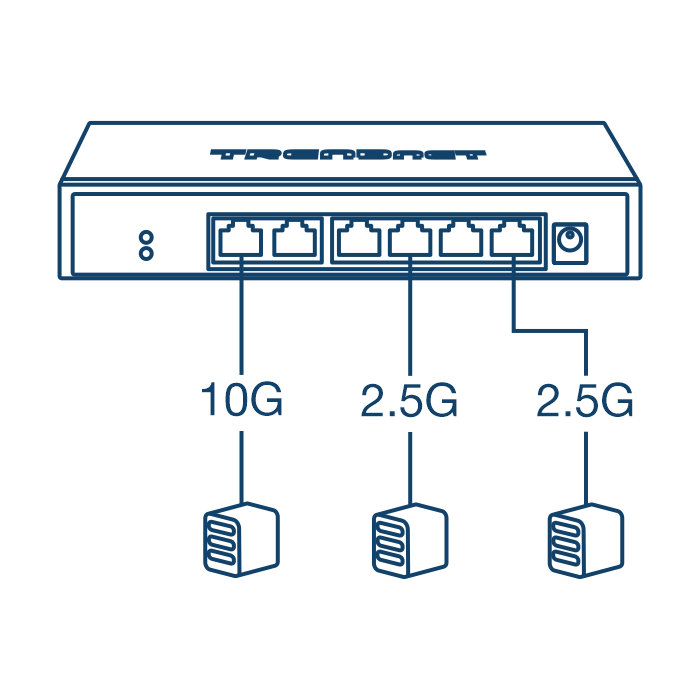

An illustration of a network switch with a line connecting to media servers. From the left, the line is labeled 10G, the middle is labeled 2.5G, and the right is labeled 2.5G.

2.5G Ports

Equipped with four 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

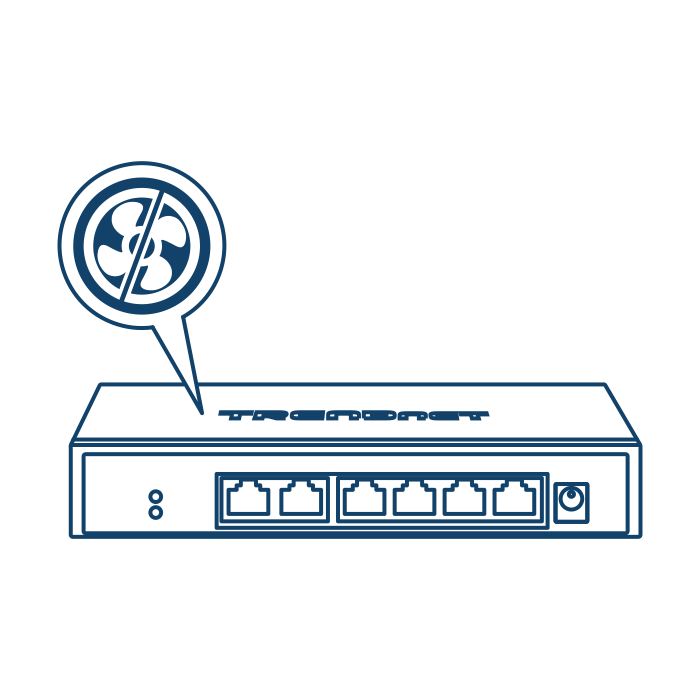

Line art of a 6-Port Network Switch with a no-fan icon.

Fanless

Convenient fanless design lowers unnecessary energy consumption and costs, and eliminates distracting operating noise.

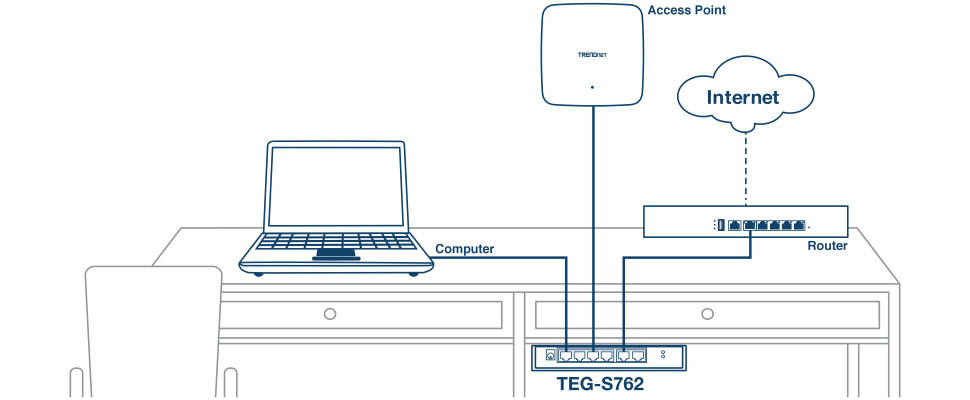

A line art of a desk with a laptop on the left with a line labeled Computer connected to a TEG-S762 switch under the table. An access point on the wall is also connected to the switch, and a router on the right is connected with a line labeled Internet and a cloud icon.

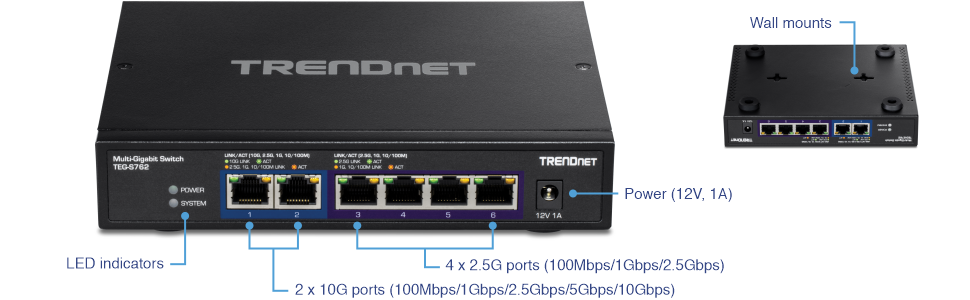

Front view of 6-Port 10G Switch TEG-S762 on the left with labels for LED indicators, 2 x 10G ports (1000Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps), and power (12V, 1A). A small image of the bottom view shows labels for wall mounts.

Network Ports

Provides 4 x 2.5GBASE-T ports and 2 x 10G ports for high-speed network connections

10G Ports

Provides a cost-effective solution in adding 10G link capability with five 10G ports for high-speed connections over Cat6a cabling (or better)

2.5G Ports

Connect 2.5GBASE-T supported devices at 2.5Gbps for increased throughput over existing Cat5e or better cabling

Fanless

Fanless design on this multi-gig switch lowers energy consumption and eliminates operating noise

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB) for increased performance

Housing Design

Sturdy metal housing on the 10 gigabit Ethernet switch / 2.5G switch combo is also compact and lightweight

Wall Mountable

Well-suited for desktop installations, but also features convenient wall mountable design for greater installation flexibility

LED Indicators

LED indicators conveniently convey port status on the multi-gig switch

Standards
  • IEEE 802.3ab
  • IEEE 802.3an
  • IEEE 802.3az
  • IEEE 802.3bz
Device Interface
  • 4 x 2.5G ports (1Gbps/2.5Gbps)
  • 2 x 10G ports (1Gbps/2.5Gbps/10Gbps)
  • LED indicators
Throughput & Distance
  • Cat5e Cabling: 1Gbps / 2.5Gbps @ 100m (328 ft.)
  • Cat6 Cabling: 10Gbps @ 50m (164 ft.)*
  • Cat6a Cabling: 10Gbps @ 100m (328 ft.)*
Data Transfer Rate
  • Gigabit Ethernet: 2000Mbps (full duplex)
  • 2.5 Gigabit Ethernet: 5Gbps (full duplex)
  • 10 Gigabit Ethernet: 20Gbps (full duplex)
Performance
  • Switch fabric: 60Gbps
  • RAM buffer: 2MB
  • MAC address table: 16K entries
  • Jumbo frames: 9KB
  • Forwarding mode: store and forward
  • Forwarding rate: 44.64Mpps (64-byte packet size)
Power
  • Input: 100 – 240V AC, 50/60 Hz
  • Output: 12V, 1A
  • Max. Consumption: 11.9W
MTBF
  • 379,884 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 180 x 145 x 33mm (7 x 5.7 x 1.3 in.)
Weight
  • 2.33 kg (5.12 lbs.)
Certifications
  • CE
  • FCC
  • IC
Warranty

PACKAGE CONTENTS
  • TEG-S762
  • Quick Installation Guide
  • Power Adapter (12V, 1A)

*Maximum distance of Cat6 and Cat6a cabling are references to IEEE 802.3an standard. Actual data throughput and distance will vary depending on the quality of the cable.

TRENDnet offers a lifetime warranty for all of its metal-enclosed network switches that have been purchased in the United States/Canada on or after 1/1/2015. Cooling fan and internal power supply carry a one-year warranty.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
