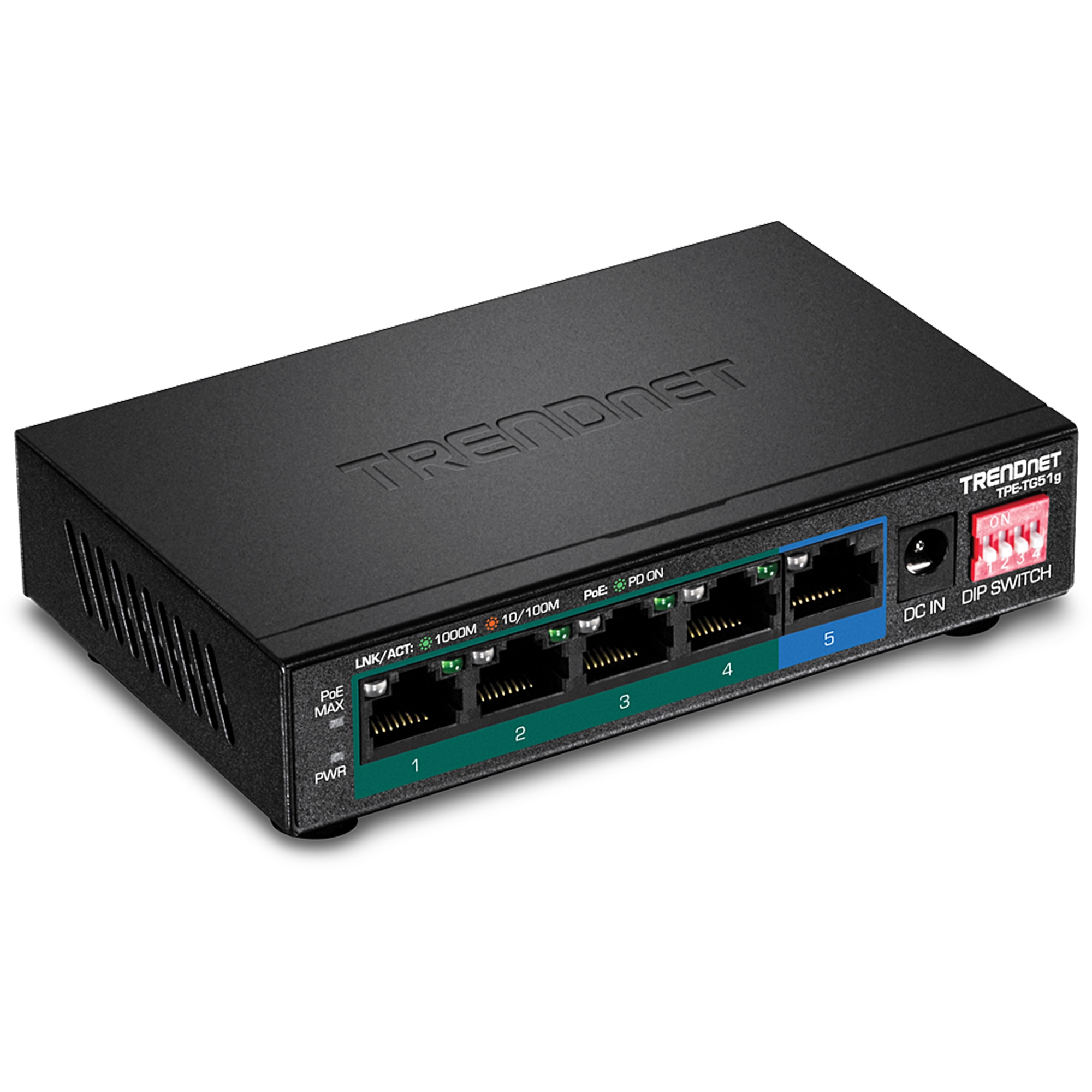

5-Port Gigabit PoE+ Switch

TPE-TG51g (Version v1.0R)

  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 60W PoE power budget
  • Extend PoE+ signal up to 200m (656 ft.) at 10Mbps
  • DIP switch supports VLAN port isolation and QoS
  • 10Gbps switching capacity
  • Compact metal switch
  • Wall mountable design
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

TRENDnet’s 5-Port Gigabit PoE+ Switch, model TPE-TG51g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices, such as access points and IP cameras. This long-range PoE switch supports both PoE and PoE+ devices with a 60W PoE power budget. Enable the DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10Mbps for long distance PoE installations. Easily install this long-range PoE switch for reliable high-speed PoE networking.

A network diagram of 5-Port Network Switch, connected to PoE Camera and wireless access point device up to 60 Watt.

PoE+ Power

A 60W PoE power budget supplies up to four Power over Ethernet devices.

Illustration of a network cable labeled 32Gbps SWITCHING CAPACITY with icons representing music, video, data transfer moving through the network.

Gigabit Ethernet

Five gigabit ports provide a 10Gbps switching capacity to support edge network installations.

Network diagram illustrating the connection with a PoE camera over a distance of 200 meters (656 feet), with an emphasis on the DIP switch.

Long Range PoE+ Switch

Enable the DIP switch to extend PoE+ signal up to 200m (656 ft.) at 10Mbps.

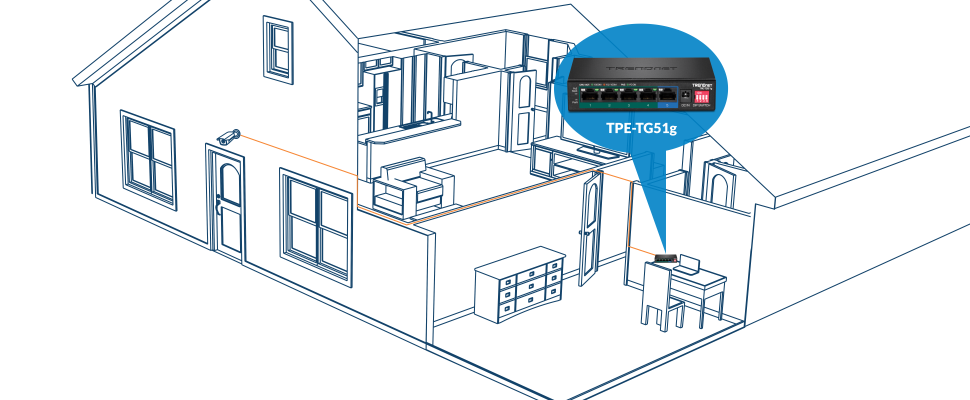

A blueprint-style illustration of a house interior shows various rooms and furniture. A security camera is mounted outside the house near the front door. An orange line runs from the camera to a device inside the house. A blue circle highlights this device, labeled TPE-TG51g, suggesting the setup of a home network system.

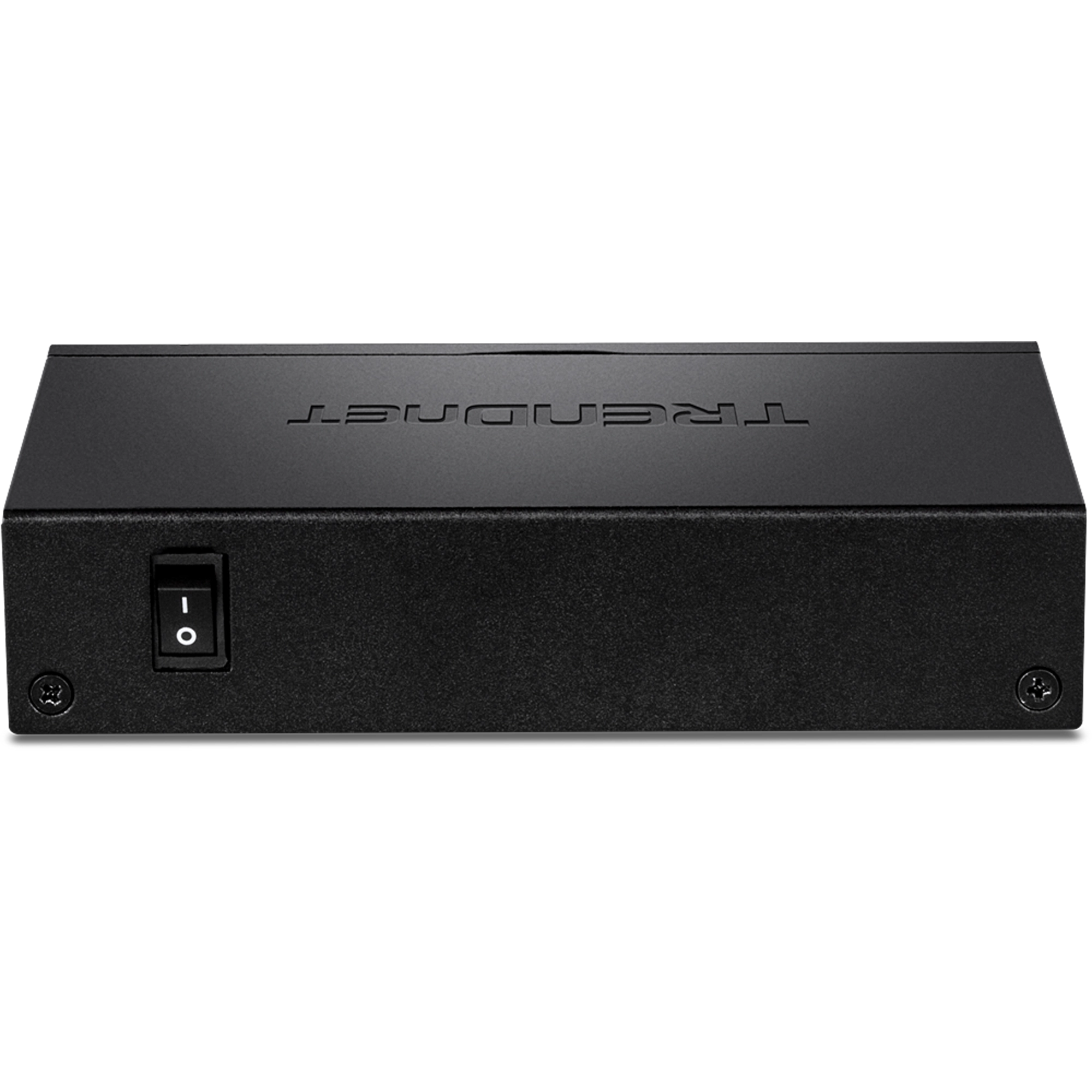

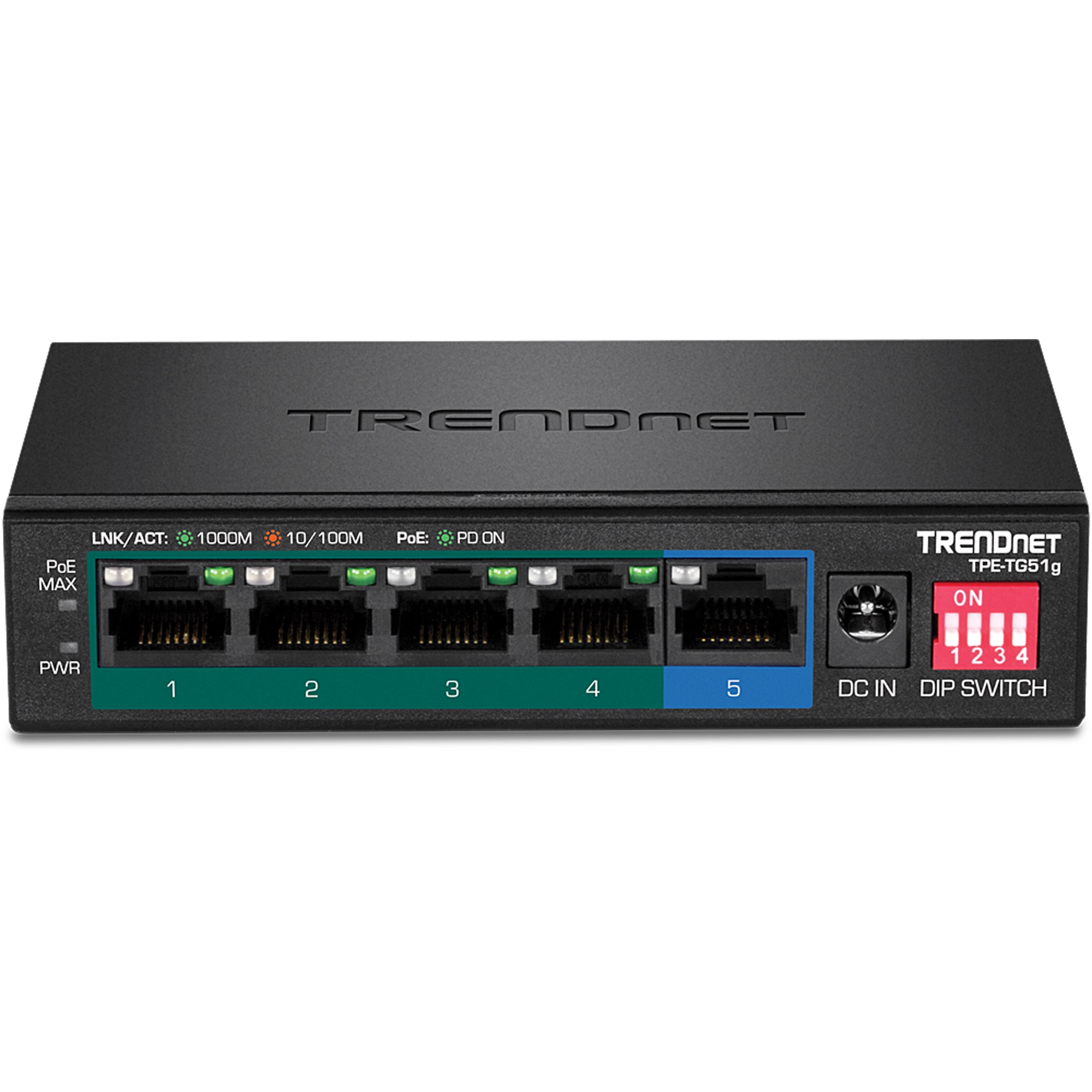

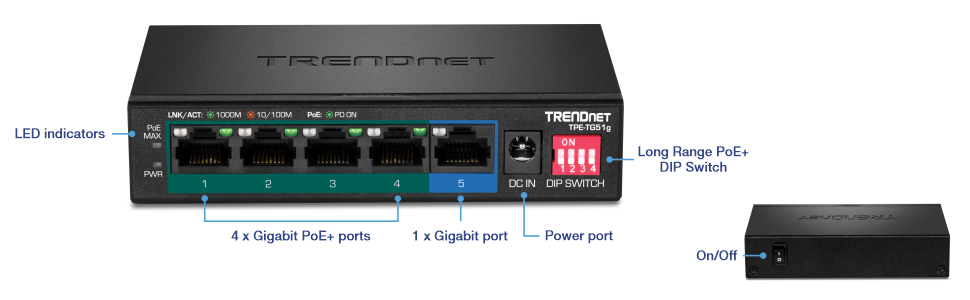

A TRENDnet TPE-TG51g device with various labeled components. The front view highlights LED indicators, four Gigabit PoE+ ports, one Gigabit port, a power port, and a long-range PoE+ DIP switch. The back view shows an On/Off switch.

PoE

Supports both PoE (802.3af) and PoE+ (802.3at) devices with a 60W PoE power budget

Ports

Four gigabit PoE+ ports and one gigabit port

Long Range PoE+

Extend PoE+ signal up to 200m (656ft.) on the long-distance PoE switch by enabling it through the DIP switch

Port Isolation

Ideal for surveillance networking applications, the DIP switch also enables port isolation on ports 1 – 4

Switching Capacity

10Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Housing

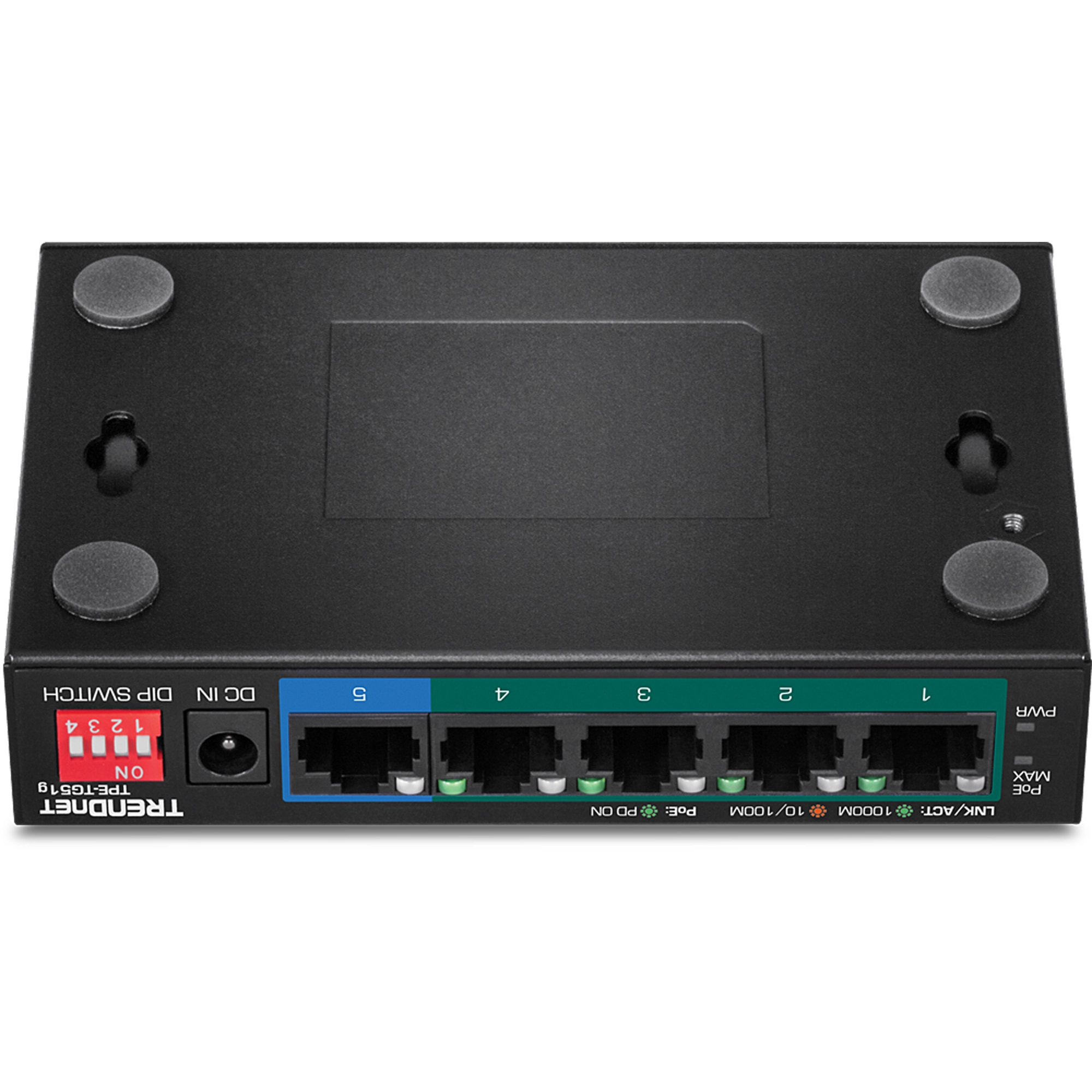

Wall mountable rugged metal housing

LED Indicators

LED indicators on the long-range PoE switch convey port status

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3p
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • DIP switch
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
Performance
  • Switch Fabric: 10Gbps
  • RAM Buffer: 128KB
  • MAC Address Table: 2K entries
  • Jumbo Frames: 9KB
  • Forwarding rate: 7.44Mpps (64-byte packet size)
Special Features
  • Long range PoE+ up to 200m at 10Mbps
  • VLAN port isolation
  • 802.1p Class of Service (CoS)
  • Wall mountable
DIP Switch
SwitchStatusFunction
1OFFPorts 1 & 2: Default gigabit PoE+
ONPorts 1 & 2: Long range PoE+ up to 200m at 10Mbps
2OFFPorts 3 & 4: Default gigabit PoE+
ONPorts 3 & 4: Long range PoE+ up to 200m at 10Mbps
3OFFVLAN port isolation disabled
ONVLAN port isolation on ports 1-4
4OFFQoS disabled
ONQoS Enabled: Video & Voice – High Priority
Power
  • Input: 100 – 240 V AC, 50/60Hz, 2.5A
  • Output: 54V DC, 1.3A external power adapter
  • Max. consumption: 64.3W
PoE
  • PoE budget: 60W
  • PoE Mode A: Pins 1,2 for power and pins 3,6 for power
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 121 x 75 x 26mm (4.76 x 2.95 x 1 in.)
Weight
  • 246g (8.68 oz.)
Certifications
  • CE
  • FCC
  • LVD
Warranty

PACKAGE CONTENTS
  • TPE-TG51g
  • Quick Installation Guide

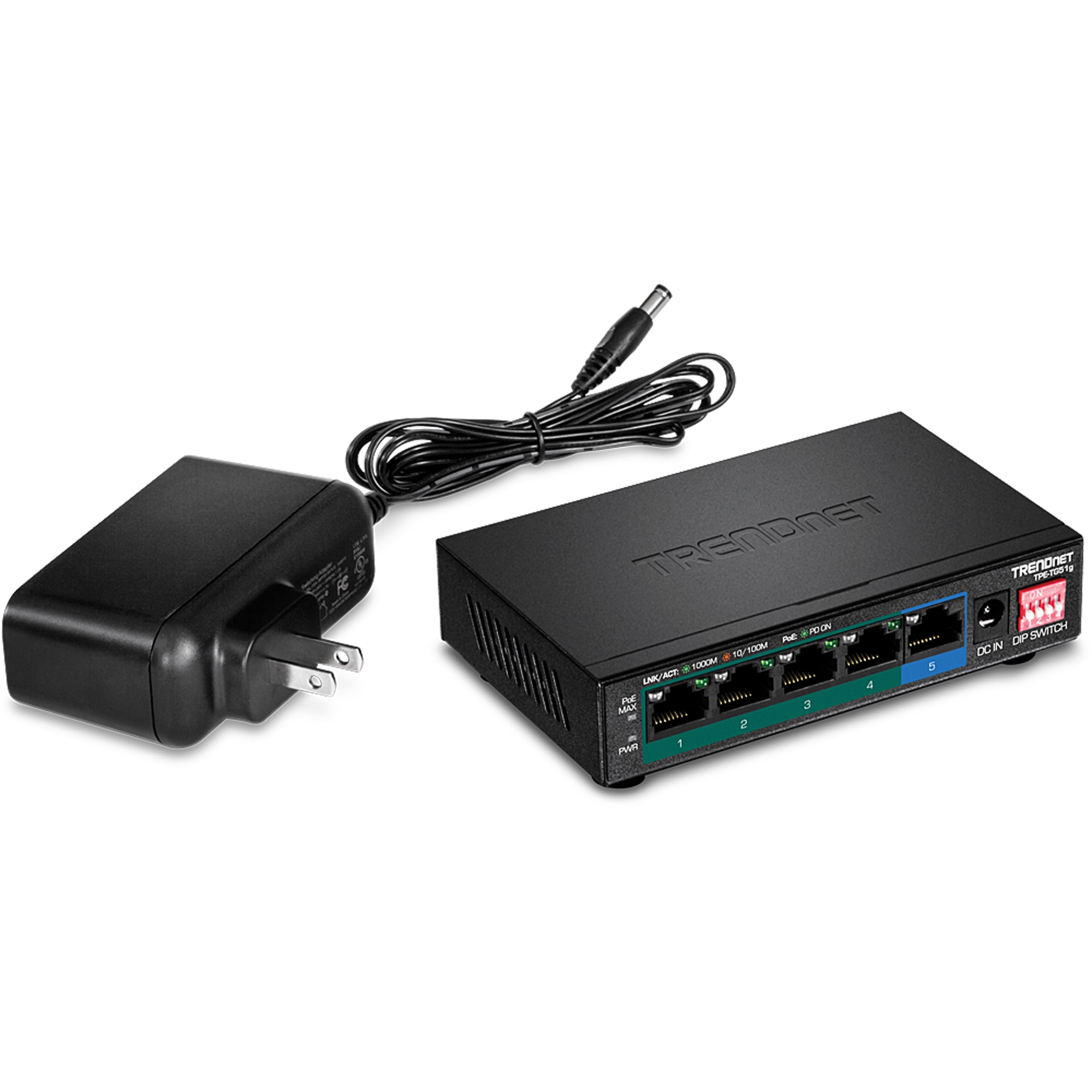

  • Power adapter (55V DC, 1.3A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
