10 ft. DVI-I, USB, and Audio KVM Cable Kit

TK-CD10   (Version v1.0R)

  • Compatible with the TK-232DV KVM Switch
  • DVI-I cable interface
  • USB cable for mouse and keyboard connections
  • 3.5mm cables for microphone and speaker connections

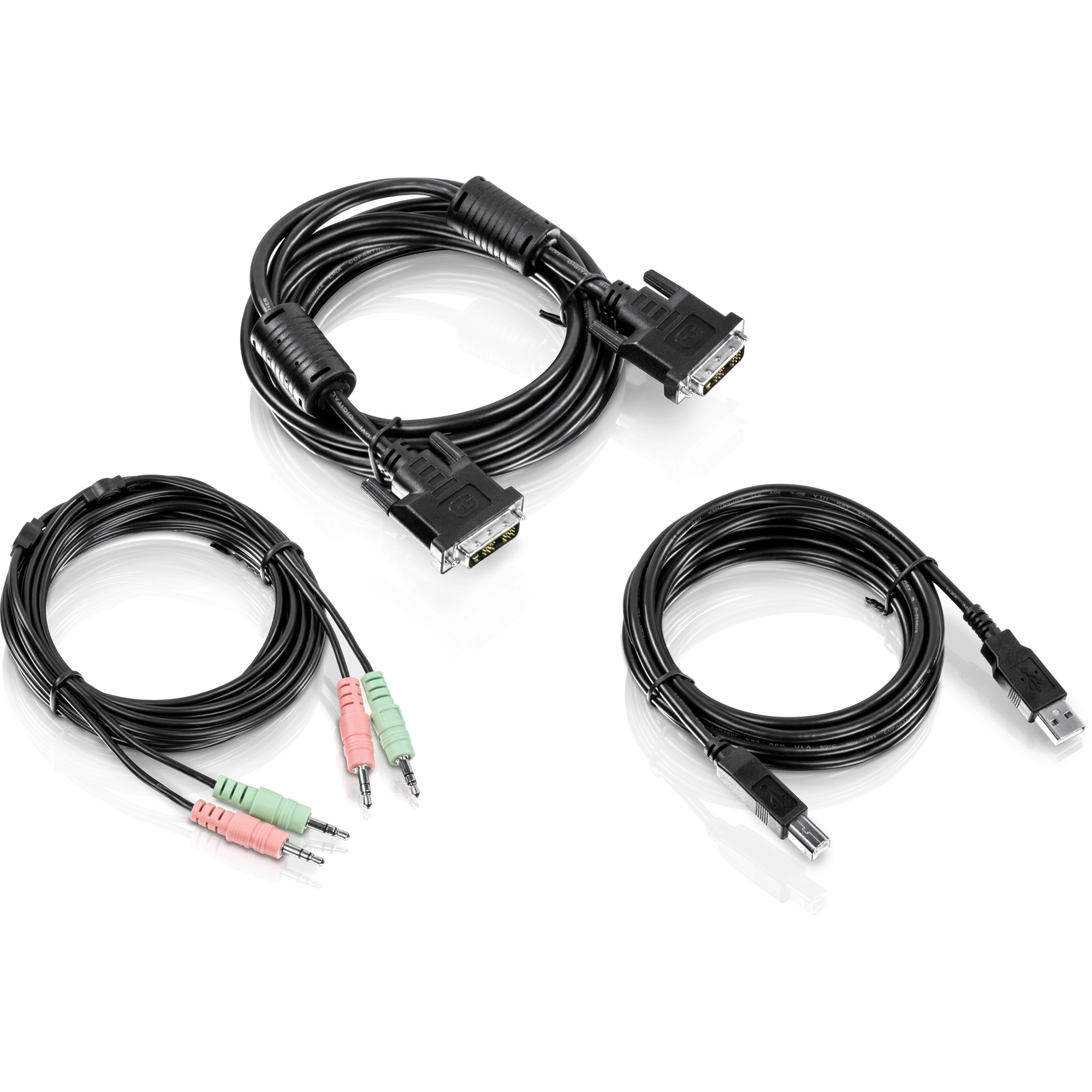

TRENDnet's 10 ft. DVI-I, USB, and Audio KVM Cable Kit, model TK-CD10, is designed to connect a DVI computer to the TRENDnet TK-232 KVM switch. The cable kit consists of a USB mouse/keyboard, DVI-I, and 3.5mm audio connections for a single computer.

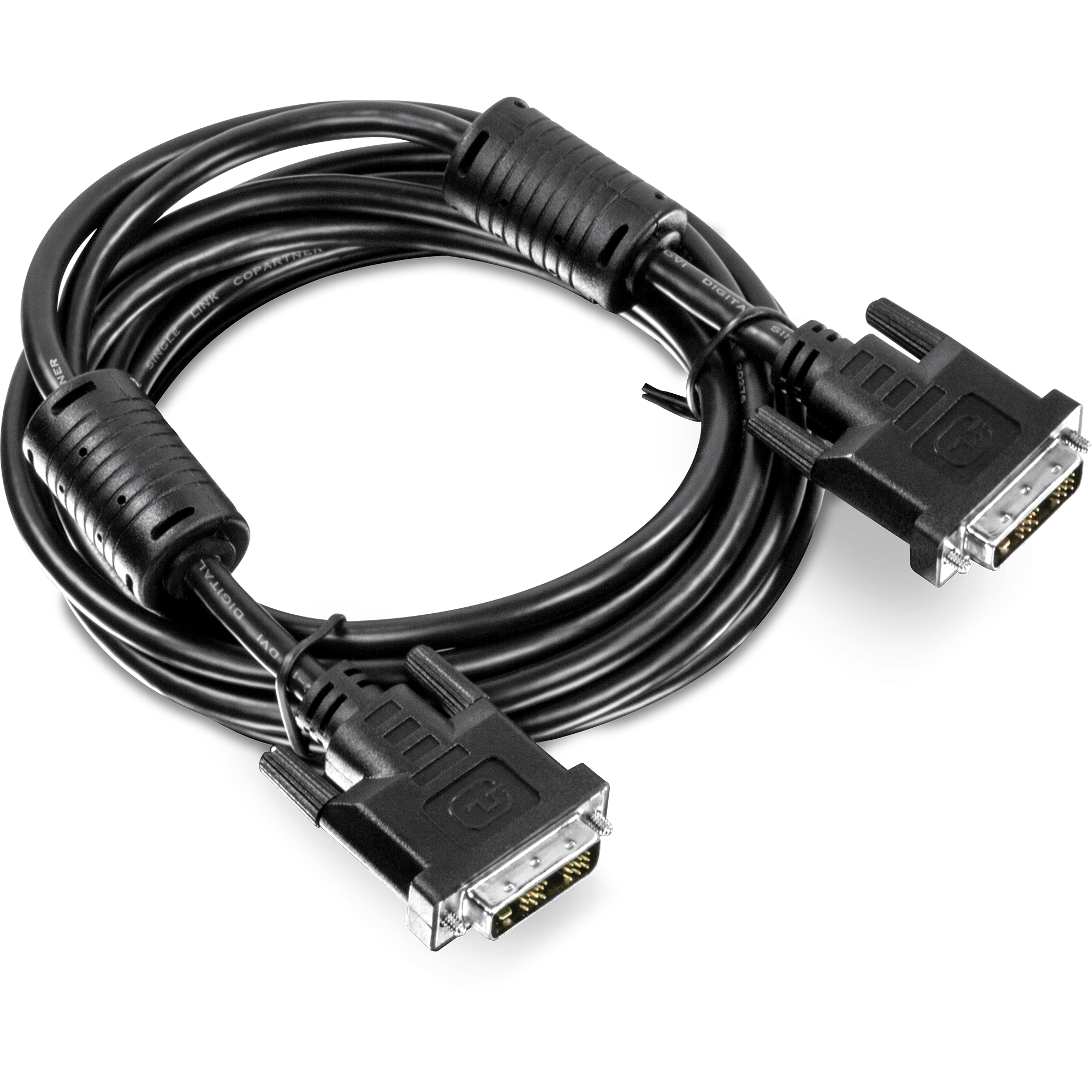

DVI-I

Designed to connect a DVI-I computer to the TK-232DV KVM Switch

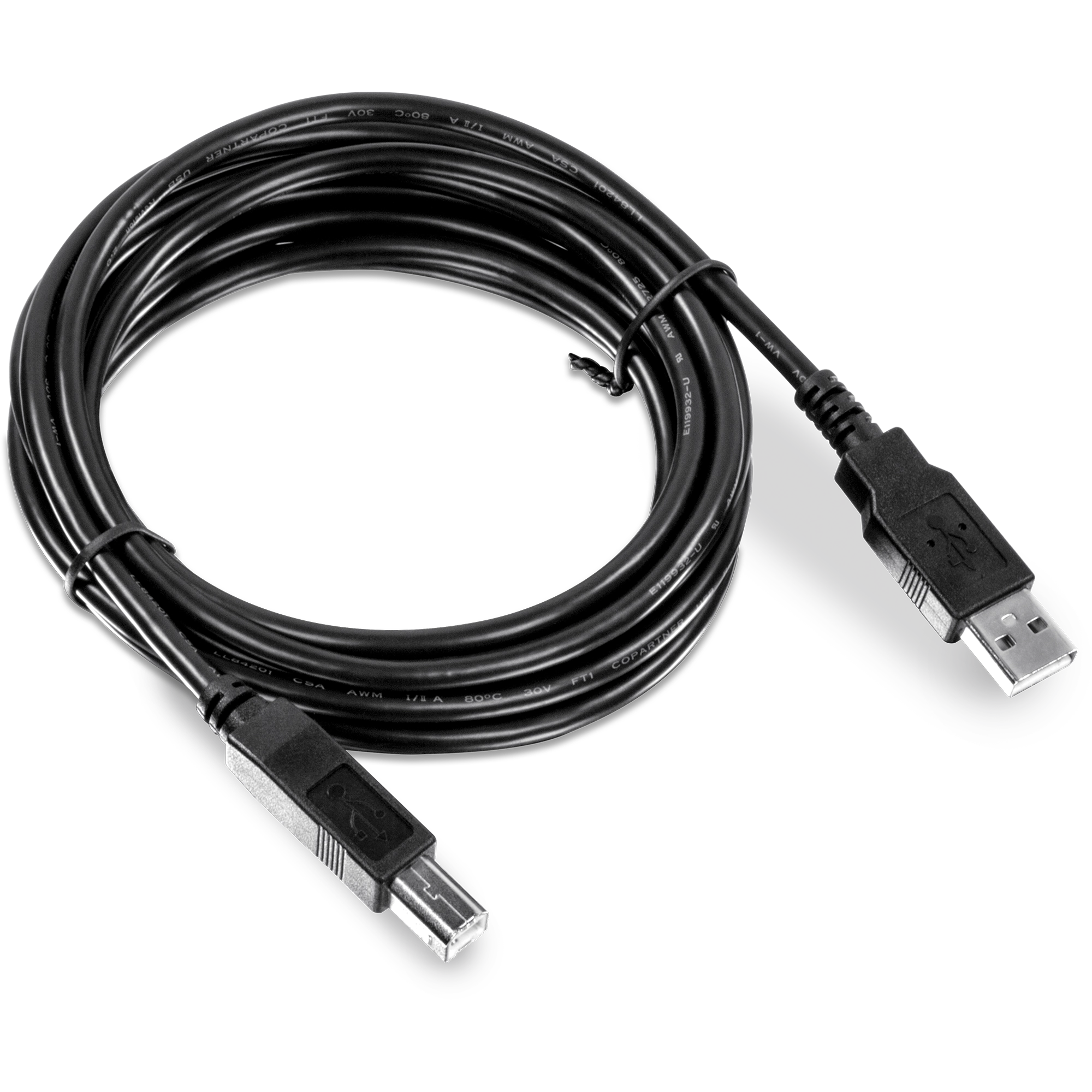

USB

A single USB cable for USB mouse/keyboard connection

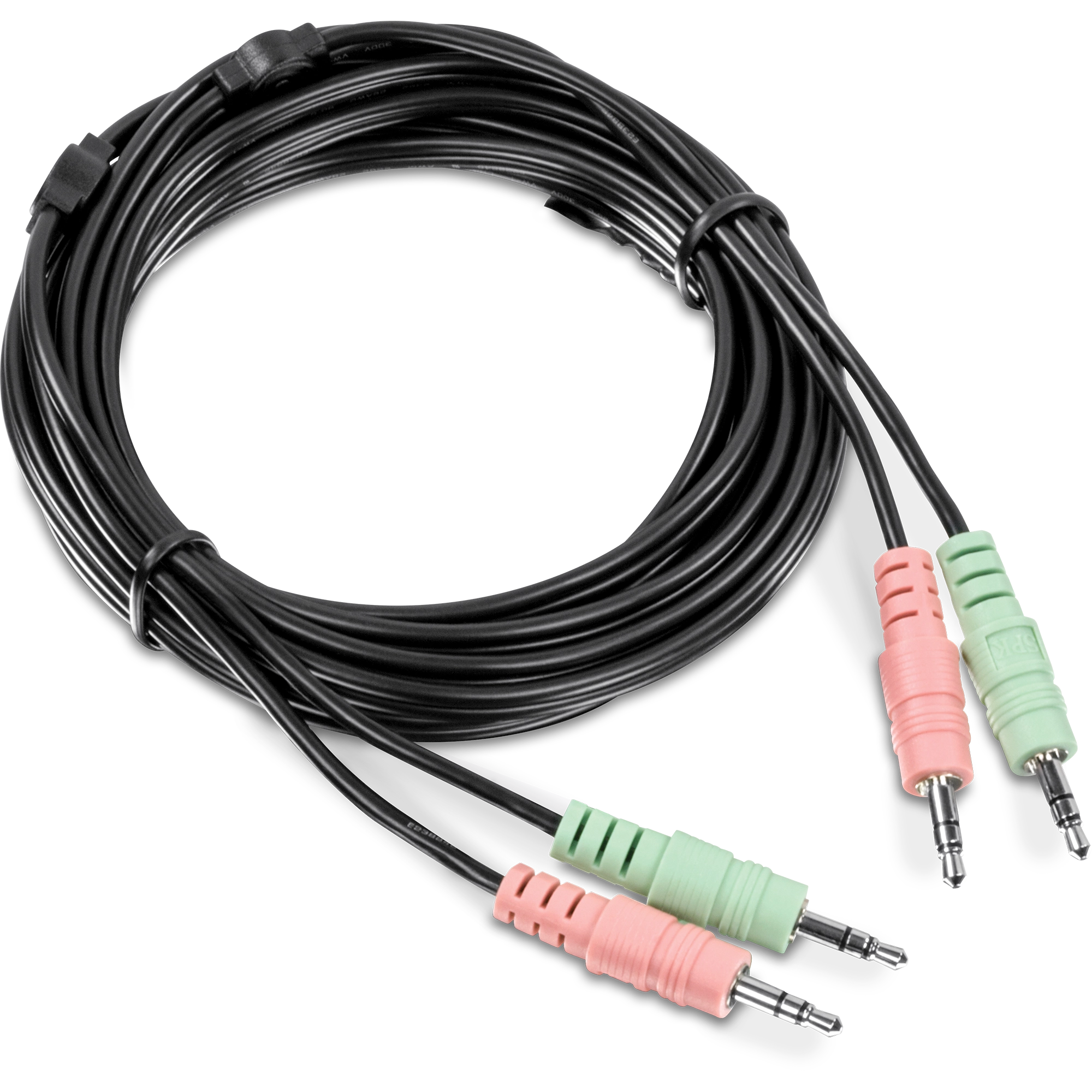

Audio Support

Features 3.5mm speaker and microphone connections for full audio support

KVM interface
  • Keyboard/Mouse: USB Type B
  • Monitor: DVI-I
  • Microphone jack: 3.5mm
PC interface
  • Keyboard/Mouse: USB Type A
  • Monitor: DVI-I
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90 % non-condensing
Length
  • 3m (10 ft.)
Weight
  • 500g (17.6 oz.)
Warranty
  • 2 year
PACKAGE CONTENTS
  • TK-CD10

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
