The Indoor / Outdoor 2 MP 1080p Varifocal PoE IR Network Camera, model TV-IP340PI, provides day and night surveillance with a night vision range of up to 30 meters (98 ft.) This bullet-style camera delivers year-round surveillance with an IP66 weather rated housing to withstand extreme environments. A built-in 2.8 - 12 mm manual zoom varifocal lens allows you to adjust the field of view to meet your installation needs. Record 1080p video (1920 x 1080) at 30 fps in a space saving H.264 compression format. Manage up to 32 TRENDnet cameras with included complimentary software and mobile apps.
A built-in 2.8 – 12 mm manual zoom varifocal lens allows you to manually adjust the field of view from 113° – 33.8° to achieve the perfect viewing field for your installation.

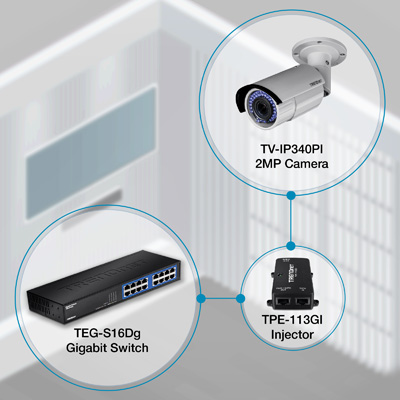

Power over Ethernet (PoE)
PoE offers cost savings and the flexibility to install this bullet-style outdoor camera in the desired location.
Built for extreme environments with an IP66 weather rating and an operating temperature range of -30 – 60°C (-22 – 140°F).
A built-in 2.8 – 12 mm manual zoom varifocal lens allows you to adjust the field of view from 113° – 33.8° to achieve the perfect viewing field for your installation.
Record 1080p (1920 x 1080) HD video at 30 fps in the space saving H.264 compression format

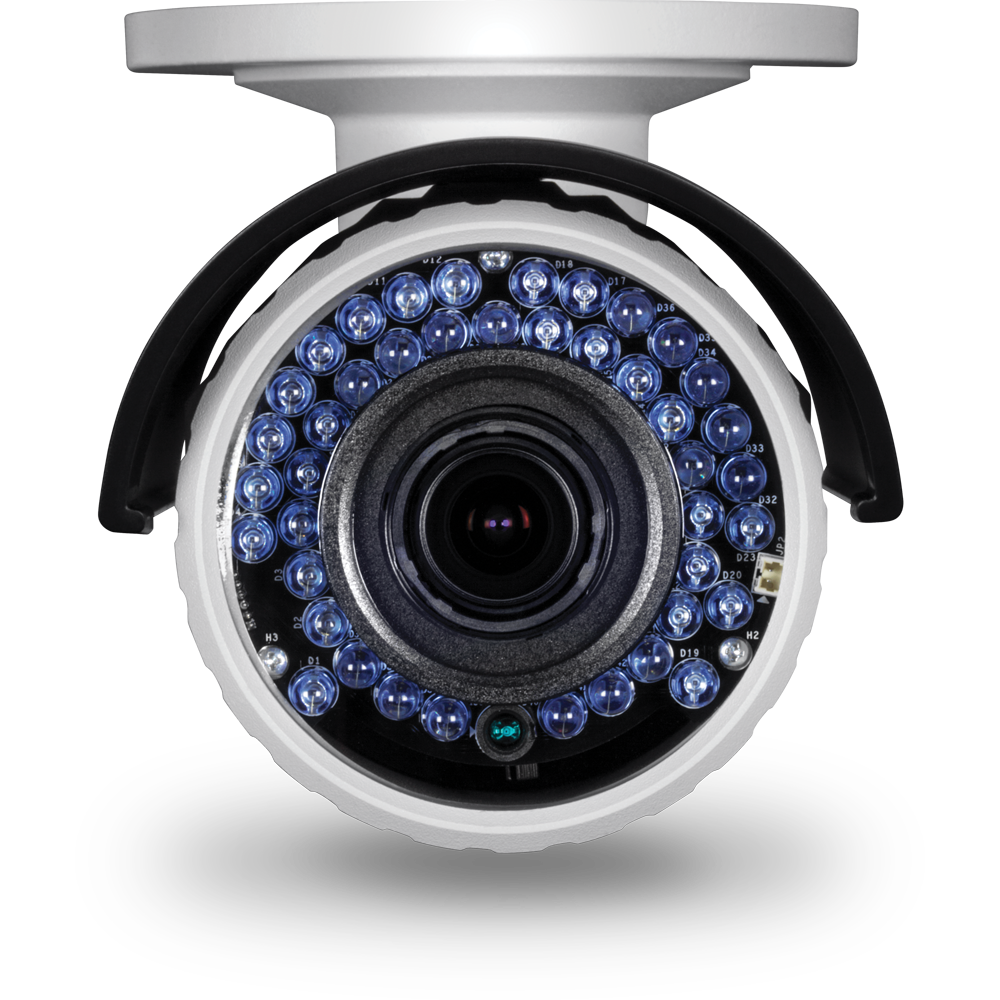

Night vision up to 30 meters (98 ft.)
Dynamic IR adjustment optimizes night visibility
Save installation costs with Power over Ethernet (PoE)
Outdoor IP66 weather rated housing
Record video to a network storage device or to a Micro SD card (up to 64 GB sold separately).
Advanced in-camera archived video review functionality
Create custom motion detection zones to record video and send email notifications when a zone is triggered.
Create custom tamper detection zones to send an email notification when the camera view has been obstructed.
Digital Wide Dynamic Range (D-WDR)
Adjustable D-WDR setting Improves image quality and focusing when a camera is exposed to high contrast lighting environments by enhancing the dark areas of the image to make them more visible.
Define custom schedules using continuous (24/7) and / or event based recording modes.

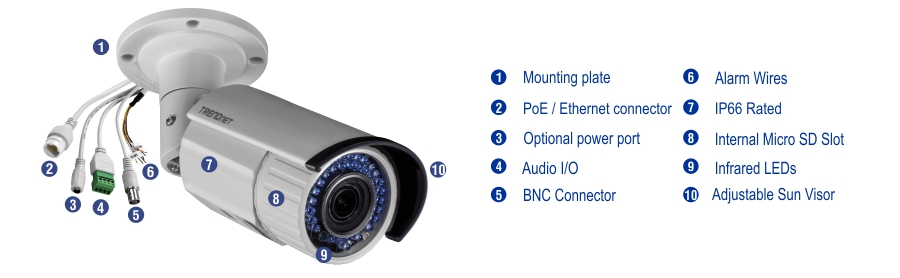

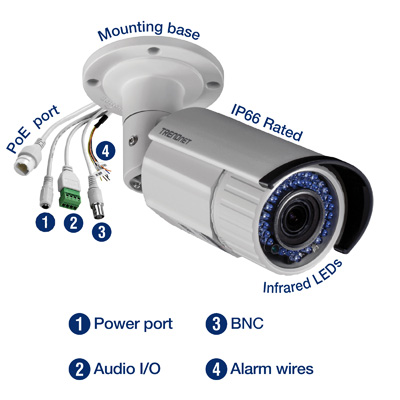

Audio input and output for third party microphone and speaker (sold separately)
Input / Output Alarm
Network to an alarm system with the alarm input / output connections
BNC analog video-out port to connect directly to a video display for installation flexibility
Complimentary pro-grade software to manage up to 32 TRENDnet cameras
Live video to a mobile device with free iOS® and Android™ apps
Focal Length: 2.8 – 12 mm @ F1.4
Focal depth: 30 cm to infinity
Sensor: 1/3” CMOS sensor
Digital zoom: 4x
Horizontal: 33.8 ˚ - 113˚
Pan : 0 ˚ - 355 ˚
Tilt : 0 ˚ - 75 ˚
IR off: 0.014 lux
IR on: 0 lux
30 m distance
IR wavelength : 850 nm
H.264: 1920 x 1080 up to 30 fps
MJPEG: 704 x 480 up to 30 fps
10 / 100 Mbps PoE port
Micro SD card slot
GPIO terminal for audio
I / O for alarm
2-way audio supported (mix and speaker not included)
External microphone line in / speaker line out
I / O
External input / output for alarm installation
Supports Micro SD / SDHC / SDXC
Up to 64 GB

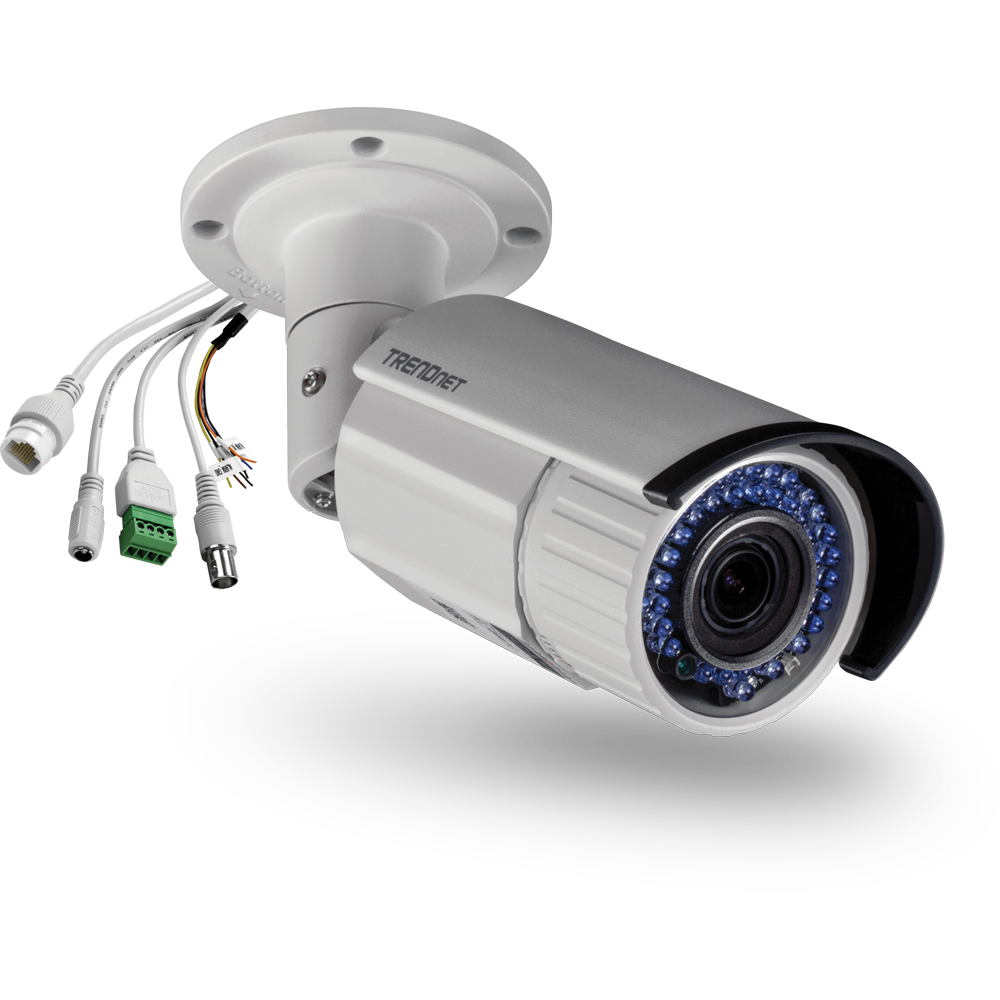

Direct cabling through the bottom or side of housing
IPv4, IPv6, UDP, TCP / IP, ONVIF, SPIA
DHCP, NTP, DDNS, SMTP, FTP, LLTD
SNMP v1-v3, QoS / DSCP, IEEE 802.1X
NFS, SMB / CIFS, Bonjour
UPnP, RTSP, RTP
Camera: 260 x 95 x 95 mm (10.2 x 3.75 x 3.75 in.)
830 g (1.14 lbs.)
-30 – 60 °C (-22 – 140 °F)
Max. 95% non-condensing
Consumption: 5.5 W max.
Power (Power adapter not included)
Input: 100 - 240 V AC , 50 / 60 Hz, 1 A
Output: 12 V DC, 1 A external power adapter (for non-PoE installations)
Multi-language support: English, French, German, Spanish and Portuguese
IP address filter
QoS traffic prioritization
Time, date, and text overlay
Image settings: brightness, contrast, hue, sharpness, D-WDR, Denoise 2D, Shutter time, sense-up, Saturation, AGC (automatic gain control), flip, mirror, 90 degree rotate, IR, day / night mode, white balance
D-WDR enhances video quality in high contrast daytime lighting
2D Digital Noise Reduction enhances night vision quality
Recording: to computer, NAS, SAMBA, or through software
Video Recording: scheduled, motion detection, sound detection, and tamper detection
Motion detection: define up to three motion detection areas and motion sensitivity
Privacy masks: define custom privacy mask up to 3 areas
Tamper detection function: email notification, FTP, alarm, SD card, or Samba server if the viewing field darkens suddenly
Network disconnection fallback: set to automatically save video to Micro SD card (sold separately) if connection to network is broken
Snapshot: real time snapshot, sound detection, and motion detection
Supported dynamic DNS services: dyn.com, no-ip.com, and iptecno.com
Management setting: maximum 21 user accounts
Supports remote management
Compatibility (PC based): Internet Explorer® 8.0 or higher
3 year limited
Quick Installation Guide
CD-ROM (Utility, Software, & User's Guide)
Camera mounting hardware
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
