7-Port Industrial Gigabit PoE++ DIN-Rail Switch

TI-UPG62 (Version V3)

  • 4 x Gigabit PoE++ ports
  • 1 x Gigabit port
  • 2 x Gigabit SFP slots
  • Up to 240W PoE power budget
  • Hardened IP30 rated metal switch
  • Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
  • Dual inputs provide redundant power with overload current protection
  • Alarm relay triggered by power failure
  • 14Gbps switching capacity
  • Includes DIN-Rail mount and wall-mount brackets
  • Power supply sold separately (model: TI-S24048, TI-S48048)
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Coming Soon

TRENDnet’s 7-Port Industrial Gigabit PoE++ DIN-Rail Switch, model TI-UPG62, features a rugged IP50 rated metal enclosure for industrial environments. This industrial unmanaged PoE++ switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures within -40° – 75° C (-40° – 167° F). Redundant power inputs with power failure alarm relay and overload current protection minimize network downtime.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Gigabit PoE++ Switch by delivering up to 95W** per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE++ switch. Utilize TRENDnet's industrial PoE++ switch to easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

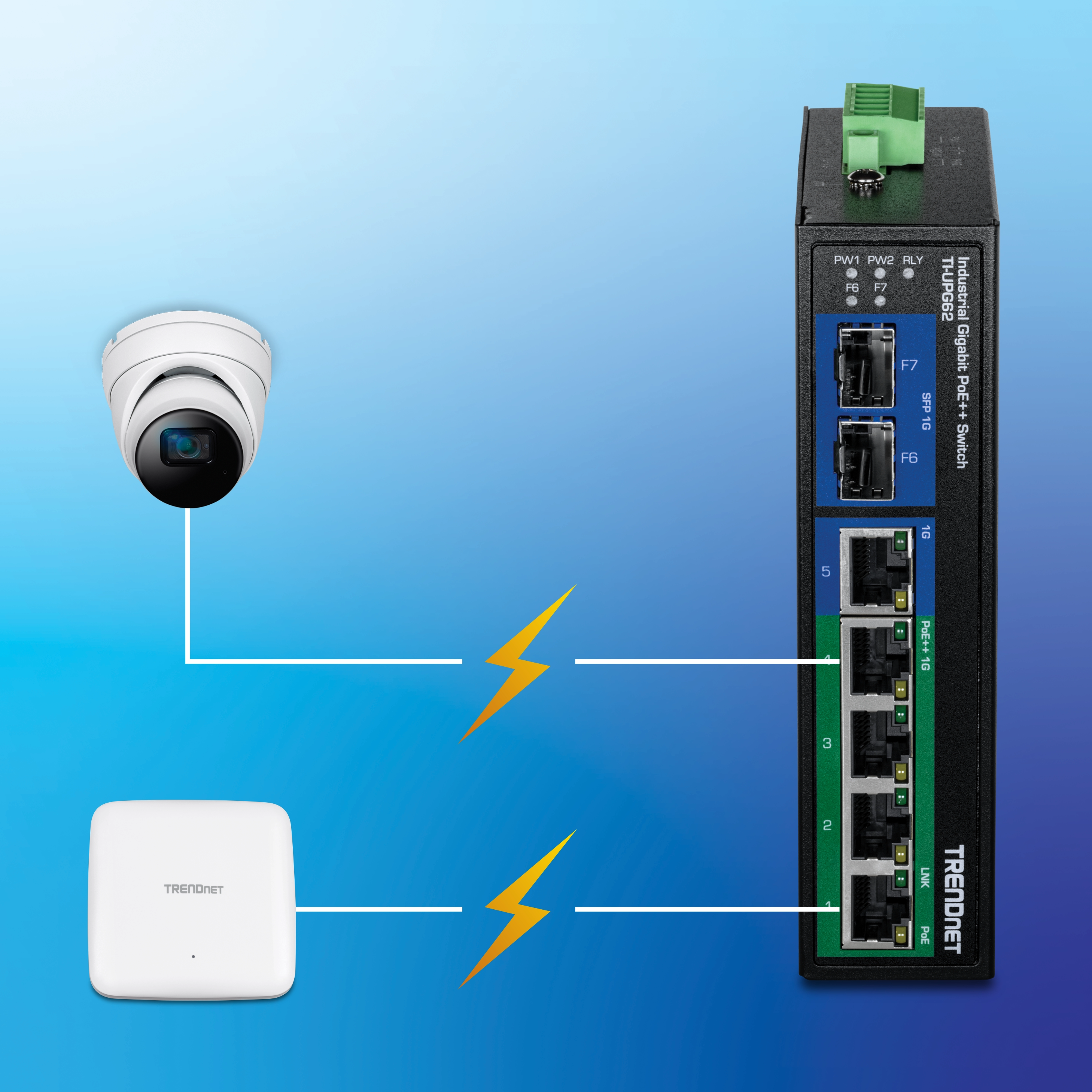

Network setup featuring a TRENDnet Industrial Gigabit PoE+ Switch connected to a security camera and a wireless access point using yellow lines with lightning bolt icons to indicate Power over Ethernet connections. The switch includes multiple Ethernet ports, with some ports highlighted in blue and green to suggest varied functionalities. LED indicators labeled PWR1, PWR2, ALM, and RLY are visible, representing power and alarm status for industrial network monitoring.

PoE++ Power

Maximum 240W PoE++ power budget supplies power with up to 95W per port.

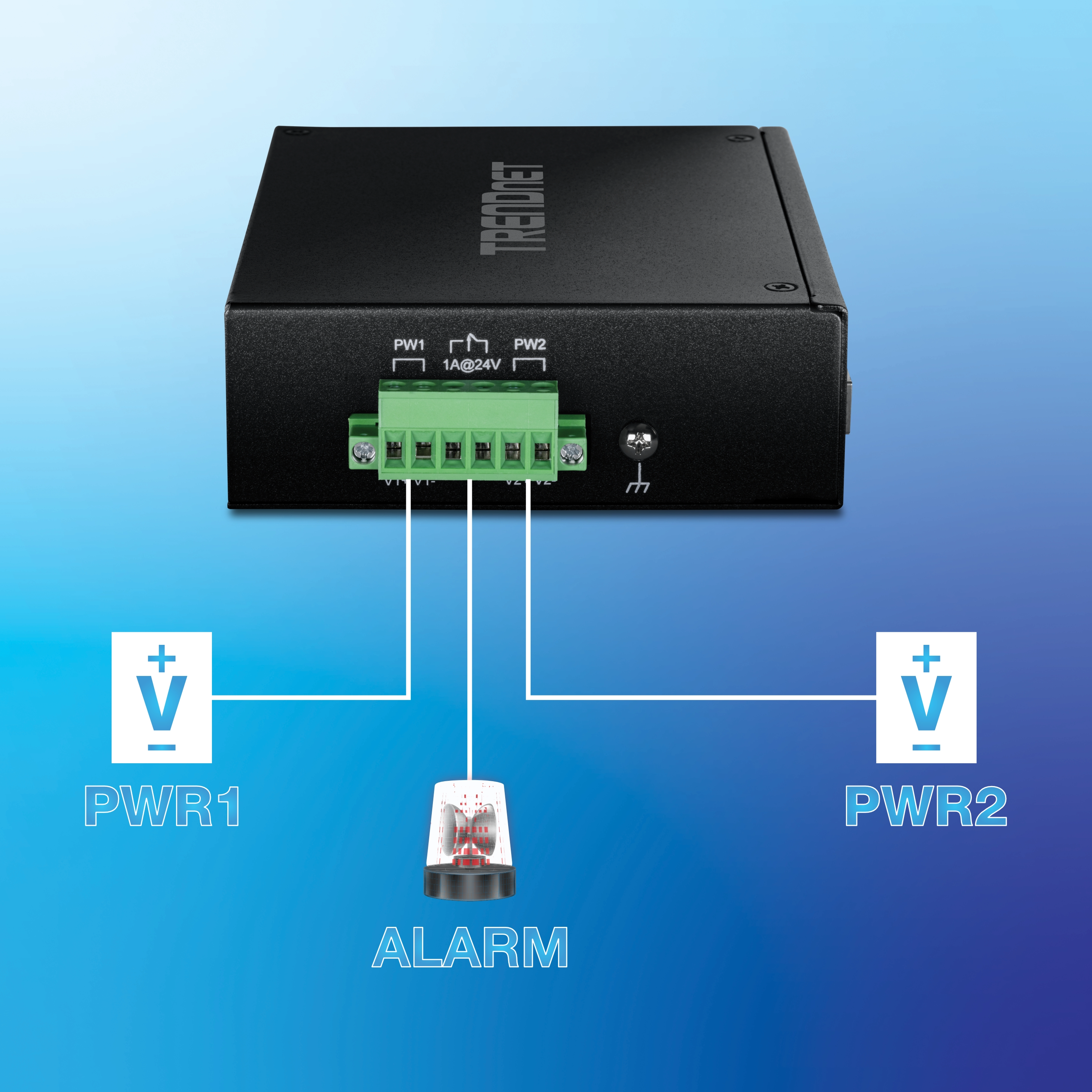

TRENDnet industrial device showing a terminal block with six green screw terminals labeled for dual power inputs and alarm connection. Terminals are marked PWR1 with positive and negative voltage, ALARM with two central connectors, and PWR2 with positive and negative voltage. Visual indicators show wiring paths for connecting power sources and an alarm system, illustrating redundancy and monitoring setup.

Fault Tolerance

Features redundant power inputs from external power sources, and an output alarm relay to indicate an input power failure.

Four quadrants display device features with icons for vibration resistance, temperature tolerance, electrical protection, and IP50 dust protection, each marked with a check to indicate compliance.

Industrial Hardened Design

Rugged IP50 rated housing with a high degree of vibration and shock resistance, and an operating temperature range of -40° – 75° C (-40° – 167° F).

TRENDnet industrial switch model TI-UPG62 mounted on a DIN rail, showing labeled components including grounding point, LED indicators, two Gigabit SFP ports, one Gigabit port, four Gigabit PoE++ ports, and a six-pin removable terminal block. The lower section illustrates the switch deployed in a parking lot environment, housed in a protective enclosure and connected to a power supply. It powers a PoE access point, PoE-enabled monitor bracket, PoE surveillance camera, and a car charging station, demonstrating its role in outdoor network infrastructure and multi-device connectivity.

PoE++ Power

Up to 95W of power per port and data over a single Ethernet cable to PoE devices with a maximum 240W PoE budget

Network Ports

Four gigabit PoE++ ports, one gigabit port, and two gigabit SFP ports

Easy Installation

No configuration needed, simply connect PoE++ network devices to the industrial unmanaged PoE++ switch

IP50 Rated

This industrial switch is IP50 rated for ingress dust protection

Fault Tolerance

Features redundant power inputs from external power sources, and an output alarm relay to indicate an input power failure – power supply sold separately (model: TI-S24048, TI-S48048)

Extreme Temperature Range

An extreme operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with intense hot or cold conditions

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

DIN-Rail / Wall Mounts

The rugged PoE++ switch includes DIN-Rail mount and wall-mount hardware

Grounding Point

The industrial unmanaged PoE++ switch features a grounding point to protect equipment from external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
Device Interface
  • 4 x Gigabit PoE++ ports (10/100/1000Mbps)
  • 1 x Gigabit port (10/100/1000Mbps)
  • 2 x Gigabit SFP ports (1000Mbps)
  • 6-pin removable terminal block
  • LED indicators
Performance
  • Data RAM Buffer: 256KB
  • Switching Fabric: 14Gbps
  • MAC Address Table: 4K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 10.416Mpps (64-byte packet size)
DC Power
  • Input: 52 - 56V DC
  • Compatible power supply: TI-S24048 (sold separately)
  • Max. consumption: 4.48W @ 56V DC (no PD)
PoE
  • 802.3af PoE: up to 15.4W per port
  • 802.3at PoE+: up to 30W per port
  • 802.3bt PoE++: up to 95W per port
  • Power budget: 240W
  • Pins 1, 2, 7, 8 for power - and 3, 6, 4 5 for power +
Terminal Block
  • 6-pin terminal block
  • Alarm Relay: 1A @ 24V DC
  • Wire range: 2.5mm2
  • Solid wire (AWG): 12-24
  • Stranded wire (AWG): 12-24
  • Torque: 5 lb. – In / 0.5Nm (North America) / 0.56 Nm (EU)
  • Wire strip length: 7-8mm
MTBF
  • 1,285,091 hours @ 25°C
Housing
  • IP50 metal case
  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • 6KV ESD protection
  • 2kV Surge protection
Operating Temperature
  • - 40° – 75° C (-40 – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 142 x 105 x 36.2mm (5.6 x 4.13 x 1.42 in.)
Weight
  • 300g (10.6 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty

PACKAGE CONTENTS
  • TI-UPG62
  • Quick Installation Guide
  • Removable terminal block
  • DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
